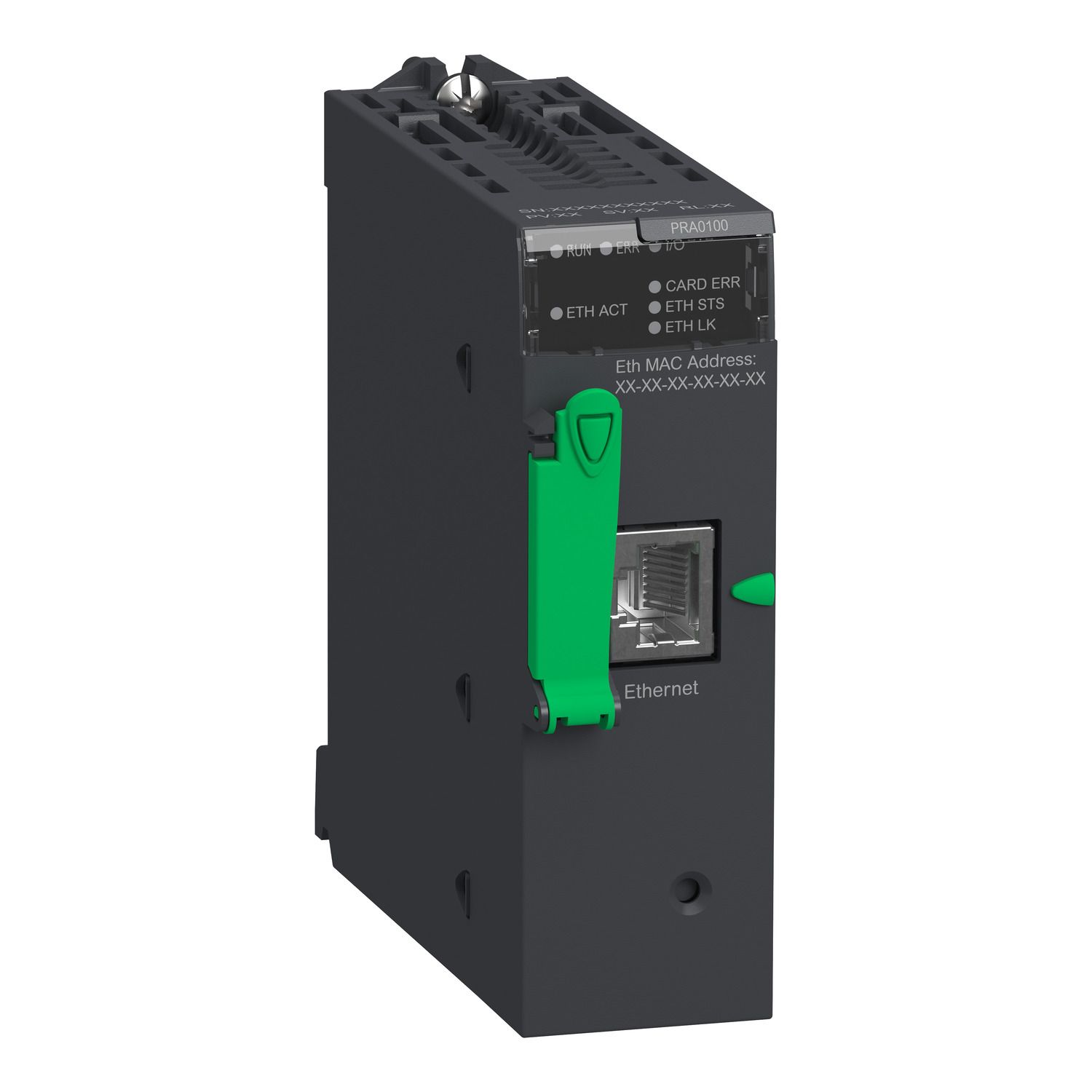

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

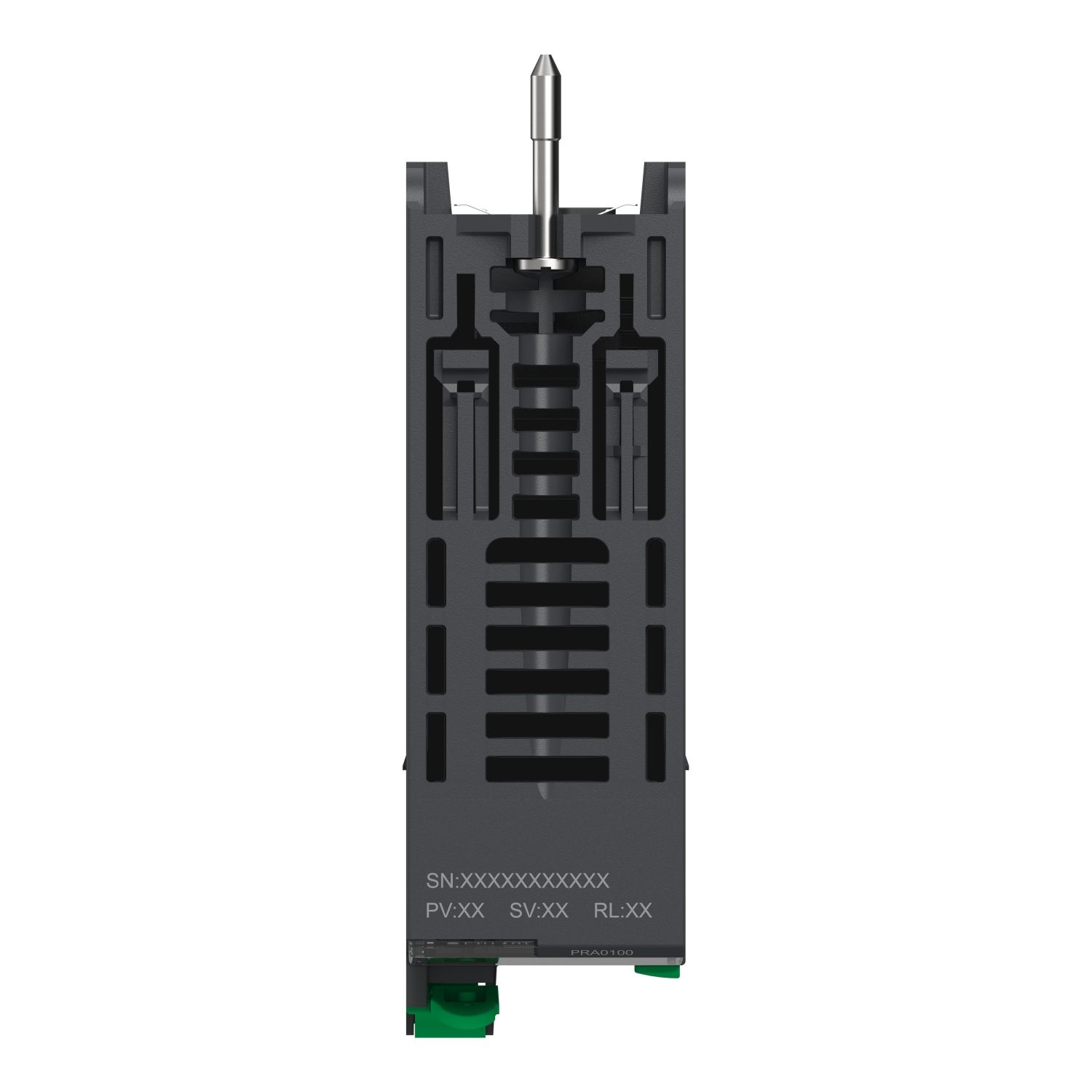

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

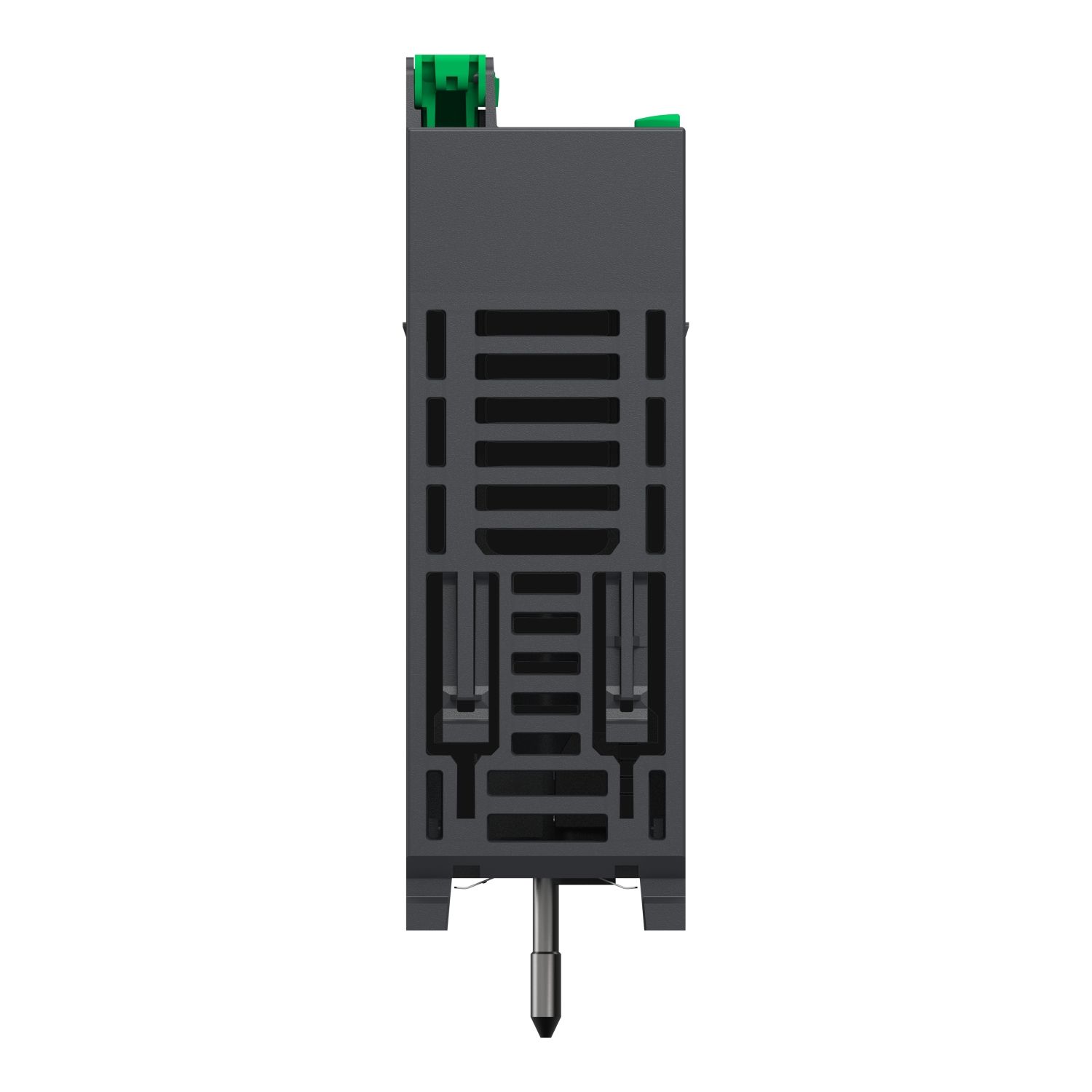

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

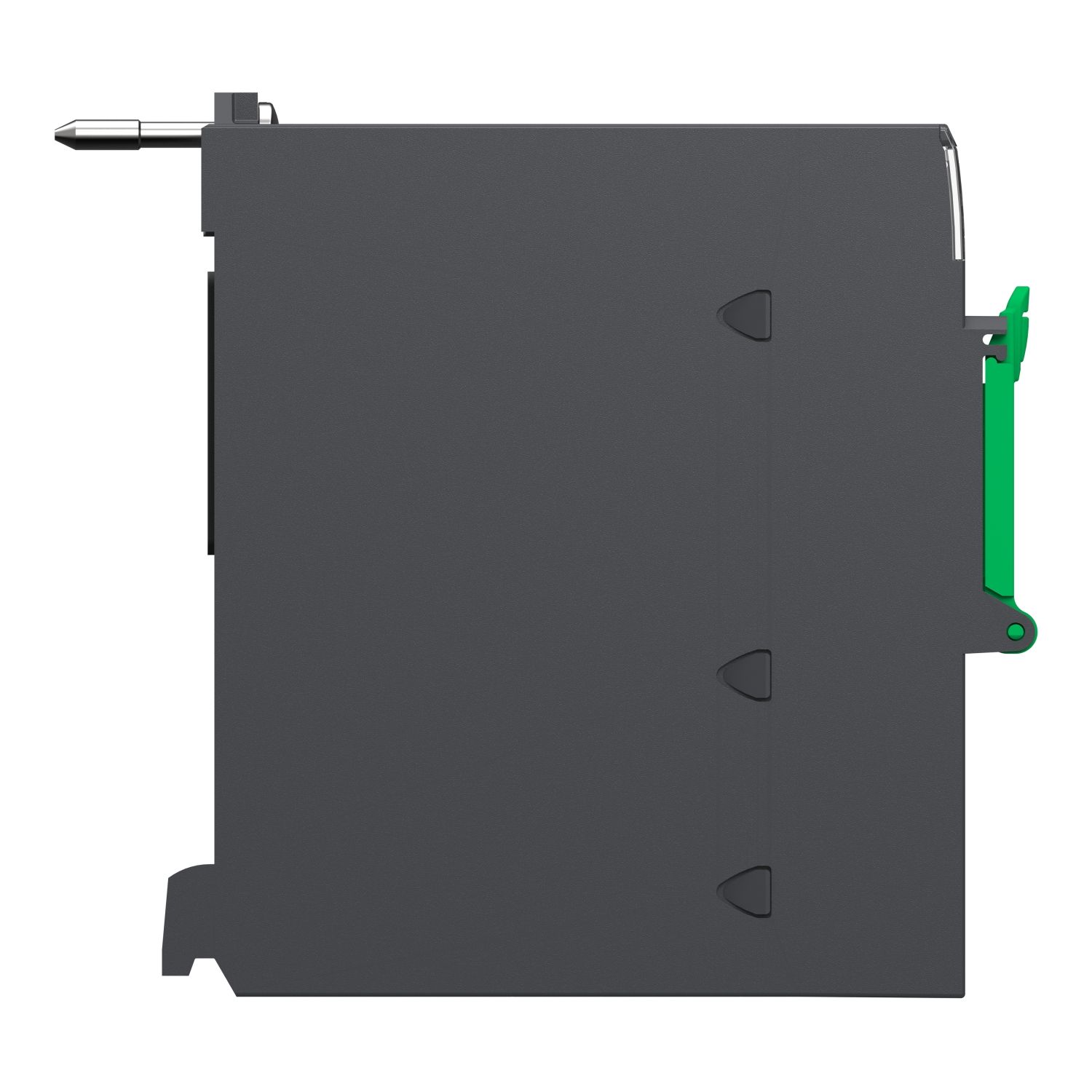

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

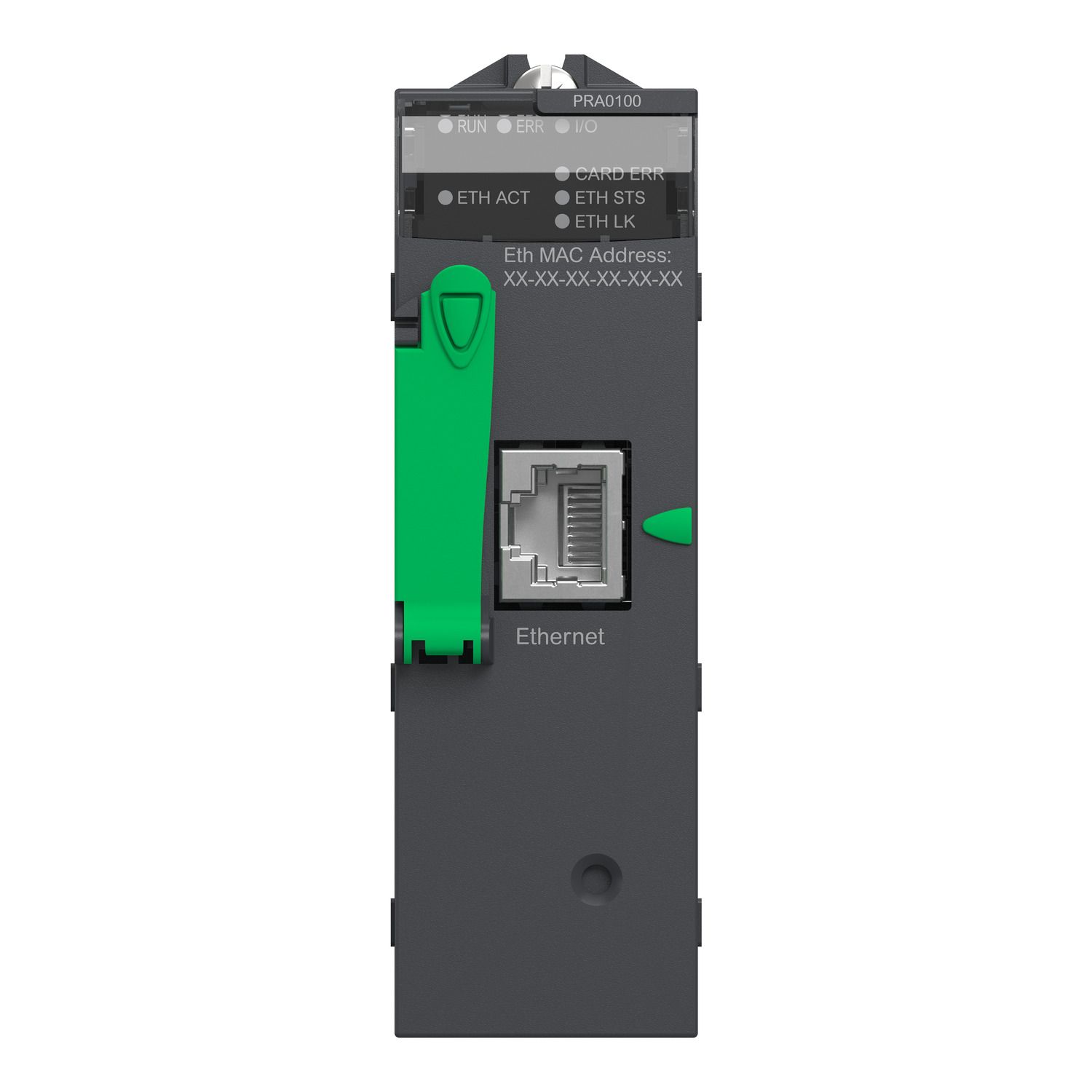

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

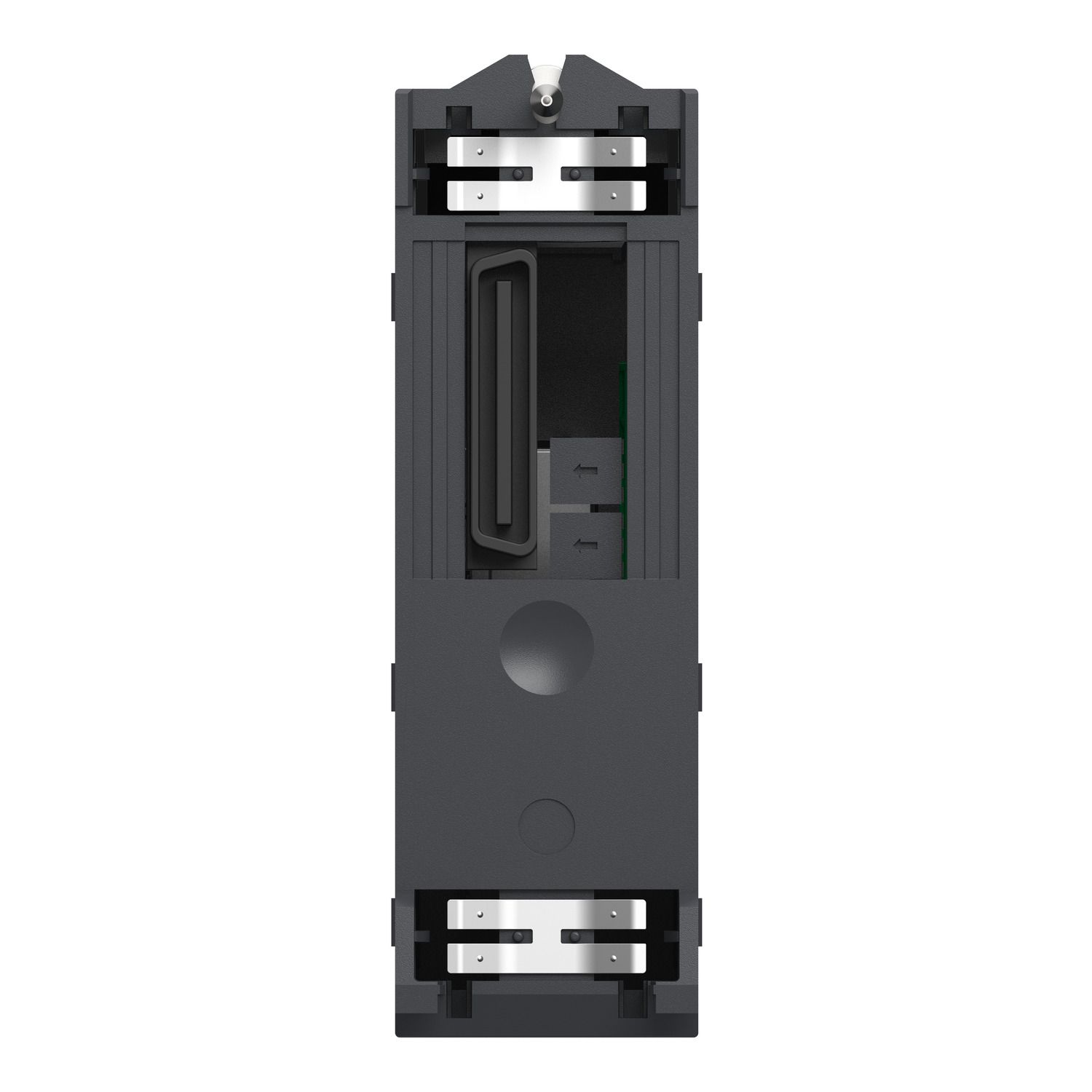

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

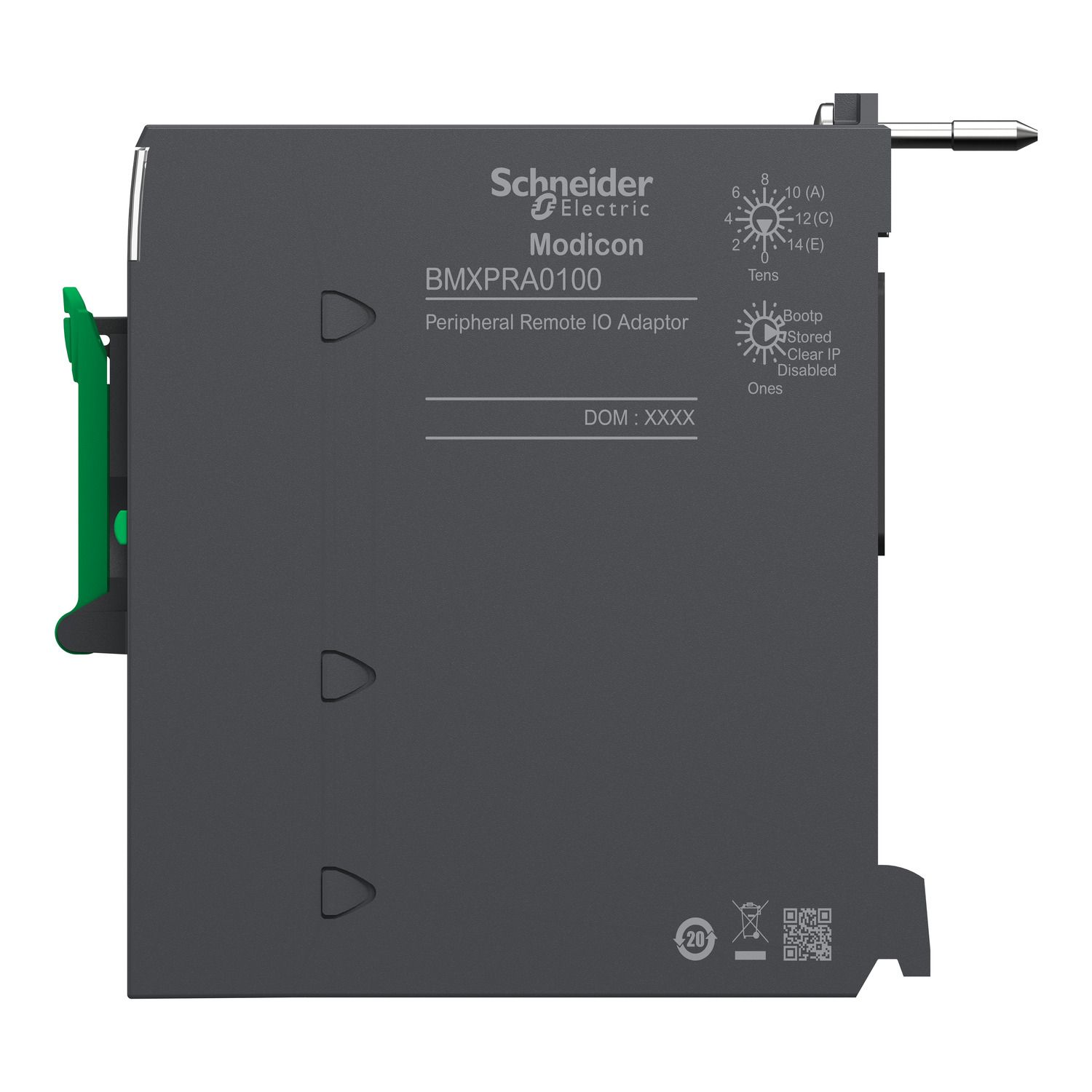

Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet
Picture of peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet
SKU:

BMXPRA0100

peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

$3,435.74 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Circularity Profile
Declaration of conformity
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product or component type peripheral remote I/O adaptor
Range of product Modicon X80
Complementary
Maximum altitude transport 3000 m
Module format standard
Realtime clock with
Local signalling 1 LED (green) for Ethernet network status (link), 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (red) for external fault (I/O), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN)
Relative humidity 95-95 % without condensation
Power dissipation in W 2.3 W
Integrated connection type Ethernet/IP for device network
Number of port 1
Communication port protocol Modbus TCP
Average consumption in mA 95 mA
Memory capacity 96 kB removable, 448 kB internal
Application structure 1 master task
Marking CE
Product compatibility 0-2 Ethernet module, 0-256 analog I/O module, 0-1024 discrete I/O module
Environment
Operating altitude <= 2000 m
IP degree of protection IP20
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 244.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.000 kg
