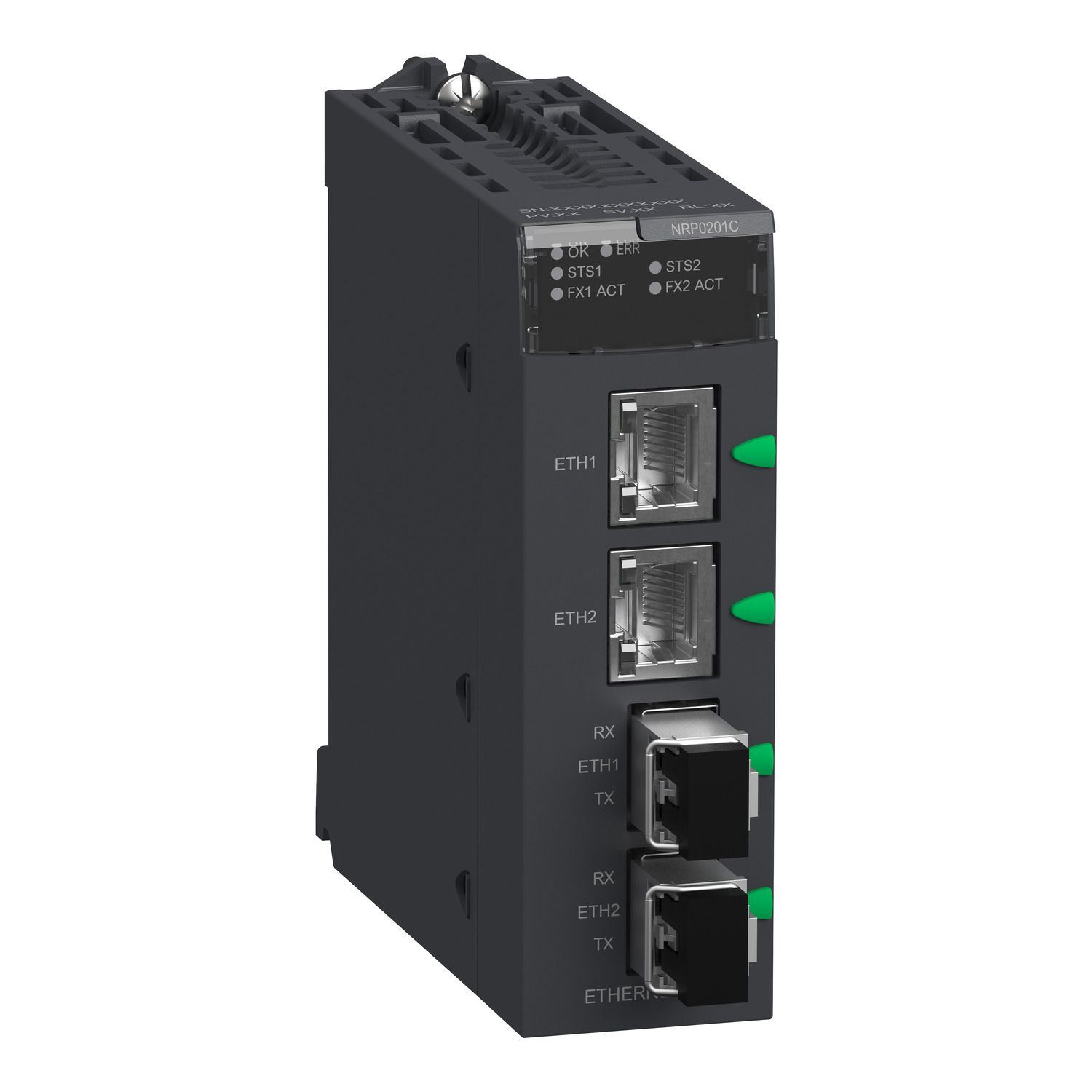

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

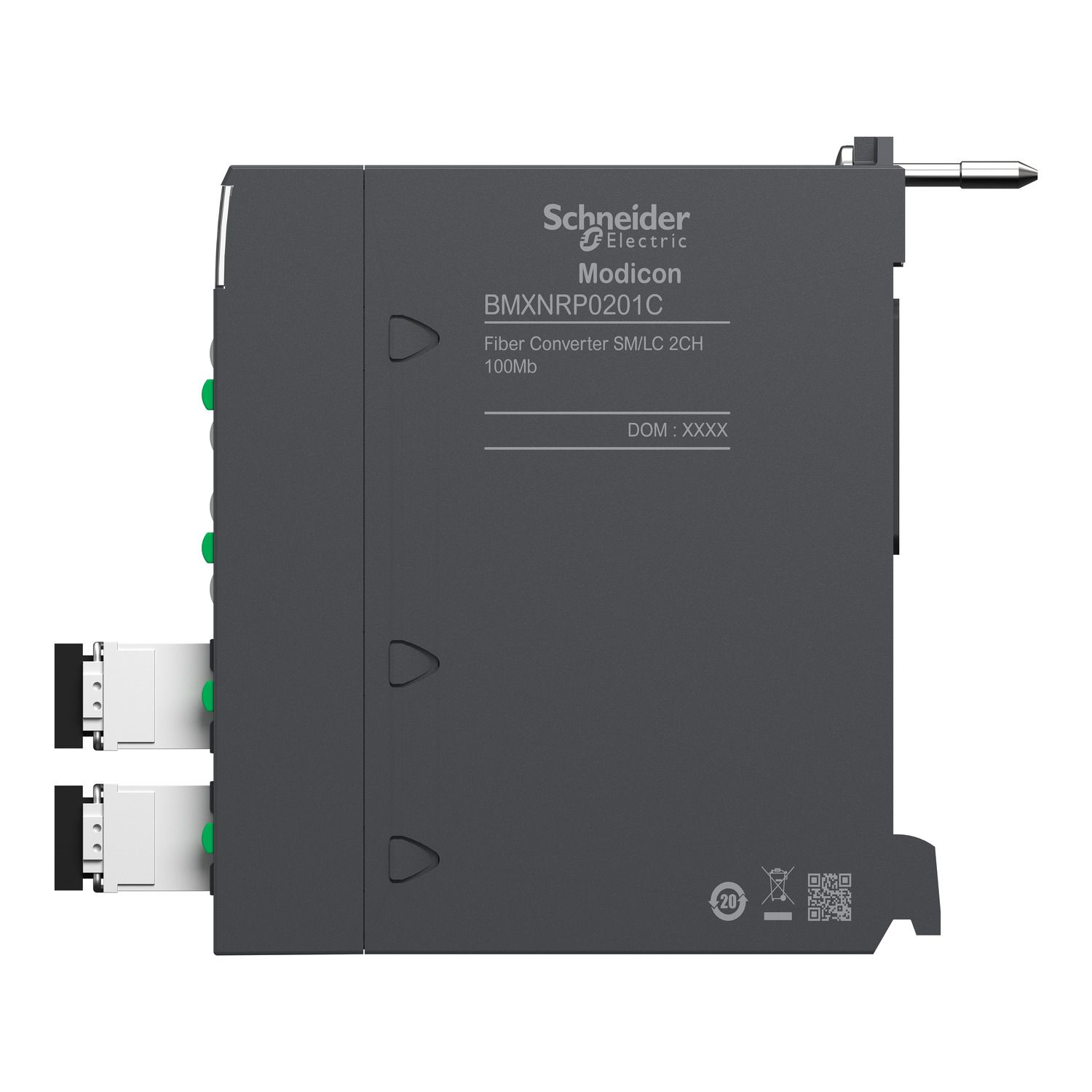

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

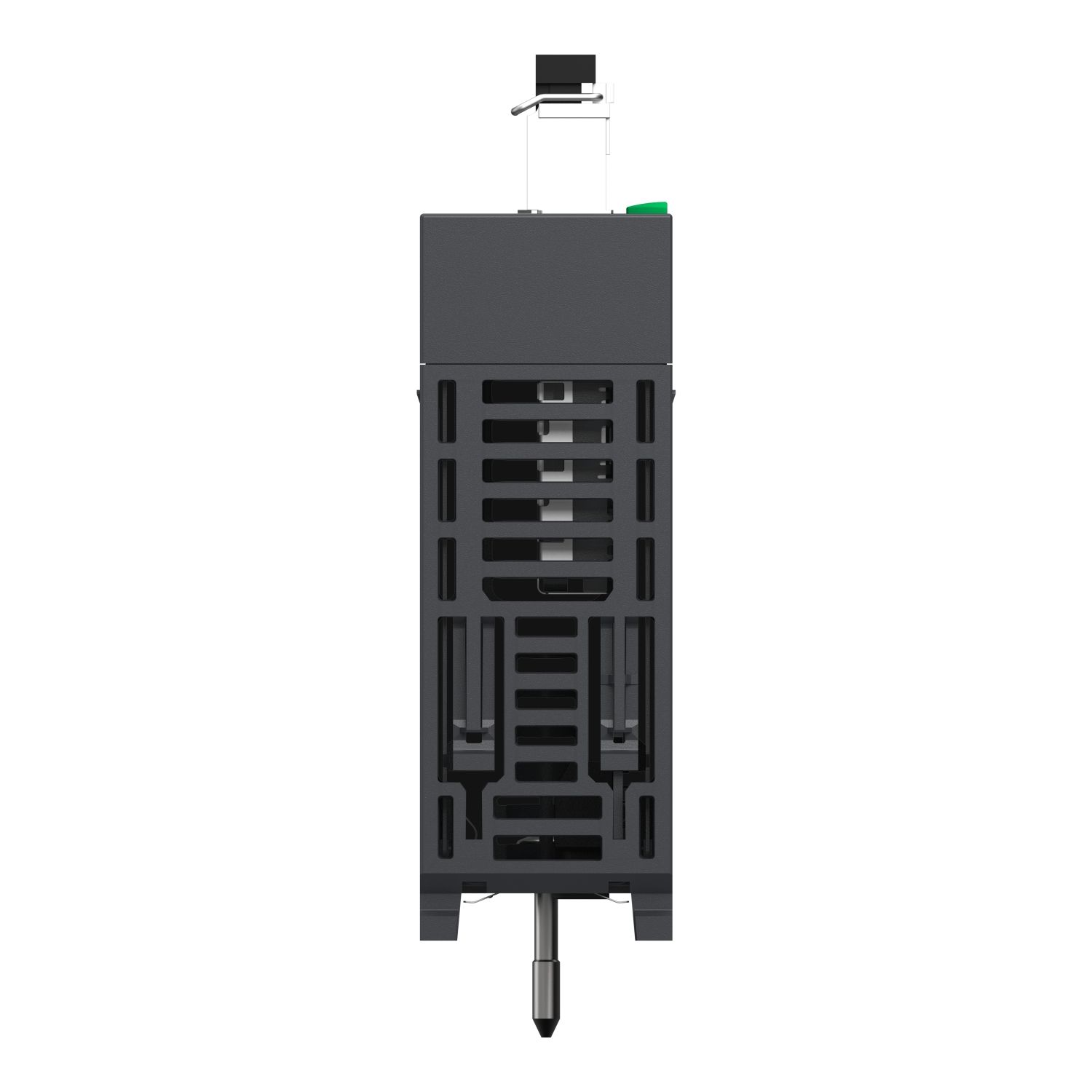

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

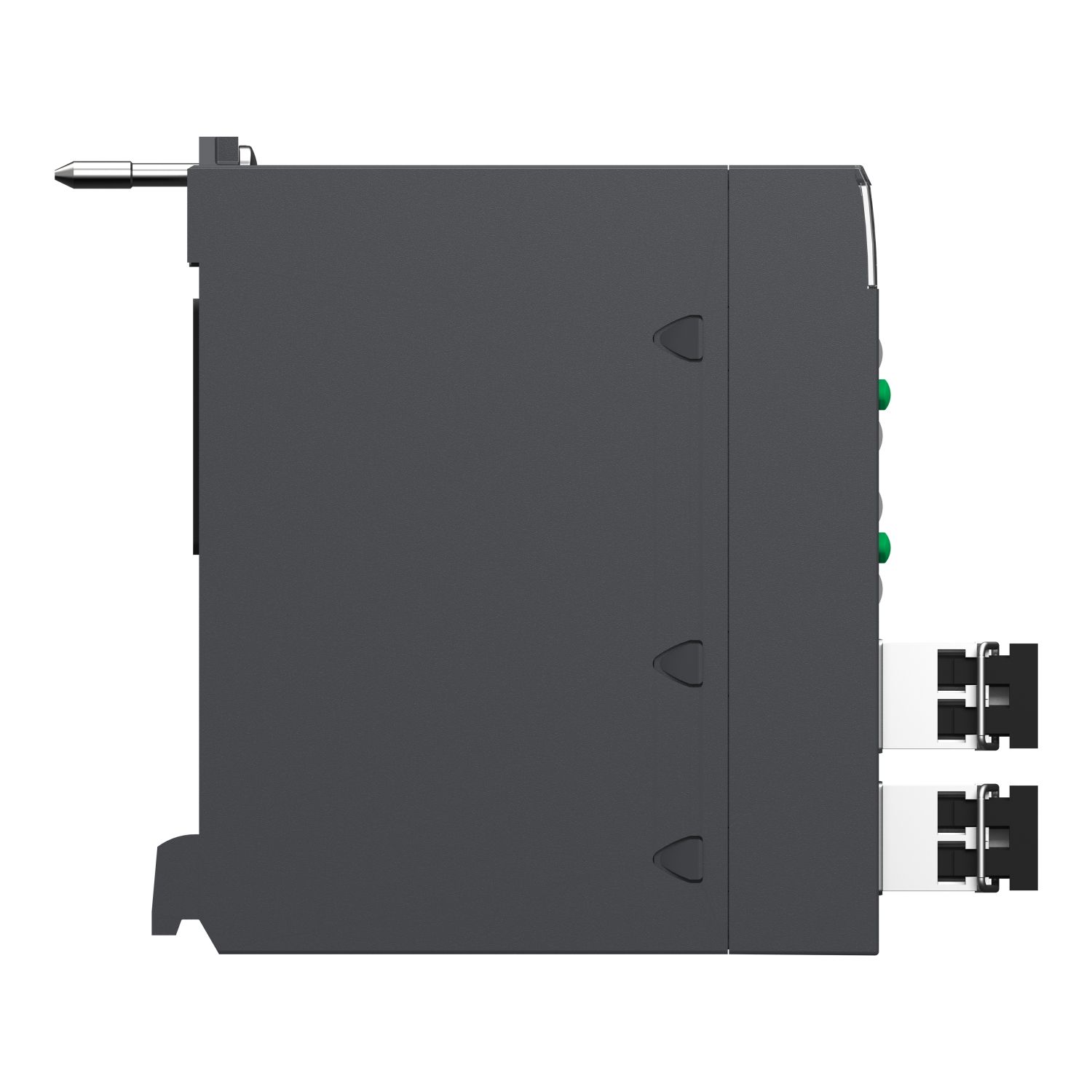

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

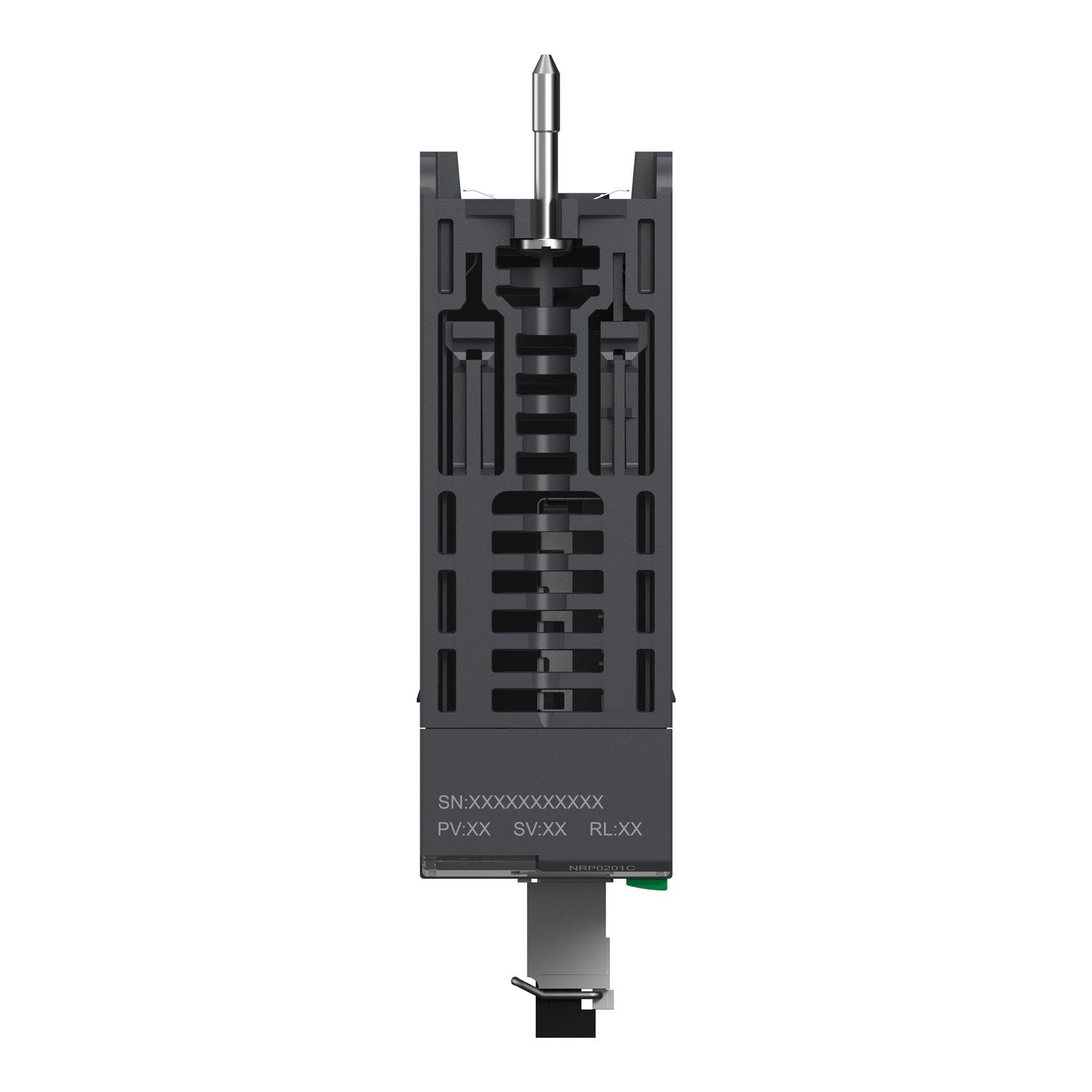

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

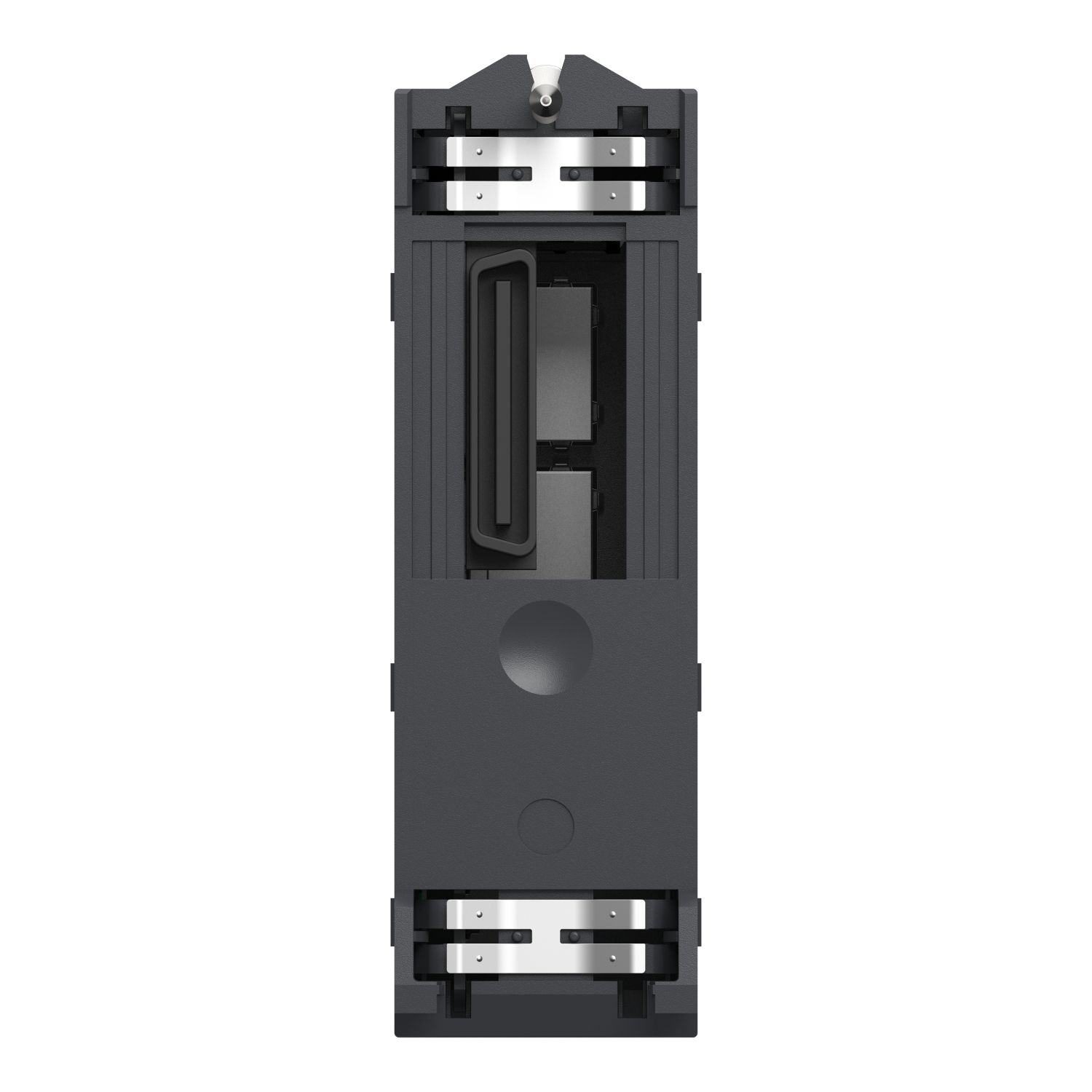

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

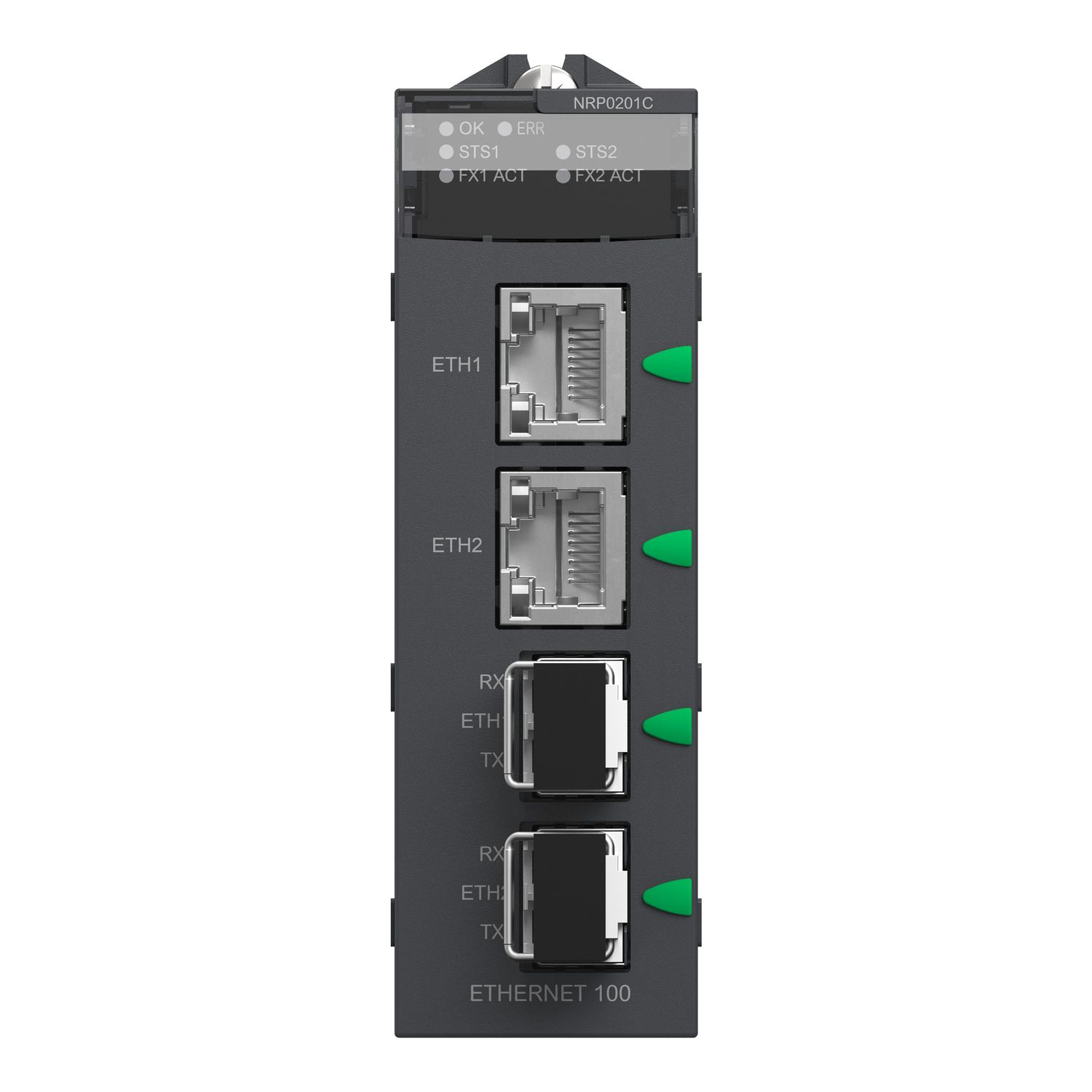

Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment
Picture of fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment
SKU:

BMXNRP0201C

fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment

$2,325.07 INC GST
Available for Shipping : 03-Feb-2026
Product Selector
fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Circularity Profile
Declaration of conformity
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This fiber converter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This fiber optic repeater is equipped with 2 RJ45 EtherNet ports and 2 fiber optic Ethernet ports. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a grey color, a weight of 0.203kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon X80
Optic fiber type single mode
Product or component type fibre optic repeater
Complementary
Wavelength 1310 nm
Function available hot swap
Attenuation -15--8 dB (9/125 µm)
Marking CE
Height 100 mm
Receiver sensitivity - 31...- 8 dBm
Number of port 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u, 2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u
Rated voltage 24 V
Depth 86 mm
Width 32 mm
Local signalling 2 LEDs (green) for fiber port state and activity, 2 LEDs (green) for link status, 1 LED (red) for error condition (ERR), 1 LED (green) for power supply status
Net weight 203 g
Operating distance 0...15000 m
Rise/fall time 2.5 ns
Current consumption 200 mA maximum, 140 mA typical
Environment
IP degree of protection IP20
Protective treatment conformal coating
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Relative humidity 0-95 %
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-60 °C
Operating altitude 0...4000 m
Dielectric strength 500 V DC between channels, 1400 V DC between field and bus
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 256.000 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.859 kg
