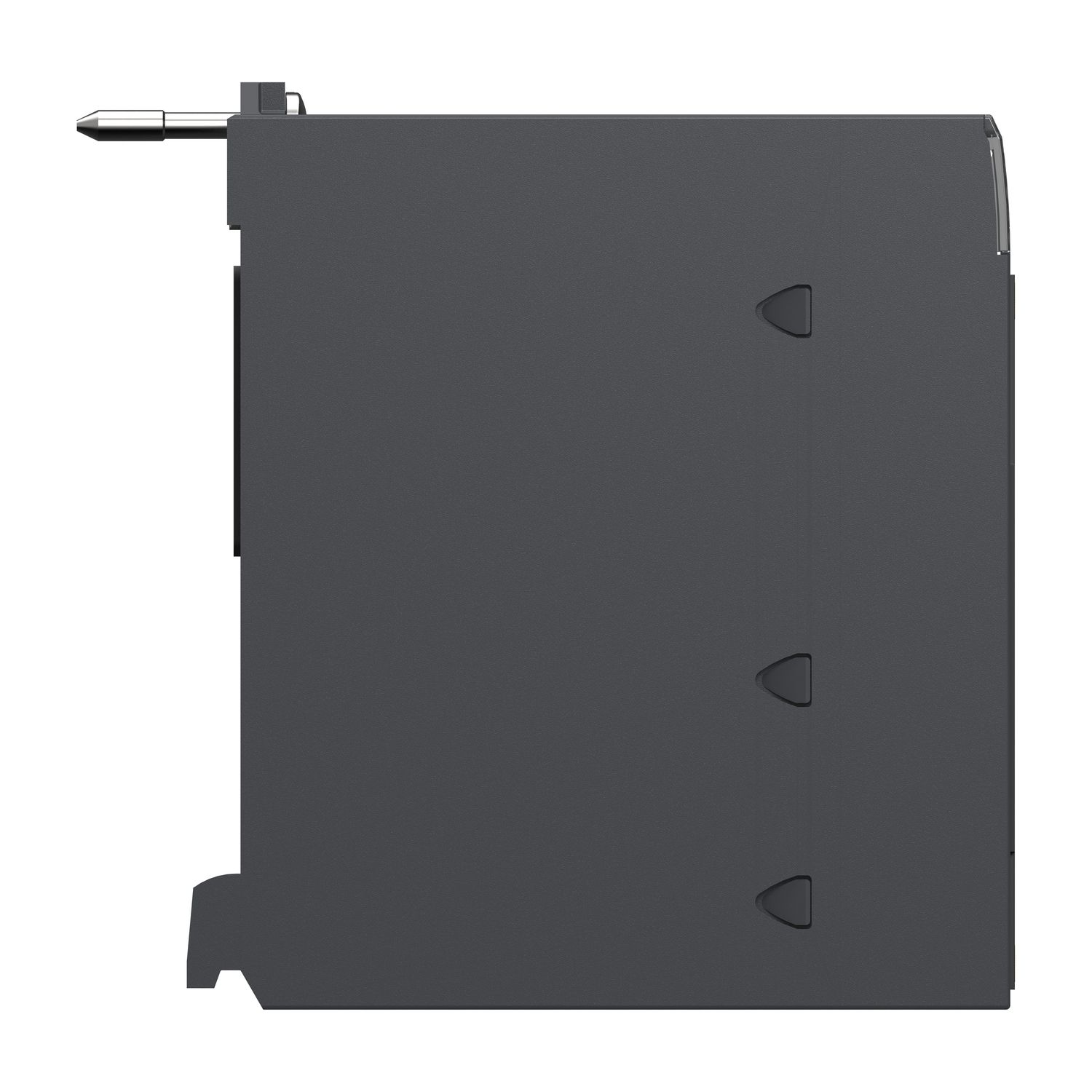

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

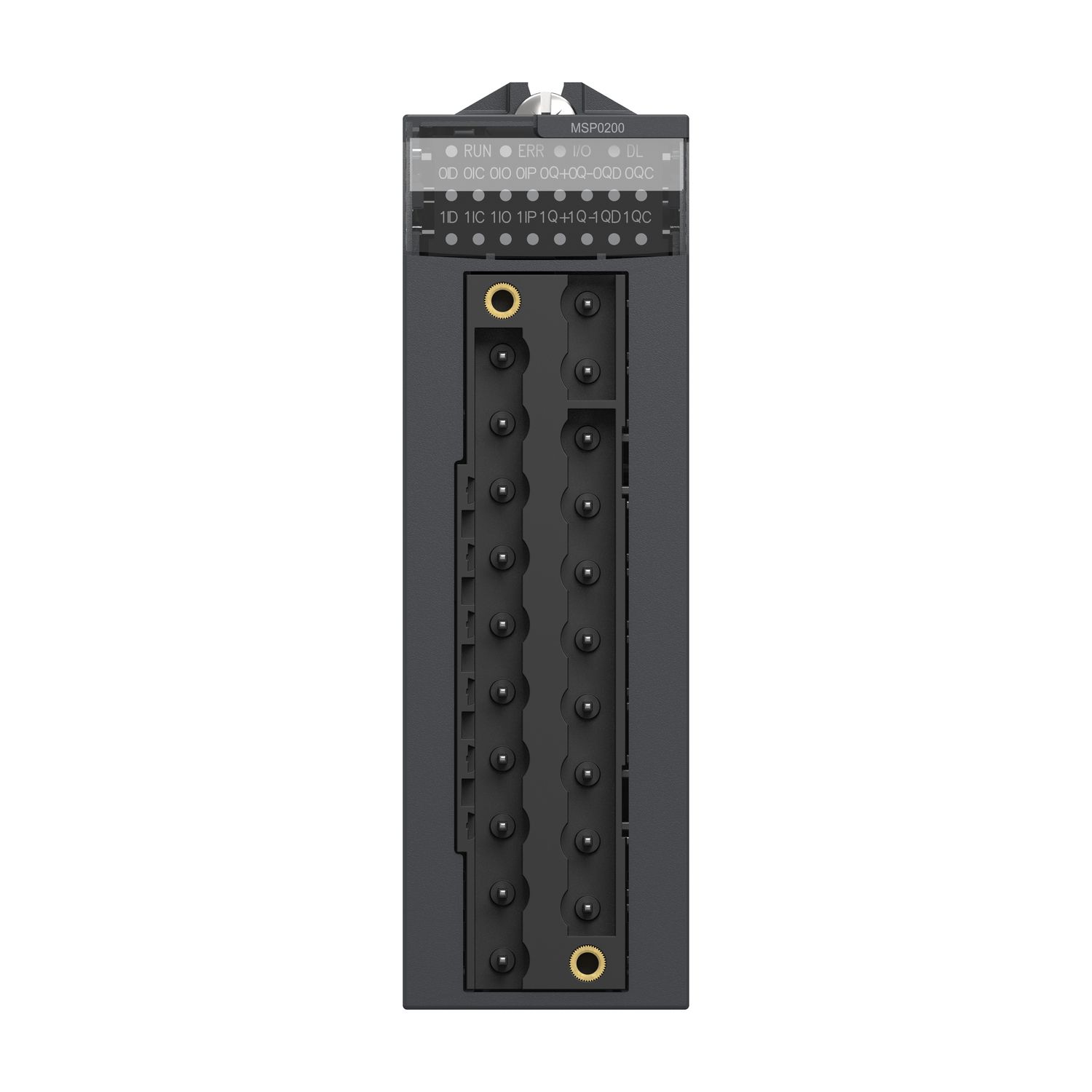

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

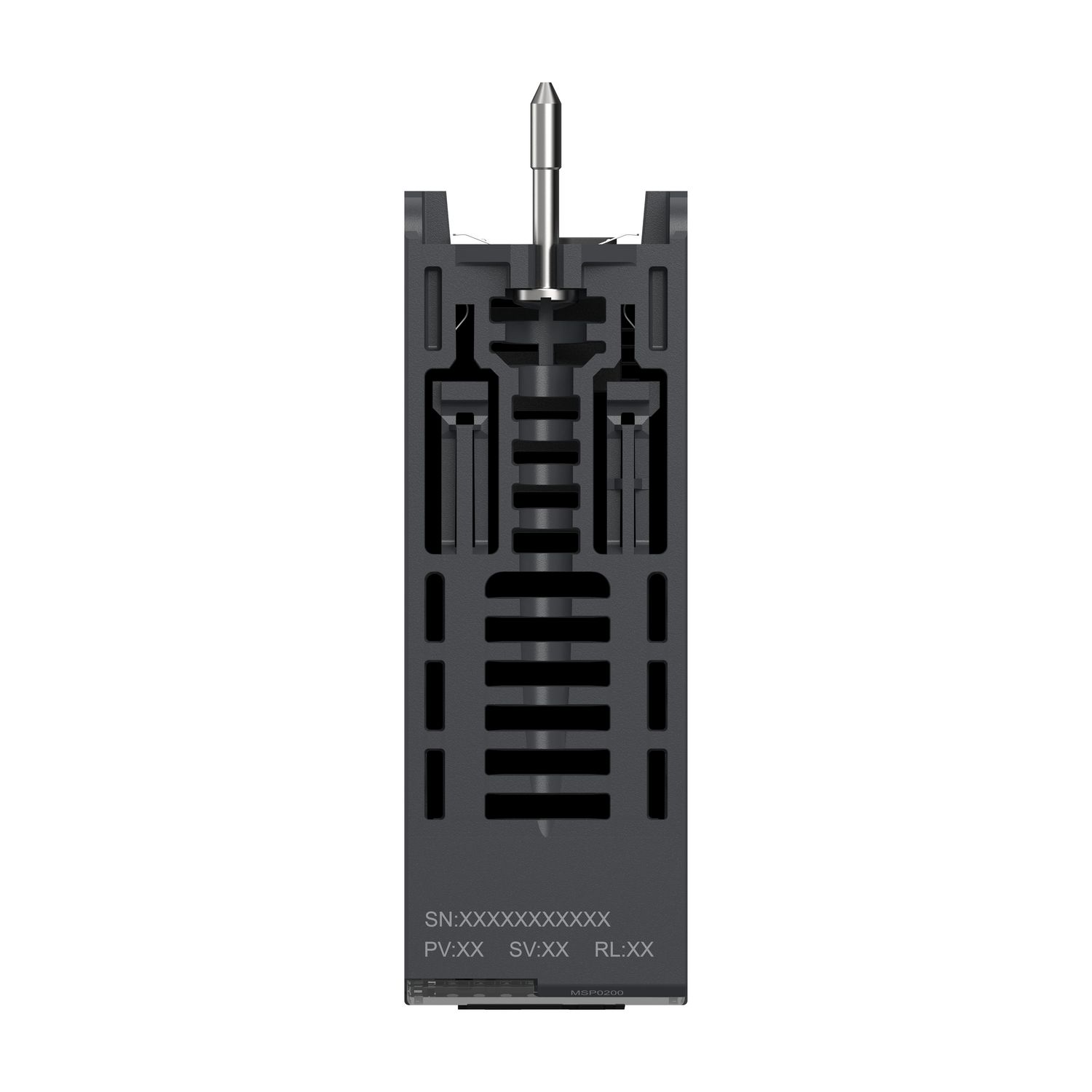

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

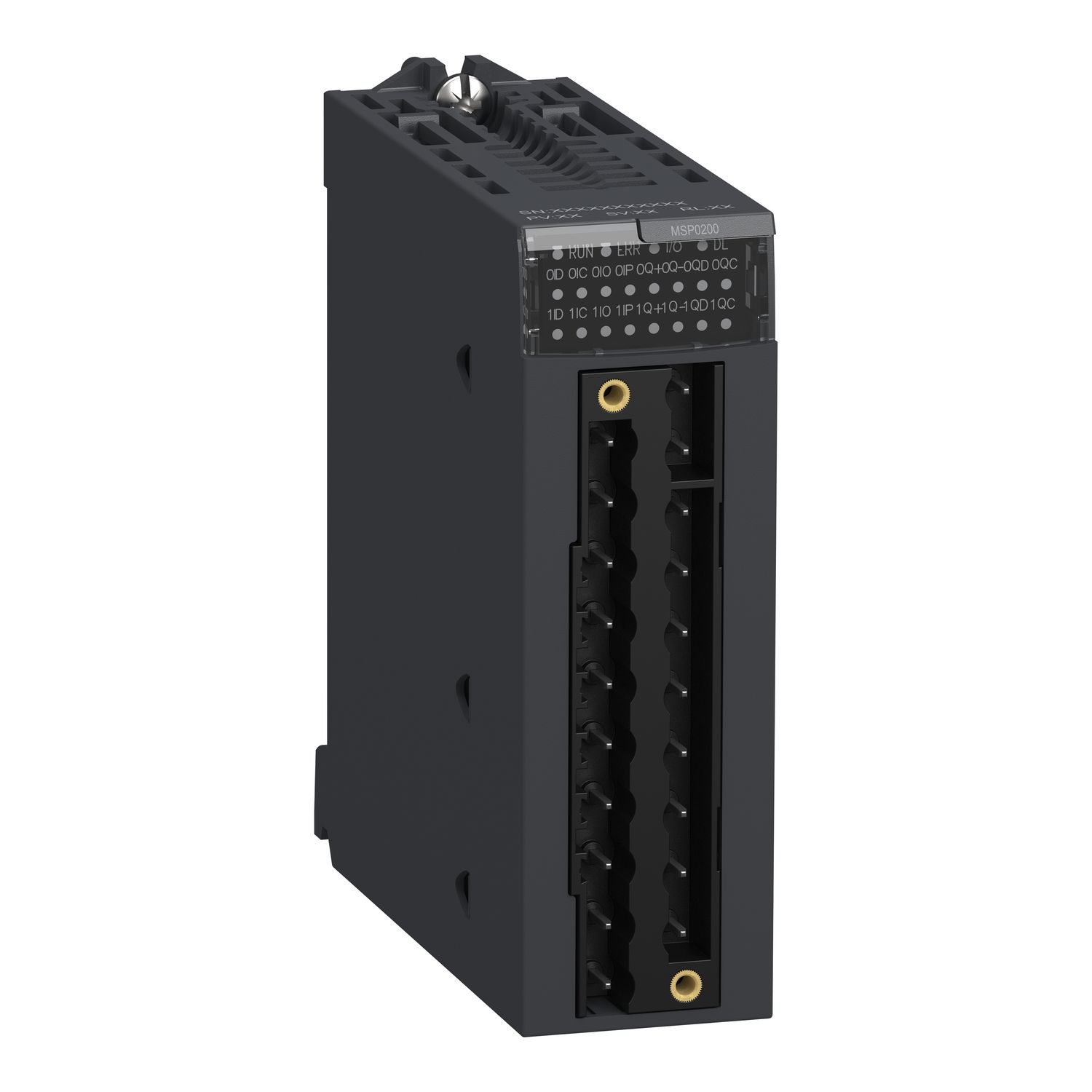

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

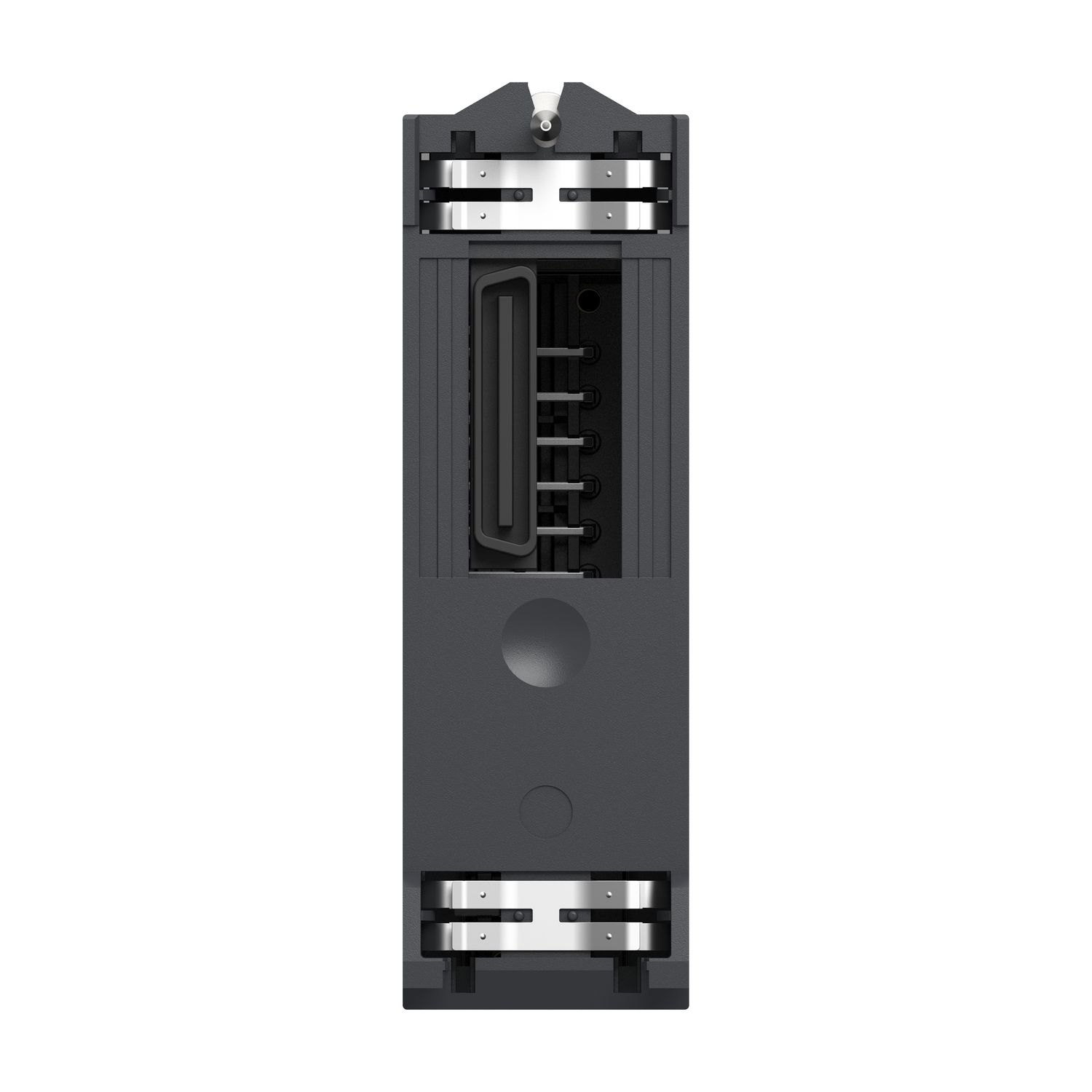

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

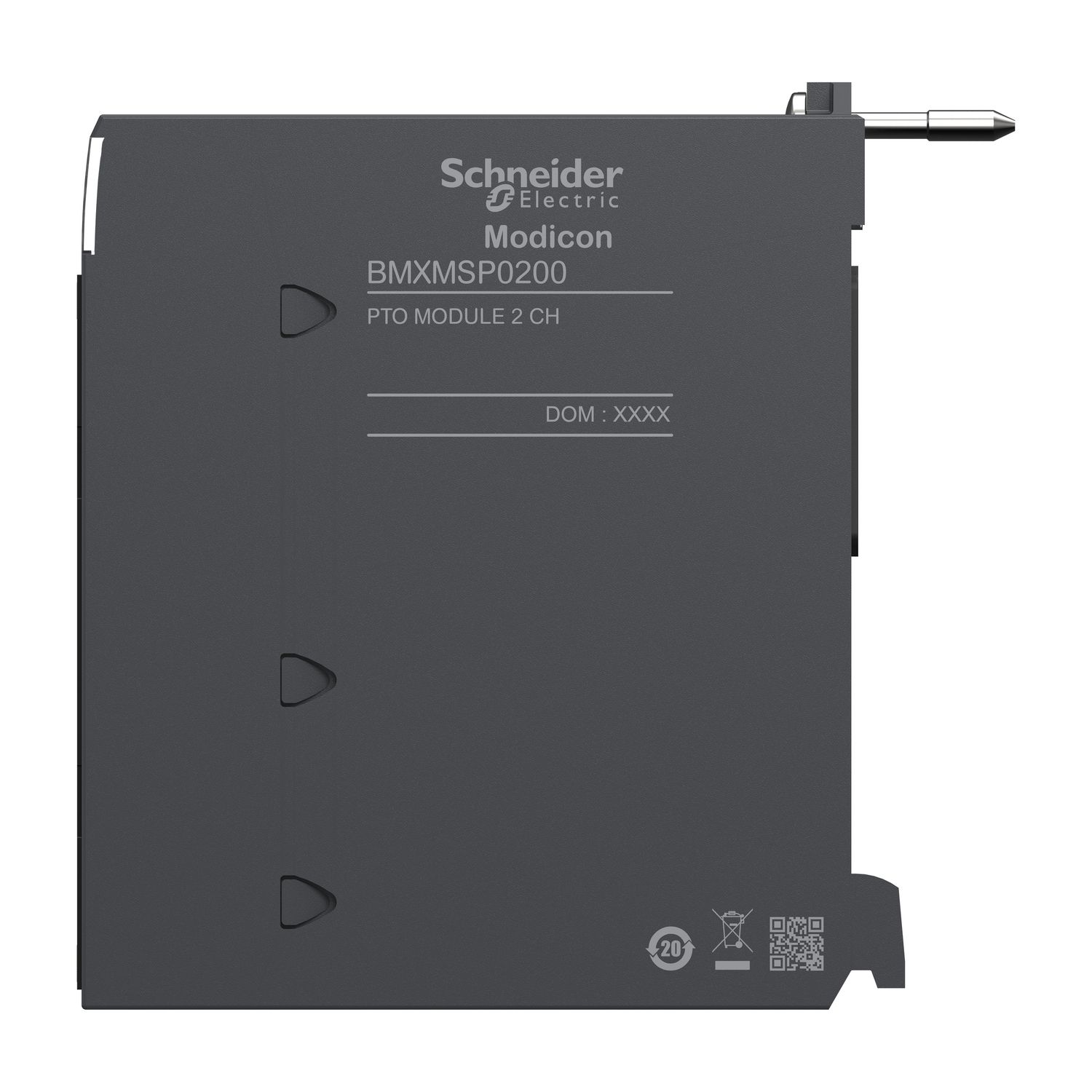

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

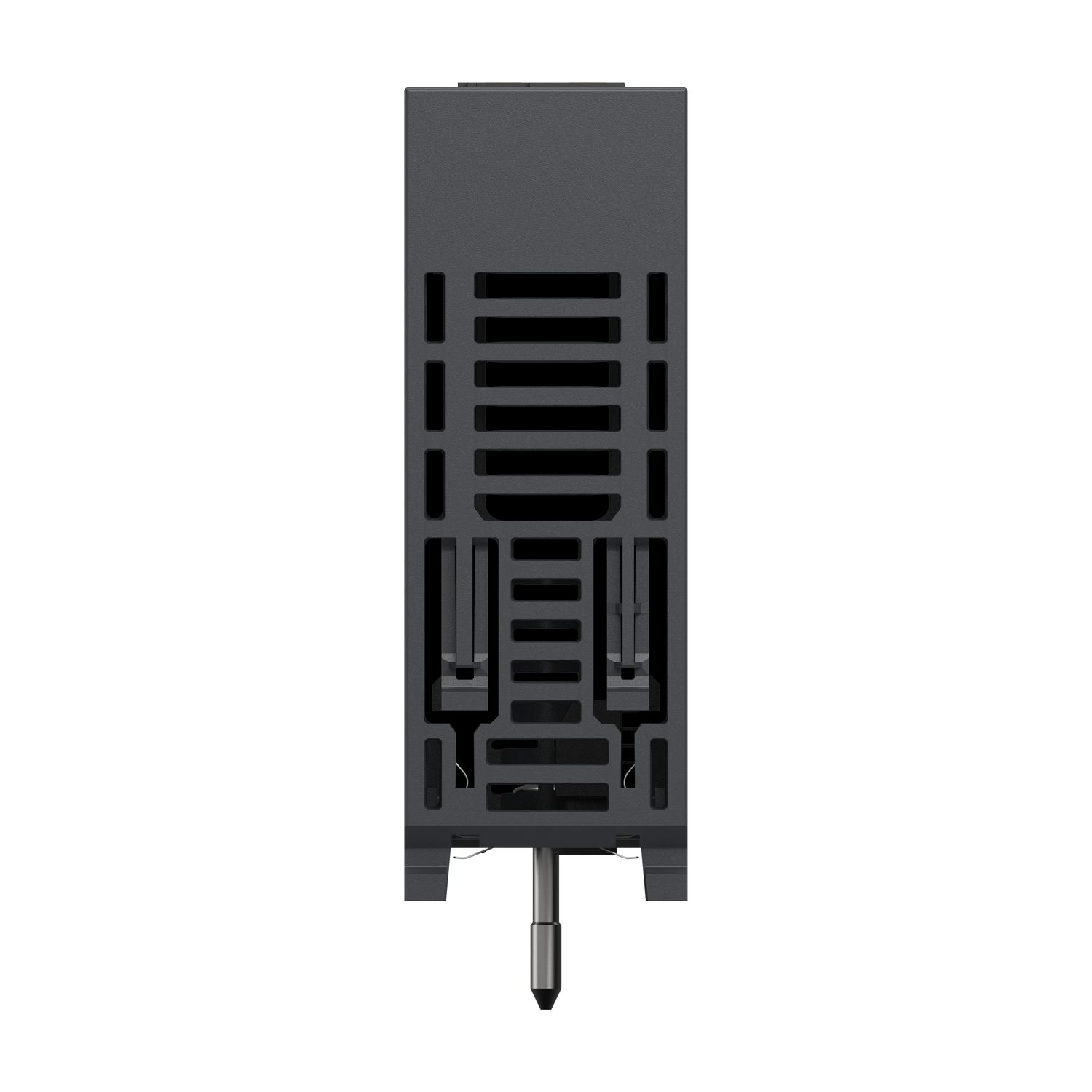

Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
Picture of PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
SKU:

BMXMSP0200

PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

$2,919.62 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
CAD
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete input type current sink or source drive ready, emergency input conforming to IEC 61131-2 type 3, current sink or source counter in position input conforming to IEC 61131-2 type 3, current sink yes proximity input and limit switch input conforming to IEC 61131-2 type 3, current sink yes origin input conforming to IEC 61131-2 type 3
Number of channels 2
Input compatibility 2-wire/3-wire proximity sensor 19.2-30 V conforming to IEC 947-5-2
Output frequency 200 kHz <10 m with the RS422 compatible circuits, 100 kHz <5 m with the normal source input circuit, 200 kHz <0.5 m with USIC and VW3M8210R05
Product or component type PTO module
Output compatibility source input, 5 V to 24 V, RS422, 7 mA input, signal converter (USIC)
Number of inputs 4
Range of product Modicon X80
Complementary
Voltage state 1 guaranteed >= 11 V
Response time on output 1.2...1.5 ms on disappearance, 1.2...1.5 ms on appearance
Preactuator voltage detection threshold > 14 V no error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, < 8 V no error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output
Maximum leakage current 0.05 mA at state 0
[Ures] residual voltage 0.15 V at state 1
Reverse polarity protection integrated on input, by reverse mounting diode on output
Module format standard
Output voltage 24 V DC
Output overload protection by current limiter and electronic circuit breaker
Local signalling 8 LEDs (green) for channel status (CH01), 8 LEDs (green) for channel status (CH00), 1 LED (green) for download (DL), 1 LED (red) for internal fault, module failure (ERR), 1 LED (red) for external fault (I/O), 1 LED (green) for module operating (RUN)
Insul btwn prim and second 1500 Vrms
Insulation between channels no insulated
Input voltage 24 V DC
Output short-circuit protection by current limiter and electronic circuit breaker
Output voltage limits 19...30 V
Operating threshold > 8 V error supply voltage, > 12 V no error supply voltage
Current state 1 guaranteed >= 2 mA
Input current 4.3 mA
Load impedance ohmic 15000 Ohm
Voltage state 0 guaranteed 5 V
Current state 0 guaranteed <= 1.5 mA
Discrete output current 50 mA
Current consumption 200 mA at 3.3 V DC maximum, 150 mA at 3.3 V DC typical, 35 mA at 24 V DC preactuator
Response time < 60 µs for origin input and proximity input, < 200 µs for position completed input and drive ready input
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Insulation resistance > 10 MOhm
Number of outputs 2 auxiliary output, 1 pulse output
Current per channel 0.4 A
Electrical connection 2 connectors with 28 pins
Environment
Derating factor without
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 11.500 cm
Package 1 Length 11.700 cm
Package 1 Weight 147.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.527 kg
