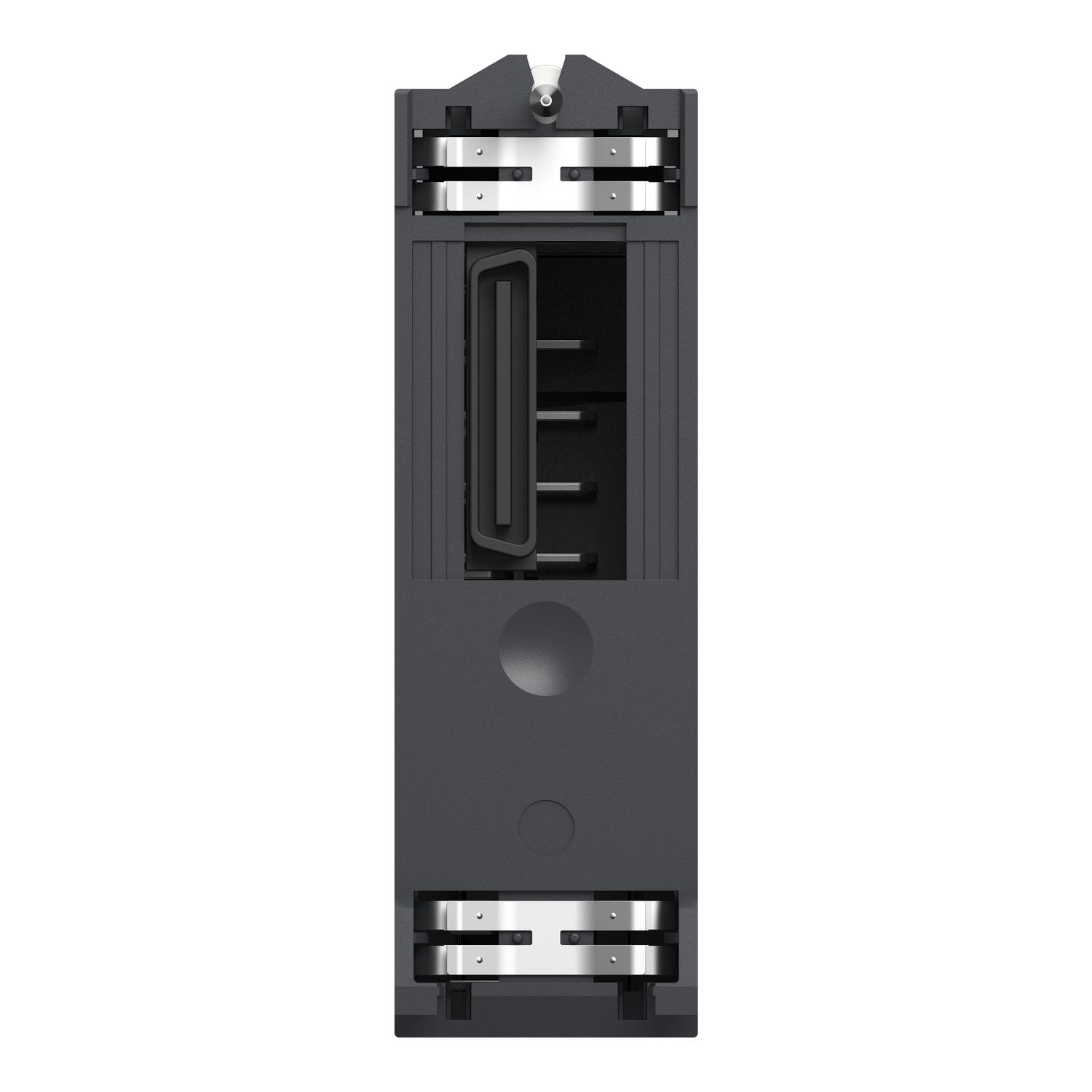

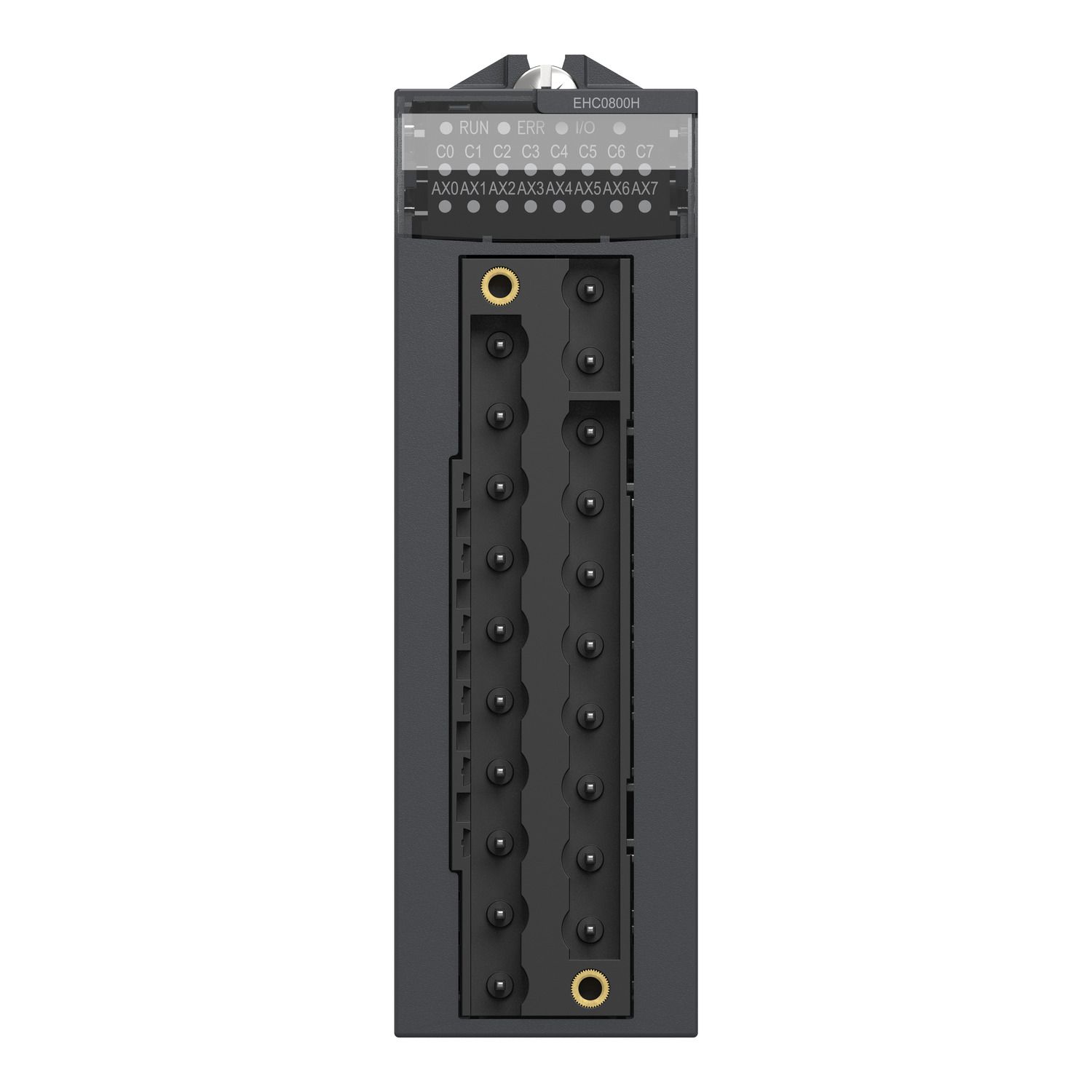

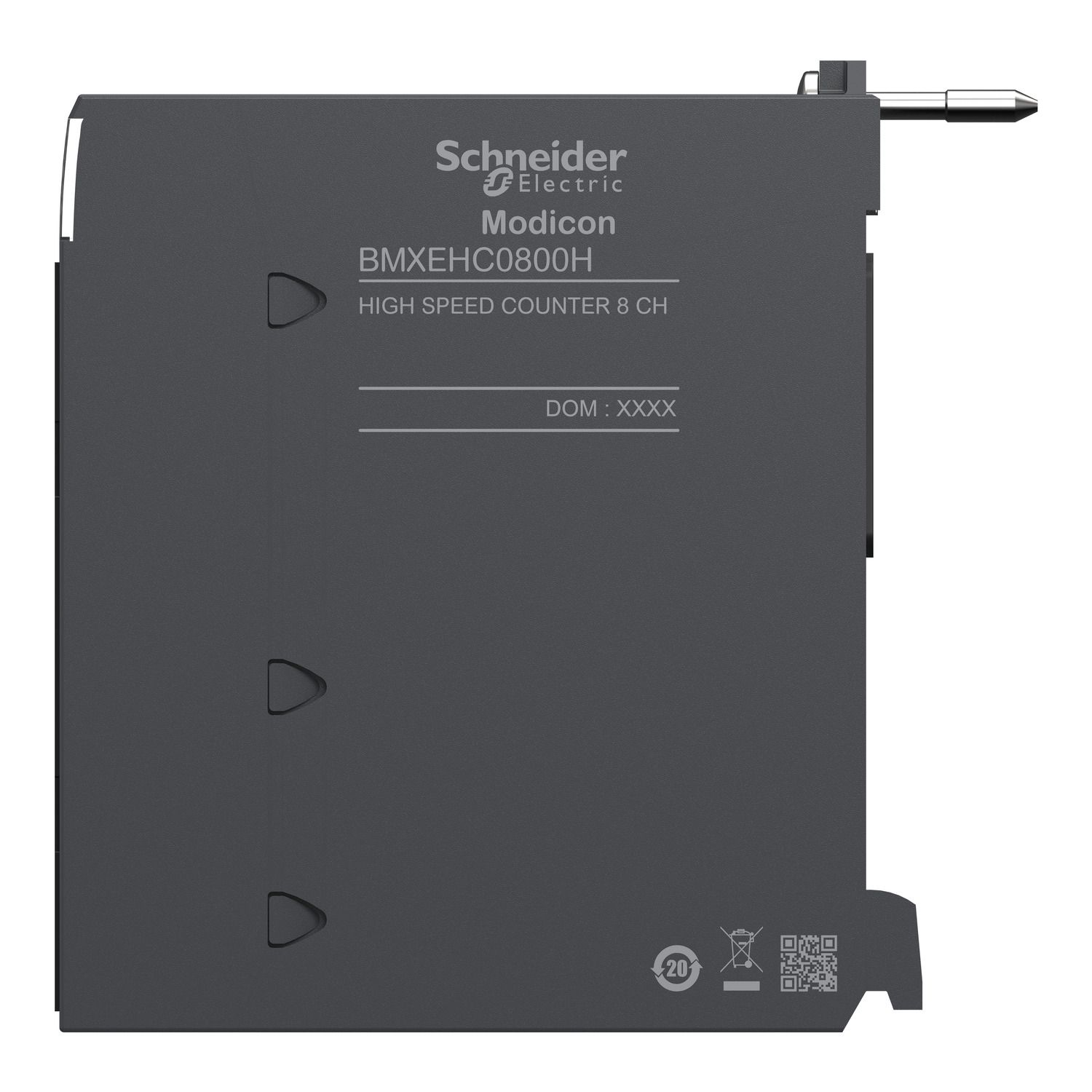

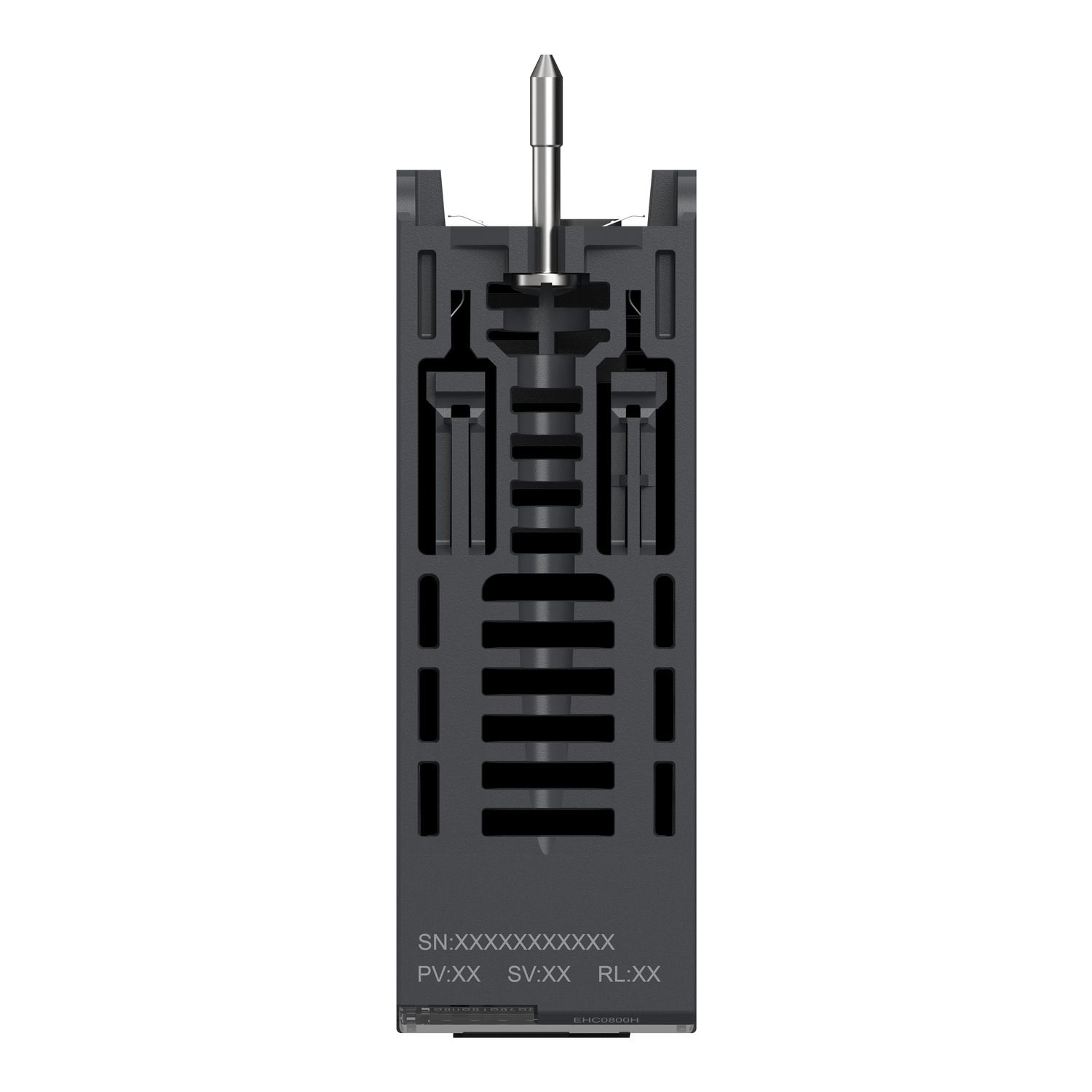

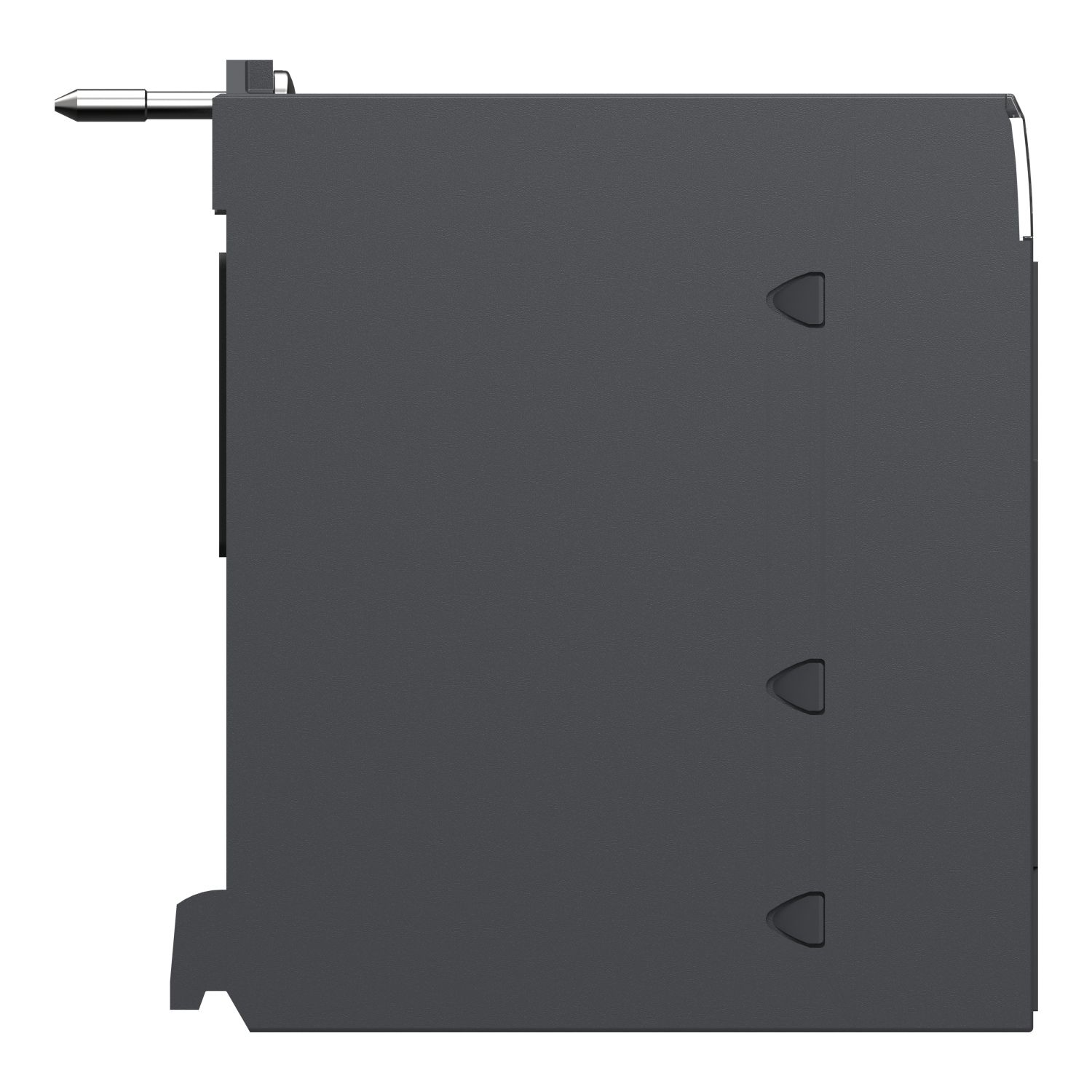

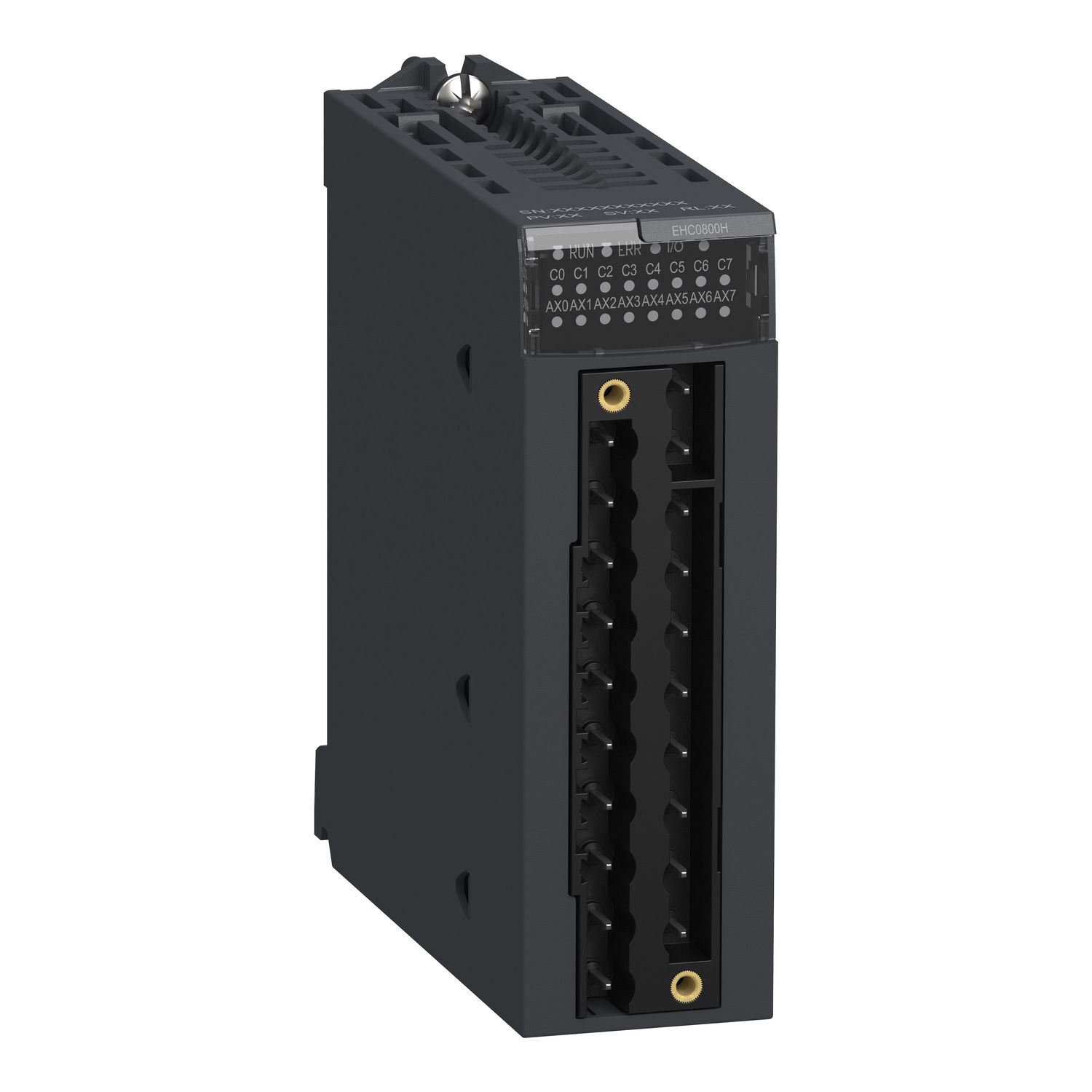

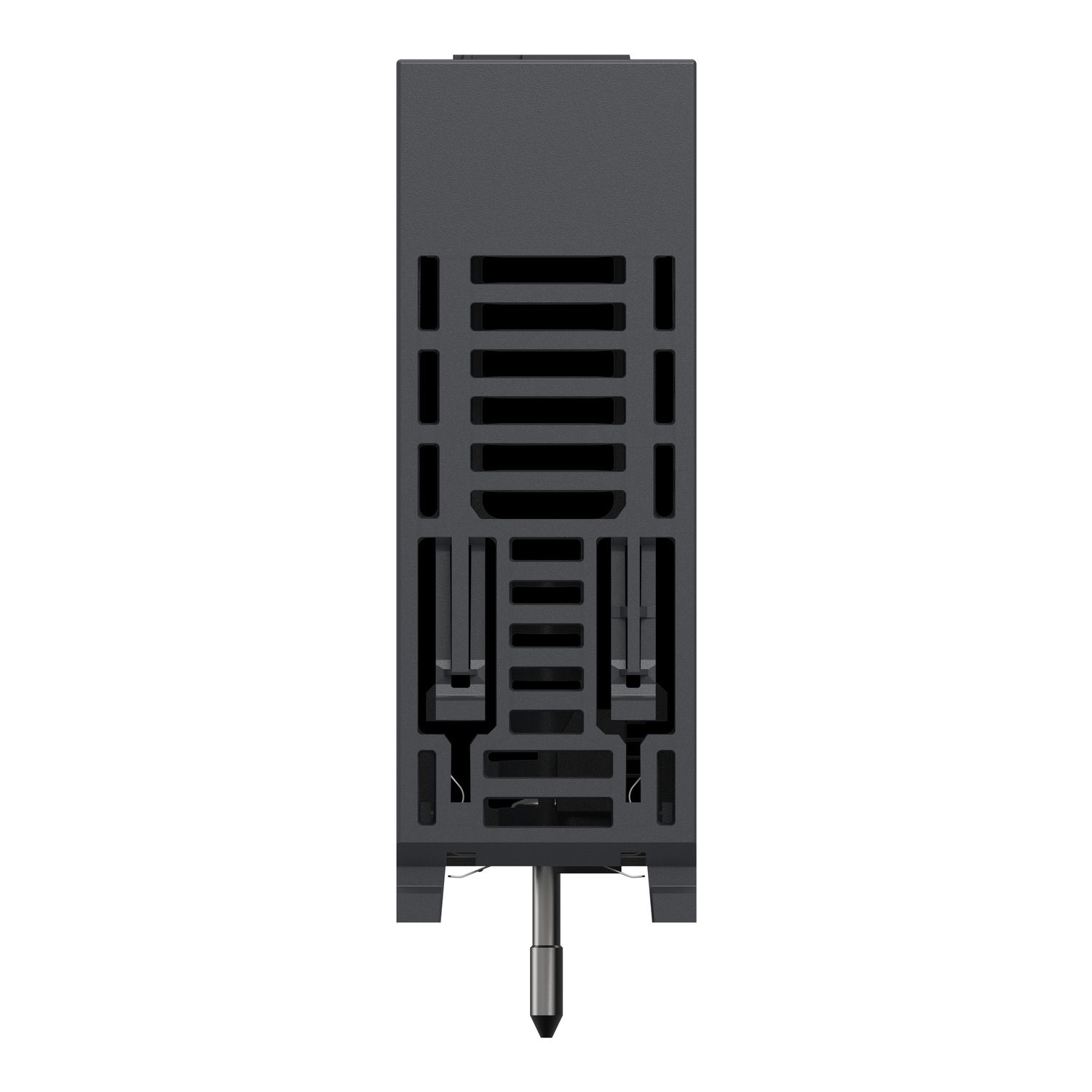

Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
Picture of counter module, Modicon M340, high speed, 8 channels, hardened
SKU:

BMXEHC0800H

counter module, Modicon M340, high speed, 8 channels, hardened

$4,209.92 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
counter module, Modicon M340, high speed, 8 channels, hardened
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
Declaration of conformity
CAD
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This counter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This counter module for severe environments is equipped with 8 high speed channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.113kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Maximum counting frequency 10000 Hz
Product specific application for severe environments
Input voltage 24 V DC type 3
Number of channels 8
Input compatibility incremental encoder with push-pull outputs, 10...30 V totem pole, 19.2-30 V 2-wire/3-wire proximity sensor
Number of inputs 3-3 (special dual phase mode), 2-2 (single mode)
Product or component type counter module
Range of product Modicon M340 automation platform
Complementary
Voltage state 1 guaranteed 11...30 V
Module format standard
Isolation voltage 1500 V for 60 s
Input voltage limits 26.4 V at 70 °C, 19.2...30 V at 60 °C
Current state 1 guaranteed >= 6 mA
Voltage state 0 guaranteed < 5 V
Input type high speed
Net weight 0.113 kg
Input current 2 mA at 11 V
Current state 0 guaranteed <= 1.5 mA
Current consumption 80 mA at 24 V DC sensor, 200 mA at 3.3 V DC bus
Counter functions 32-bit counter counting, down counting, frequency meter, loop (modulo) counting, up/down counter, count events
Cycle time 5 ms
Electrical connection 1 connector with 20 pins
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.500 cm
Package 1 Length 11.700 cm
Package 1 Weight 148.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.533 kg
