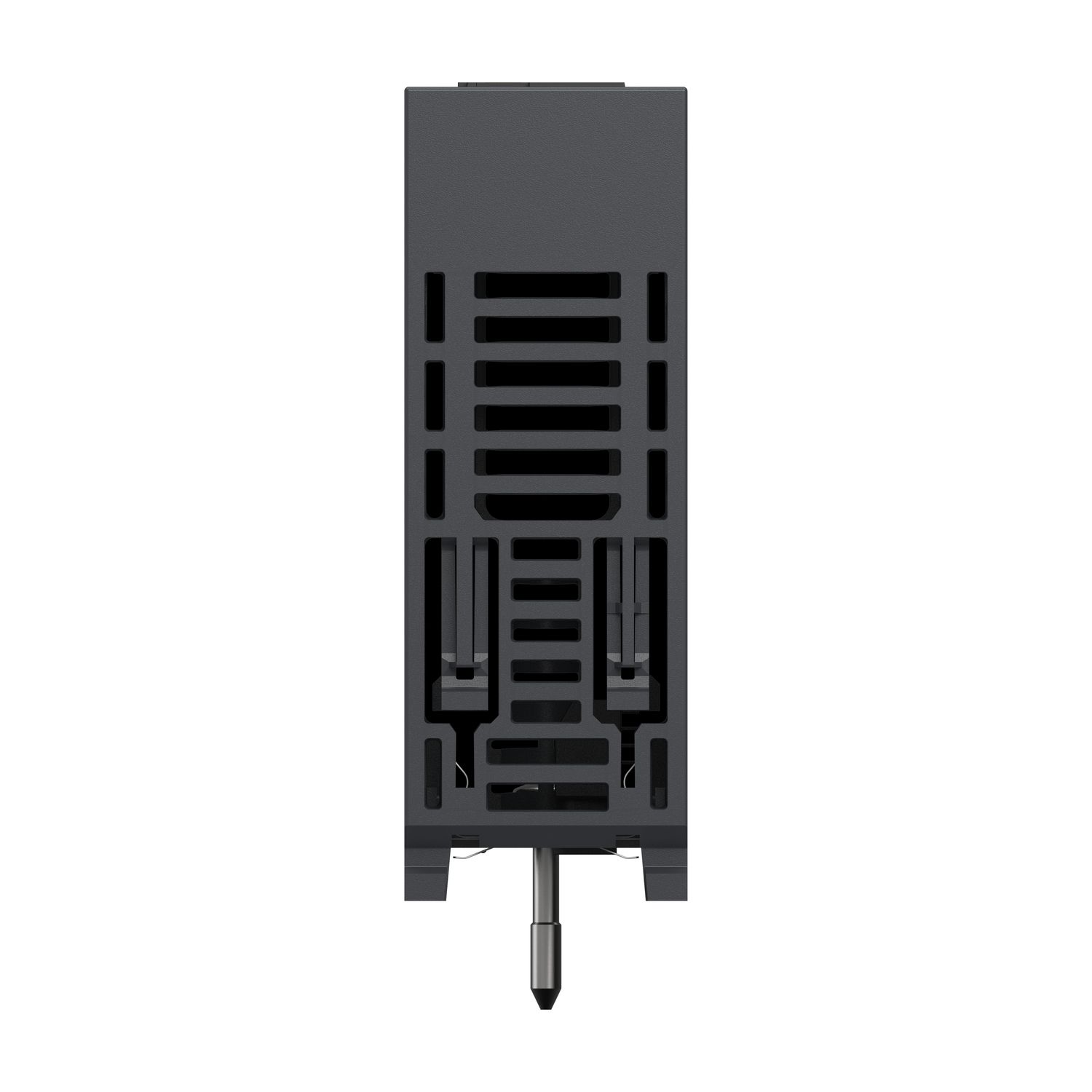

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

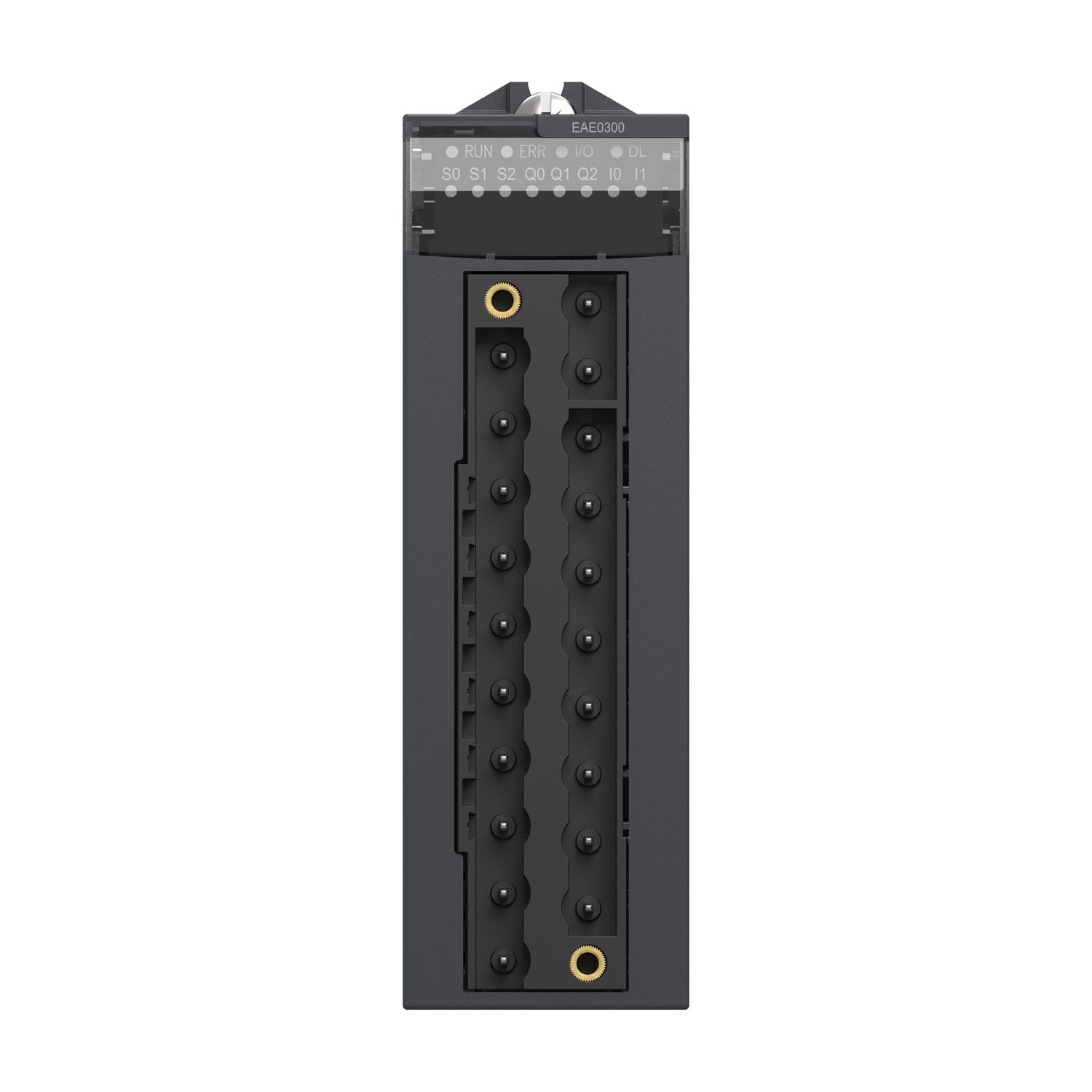

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

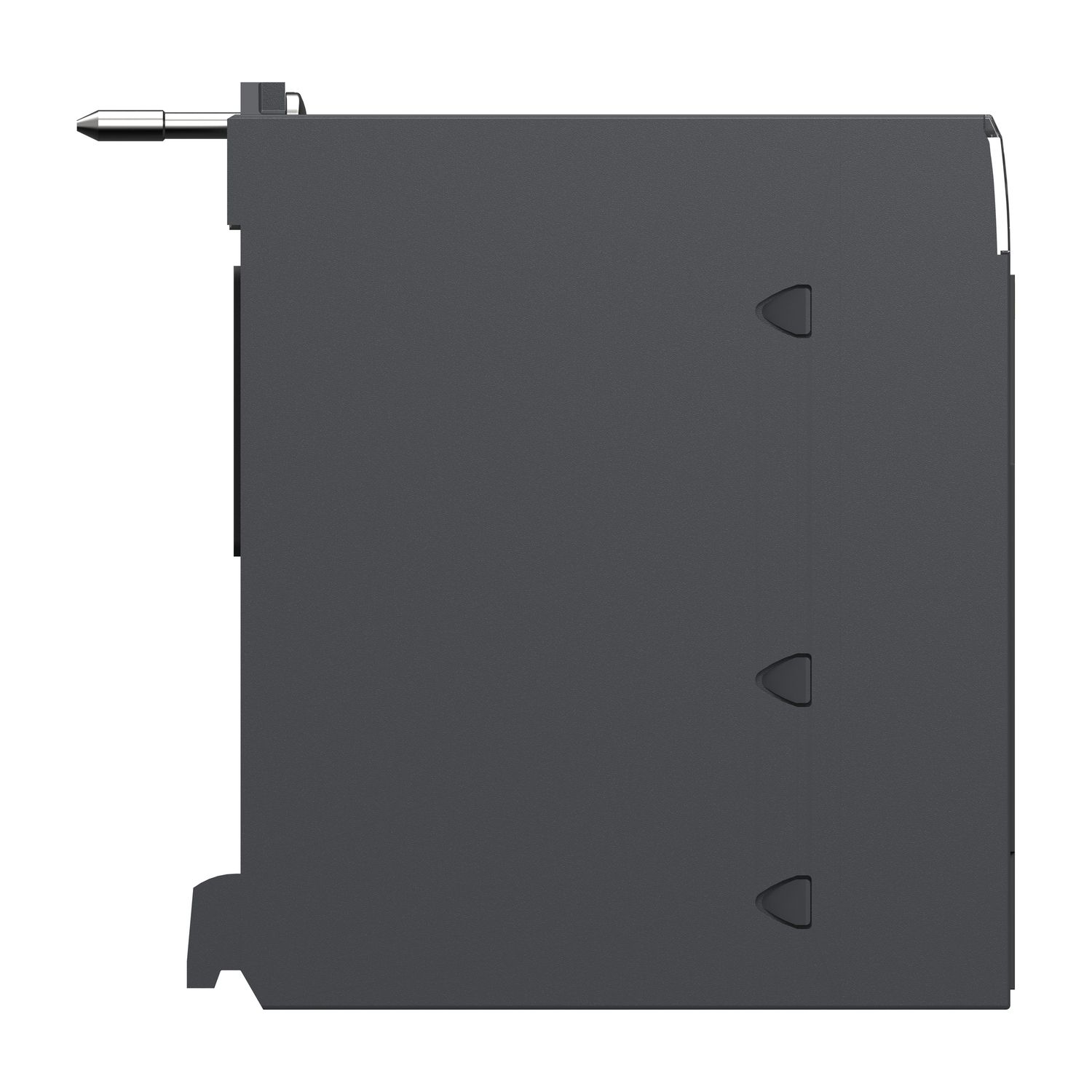

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

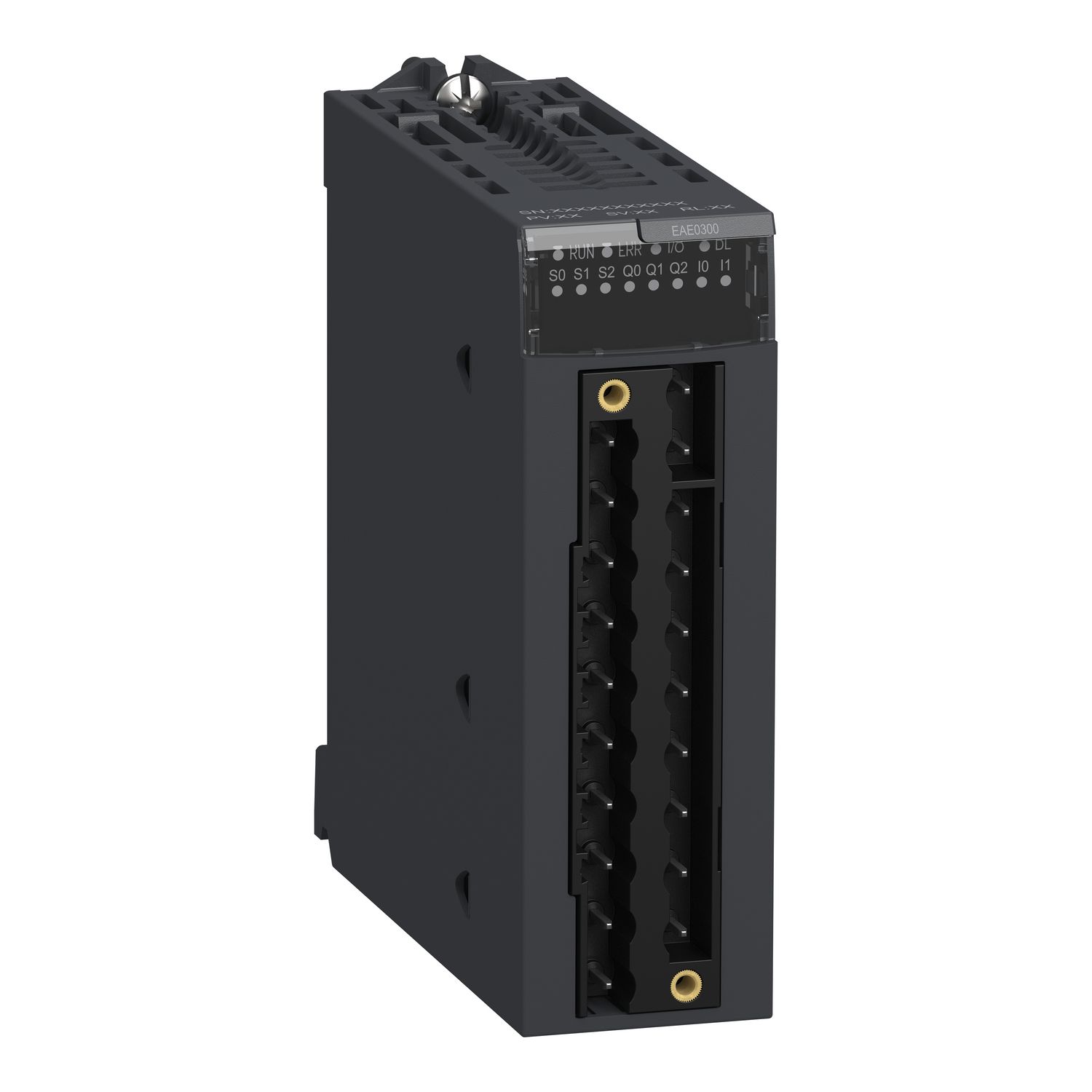

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

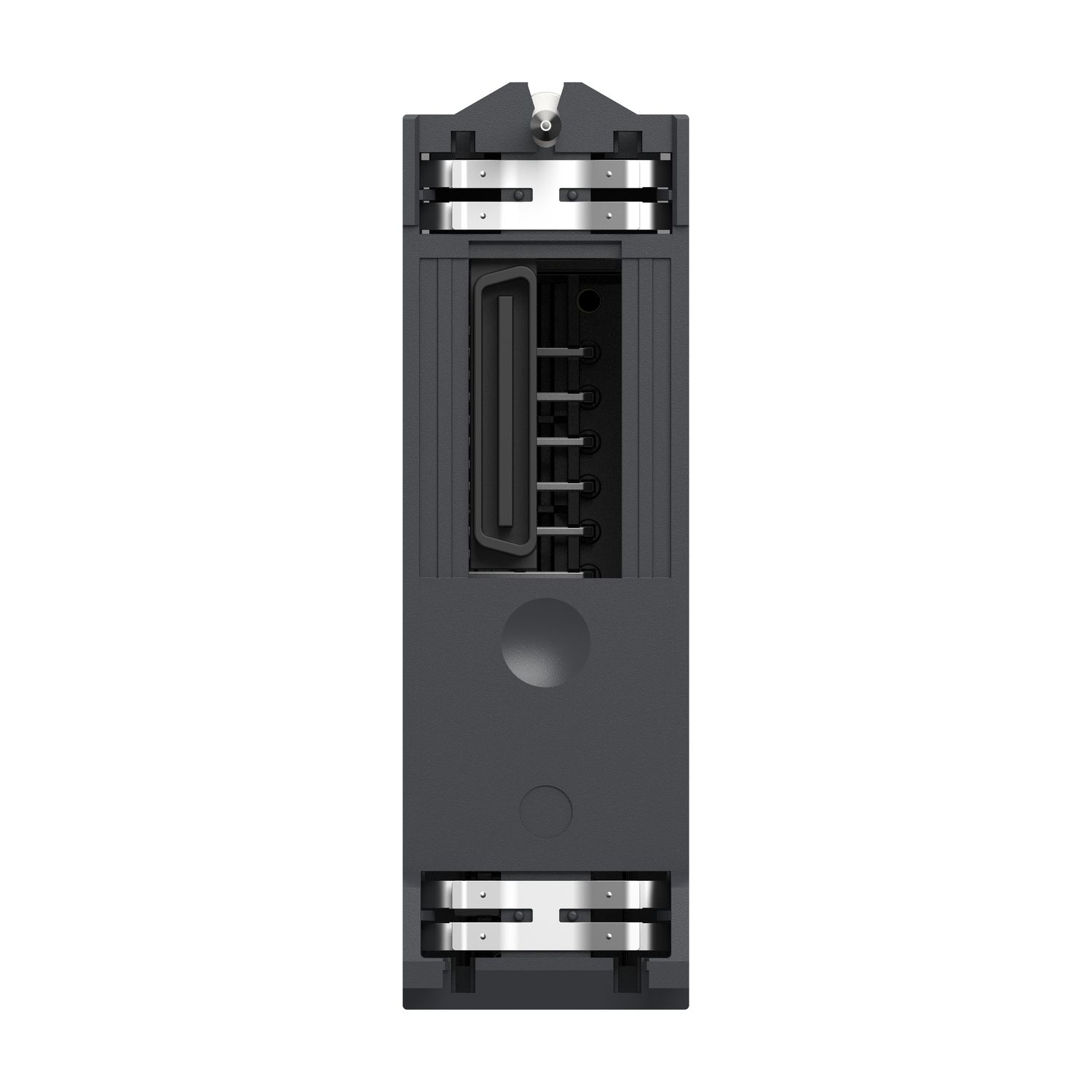

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

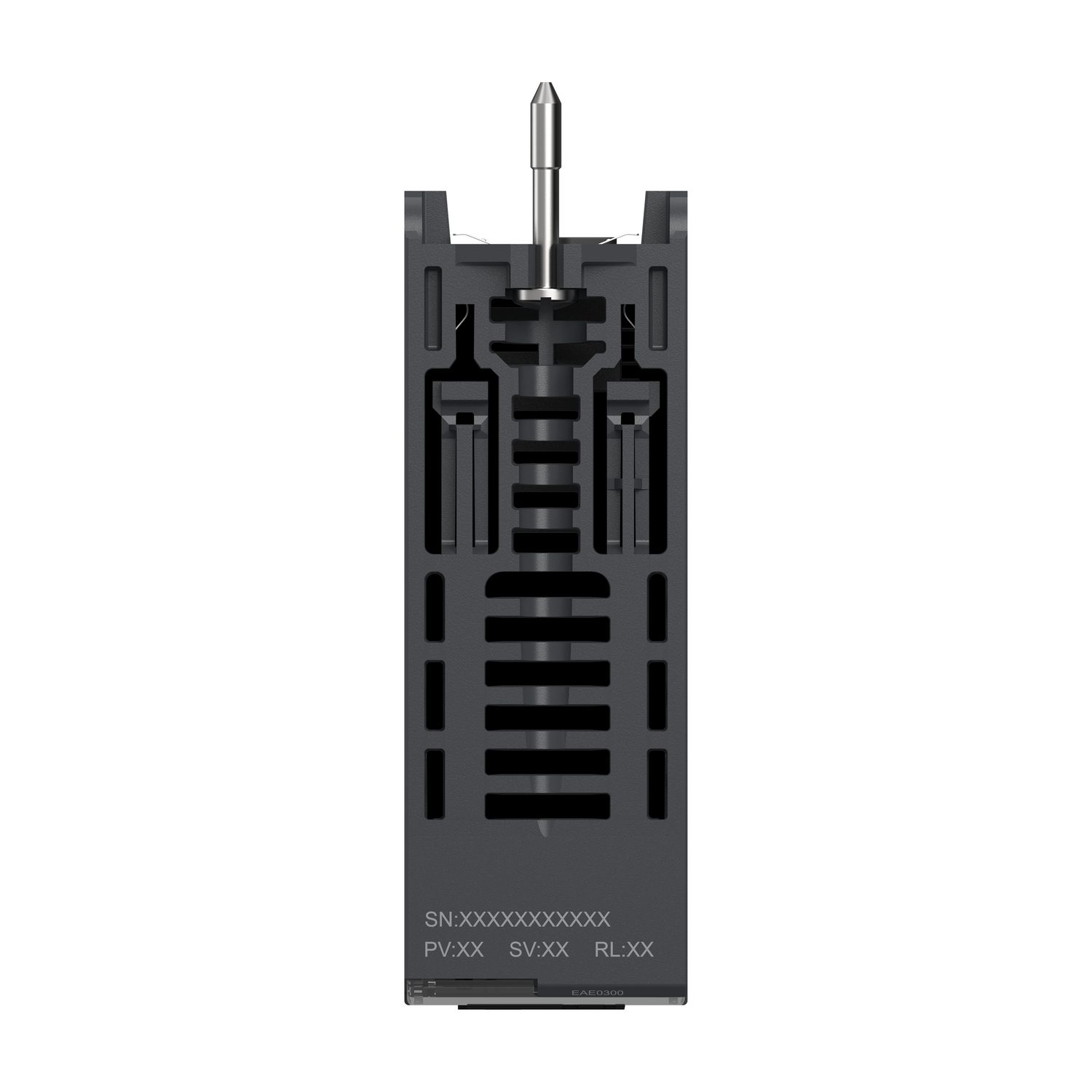

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

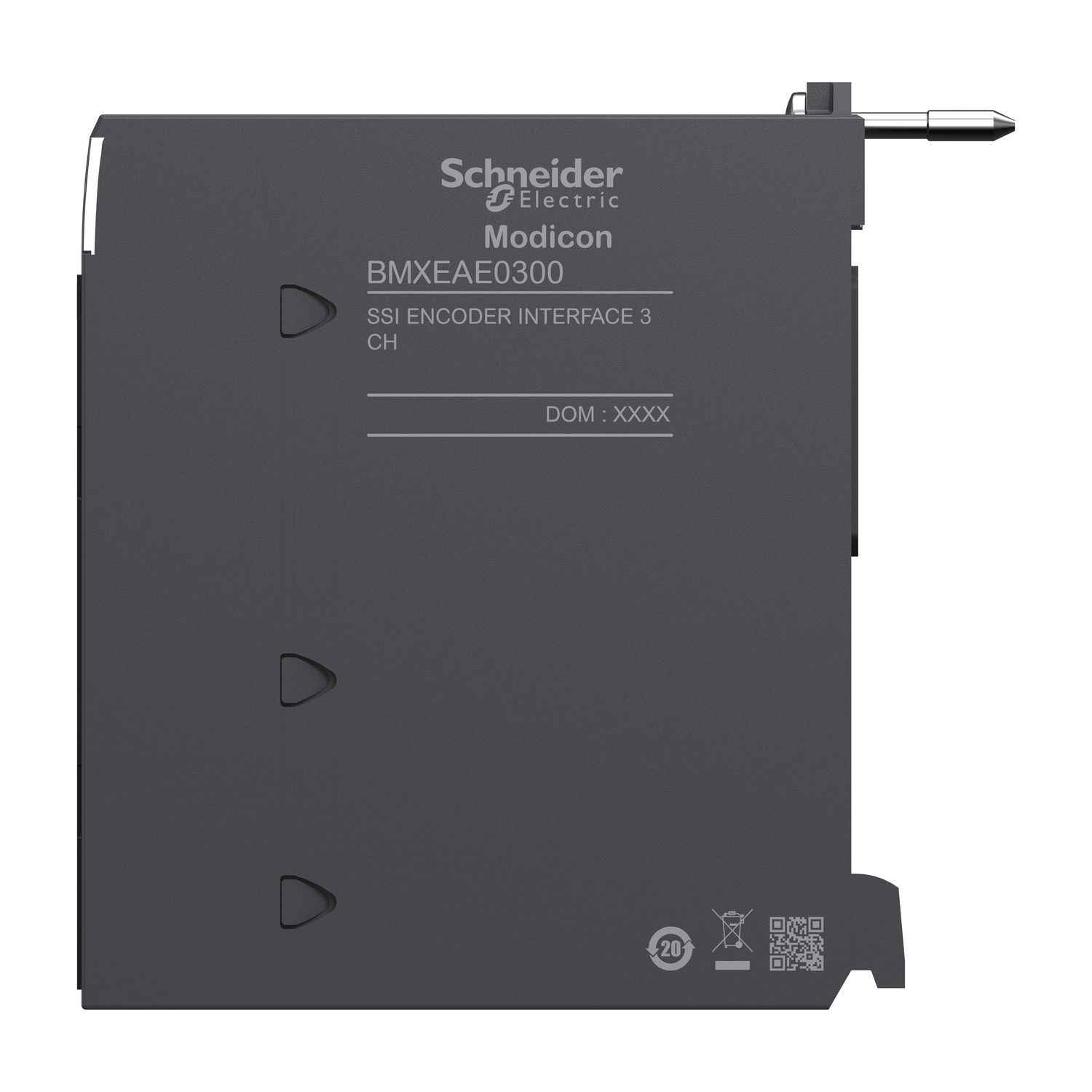

Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds
Picture of encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds
SKU:

BMXEAE0300

encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds

$2,514.82 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
User guide
Declaration of conformity
CAD
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This encoder interface module has 3 SSI channels. It is an encoder interface module with a rated supply voltage of 24V DC, a current consumption of 250mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. Available functions are offset, compare, modulo, reduction and capture. The transmission rate is 500kbauds, 200kbauds, 1Mbauds, 100kbauds and 8bit to 31bit data format. It is an IP20 rated product. It weighs 0.138kg. It is suitable for medium to large process applications. This product is certified by UL, C-Tick, CSA, GOST, ATEX, CSA, CE, FM Class 1 Division 2, CCS. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Number of channels 3 SSI channel
Function available capture, reduction, modulo, compare, offset
Number of inputs 2 24 V DC capture digital inputs for the 3 SSI channels
Product or component type encoder interface module
Range of product Modicon X80
Number of outputs 1 24 V DC reflex digital output for each SSI channel
Complementary
Transmission rate 100 kbauds, 1 Mbauds, 200 kbauds, 500 kbauds
Refresh time 1 ms
Current consumption 250 mA at 3.3 V DC for back plane, (maximum), 150 mA at 3.3 V DC for back plane, (typical)
Input compatibility 24 V DC SSI absolute encoder (voltage limits: 19.2-30 V) for 200 mA per channel
Net weight 0.138 kg
Data format 8...31 bits
Dielectric strength 1400 V DC 60 s
Protection type overvoltage protection DC
[Us] rated supply voltage 24 V DC, <30 mA (typical), 19.2...30 V DC, <30 mA
Environment
Operating altitude 0...4000 m
IP degree of protection IP20
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications UL, Merchant Navy, EAC, CSA, RCM, CE
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 167.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.800 kg
