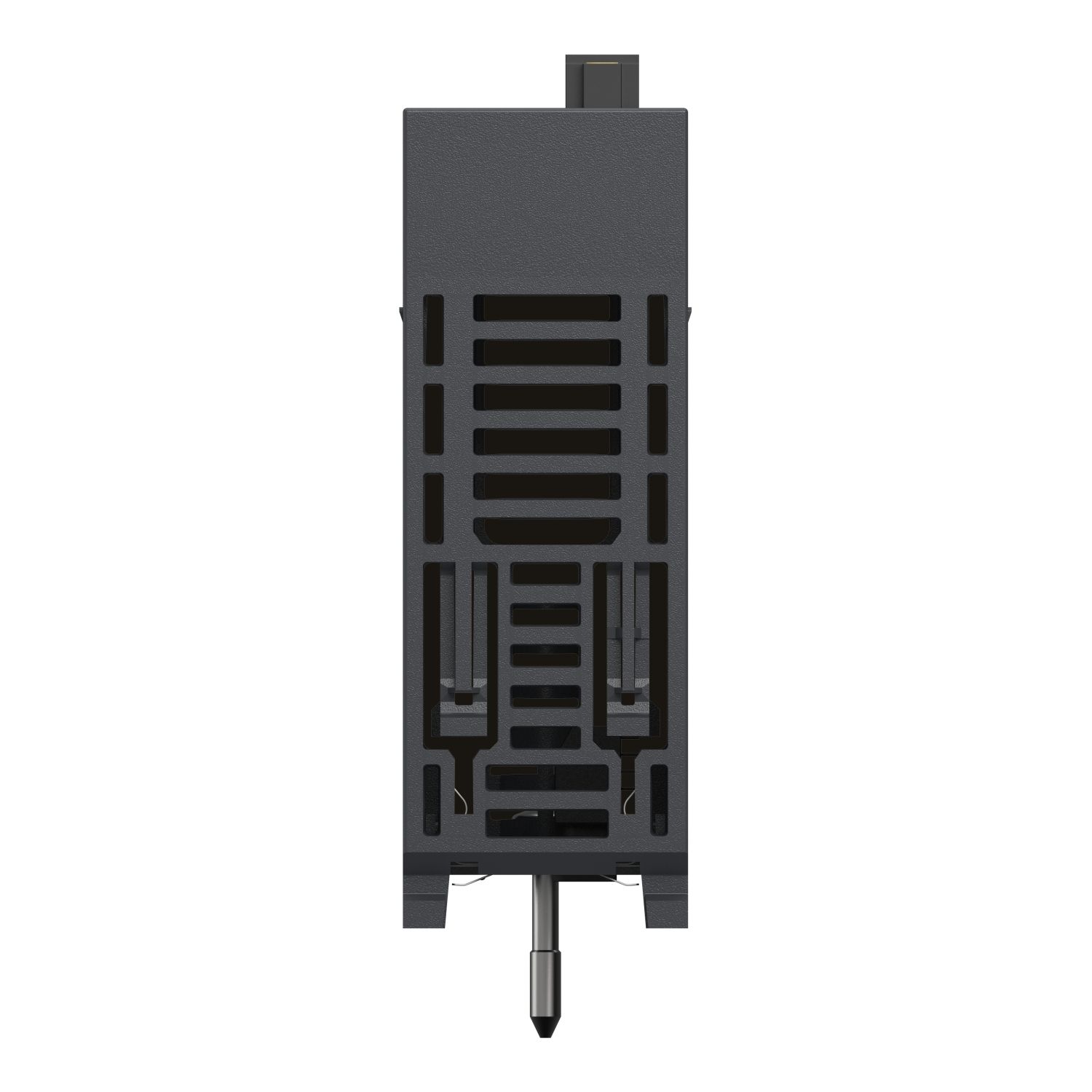

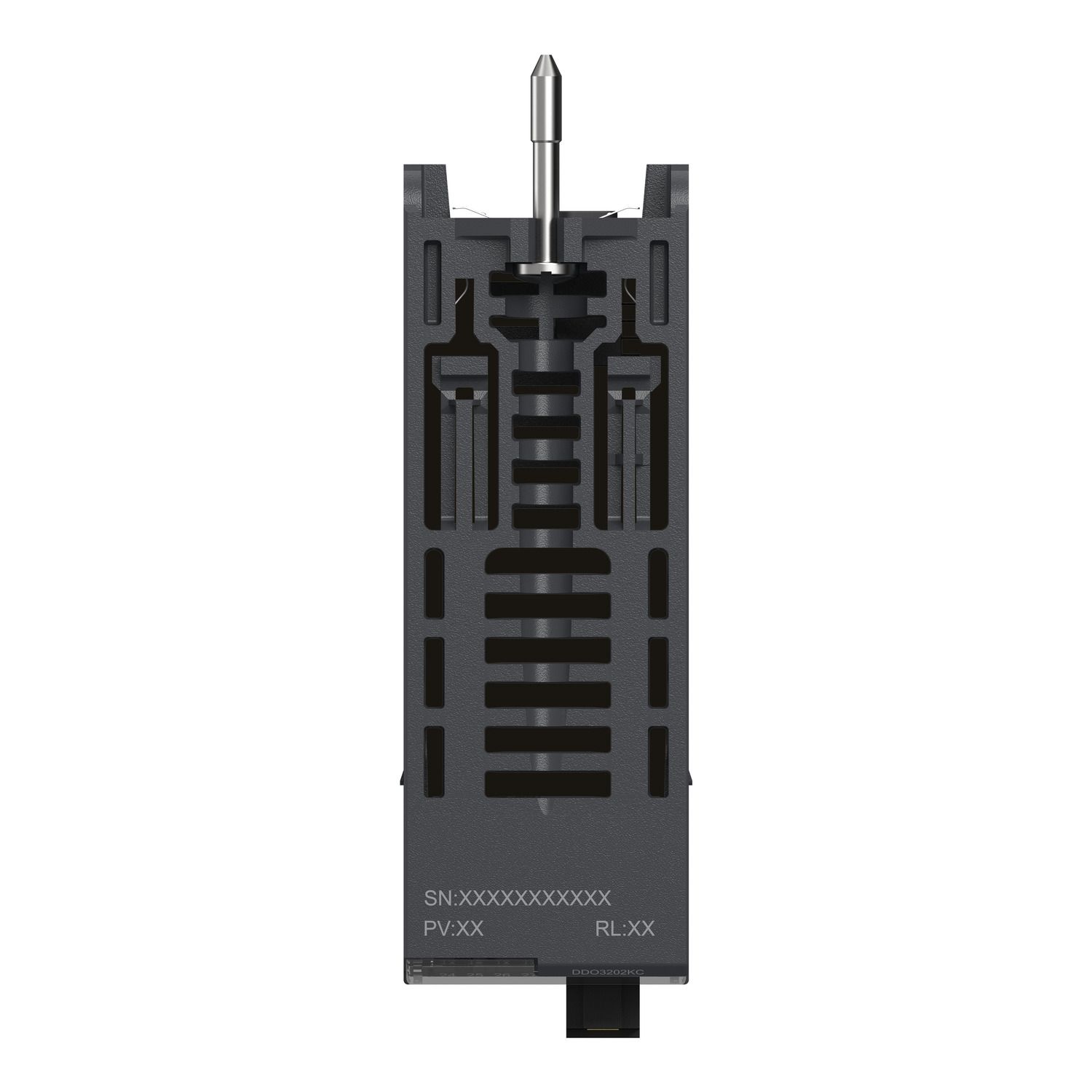

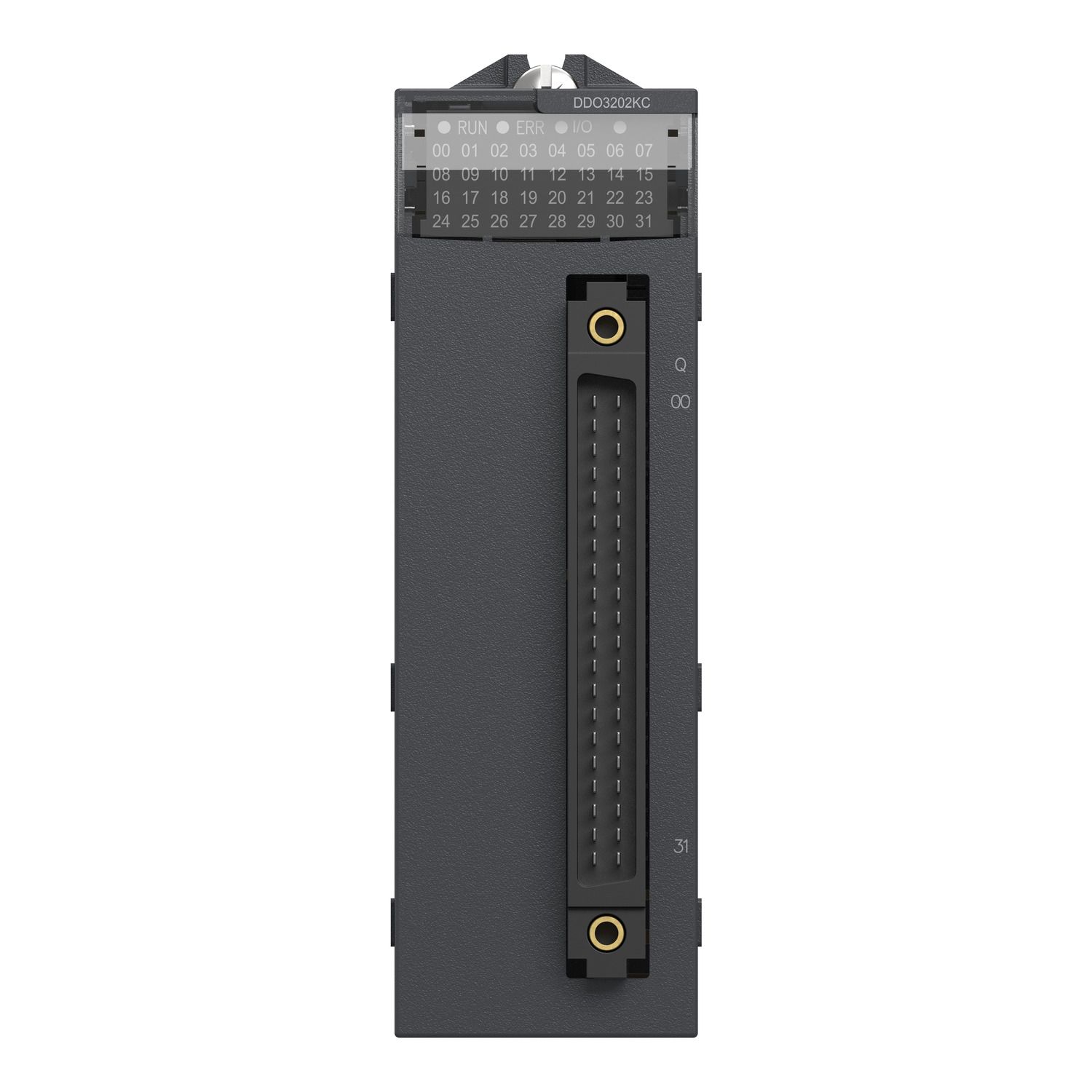

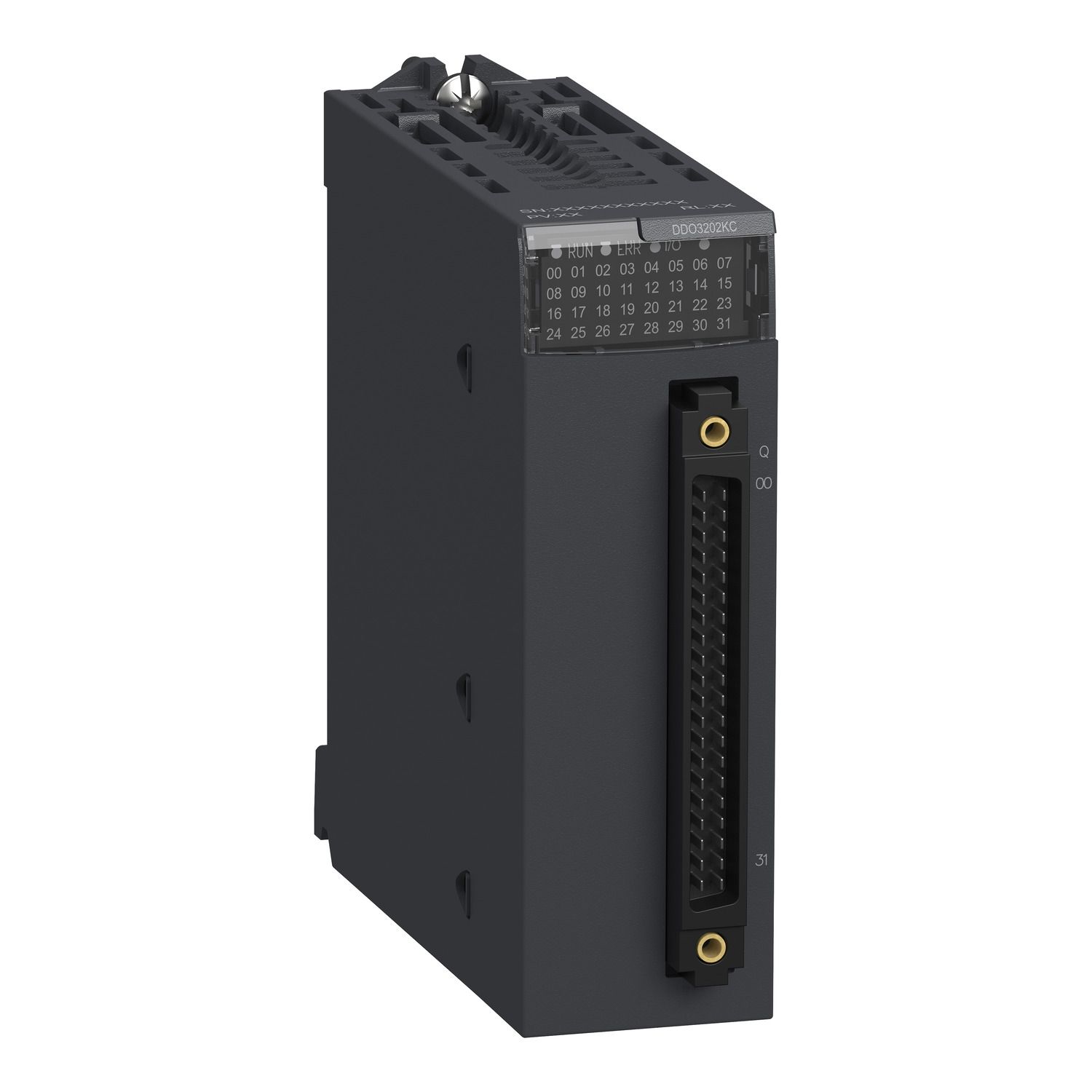

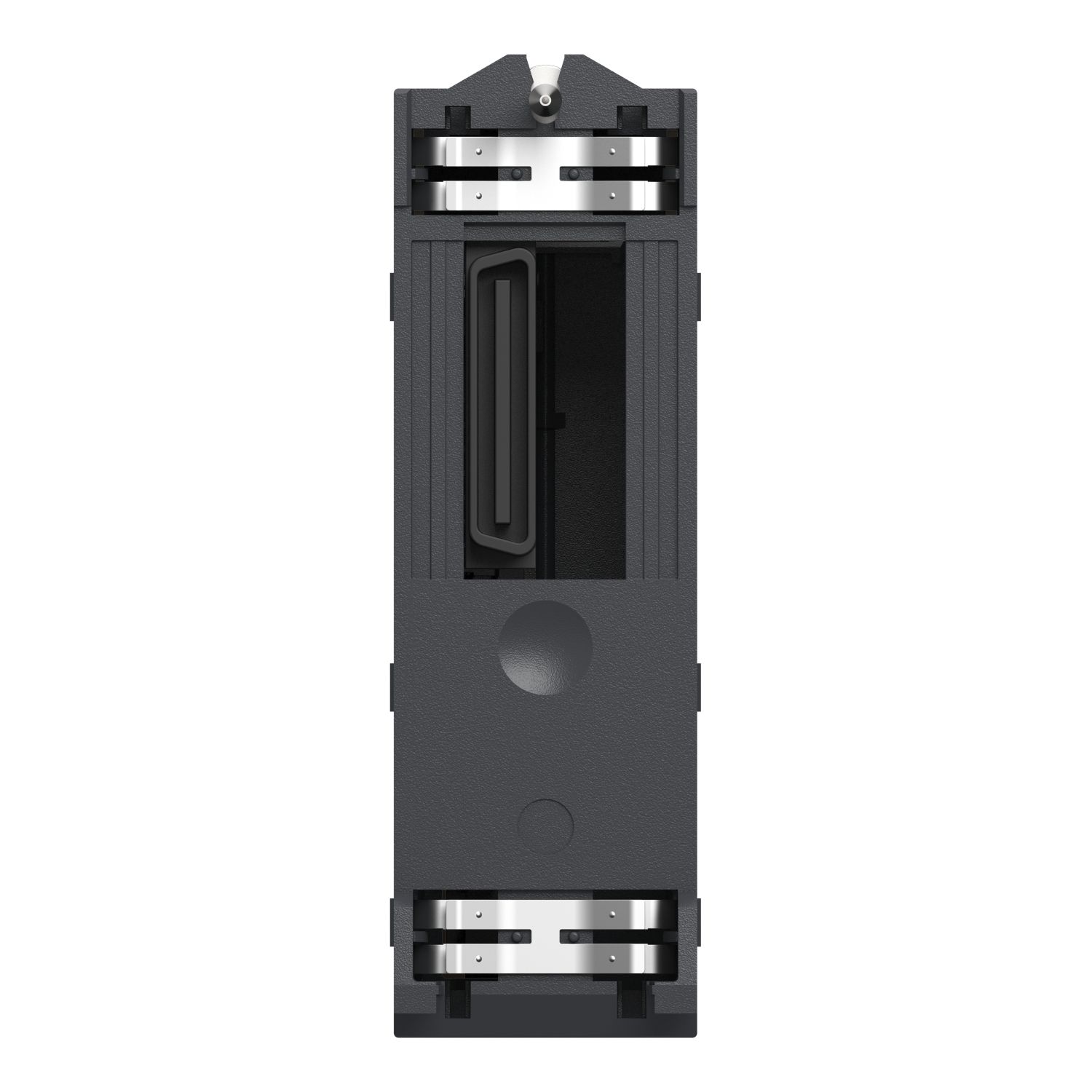

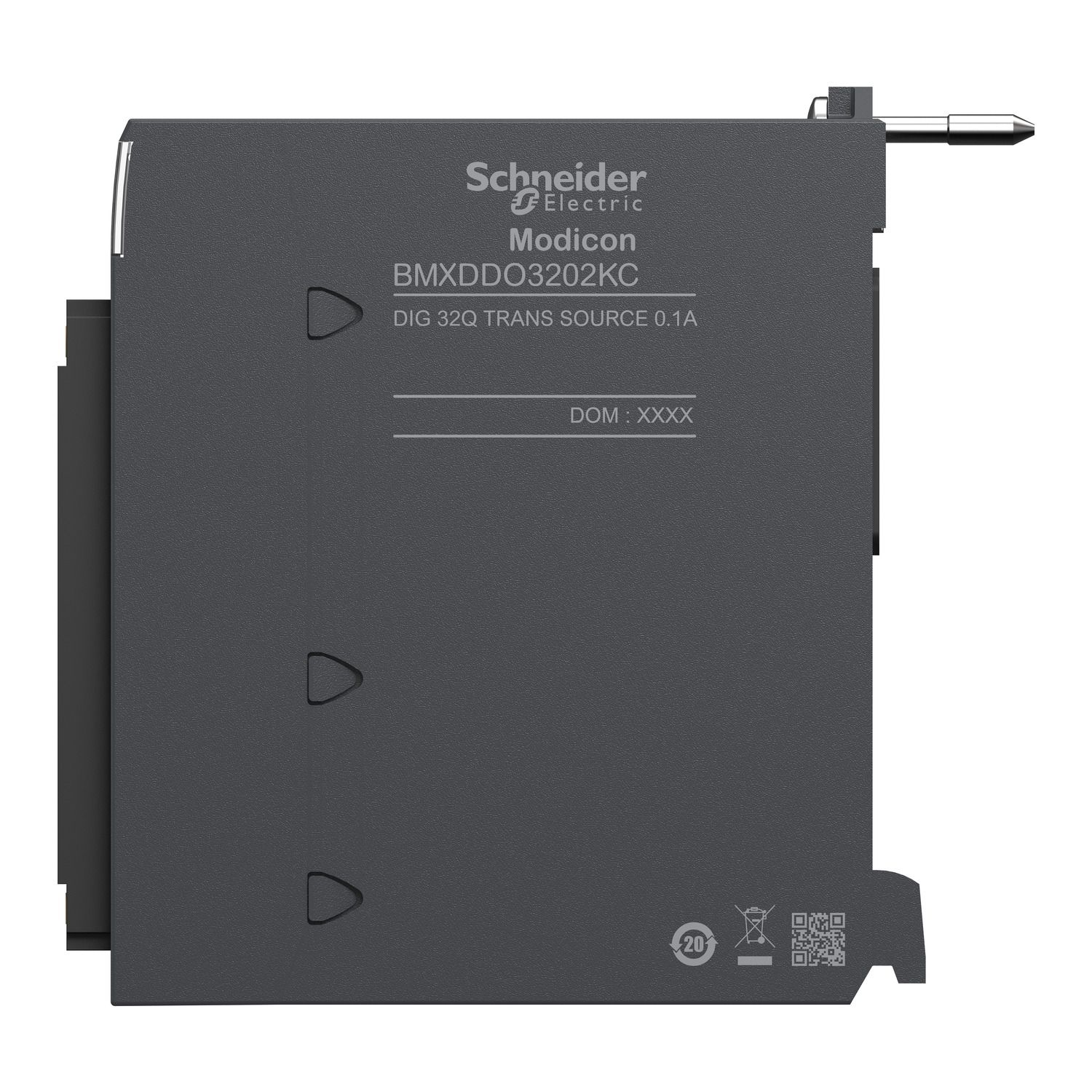

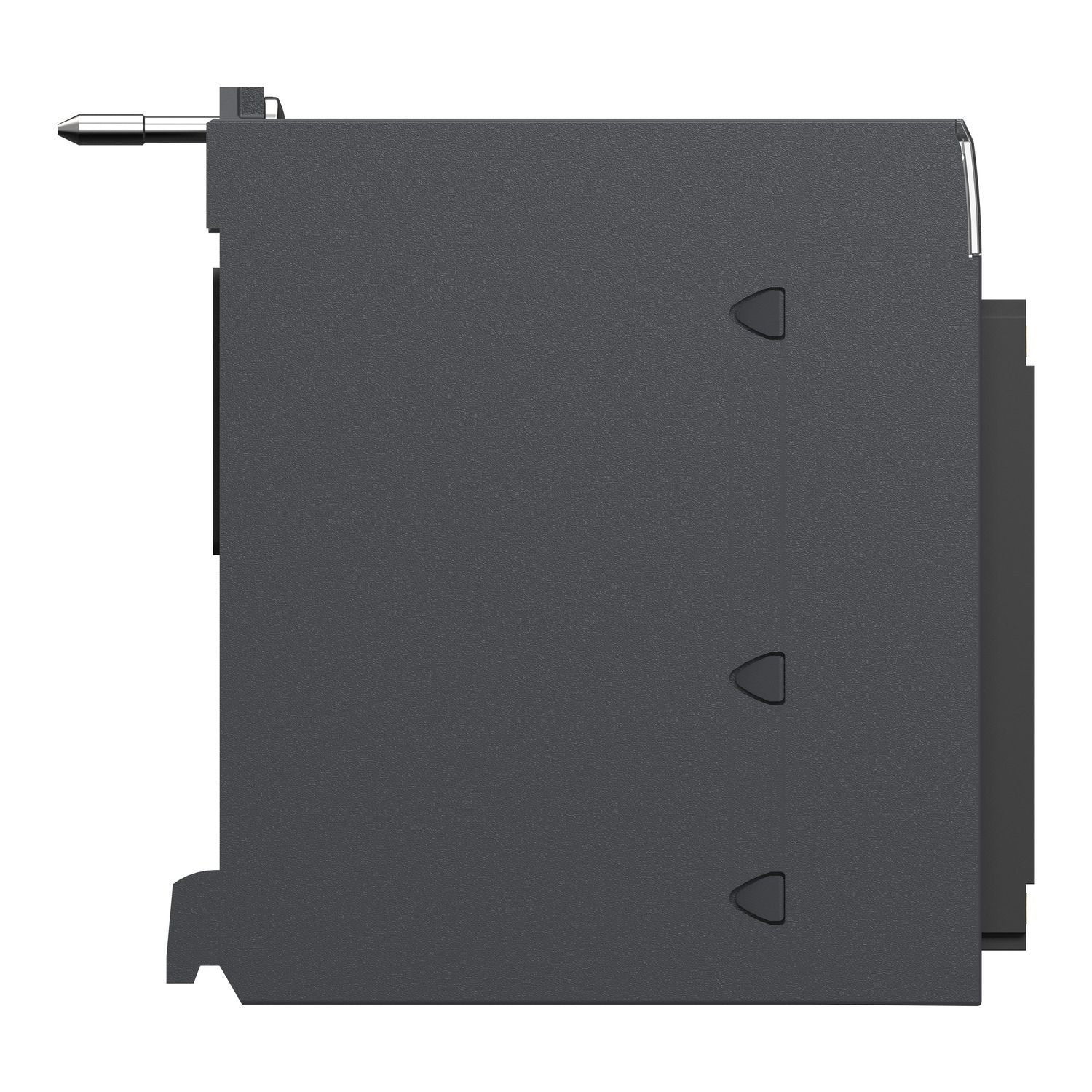

Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Picture of discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
SKU:

BMXDDO3202KC

discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating

$1,803.89 INC GST
Available for Shipping : 08-Dec-2025
discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 output channels and it is supplied with 24V DC (positive). Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 289176 hours of MTBF. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Discrete output current 0.1 A
Product or component type discrete output module
Discrete output voltage 24 V 19...30 V DC
Discrete output logic positive
Discrete output number 32 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type solid state
Complementary
Response time on output 1.2 ms
Reverse polarity protection reverse mounted diode
Maximum tungsten load 1.2 W
Output overload protection with electronic circuit breaker 0.125 A < Id < 0.185 A, with current limiter
Output short-circuit protection with 2 A external fuse
Output overvoltage protection with transil diode
Typical current consumption 125 mA at 3.3 V DC
Paralleling of outputs yes : 3 maximum
Load impedance ohmic >= 220 Ohm
Maximum leakage current 0.1 mA at state 0
Net weight 0.11 kg
Power dissipation in W 3.6 W
Protection type overvoltage protection,  overload protection, external short-circuit protection,  reverse polarity protection
Insulation resistance > 10 MOhm 500 V DC
Maximum voltage drop <1.5 V at state 1
Current per channel 0.125 A
Voltage detection threshold > 18 V DC preactuator at state 0, < 14 V DC preactuator fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Maximum overload time 15 ms
Switching frequency 0.5/LI² Hz
Maximum current per module 3.2 A
MTBF reliability 290000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 0-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 152.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.06 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 57 kg

Related products

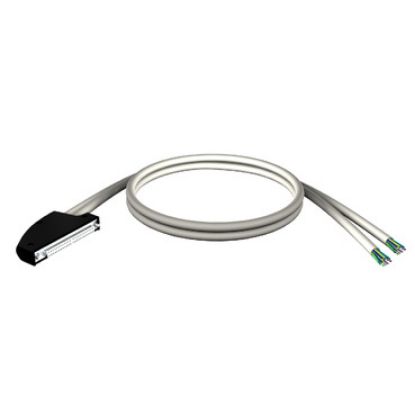

Picture of cord set, Modicon M340, 40-way terminal, two end flying leads, 10m
