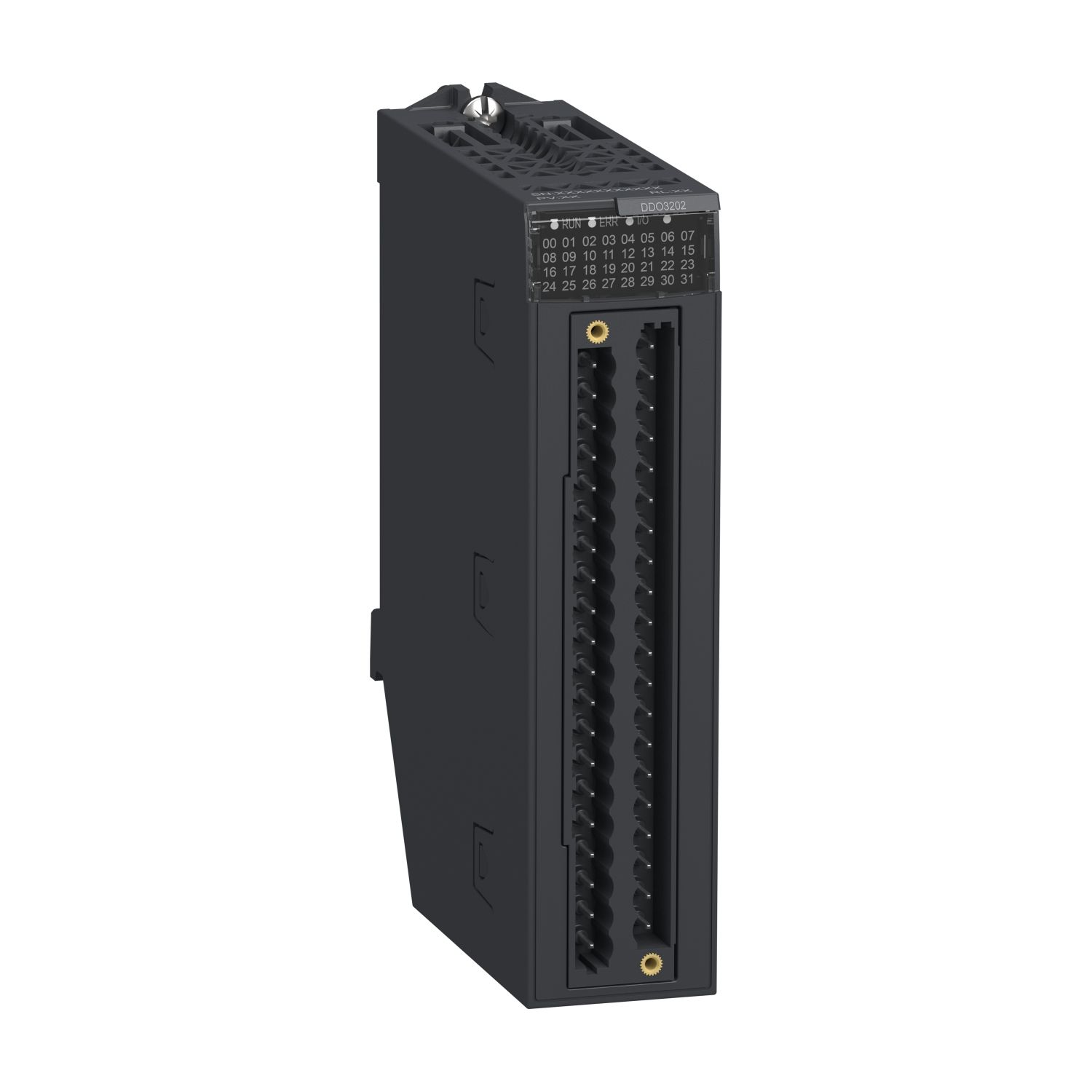

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

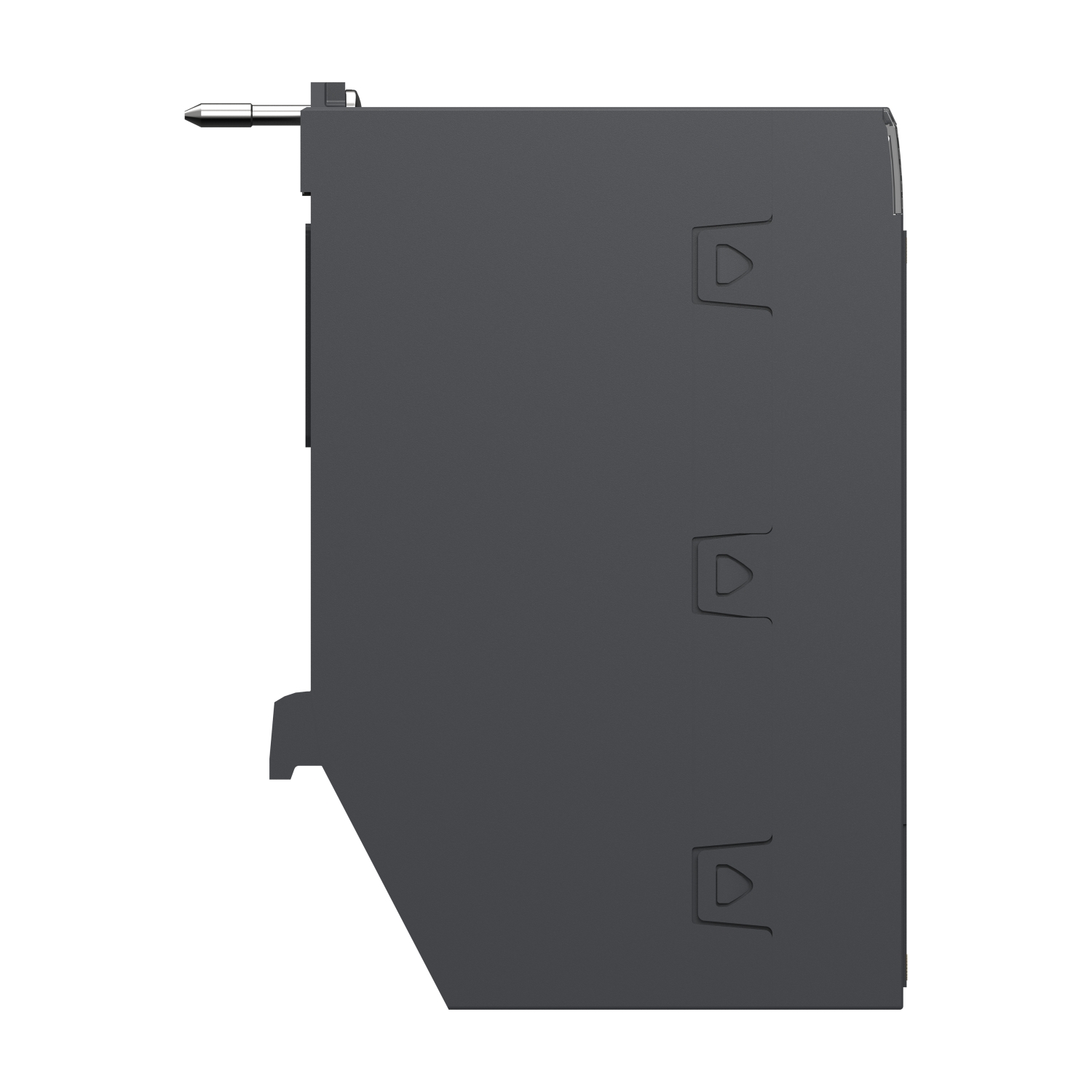

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

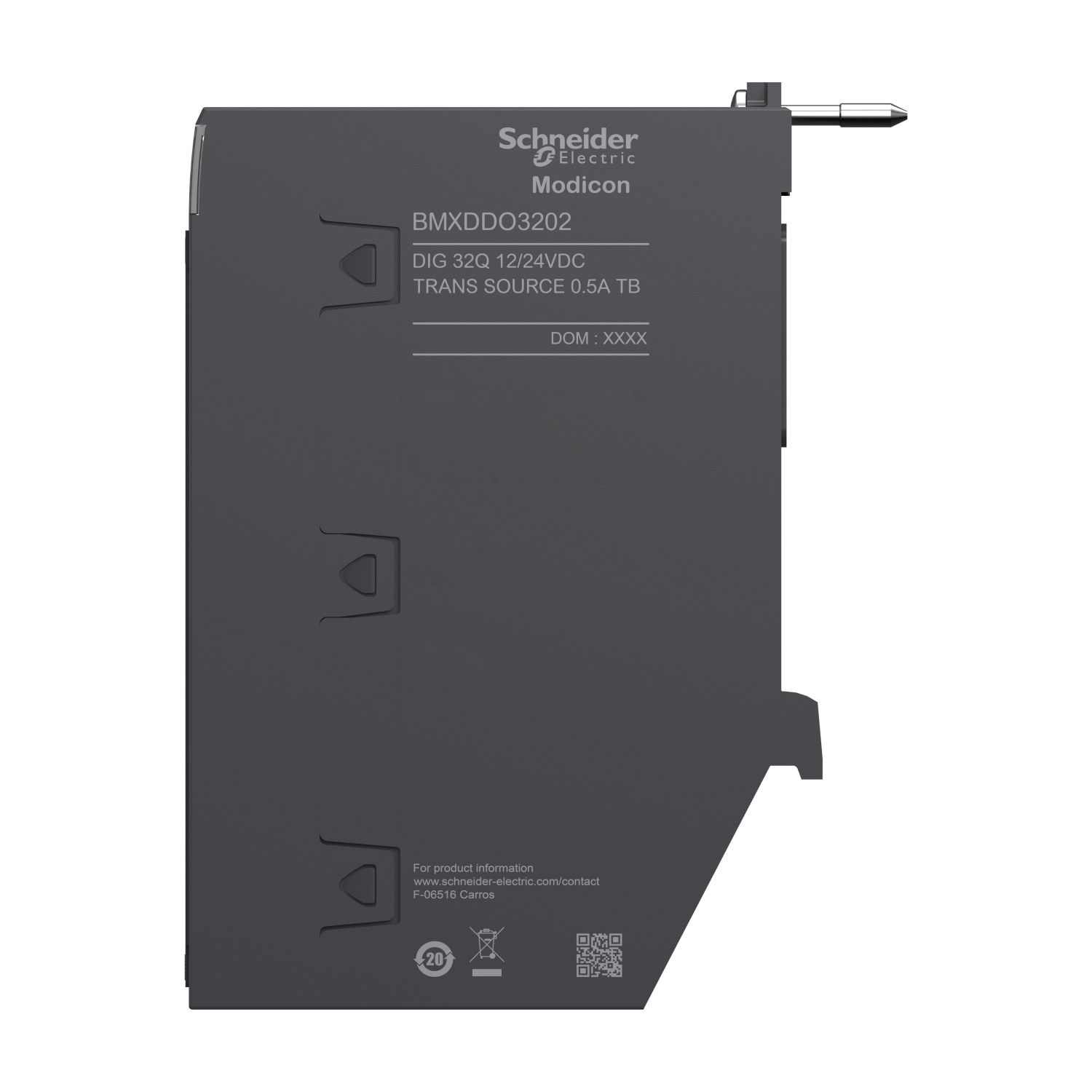

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

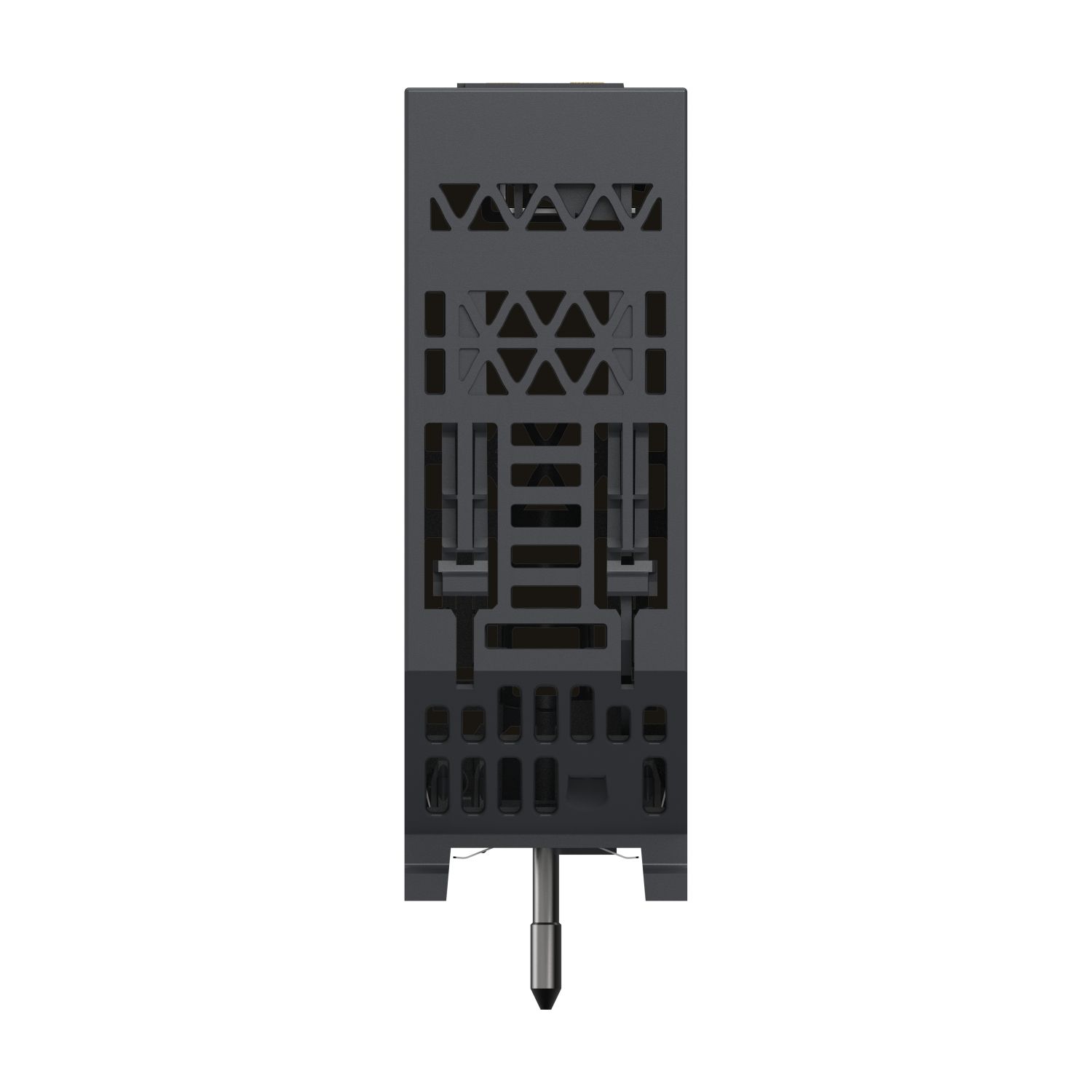

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

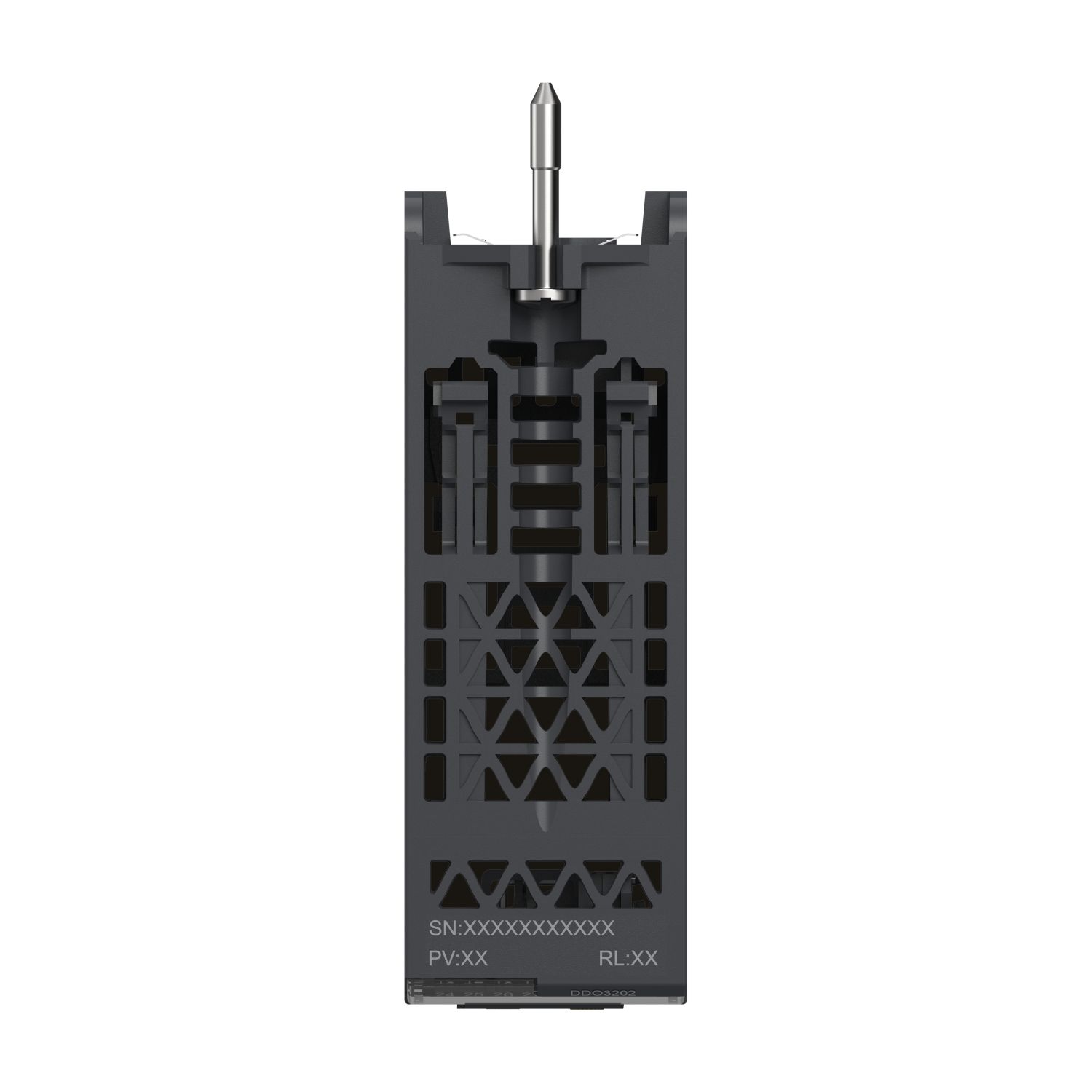

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

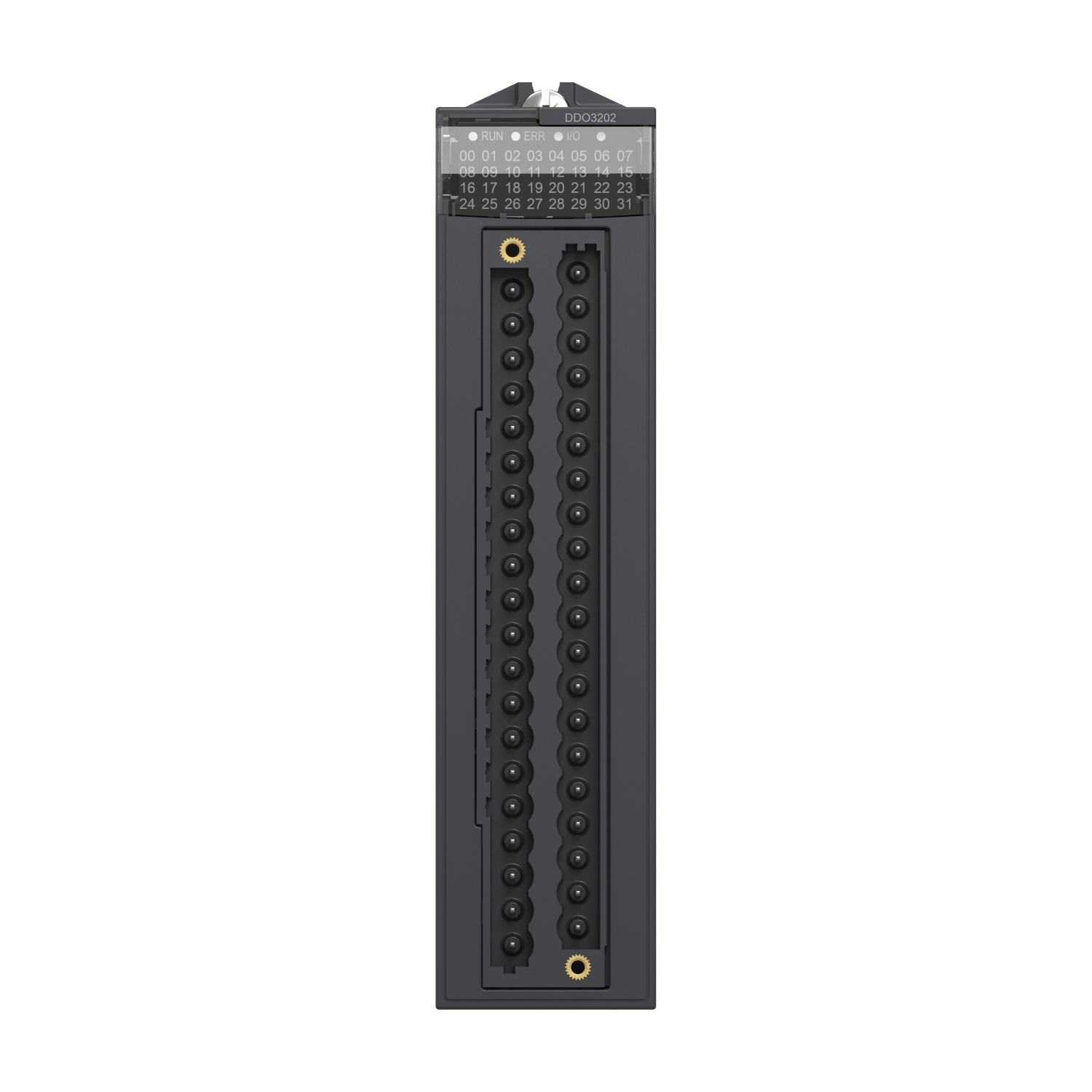

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

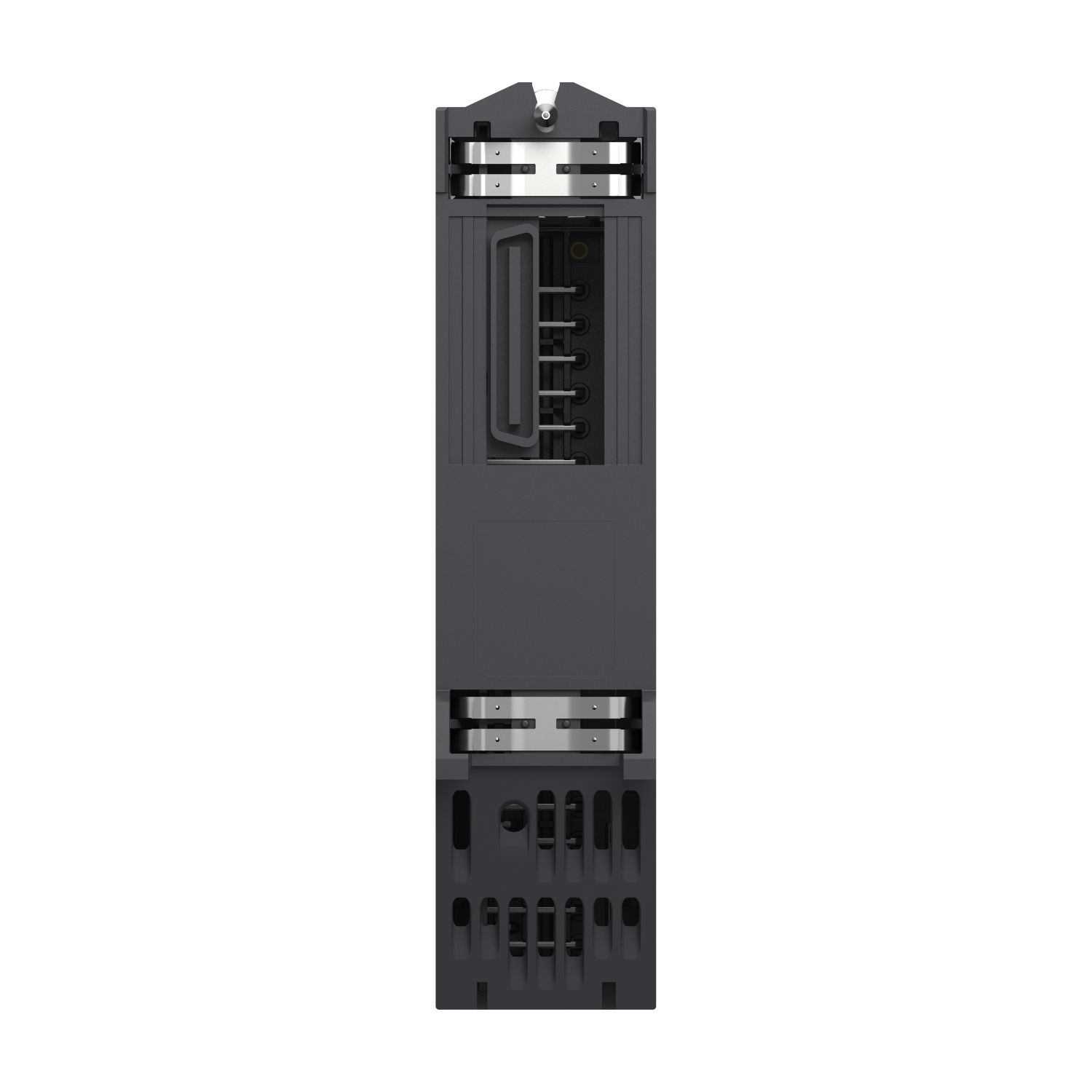

Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC
Picture of Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC
SKU:

BMXDDO3202

Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

$1,697.63 INC GST
Availability: Please contact our sales team on 1300 724 622.
Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
User guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product has 32 isolated outputs and it is supplied with 12/24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete output current 0.5 A
Product or component type discrete output module
Discrete output voltage 12...24 V 10.8...30 V DC
Discrete output logic positive
Discrete output number 32 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type solid state
Complementary
Response time on output 0.3 ms
Reverse polarity protection reverse mounted diode
Maximum tungsten load 3 W 12 V, 6 W 24 V
Output overload protection with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In
Output short-circuit protection with external fuse
Output overvoltage protection with transil diode
Typical current consumption 56 mA at 3.3 V DC
Paralleling of outputs yes : 3 maximum
Load impedance ohmic > 54.54 Ohm
Maximum leakage current 0.1 mA at state 0
Net weight 142.01 g
Power dissipation in W 4.8 W
Protection type overvoltage protection,  overload protection, short-circuit protection, external fuse reverse polarity protection
Insulation resistance > 10 MOhm 500 V DC
Maximum voltage drop <1.2 V at state 1
Current per channel 0.55 A
Voltage detection threshold > 18 V DC preactuator at state 0, < 14 V DC preactuator fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Switching frequency 0.5/LI² Hz
Maximum current per module 17.6 A
MTBF reliability 833000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 1 minute, output/internal logic, 1780 V AC at 50/60 Hz 1 minute, output/ground
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 18.000 cm
Package 1 Length 26.500 cm
Package 1 Weight 317.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.908 kg
