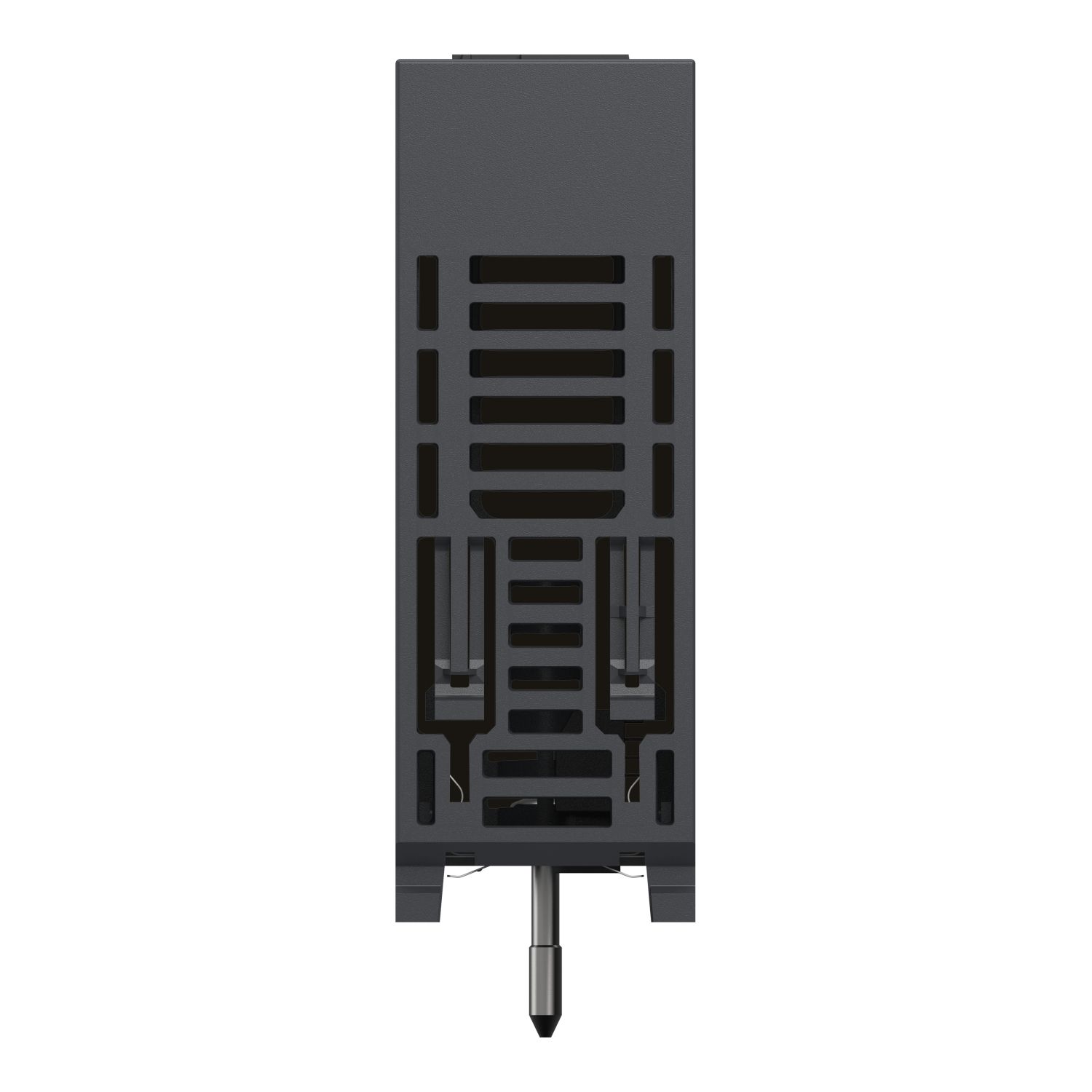

Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

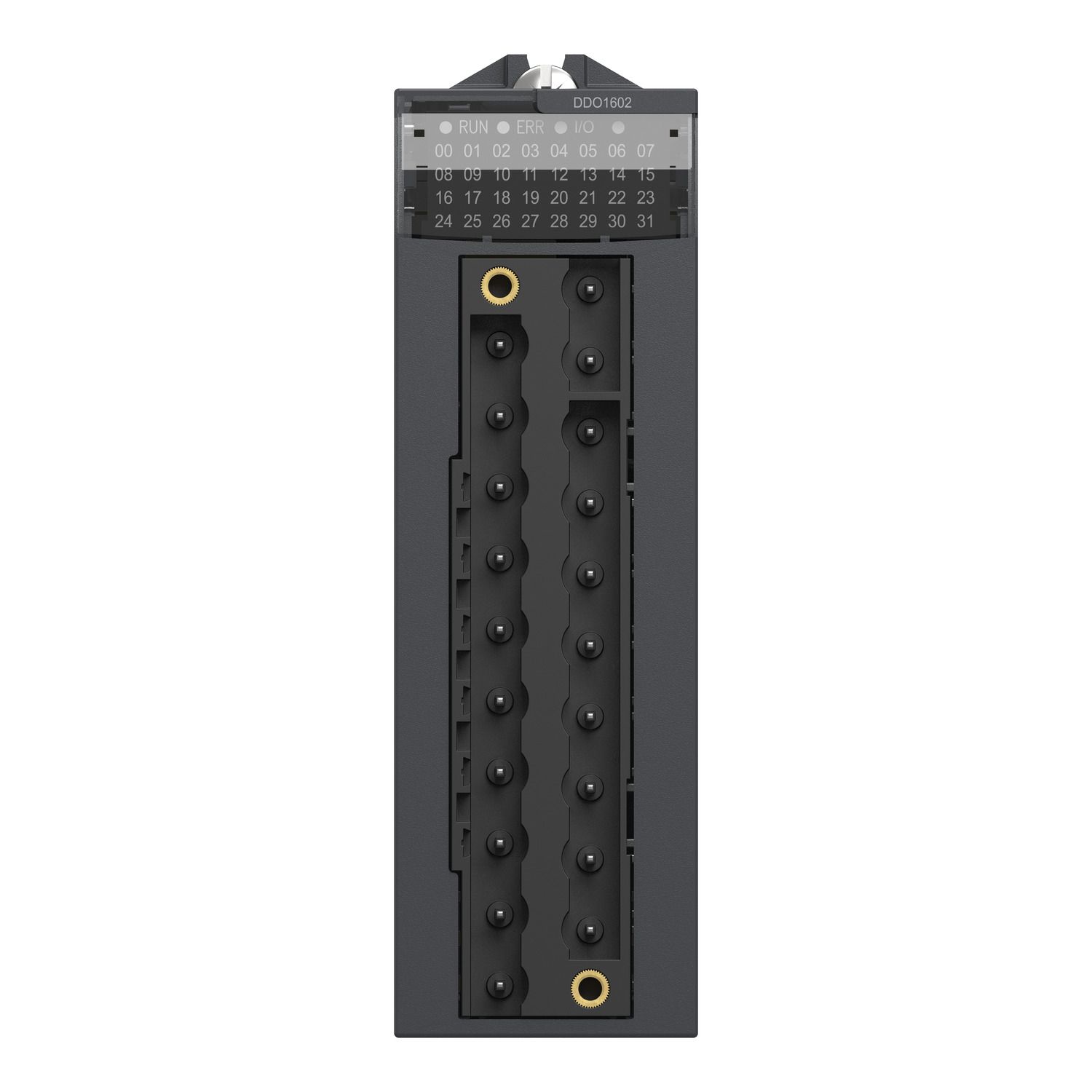

Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

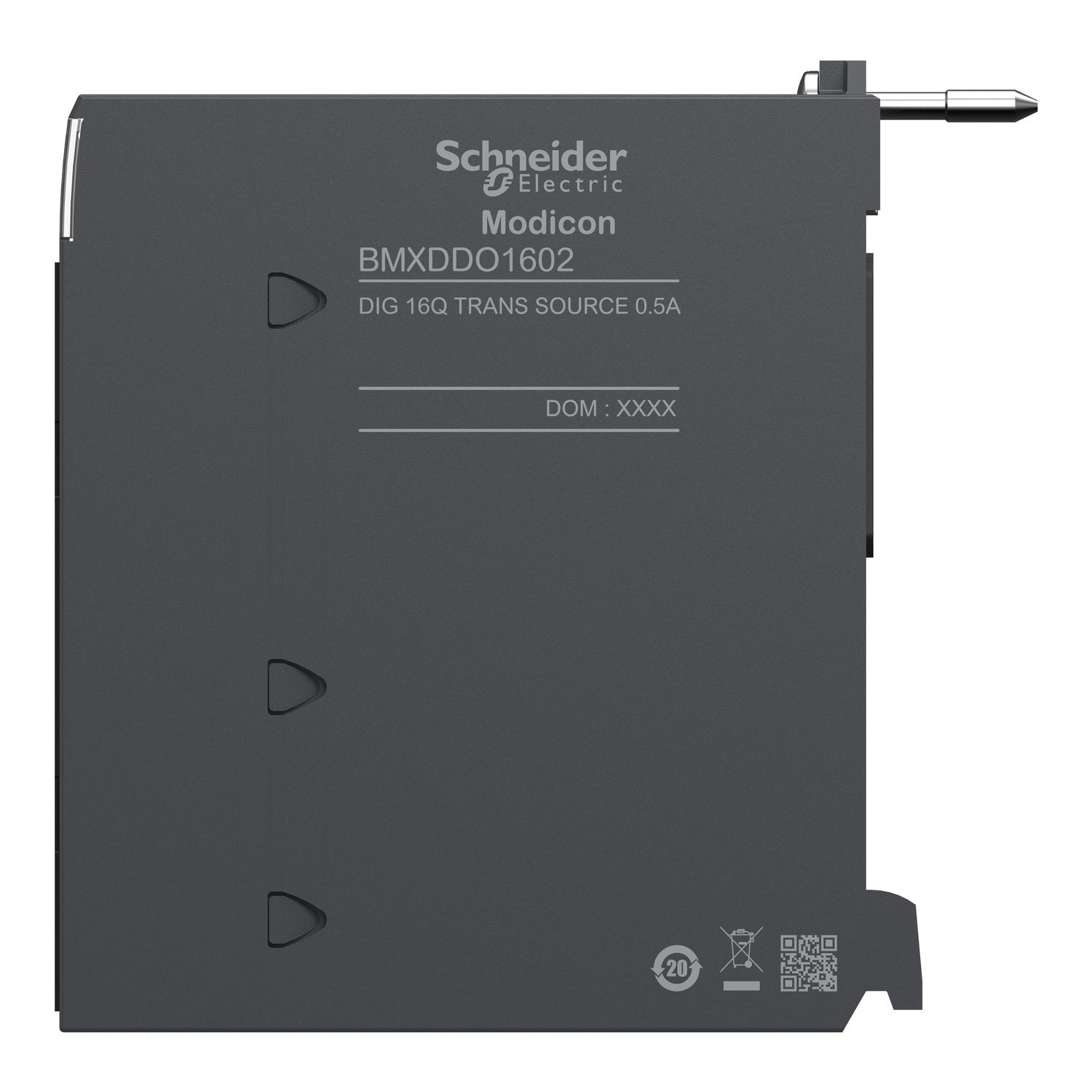

Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

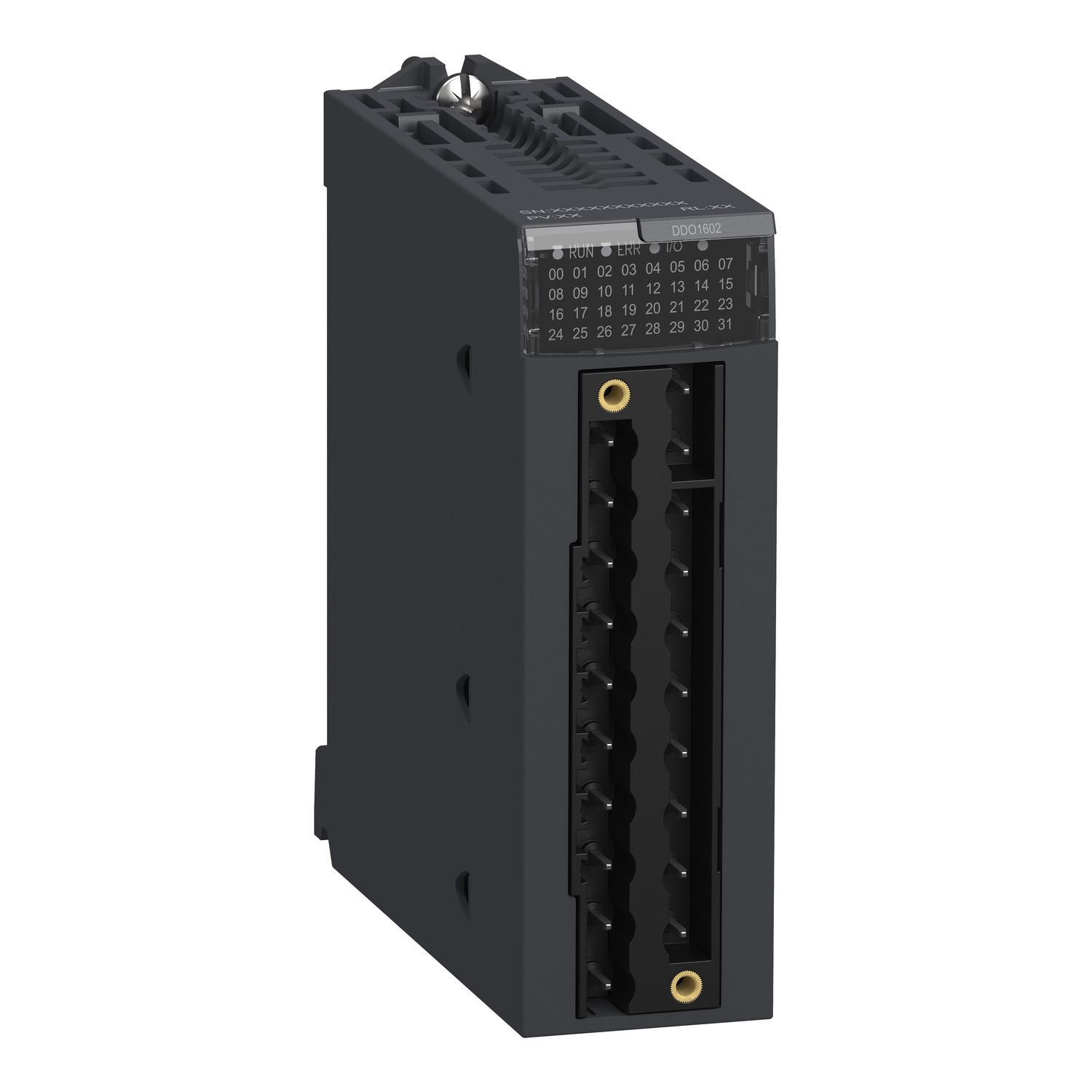

Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

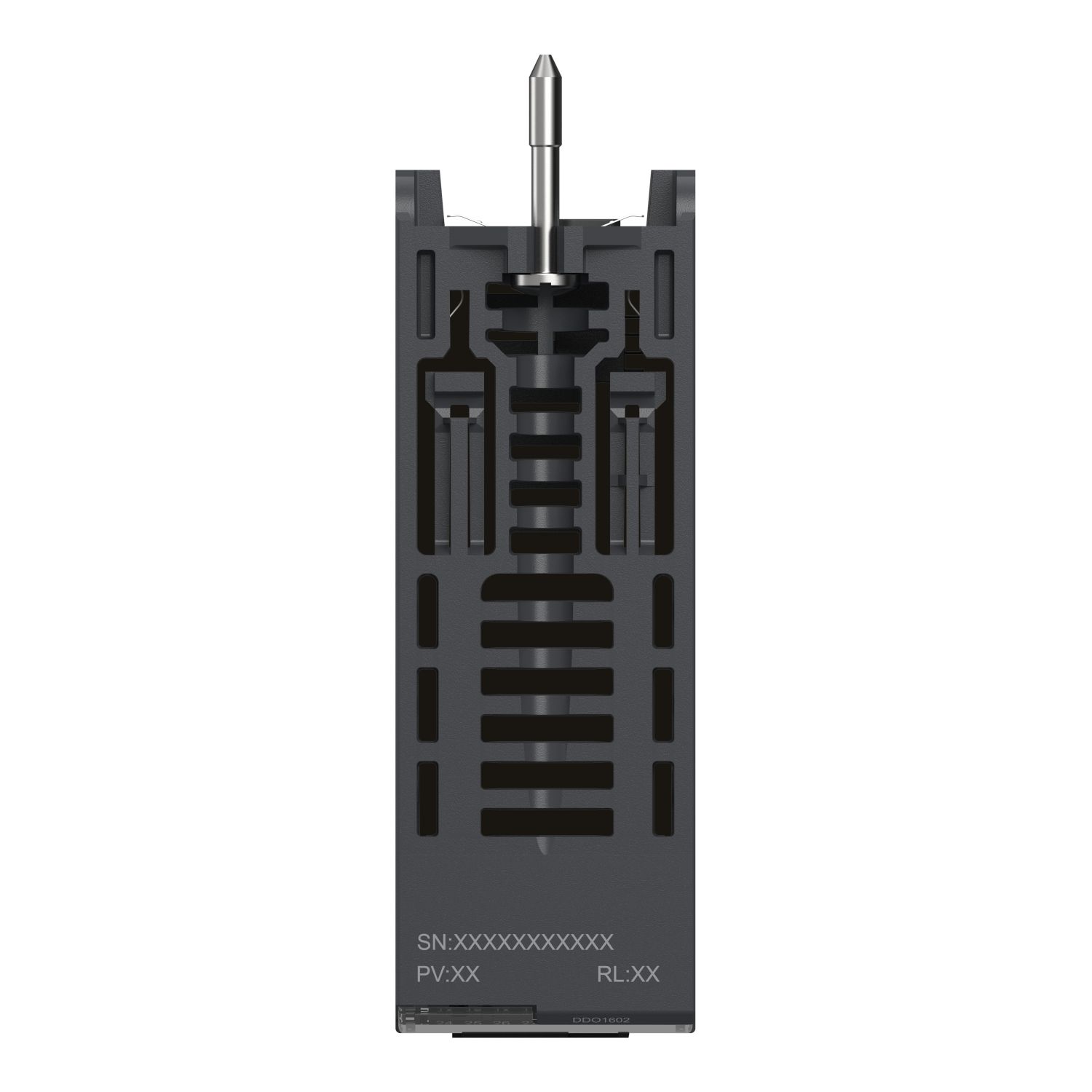

Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
Picture of discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
SKU:

BMXDDO1602

discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

$846.92 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name Attribute value
Main
Discrete output current 0.5 A
Discrete output voltage 24 V 19...30 V DC
Discrete output logic positive
Range of product Modicon X80
Discrete output type solid state
Product or component type discrete output module
Discrete output number 16 conforming to EN/IEC 61131-2
Complementary
Response time on output 1.2 ms
Output overload protection with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In
Output short-circuit protection with 2 A external fuse
Output overvoltage protection with transil diode
Typical current consumption 79 mA at 3.3 V DC
Power dissipation in W 4 W
Protection type overvoltage protection,  overload protection, short-circuit protection, external fuse reverse polarity protection
Maximum voltage drop <1.2 V at state 1
Voltage detection threshold > 18 V DC preactuator at state 0, < 14 V DC preactuator fault
Current per channel 0.625 A
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Switching frequency 0.5/LI² Hz
Maximum current per module 10 A
MTBF reliability 410000 H
Reverse polarity protection reverse mounted diode
Maximum tungsten load 6 W
Paralleling of outputs yes : 2 maximum
Load impedance ohmic > 48 Ohm
Maximum leakage current 0.5 mA at state 0
Net weight 0.12 kg
Insulation resistance > 10 MOhm 500 V DC
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 145.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.516 kg
