SKU:

BMXDAI1615

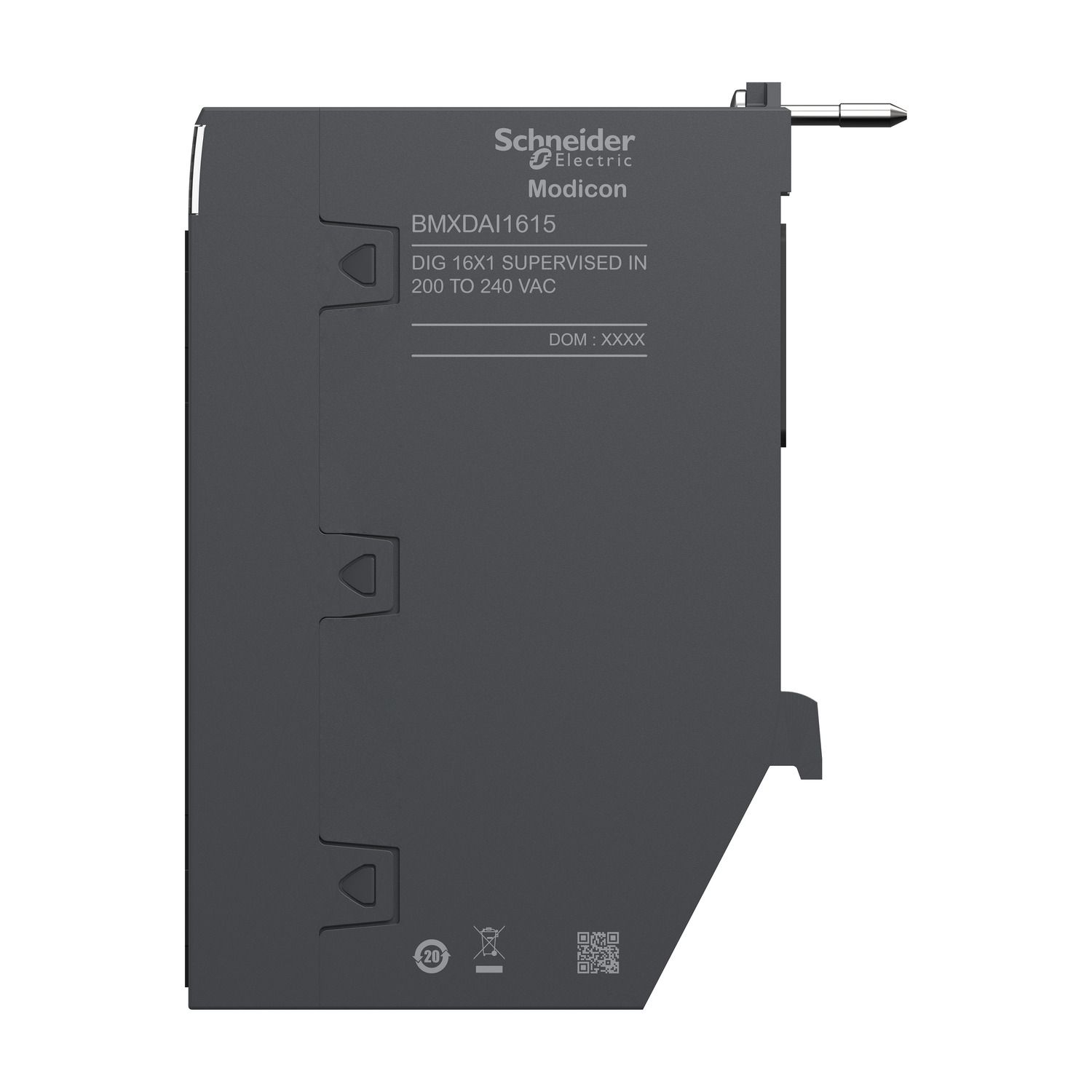

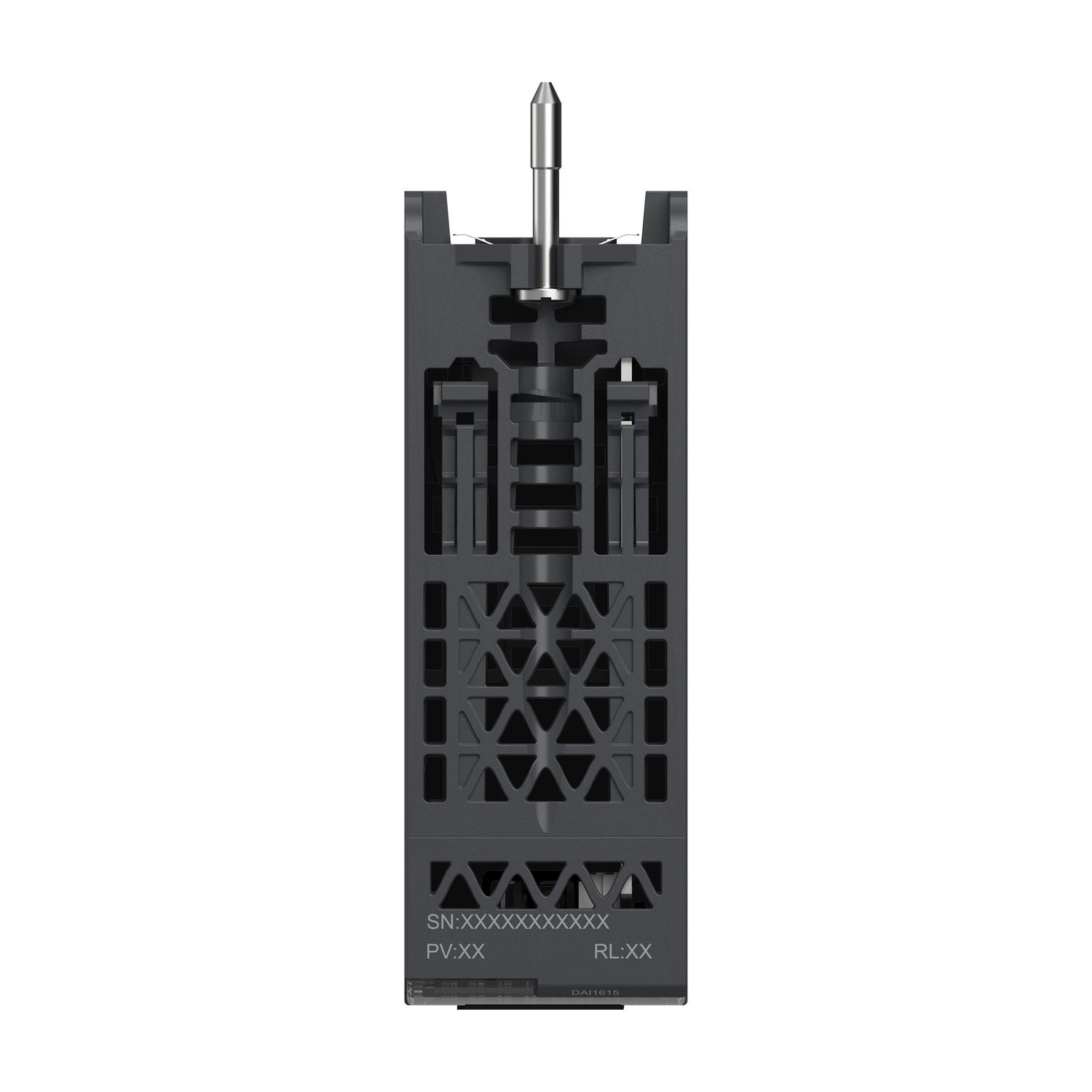

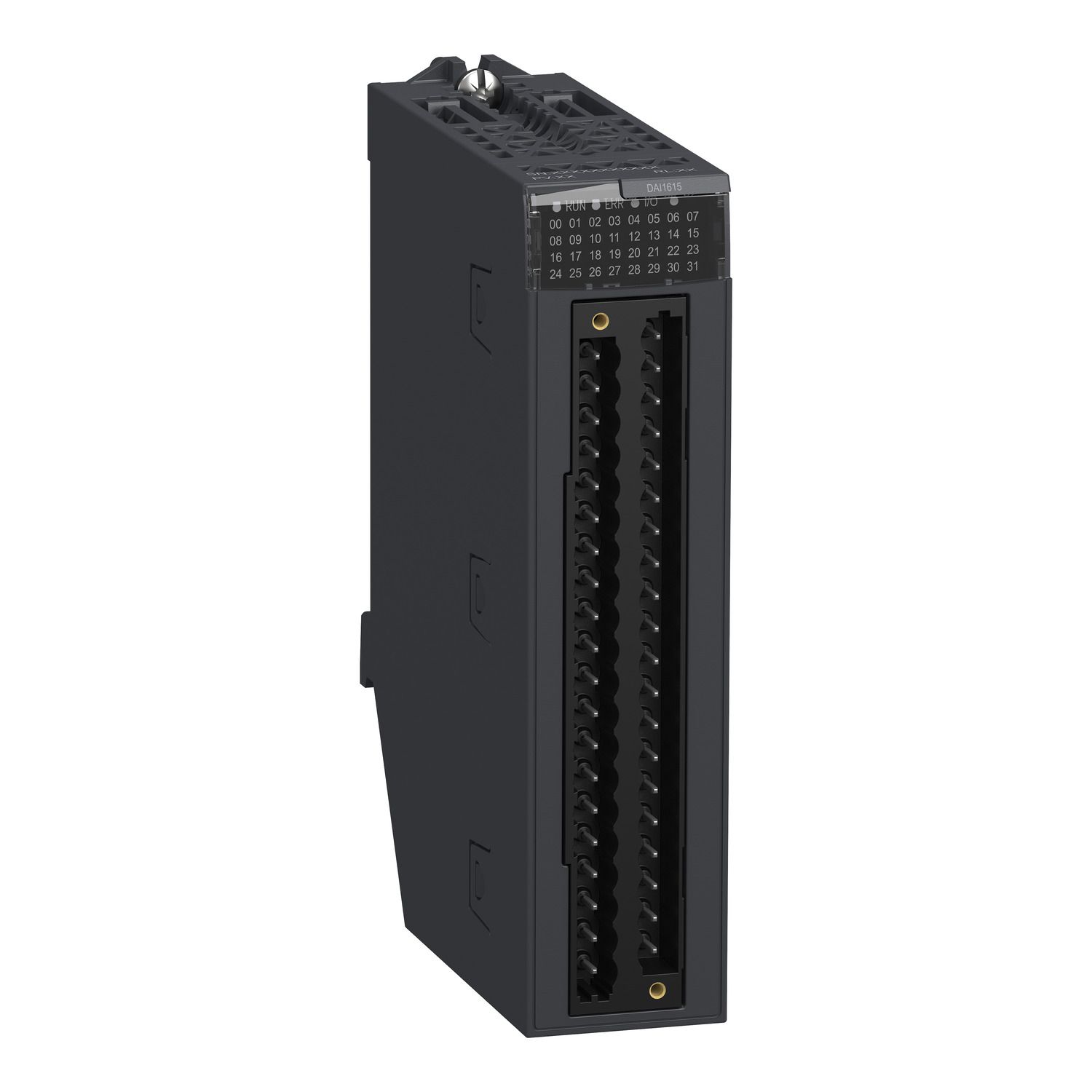

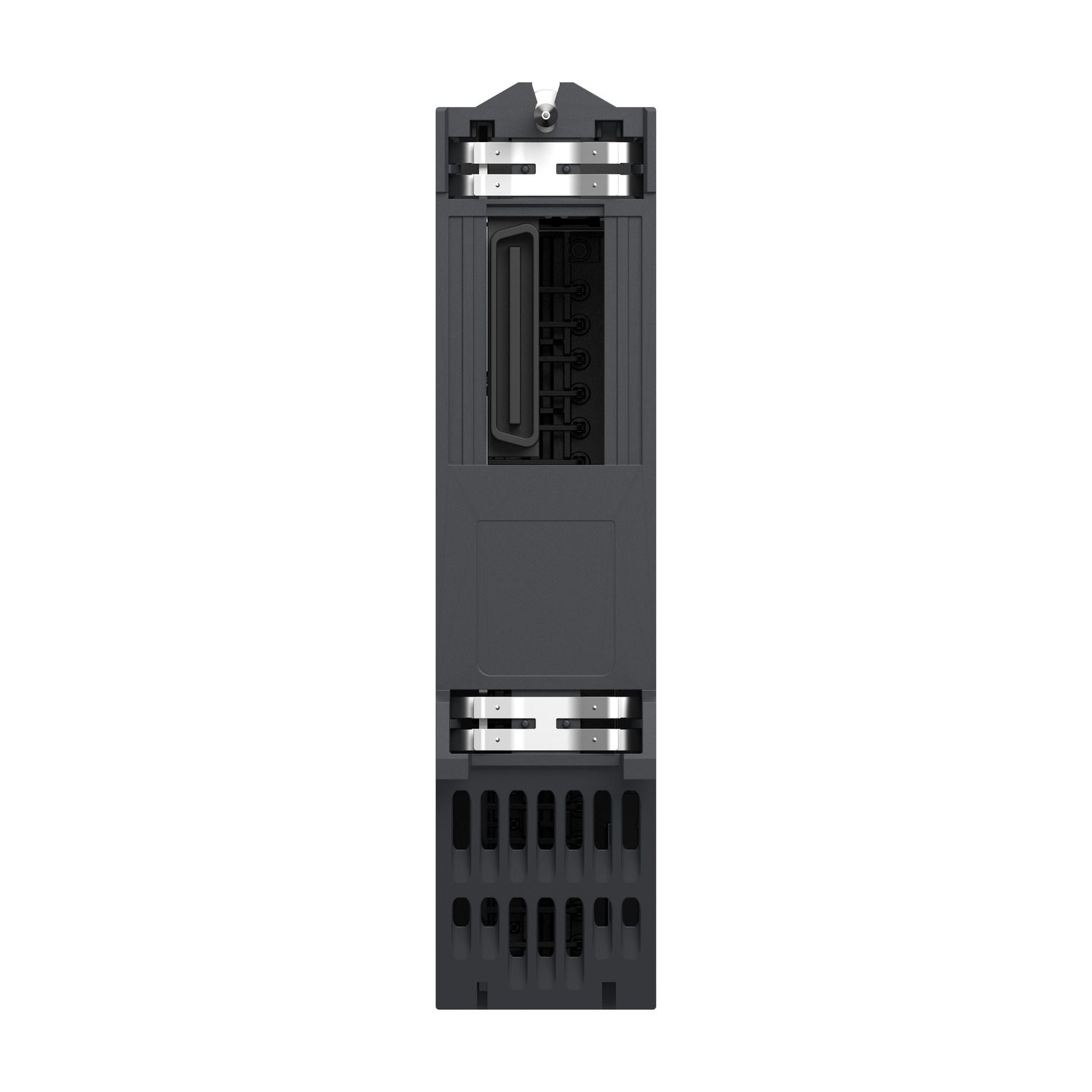

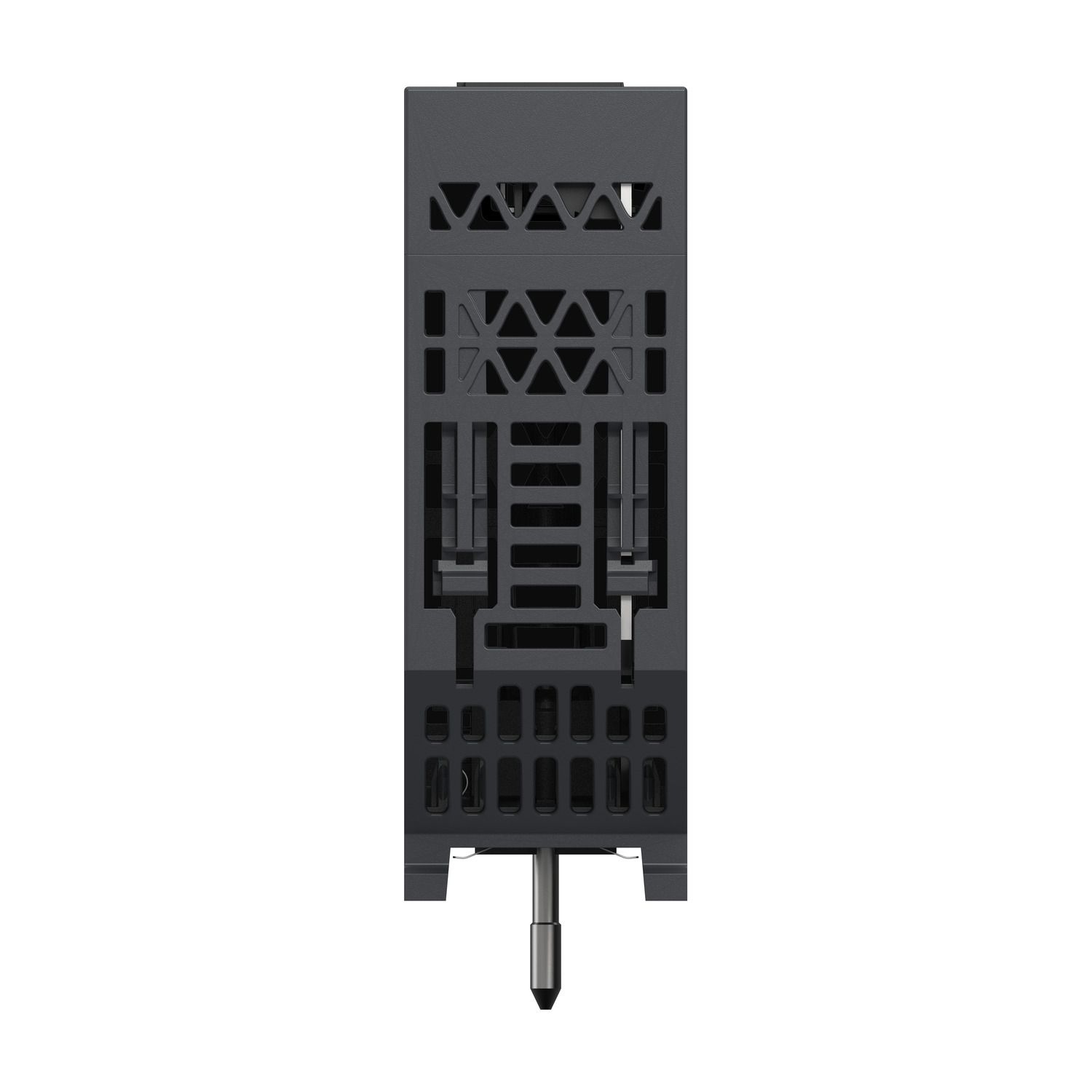

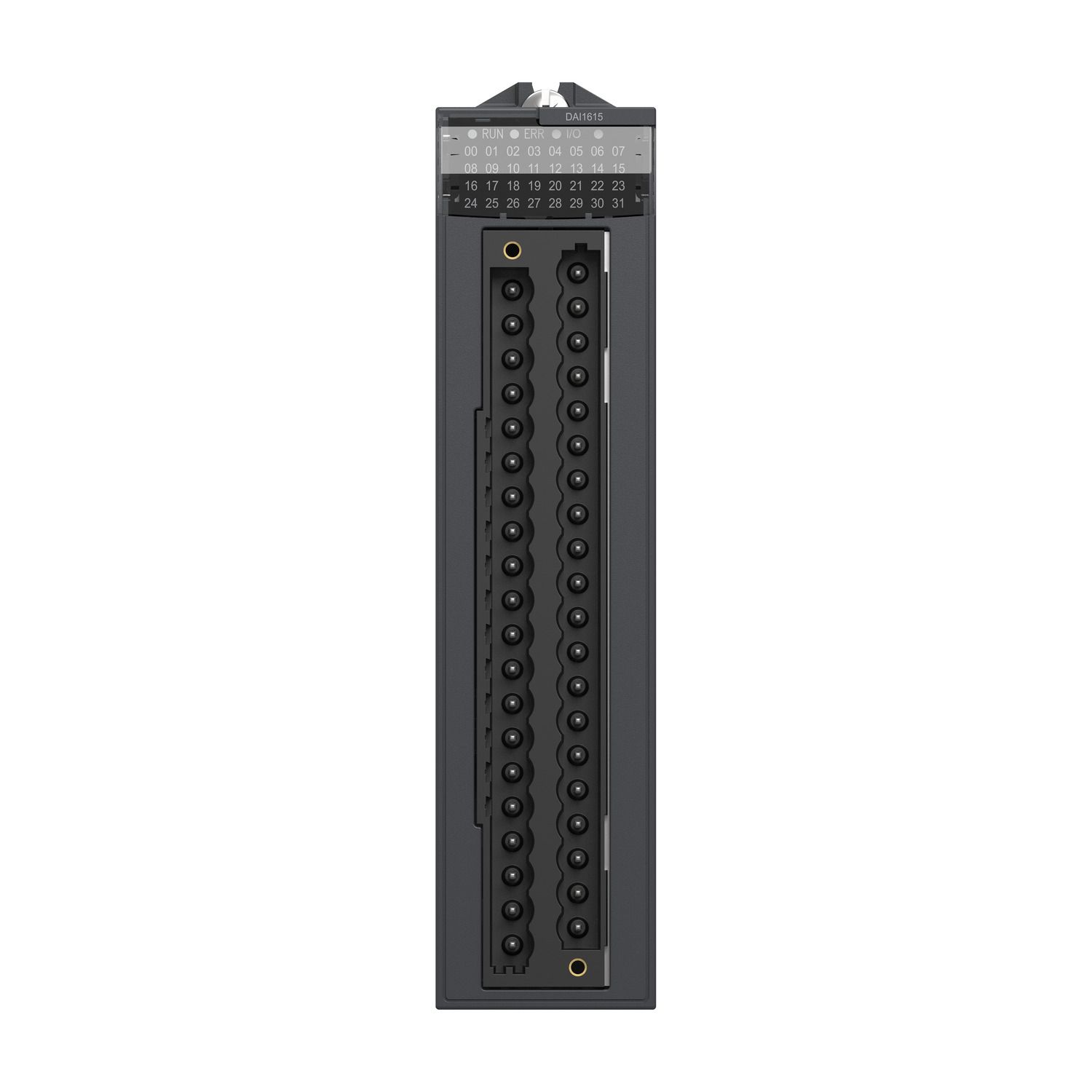

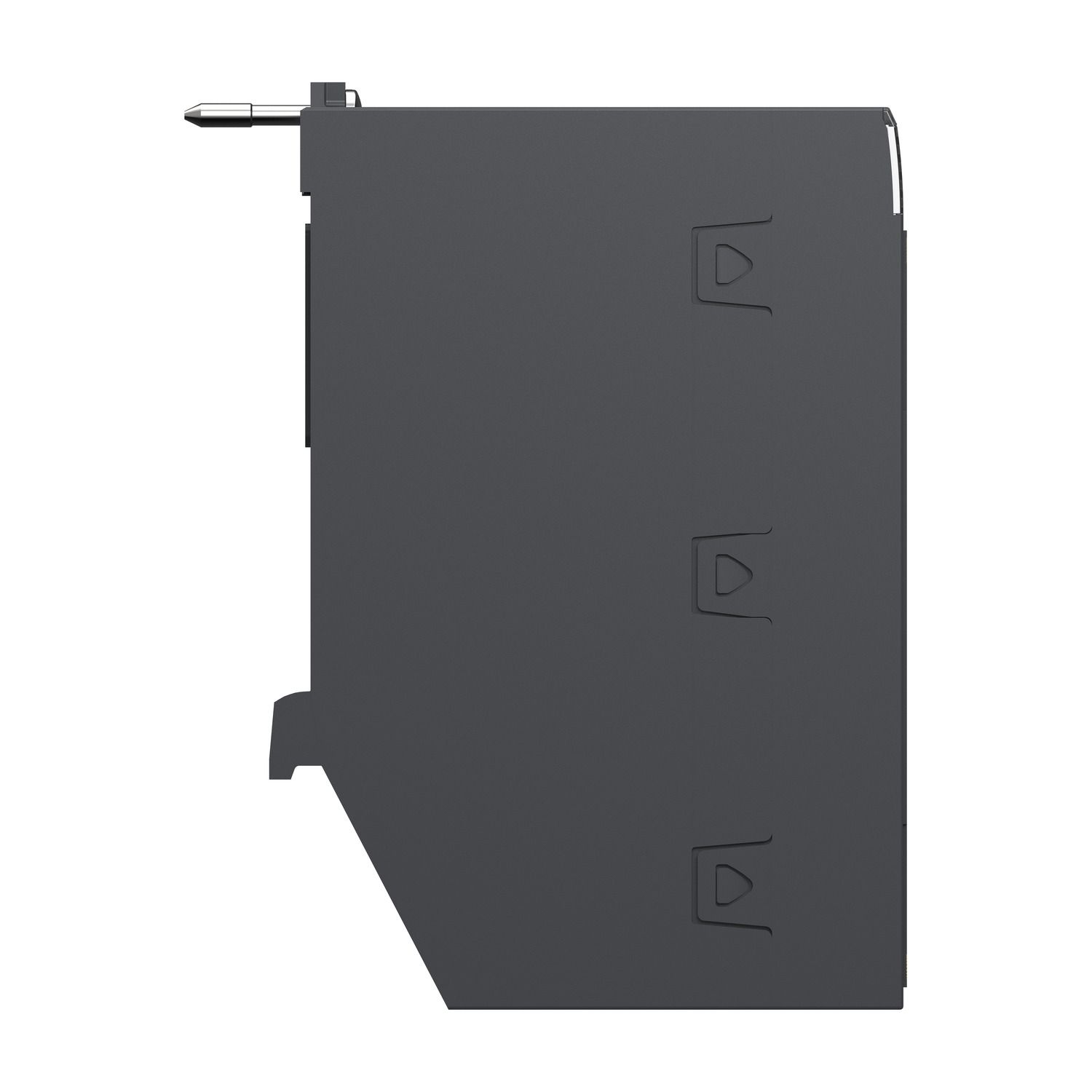

discrete input module, Modicon X80, 16 isolated inputs, 200 to 240V AC

$839.96 INC GST
Available for Shipping : 15-Dec-2025
discrete input module, Modicon X80, 16 isolated inputs, 200 to 240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Declaration of conformity
User guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 input channels and it is supplied with 200 to 240V AC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 559788 hours of MTBF. This discrete module has a weight of 0.157kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 1 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete input current 3 mA
Discrete input number 16
Discrete input type isolated
Input type capacitive
Product or component type discrete input module
Discrete input voltage 200...240 V AC
Range of product Modicon X80
Complementary
Input impedance 28000 Ohm
Current state 0 guaranteed <= 2 mA
Typical current consumption 76 mA at 3.3 V DC
AC deactivation filtering time 20 ms
Input compatibility 2-wire proximity sensor conforming to IEC 61131-2 Type 1, 2-wire proximity sensor conforming to IEC 60947-5-2
Net weight 0.157 kg
Power dissipation in W 5 W
Protection type 1 external fuse per group of channel0.25 A fast blow
Current state 1 guaranteed >= 3 mA
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 170 V AC sensor OK, < 80 V AC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
AC activation filtering time 10 ms
Voltage range 170...264 V
Network frequency 50/60 Hz
MTBF reliability 3700000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 0-95 % at 0-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 1780 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.700 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 312.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.050 kg

Related products

terminal block, Modicon X80, 40-pin removable caged

BMXFTB4000
$170.90 INC GST
View Detail

terminal block, Modicon X80, 40-pin removable spring

BMXFTB4020
$170.90 INC GST
View Detail

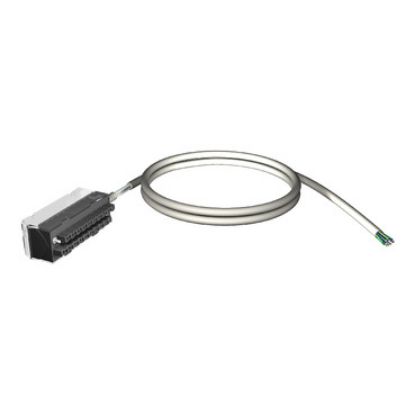

Picture of cord set, Modicon X80, 40-way terminal, one end flying leads, 3m
