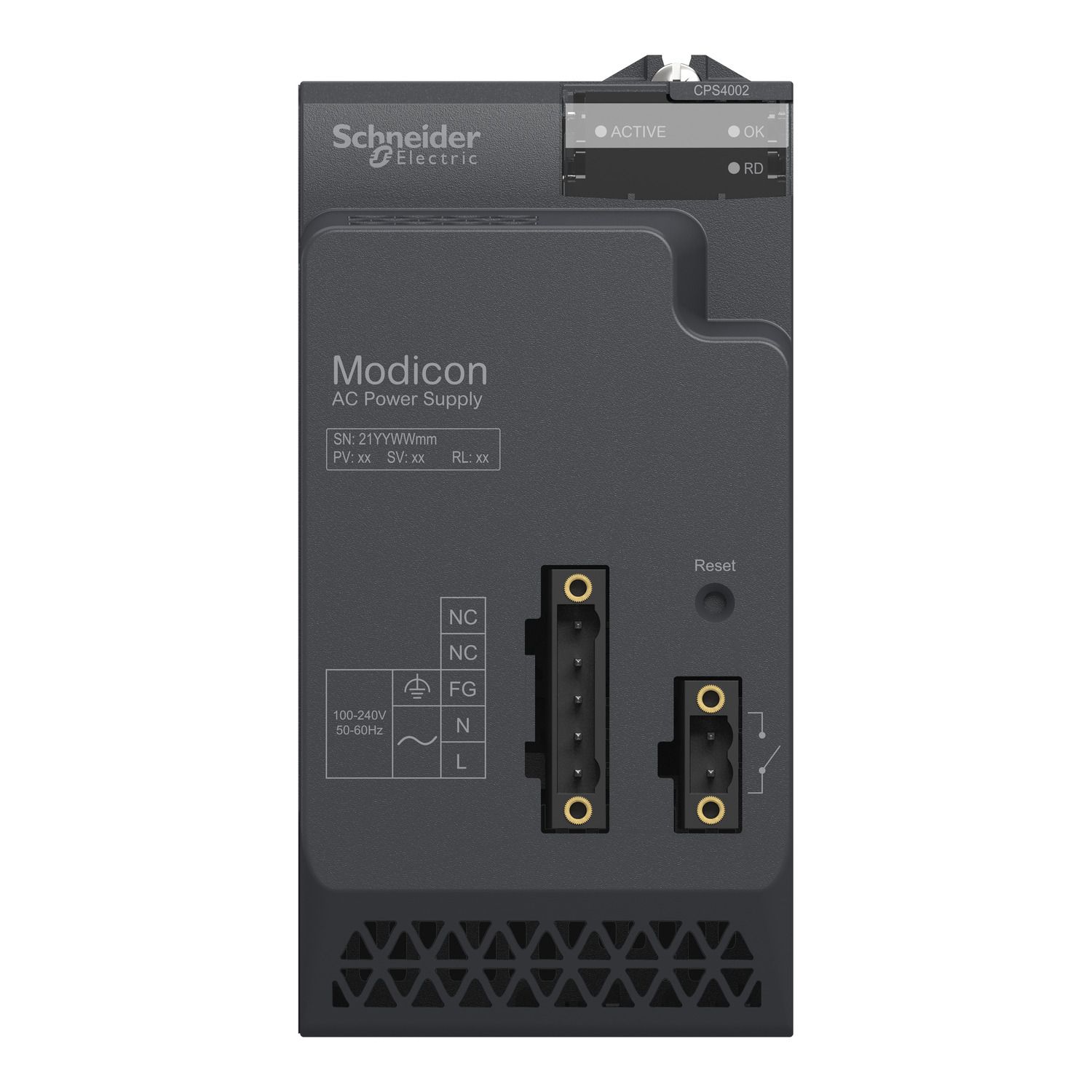

Picture of power supply module, Modicon X80, 100 to 240V AC

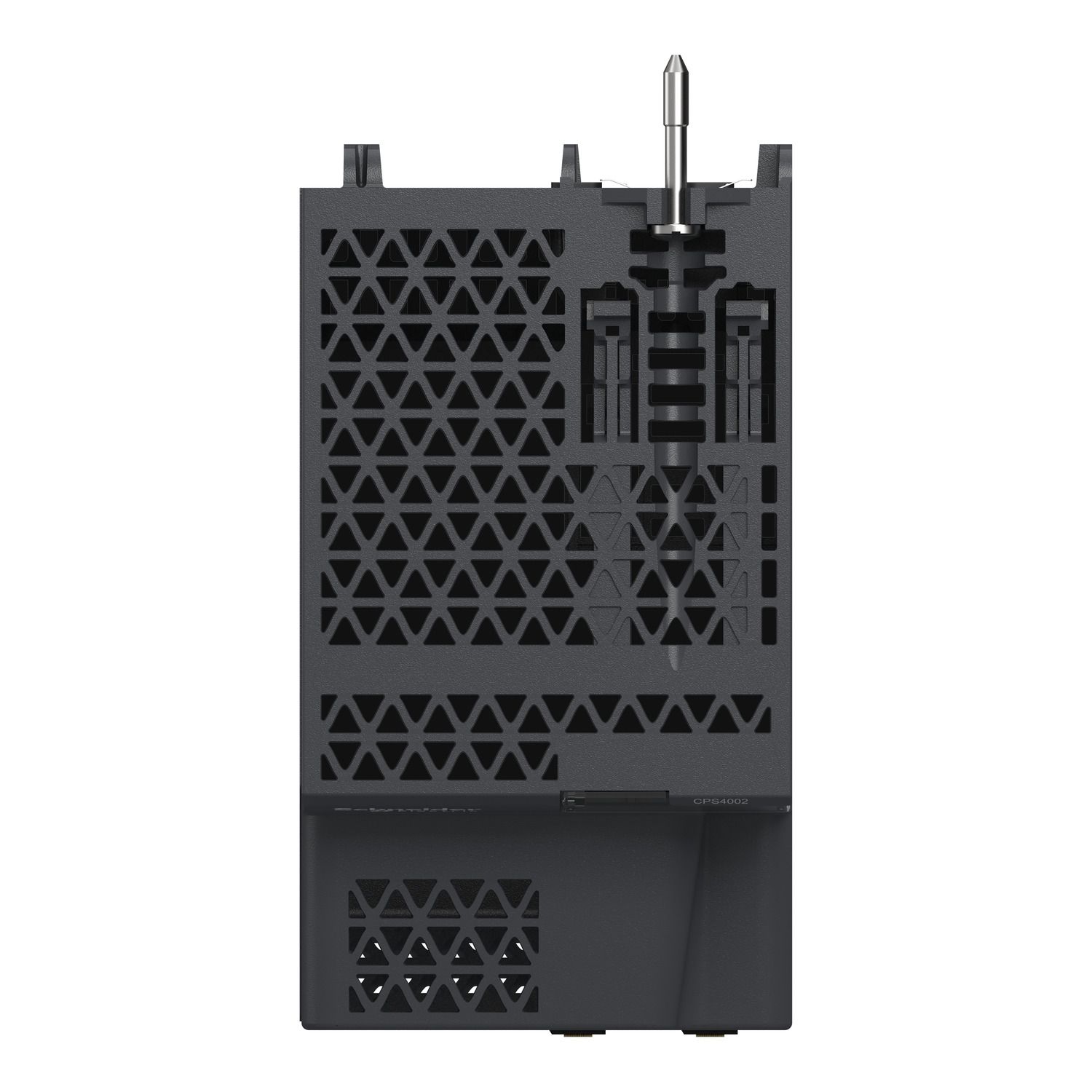

Picture of power supply module, Modicon X80, 100 to 240V AC

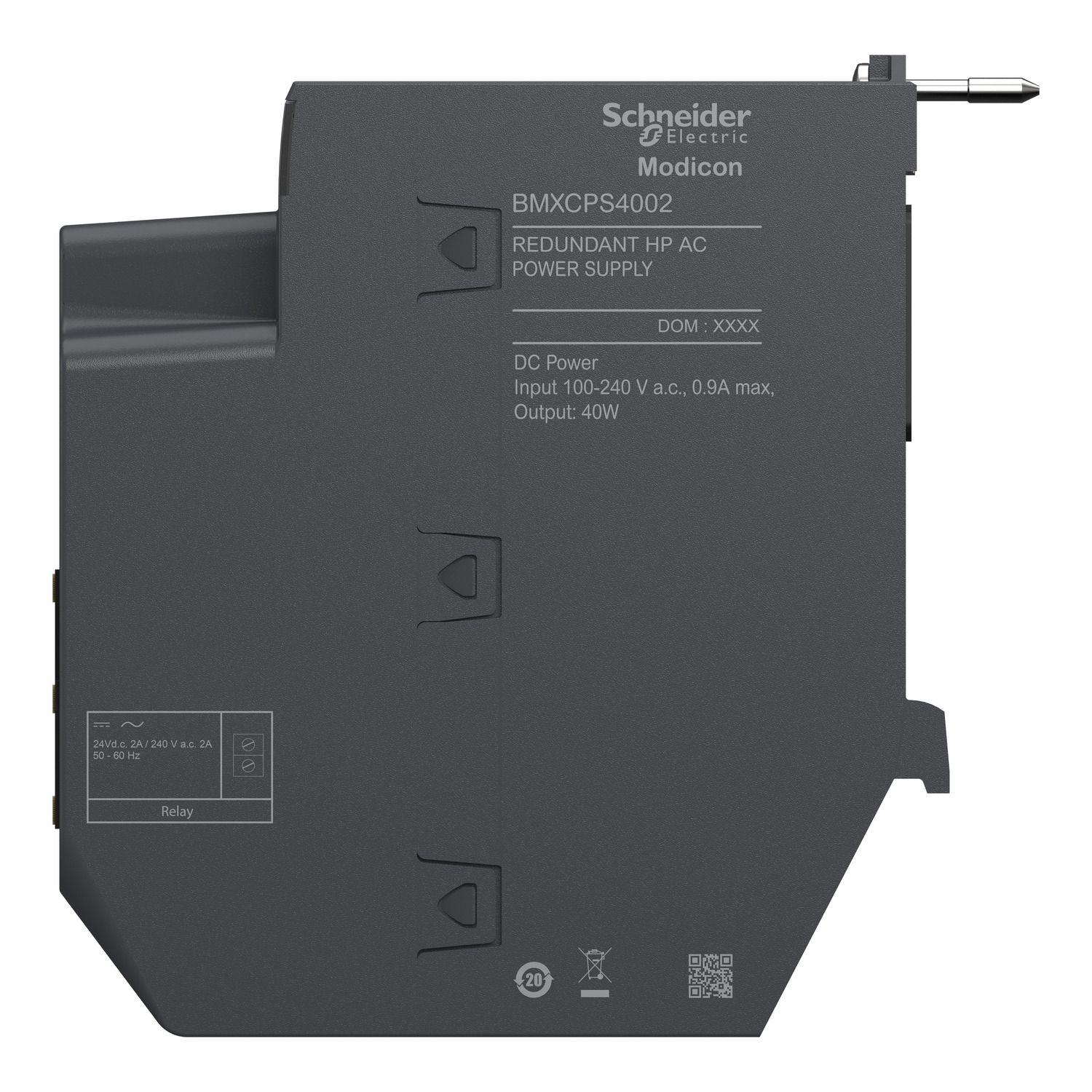

Picture of power supply module, Modicon X80, 100 to 240V AC

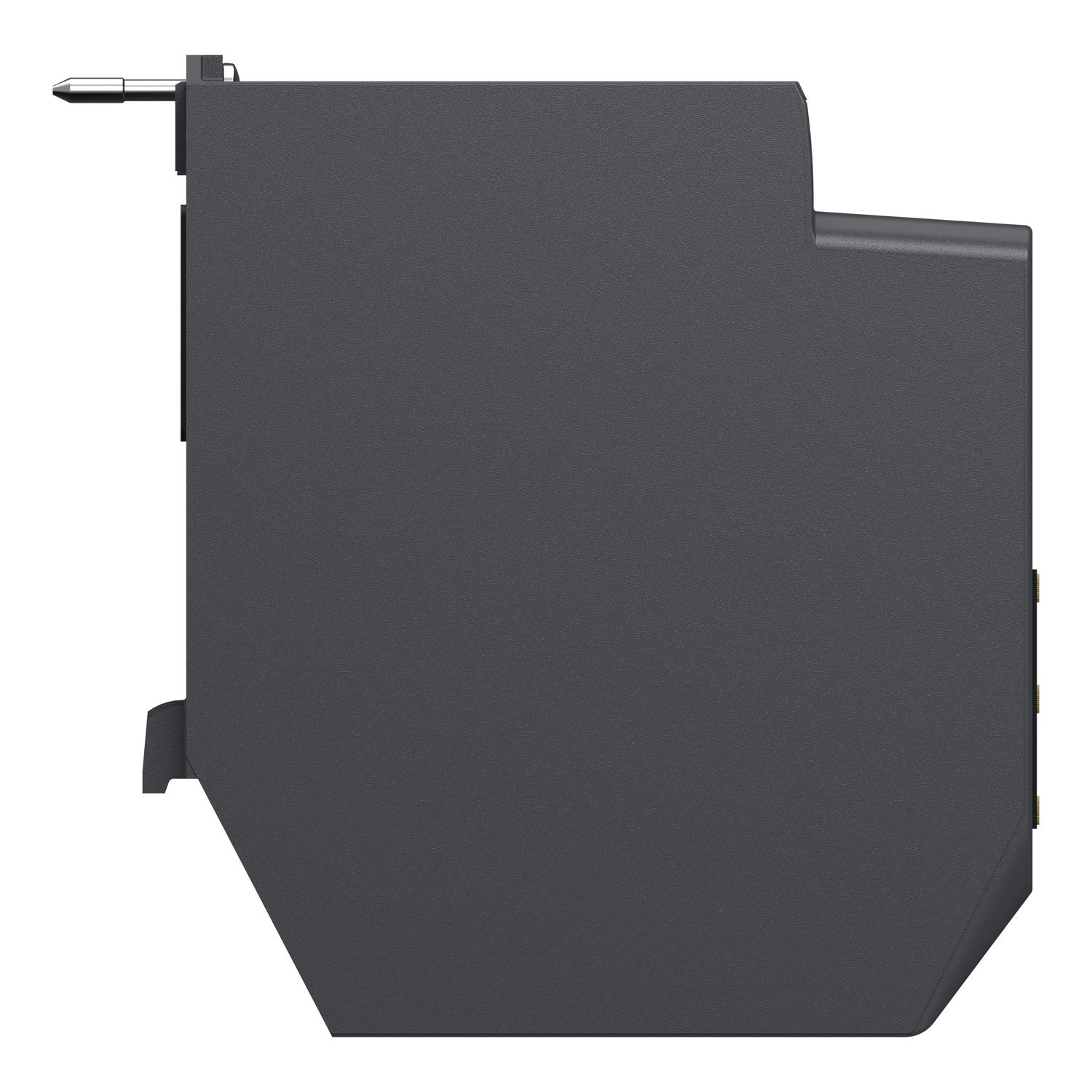

Picture of power supply module, Modicon X80, 100 to 240V AC

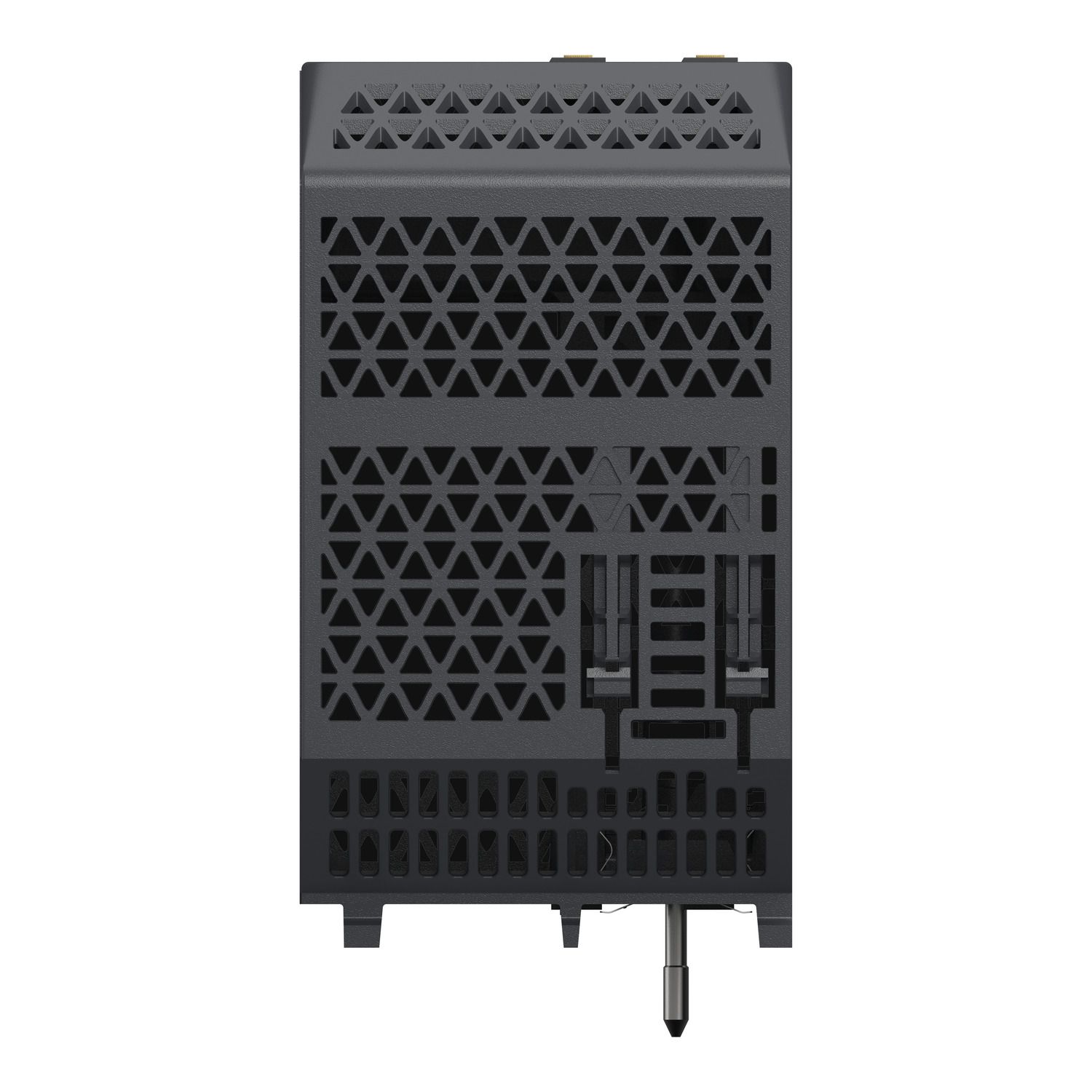

Picture of power supply module, Modicon X80, 100 to 240V AC

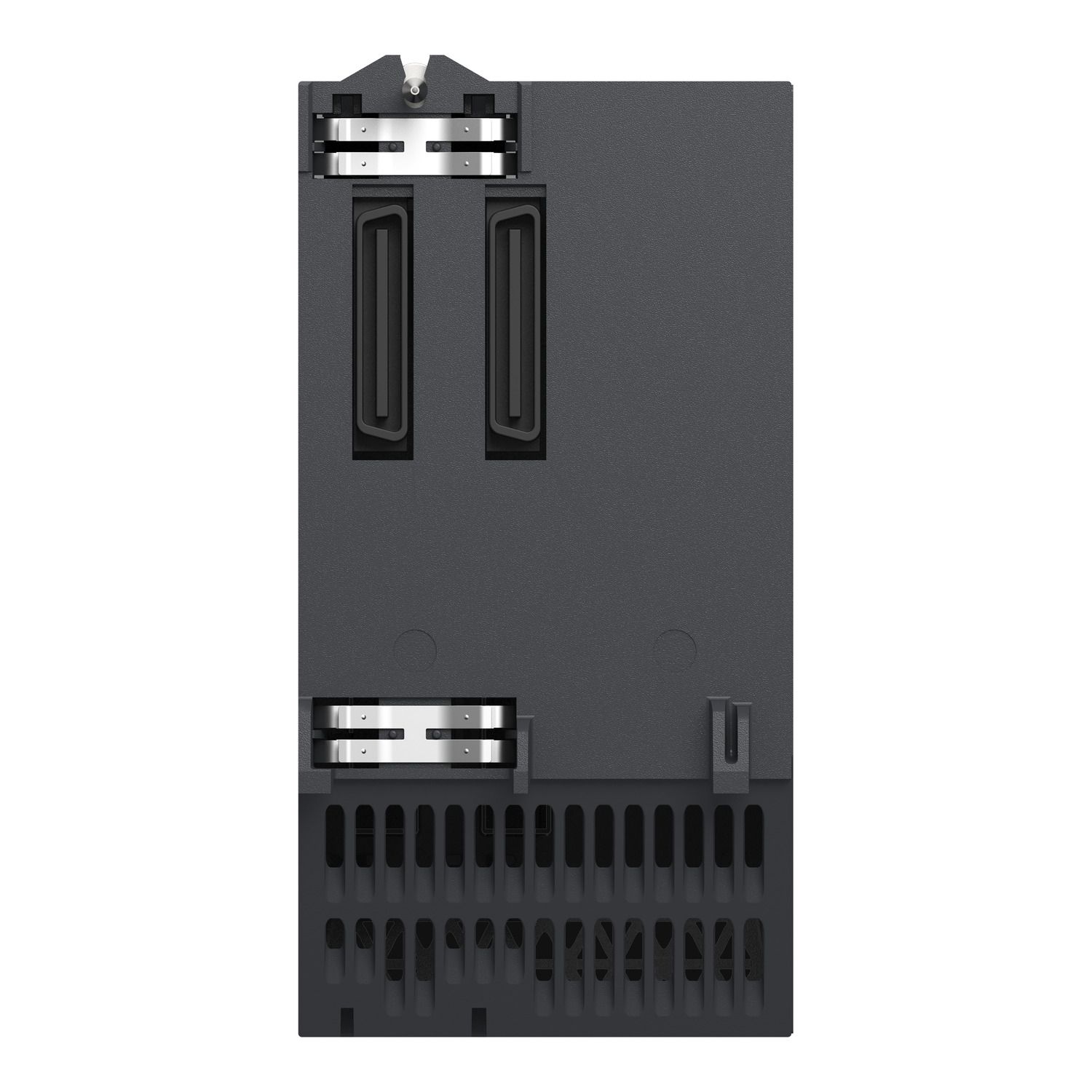

Picture of power supply module, Modicon X80, 100 to 240V AC

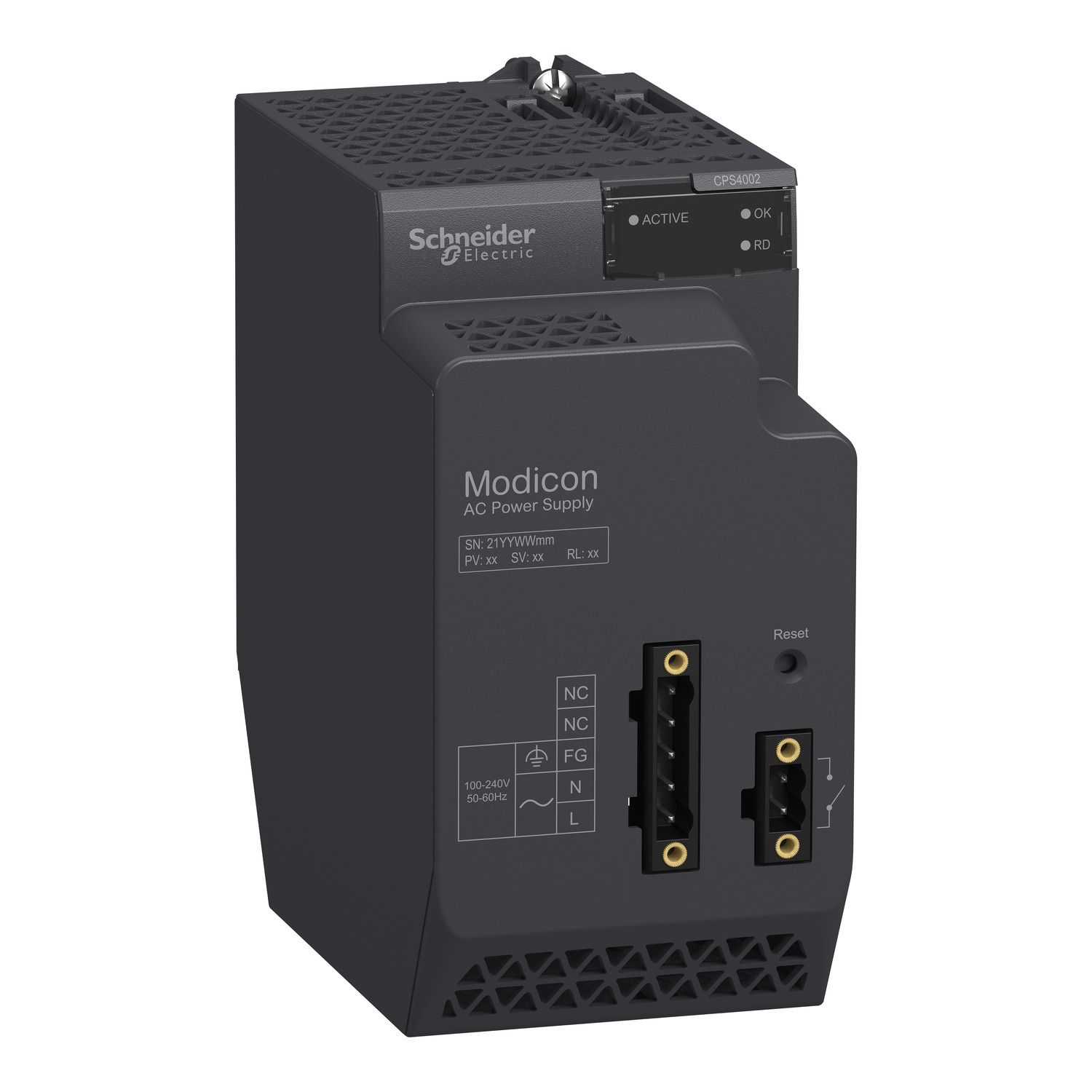

Picture of power supply module, Modicon X80, 100 to 240V AC
Picture of power supply module, Modicon X80, 100 to 240V AC
SKU:

BMXCPS4002

power supply module, Modicon X80, 100 to 240V AC

$2,492.05 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
power supply module, Modicon X80, 100 to 240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility all backplane
Supply circuit type AC
Secondary power 40 W 24 V DC at 0-60 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at 0-60 °C I/O module logic power supply
Function available remaining lifetime, redundancy information, uptime duration, redundancy test, temperature sensing
Product or component type power supply module
Range of product Modicon X80
Primary voltage 100...240 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 240 V, 30 A 120 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Apparent power 0.13 kVA
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.51 kg
Network frequency limits 47-63 Hz
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 1.67 A 24 V DC I/O module power supply and processor, 5.5 A 3.3 V DC I/O module logic power supply
Input current 1.01 A 115 V, 0.55 A 240 V
I²t on activation 4 A².s 230 V, 1 A².s 115 V
Status LED 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation 0.15 A.s 230 V, 0.1 A.s 115 V
Primary voltage limit 85...264 V
Network frequency 50/60 Hz
MTBF reliability 792000 H
Environment
Dielectric strength 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
IP degree of protection IP20
Protective treatment conformal coating Humiseal 1A33, TC
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic 3C4 conforming to EN/IEC 60721-3-3, 3C3 conforming to EN/IEC 60721-3-3
Shock resistance 30 gn
Immunity to microbreaks 1 ms
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.800 cm
Package 1 Width 18.300 cm
Package 1 Length 25.300 cm
Package 1 Weight 614.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.420 kg
