BMEXBP0800H

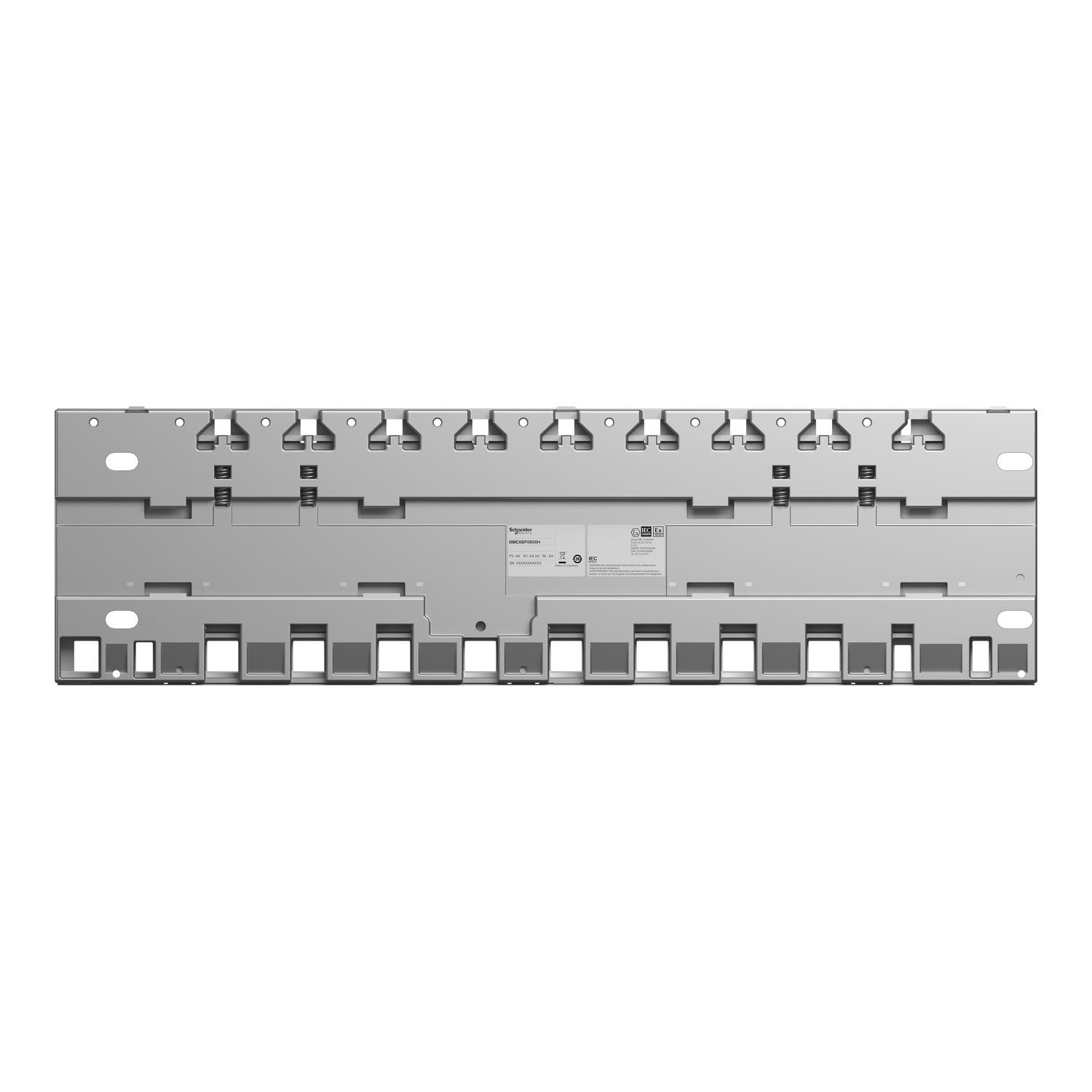

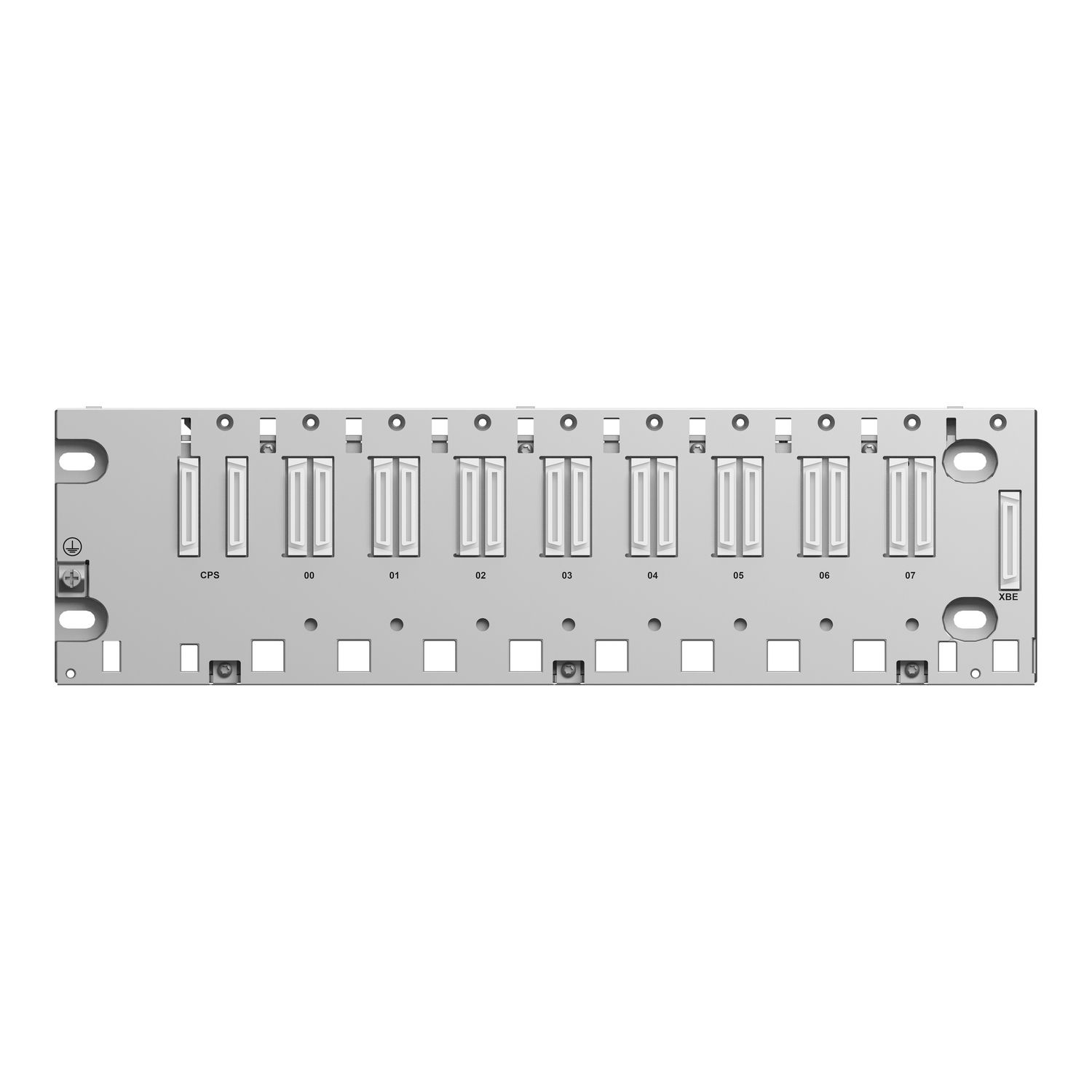

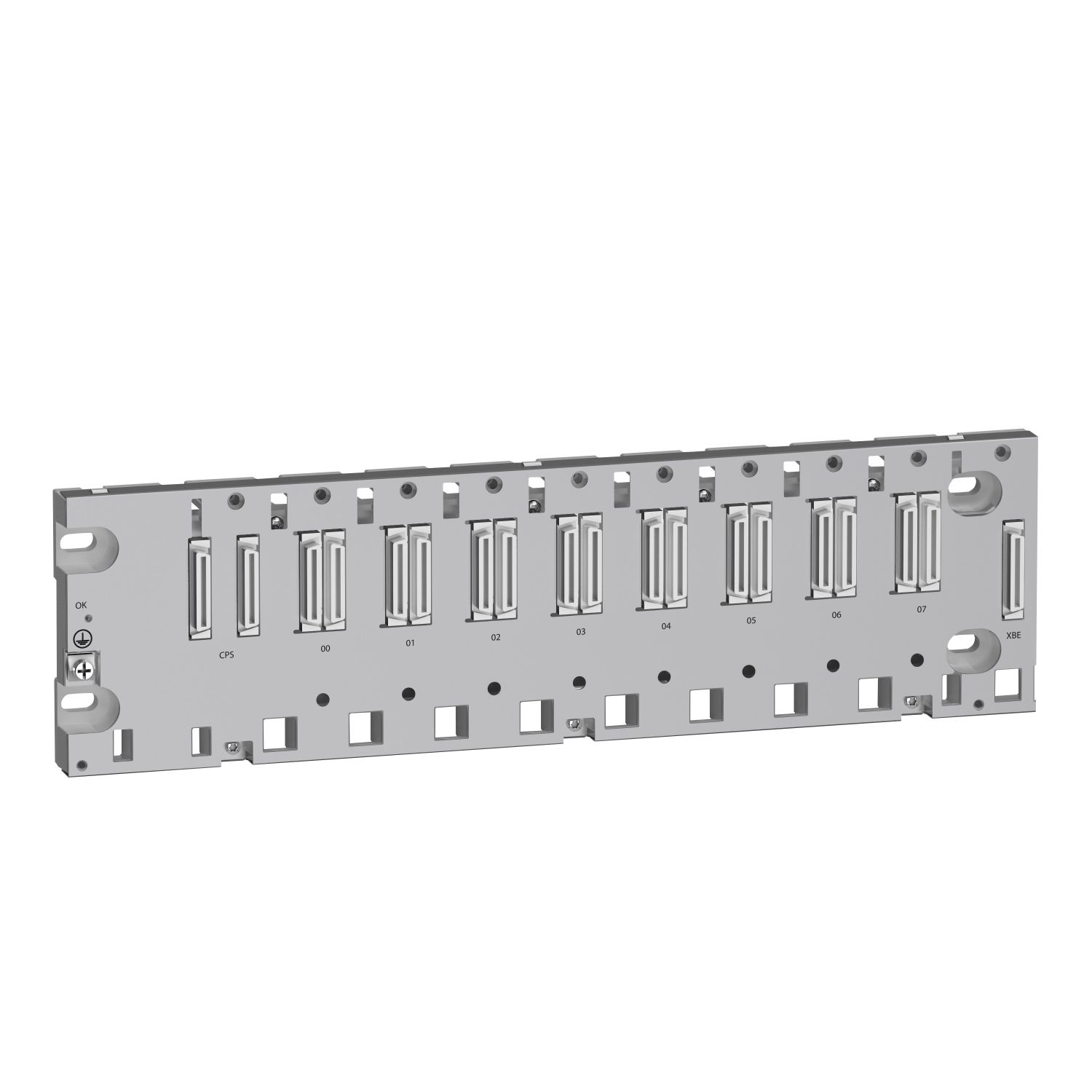

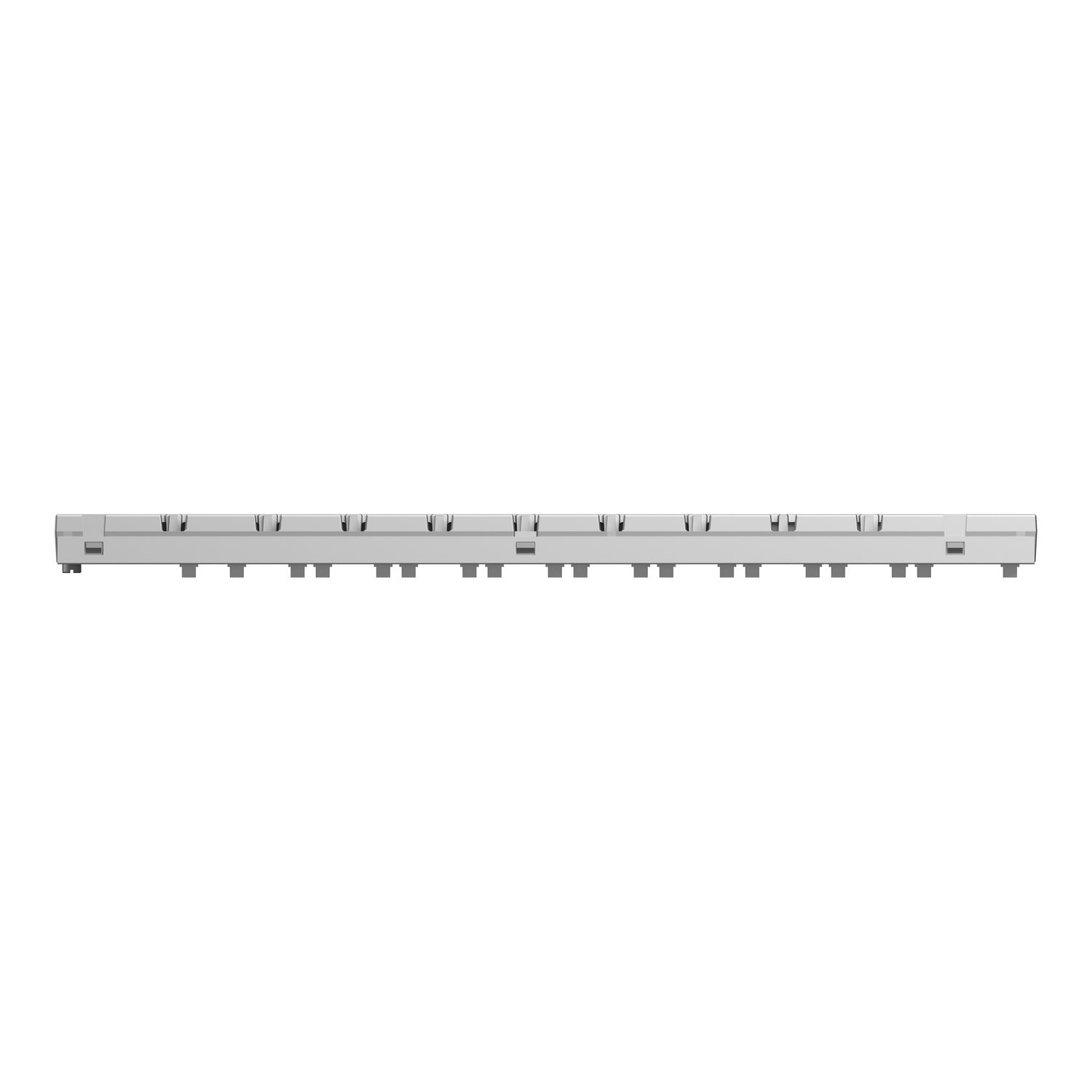

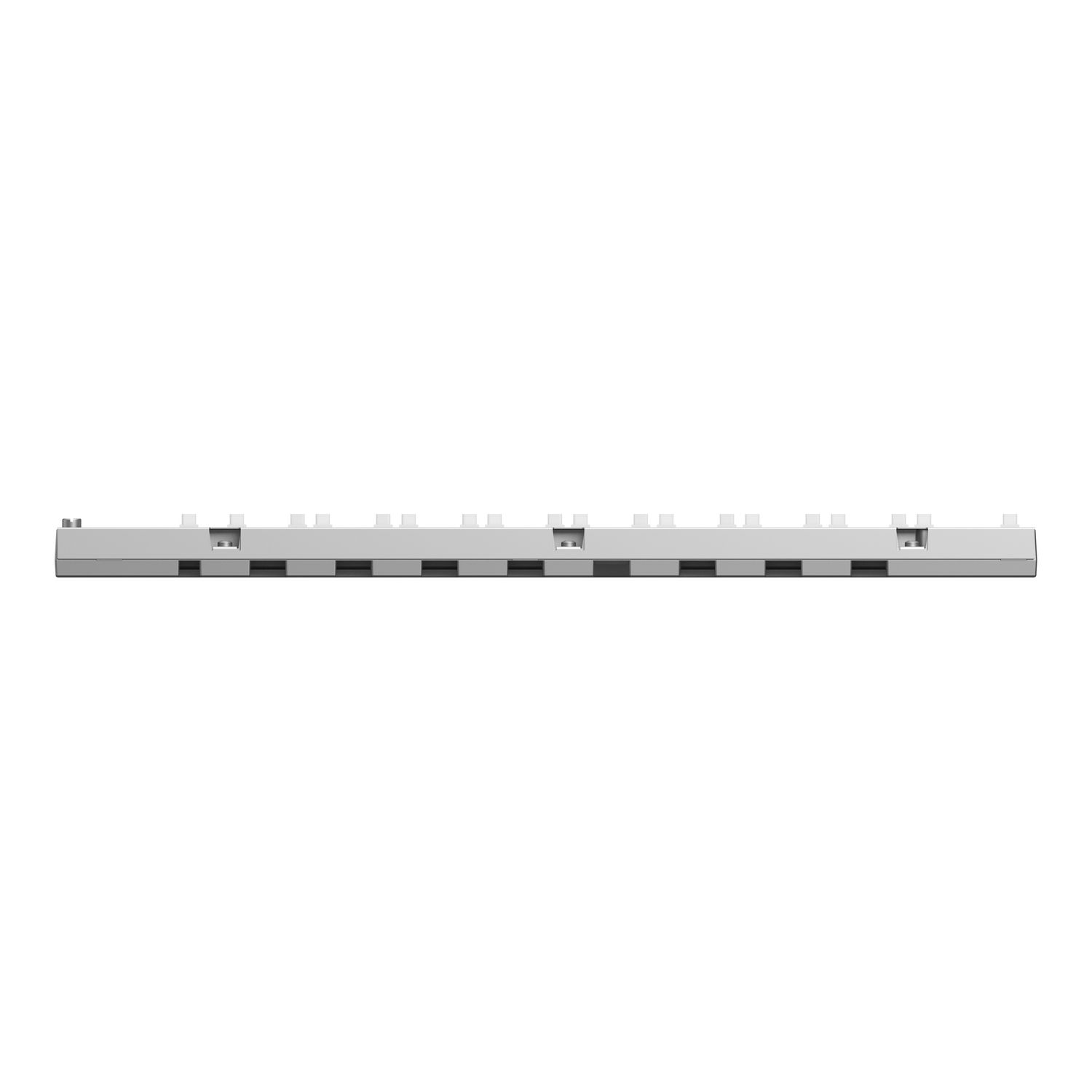

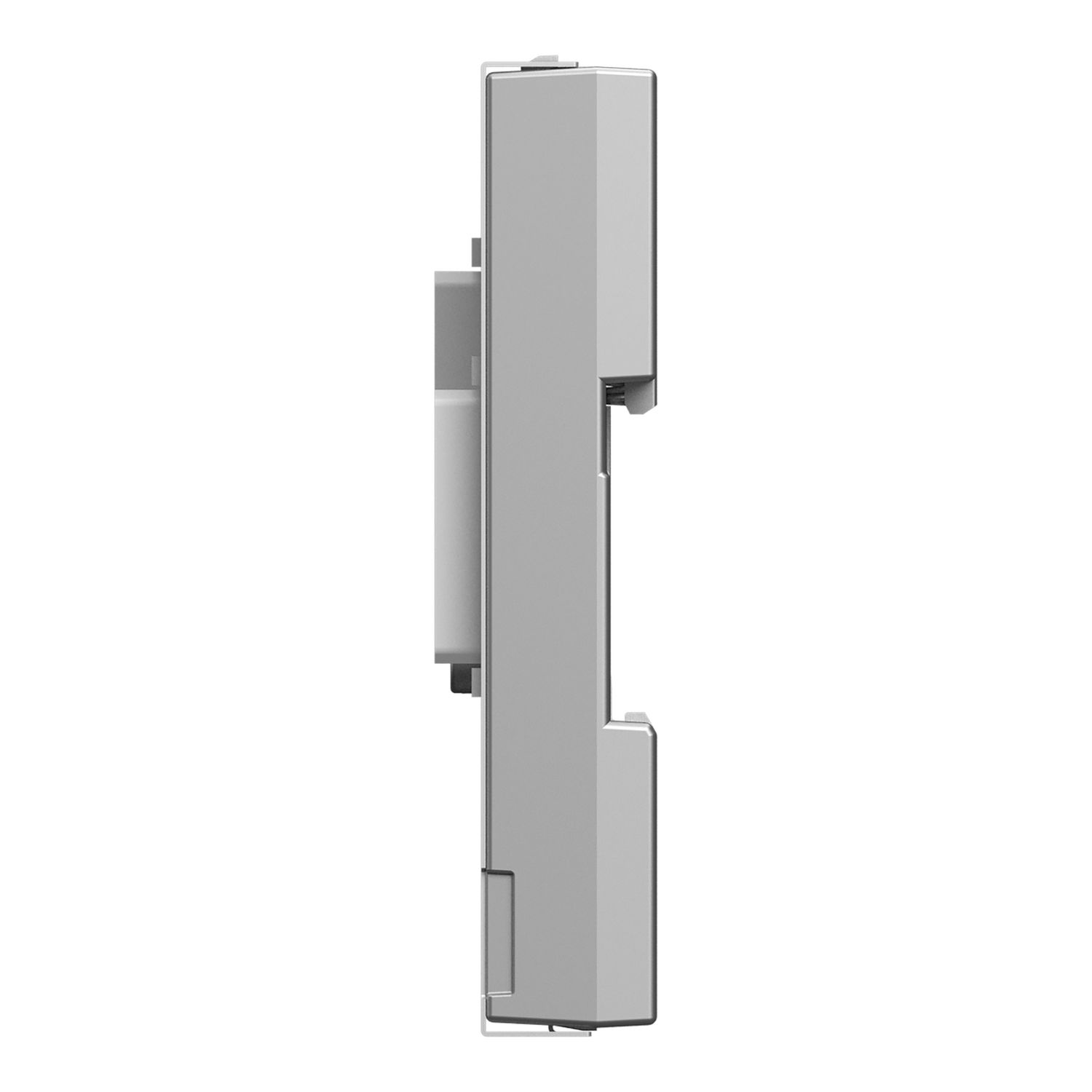

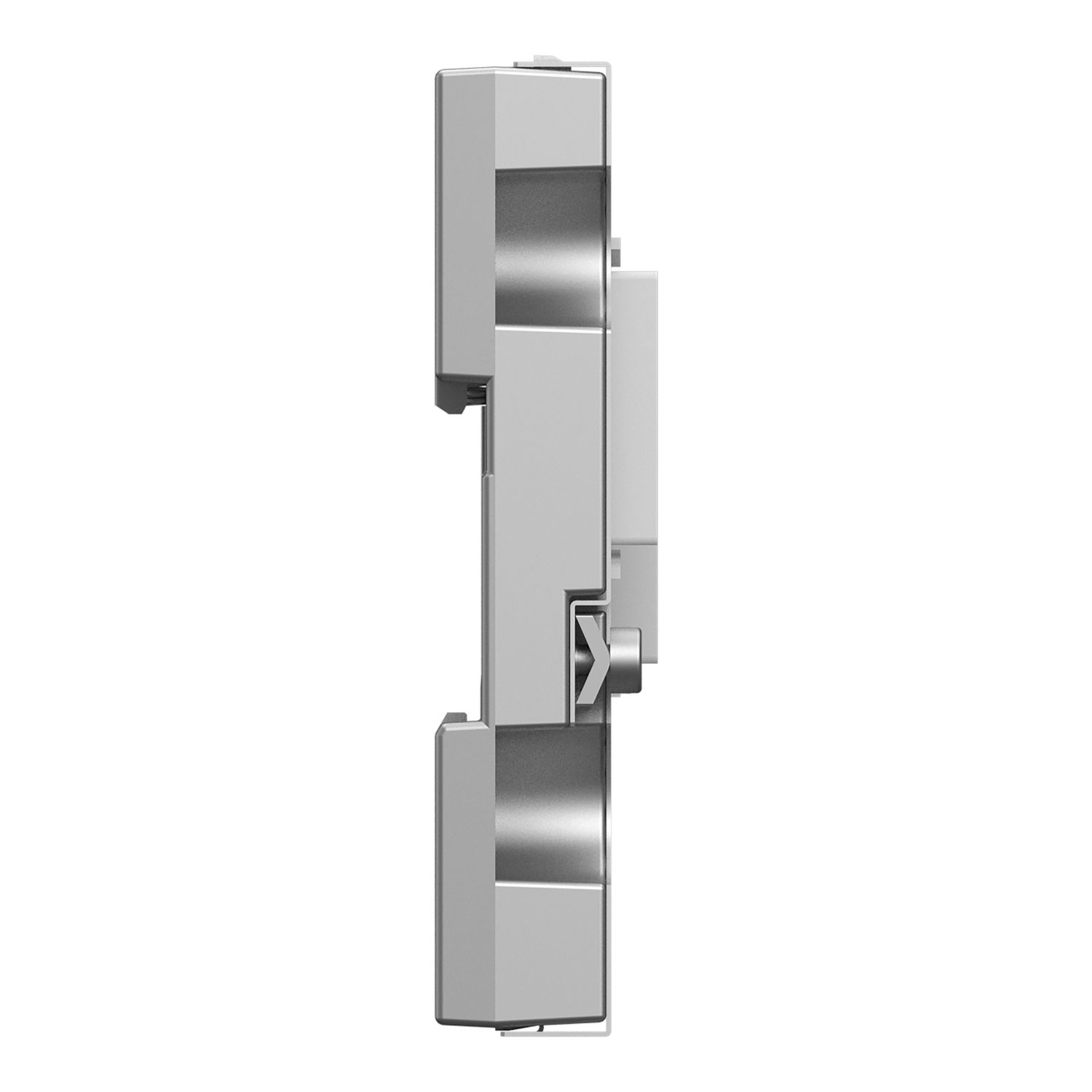

rack, Modicon X80, 8 slots, Ethernet backplane, ruggedized

$1,280.18 INC GST

Qty:

Available for Shipping : 02-Mar-2026

Product Selector

rack, Modicon X80, 8 slots, Ethernet backplane, ruggedized

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 02-Mar-2026

Catalog

Environmental Disclosure

Circularity Profile

User guide

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for severe environments, medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Accessory / separate part type	ruggedized rack
Product specific application	for severe environments
Complementary
Product compatibility	BME processor, BMXCPS power supply, specific application module, BMX processor, I/O module
Power consumption in W	3.9 W 24 V DC, 211 mW 3.3 V DC
Fixing mode	by clips, mounting on 35 mm symmetrical DIN rail, by 4 M6 screws, mounting on plate, by 4 screws - diameter: 4.32-6.35 mm, mounting on panel
MTBF reliability	1297516 H
Net weight	1.06 kg
Current consumption	164 mA at 24 V DC, 64 mA at 3.3 V DC
Number of slots	8 bus X + Ethernet
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	5-95 % without condensation
Directives	2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	IEC 60079-0, IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Ambient air temperature for operation	-25-70 °C
Environmental characteristic	hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.500 cm
Package 1 Width	15.500 cm
Package 1 Length	45.500 cm
Package 1 Weight	1.047 kg
Unit Type of Package 2	2
Number of Units in Package 2	9
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	10.306 kg
