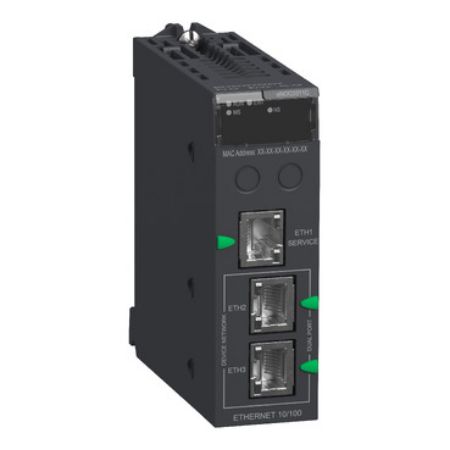

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

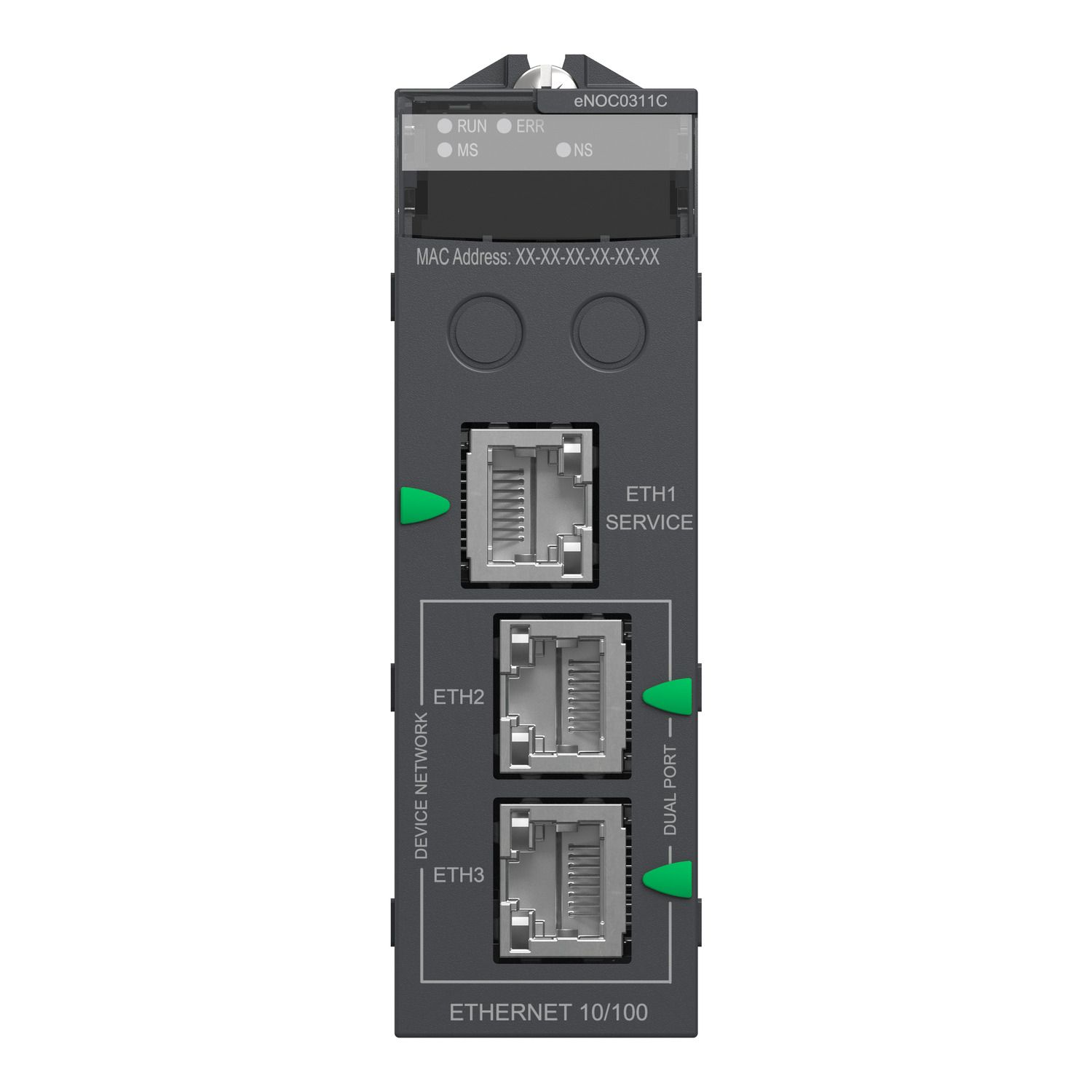

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

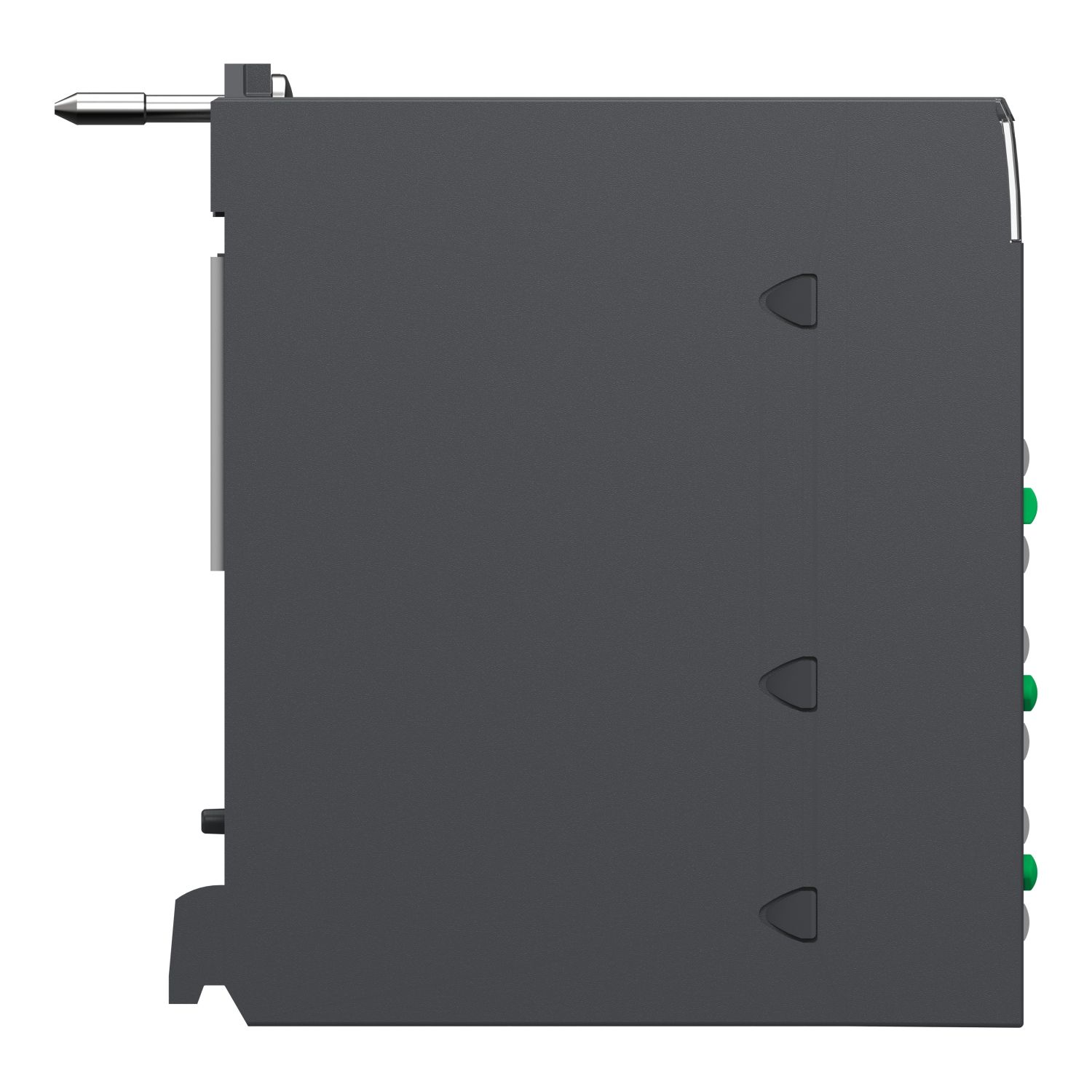

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

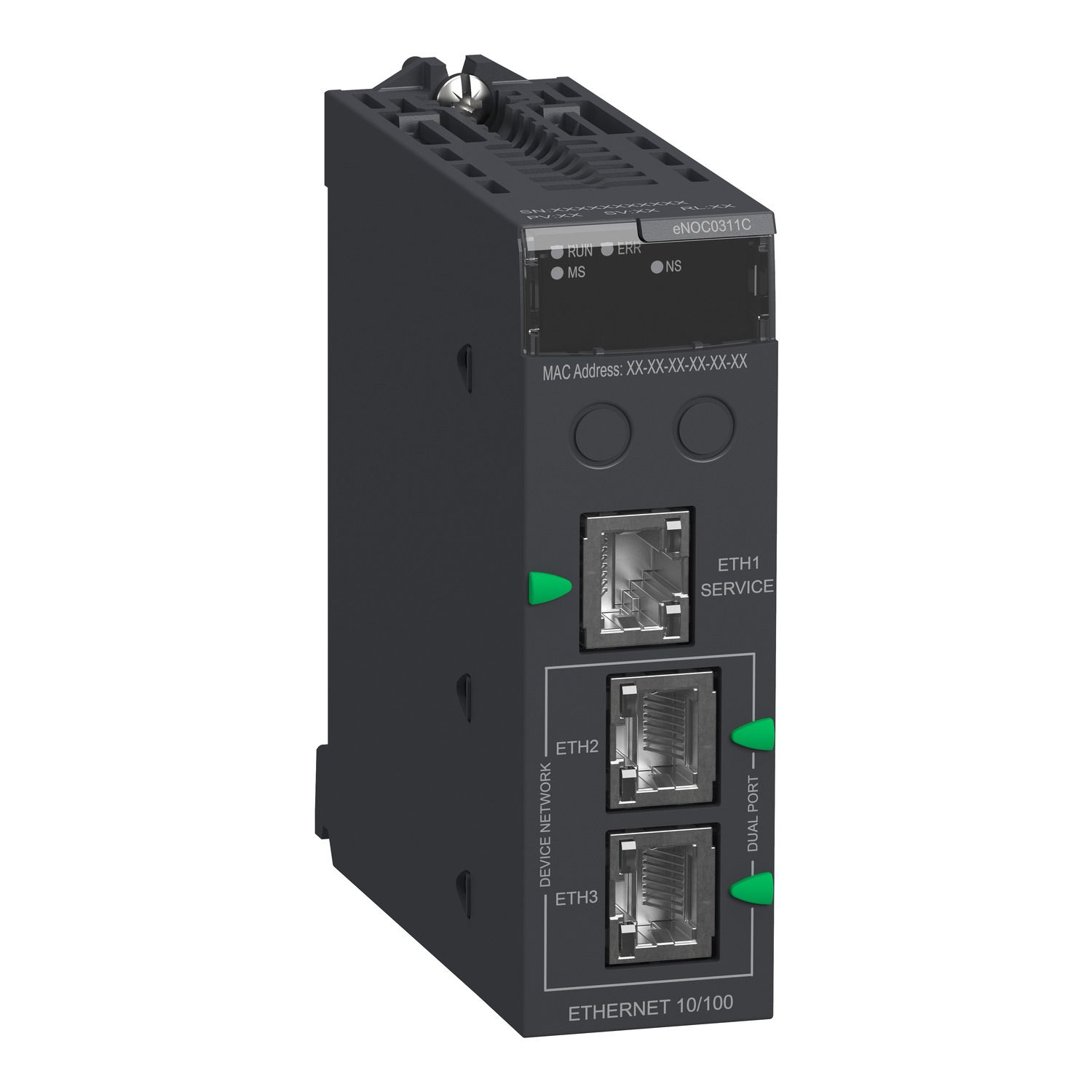

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

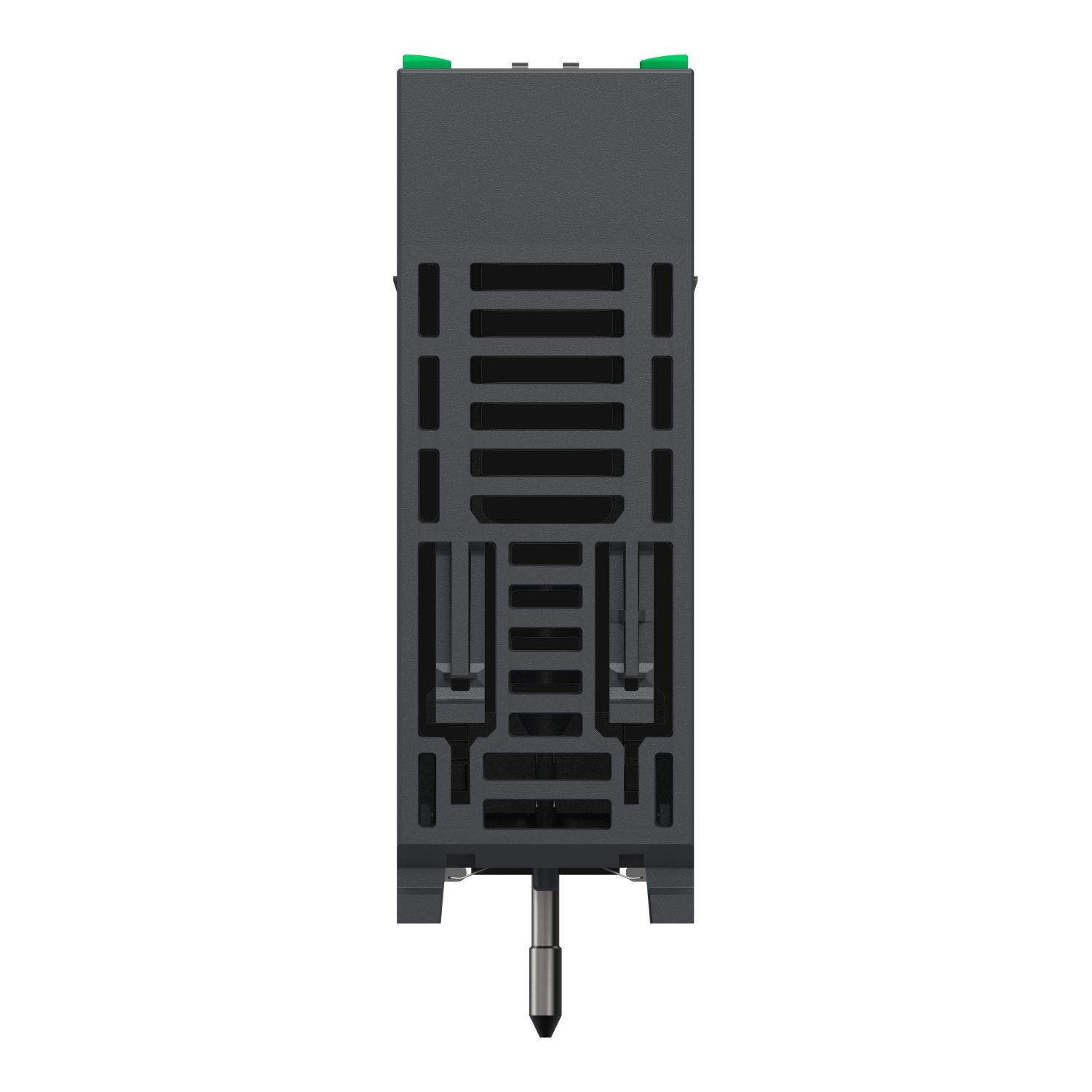

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

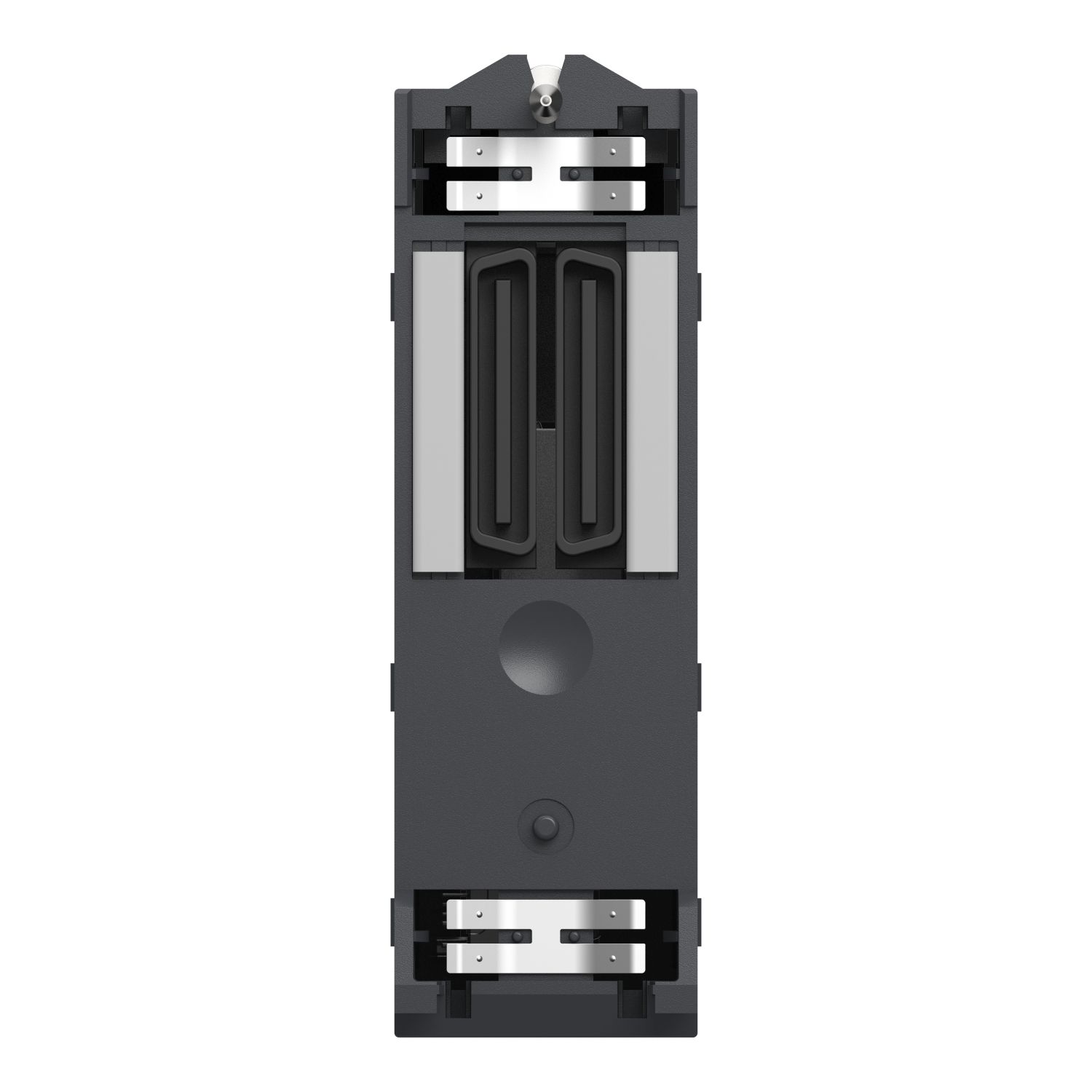

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

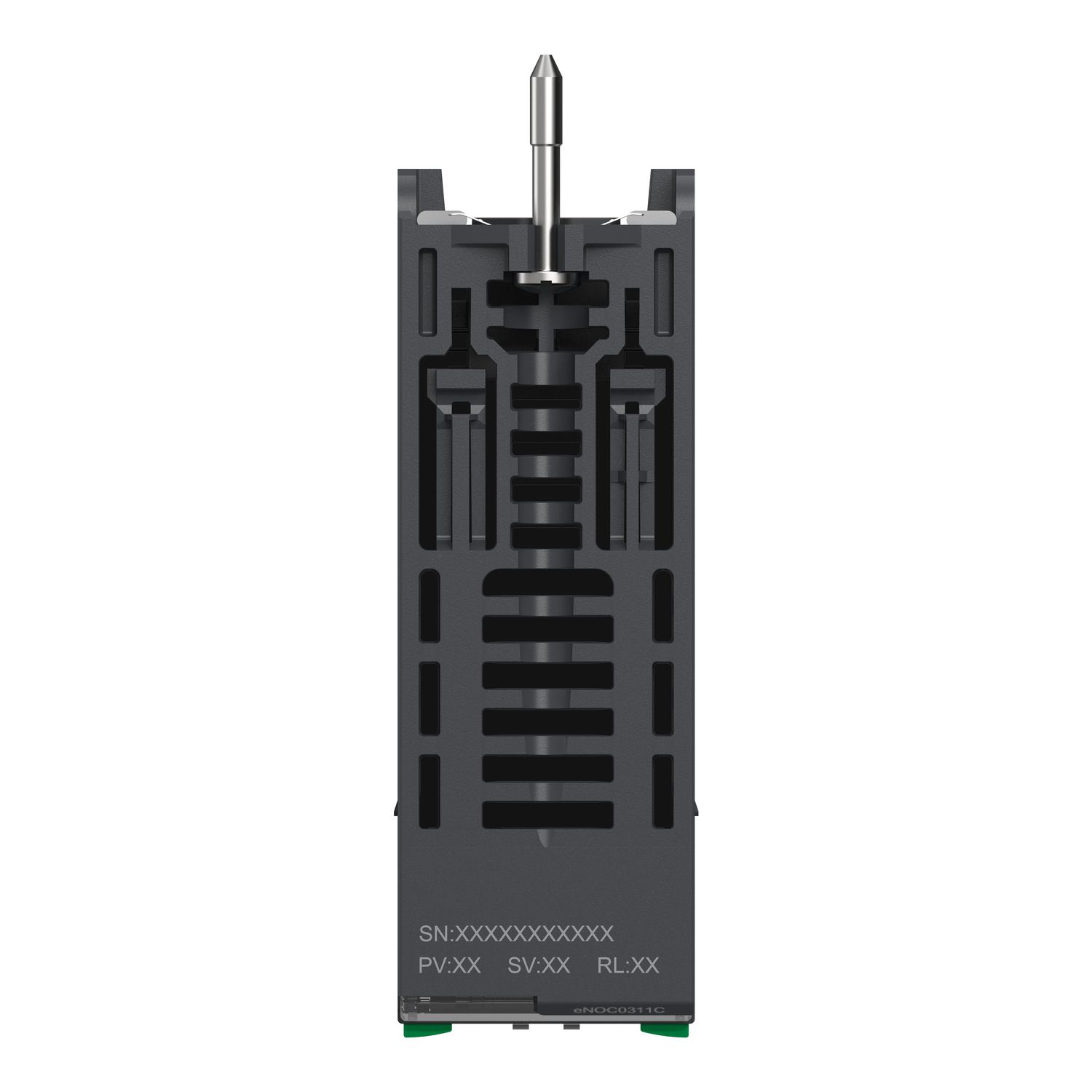

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated

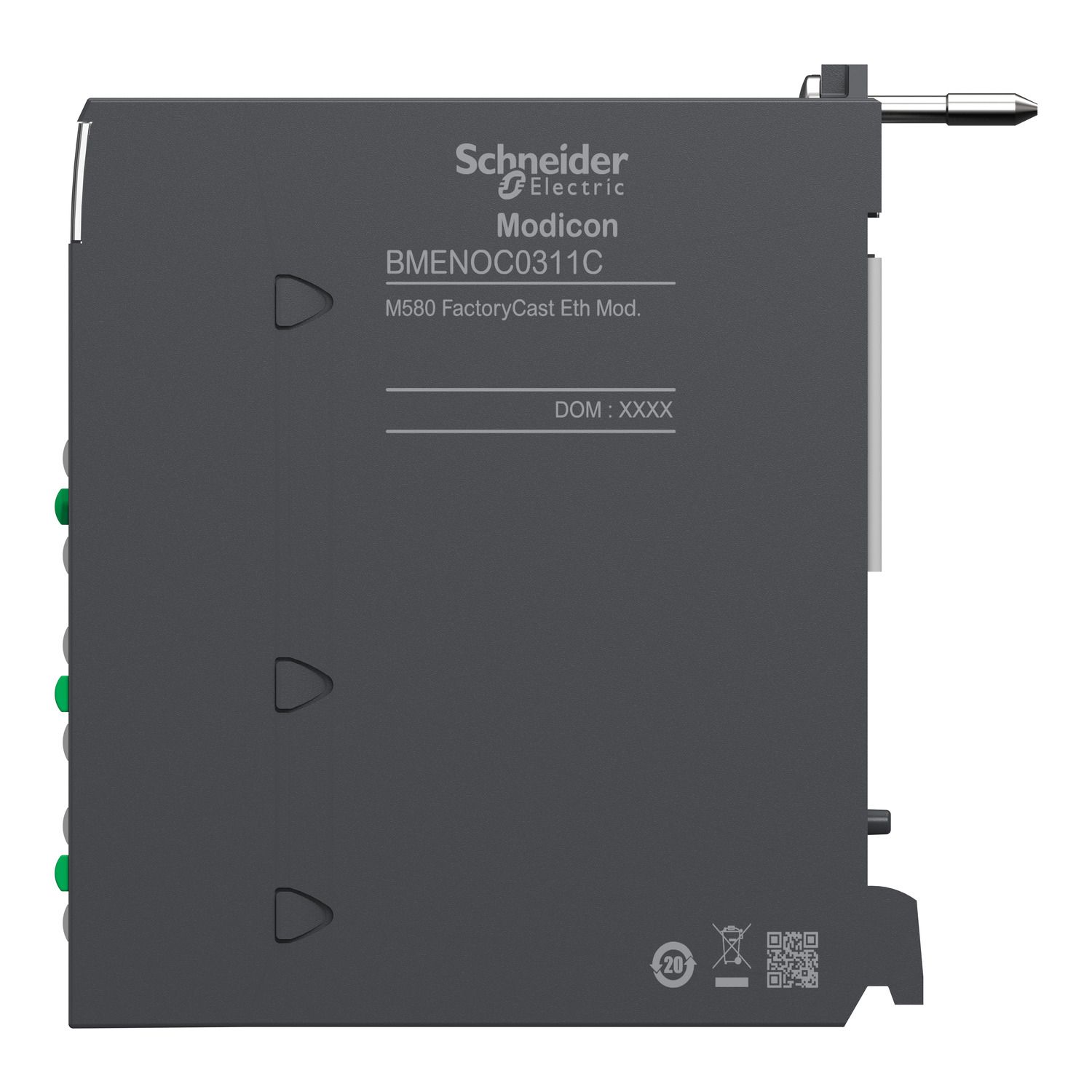

Picture of Network module, Modicon M580, FactoryCast Ethernet, coated
SKU:

BMENOC0311C

Network module, Modicon M580, FactoryCast Ethernet, coated

$6,681.56 INC GST
Available for Shipping : 16-Feb-2026
Product Selector
Network module, Modicon M580, FactoryCast Ethernet, coated
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Feb-2026
Catalog
Circularity Profile
User guide
Declaration of conformity
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet FactoryCast module acts as an interface between the M580 PLC and other Ethernet network devices in severe environments. It provides web-based visualization of ePAC diagnostics and system data Thanks to a protective coating on its circuit board, this product can be used in harsh environments. Web-based visualization services are custom web pages, rack viewer, ePAC program viewer, customizable dashboard, trand viewer etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Product compatibility BMEXBP... - Ethernet + X-bus rack
Range of product Modicon M580
Product specific application for severe applications
Product or component type communication module
Complementary
Web server advanced
Protective treatment conformal coating
Module format standard
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Integrated connection type 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair
Communication service embedded multiport switch, port mirroring, RSTP support, Ethernet/IP I/O Scanner and Messaging, Modbus TCP I/O Scanner and Messaging, SNMP network administrator, FDR server, bandwidth management
Net weight 0.2 kg
Transmission support medium Ethernet backplane
Current consumption 1800 mA at 3.3 V DC (for product version < 13), 900 mA at 3.3 V DC (for product version >= 13)
Supply internal power supply via rack
Web services FactoryCast configurable
Environment
IP degree of protection IP20
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation 0-60 °C
Local signalling 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 260.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.230 kg
