SKU:

BMEH584040K

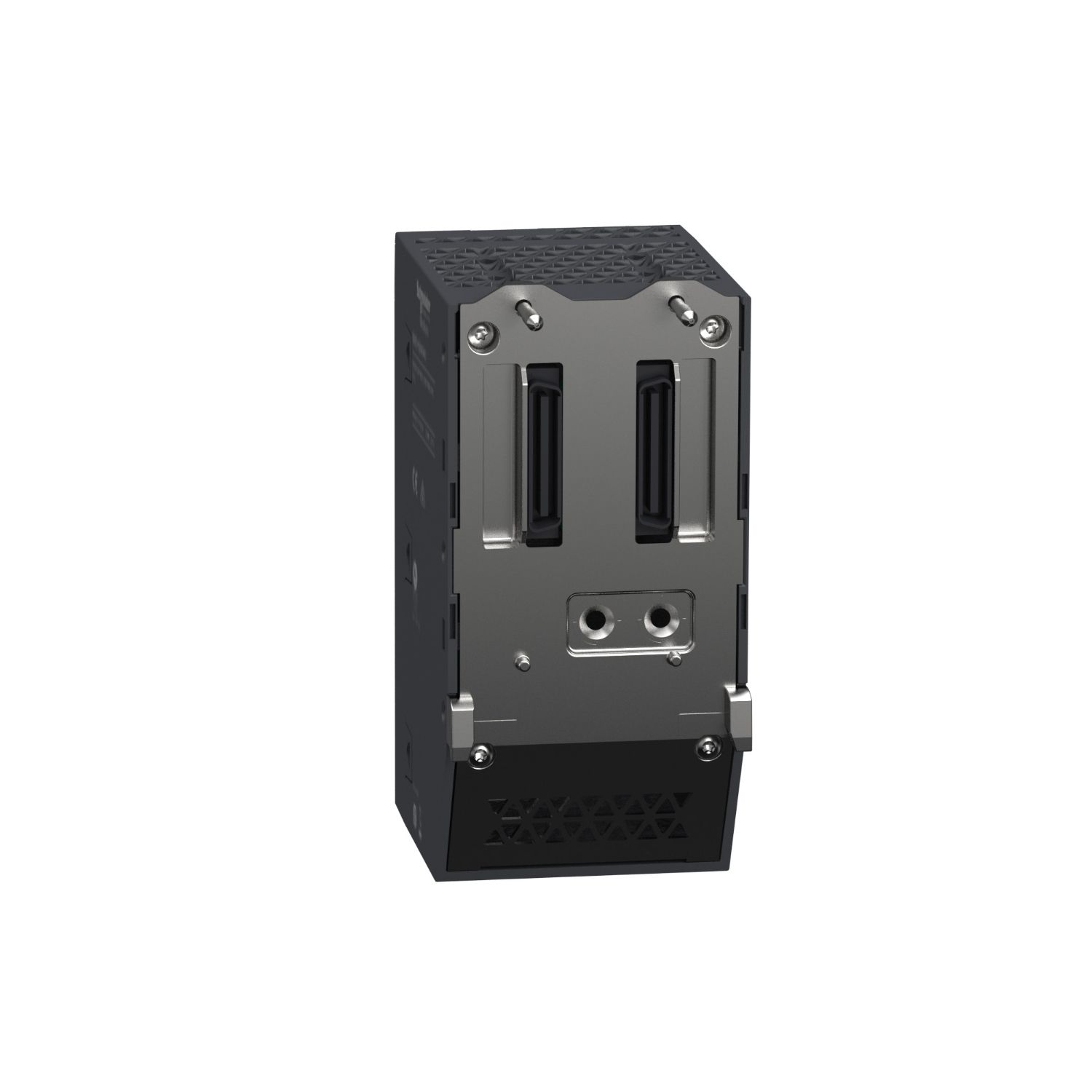

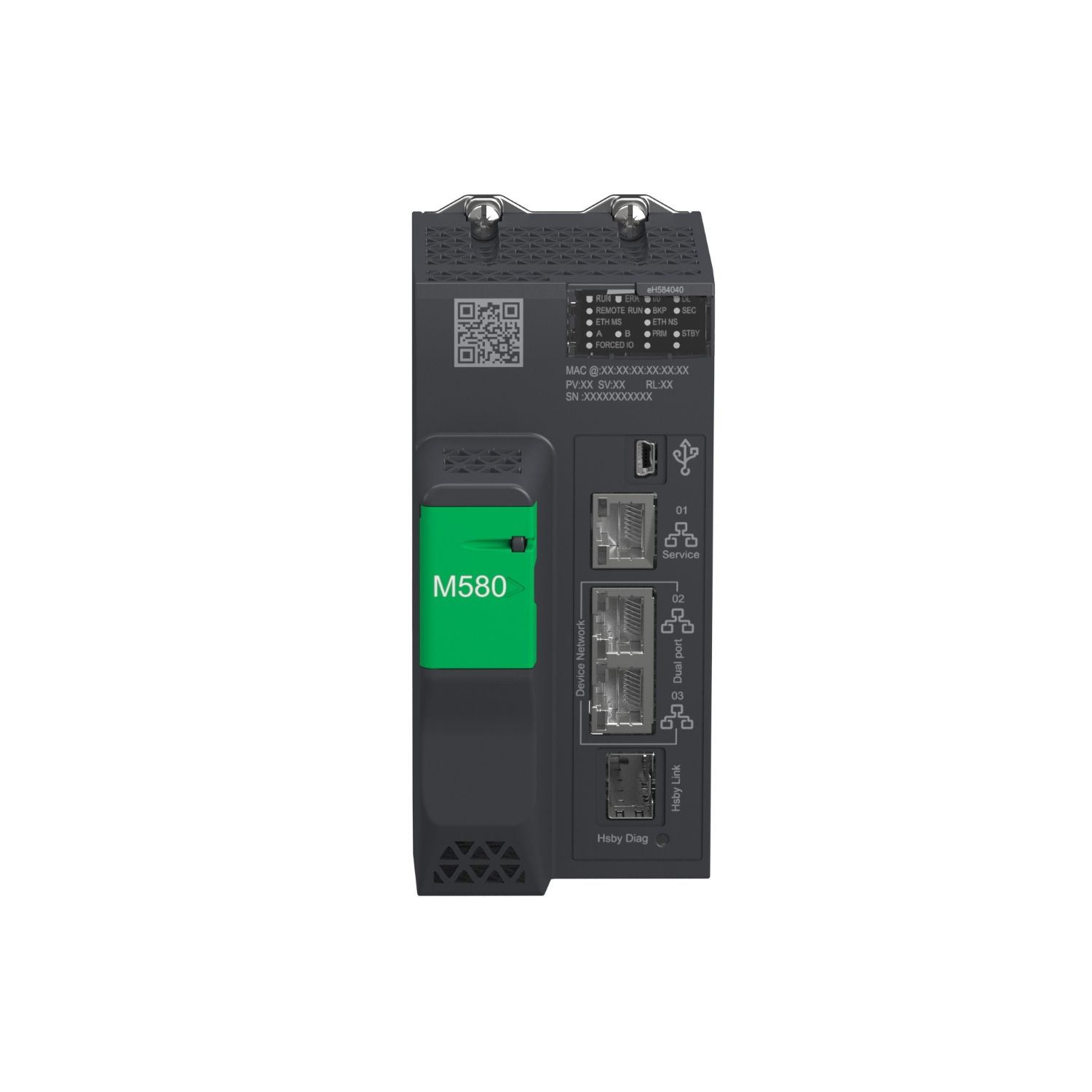

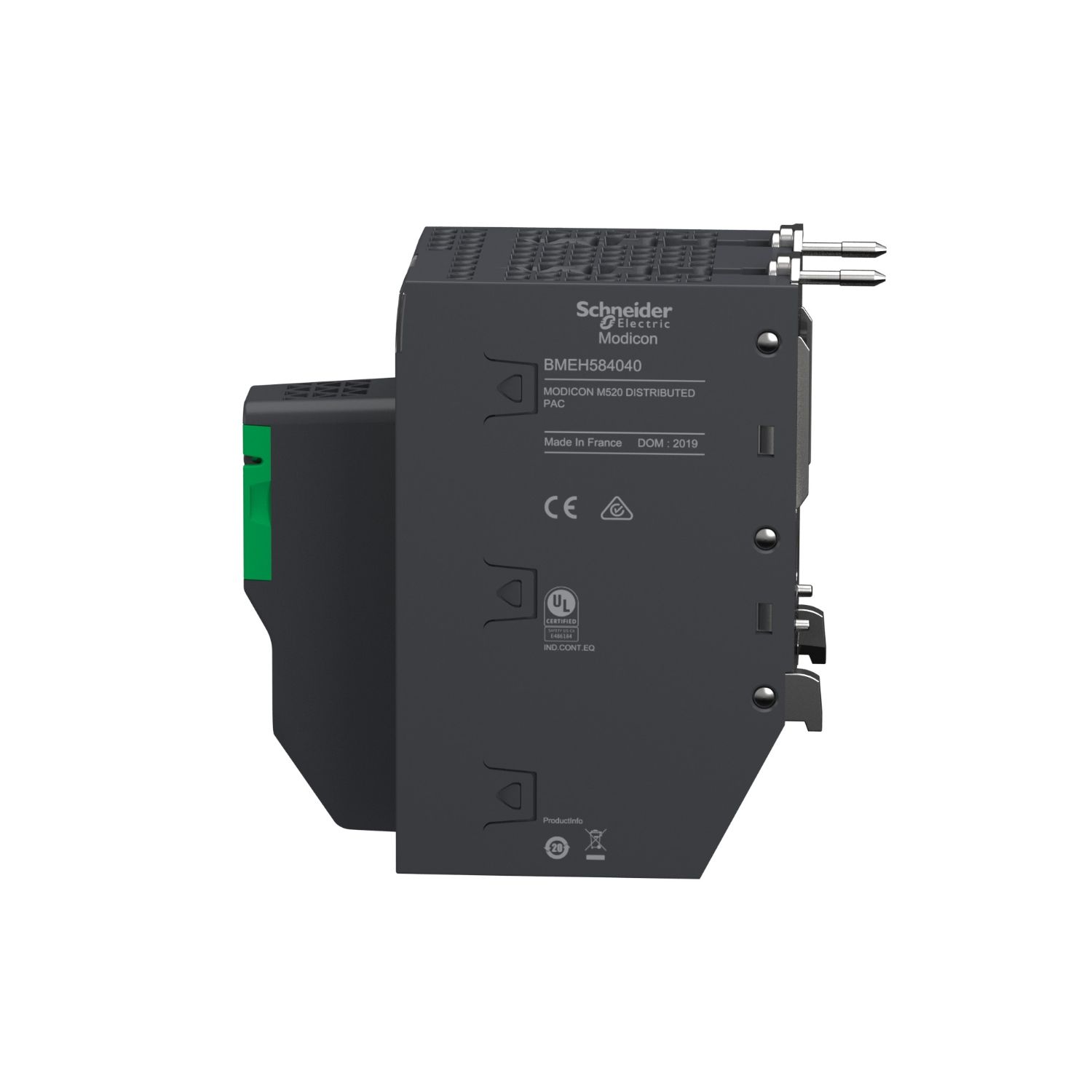

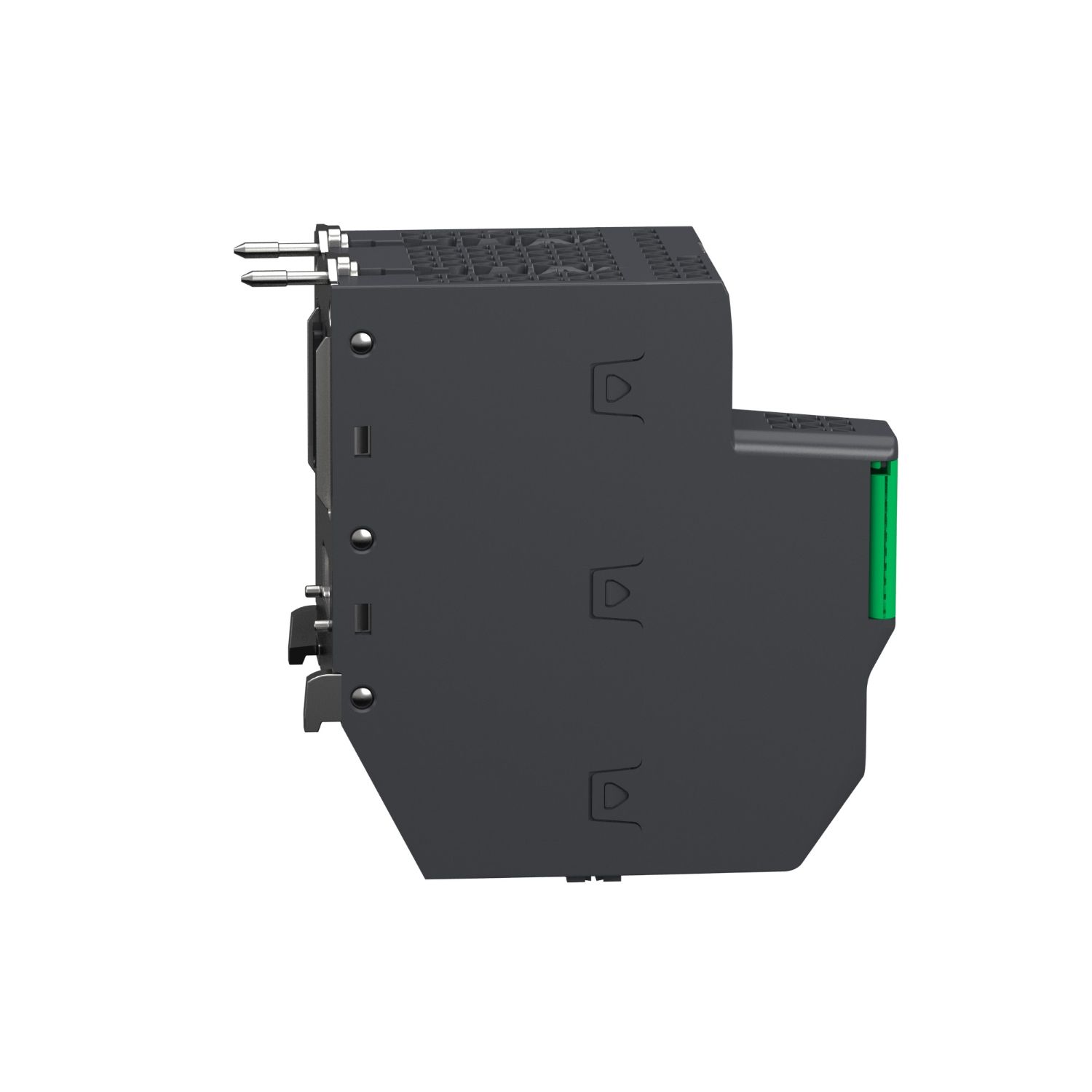

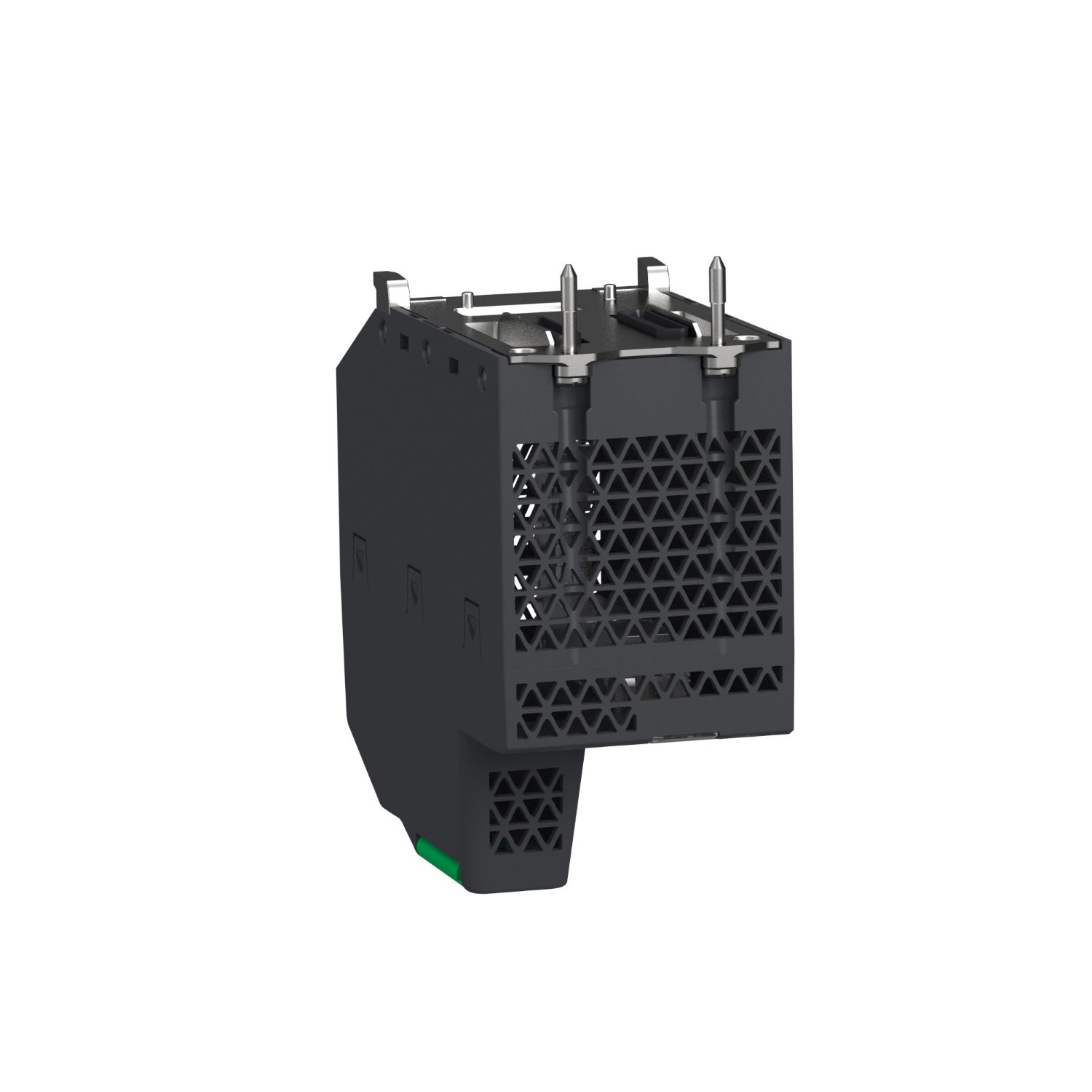

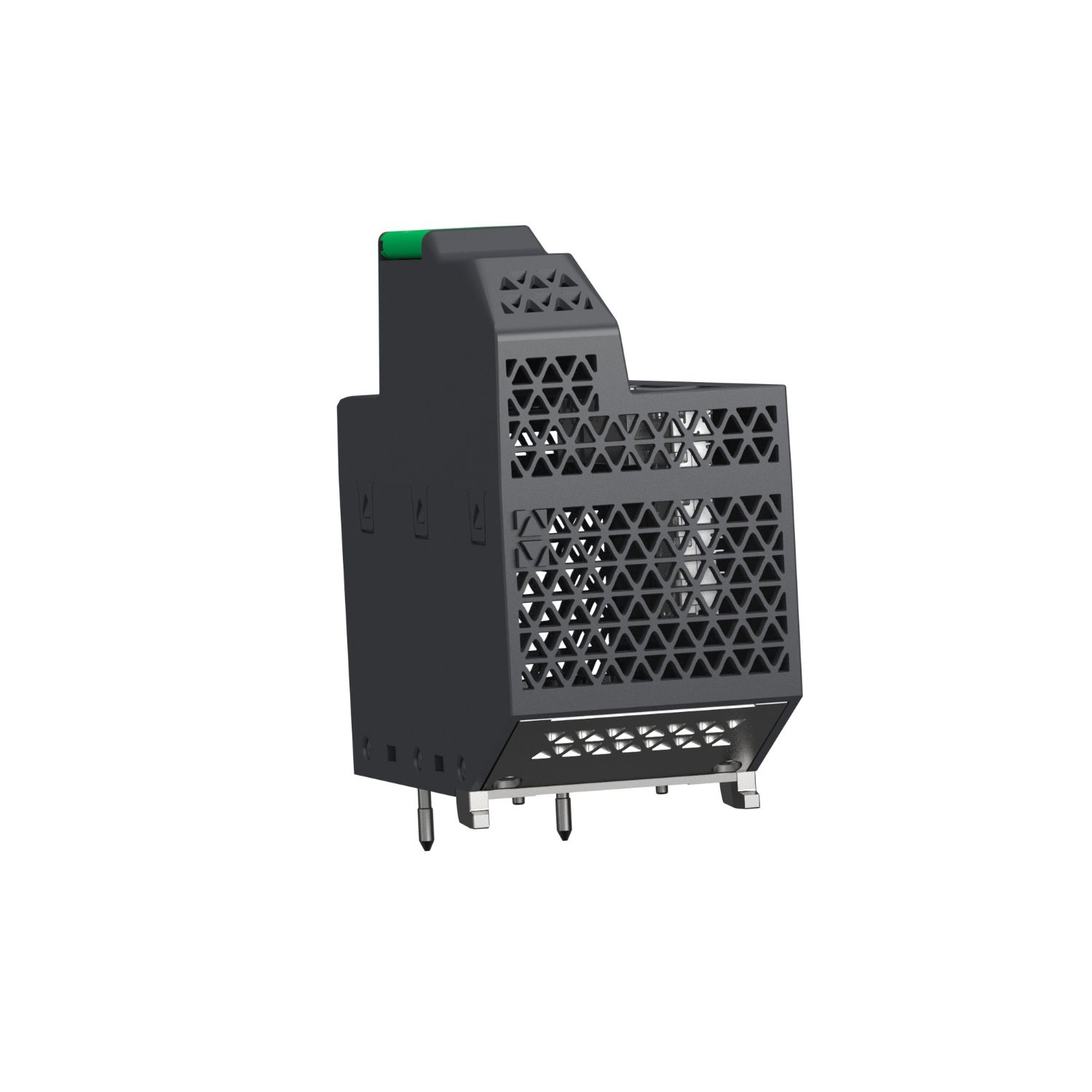

redundant processor kit, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O)

$45,992.24 INC GST

Qty:

Available for Shipping : 08-Dec-2025

redundant processor kit, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O)

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Environmental Disclosure

Circularity Profile

User guide

Product Page Link

Product Data Sheet

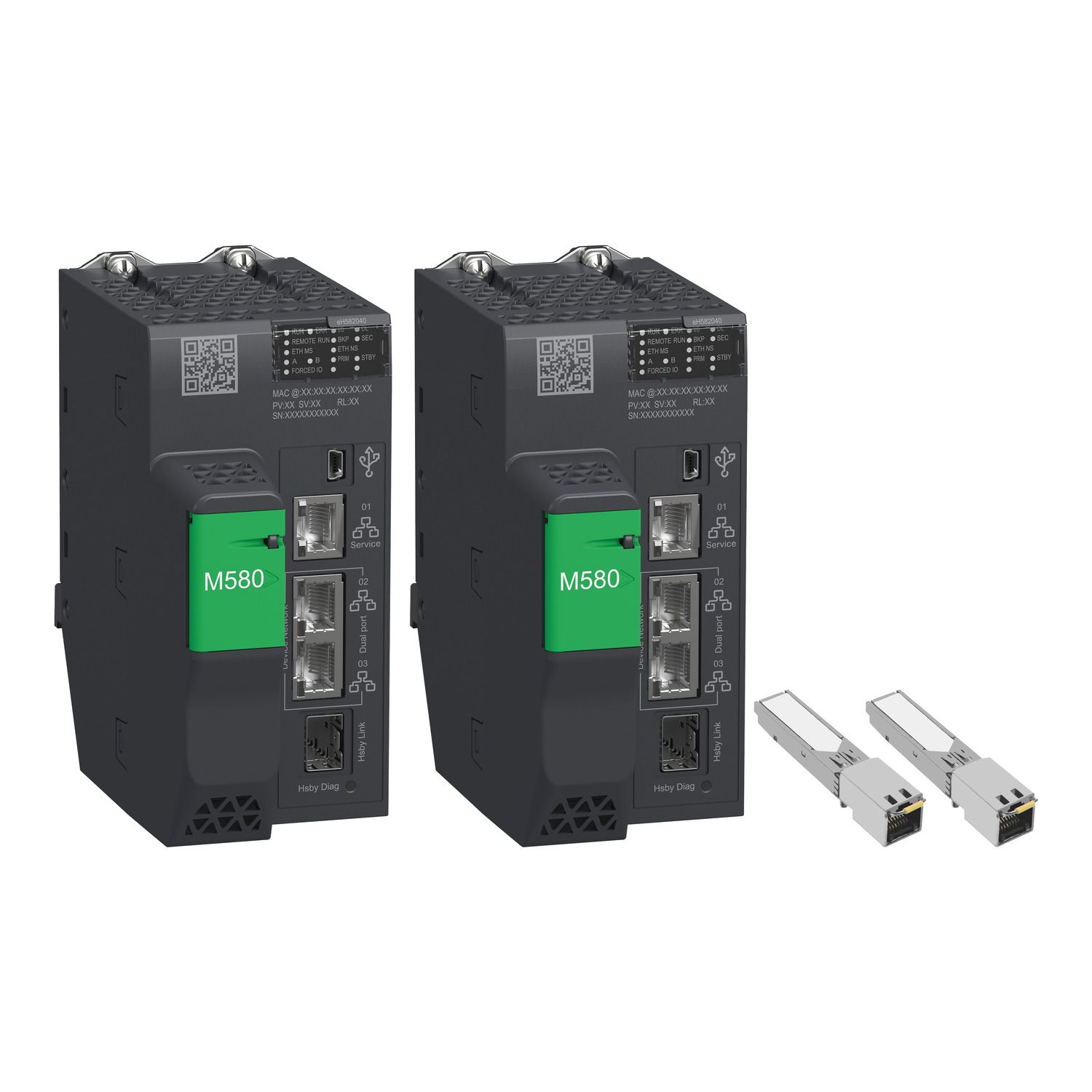

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This hot standby (HSBY) kit is an accessory kit of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC). It is made of 2x BMEH584040 processor module and 2x 490NAC0100 SFP socket. It is an IP20 rated product. It weighs 1.698kg. It is suitable for medium to large process applications. This product is certified by CE, CSA, RCM, UL, Merchant Navy, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Complementary
Marking	CE
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN 61131-2
Ambient air temperature for operation	-25-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	1.698 kg
Vibration resistance	3 gn
Environmental characteristic	hazardous location class I division 2
Shock resistance	30 gn
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	30.000 cm
Package 1 Length	40.000 cm
Package 1 Weight	2.202 kg
Unit Type of Package 2	2
Number of Units in Package 2	16
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	45.232 kg
