SKU:

BMEH582040

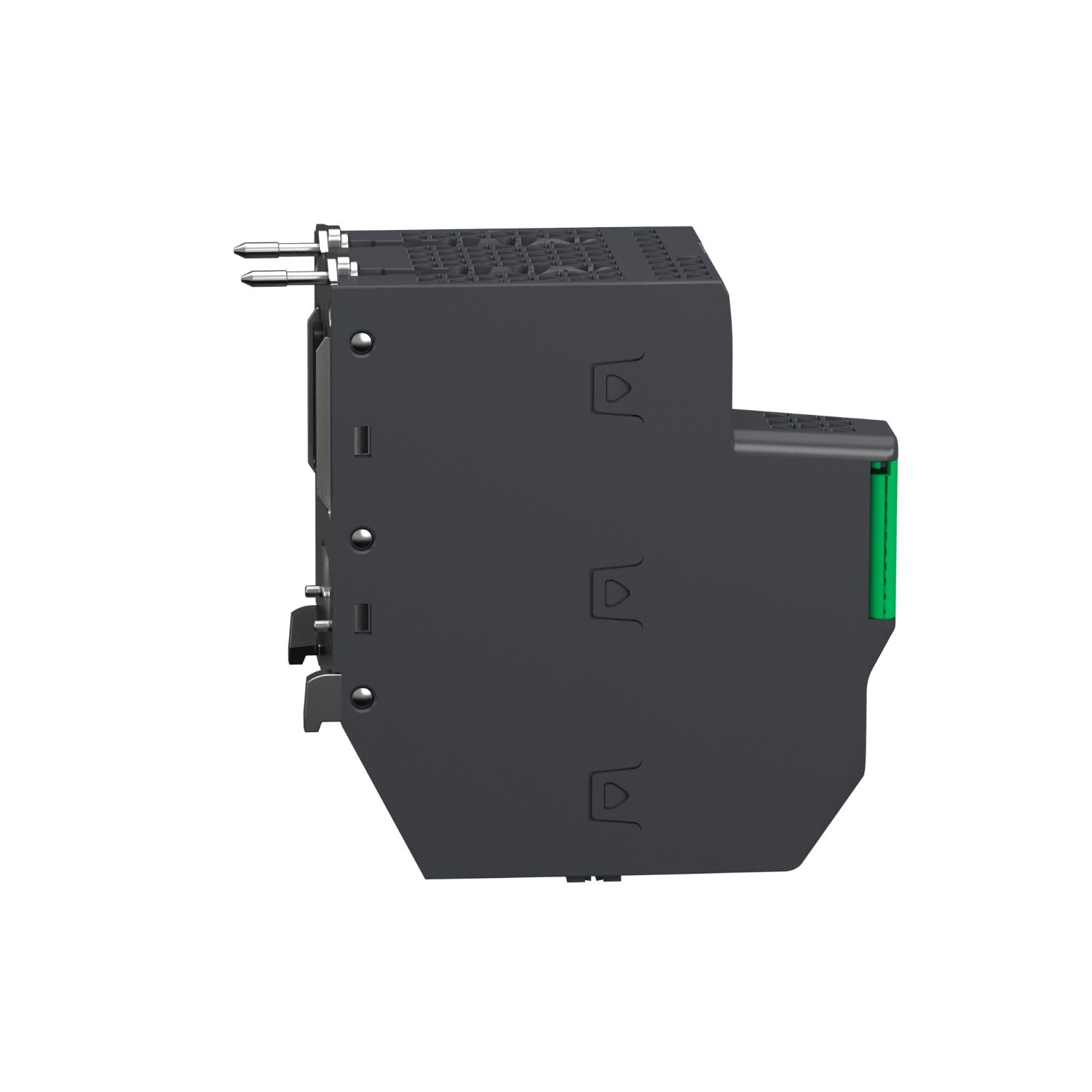

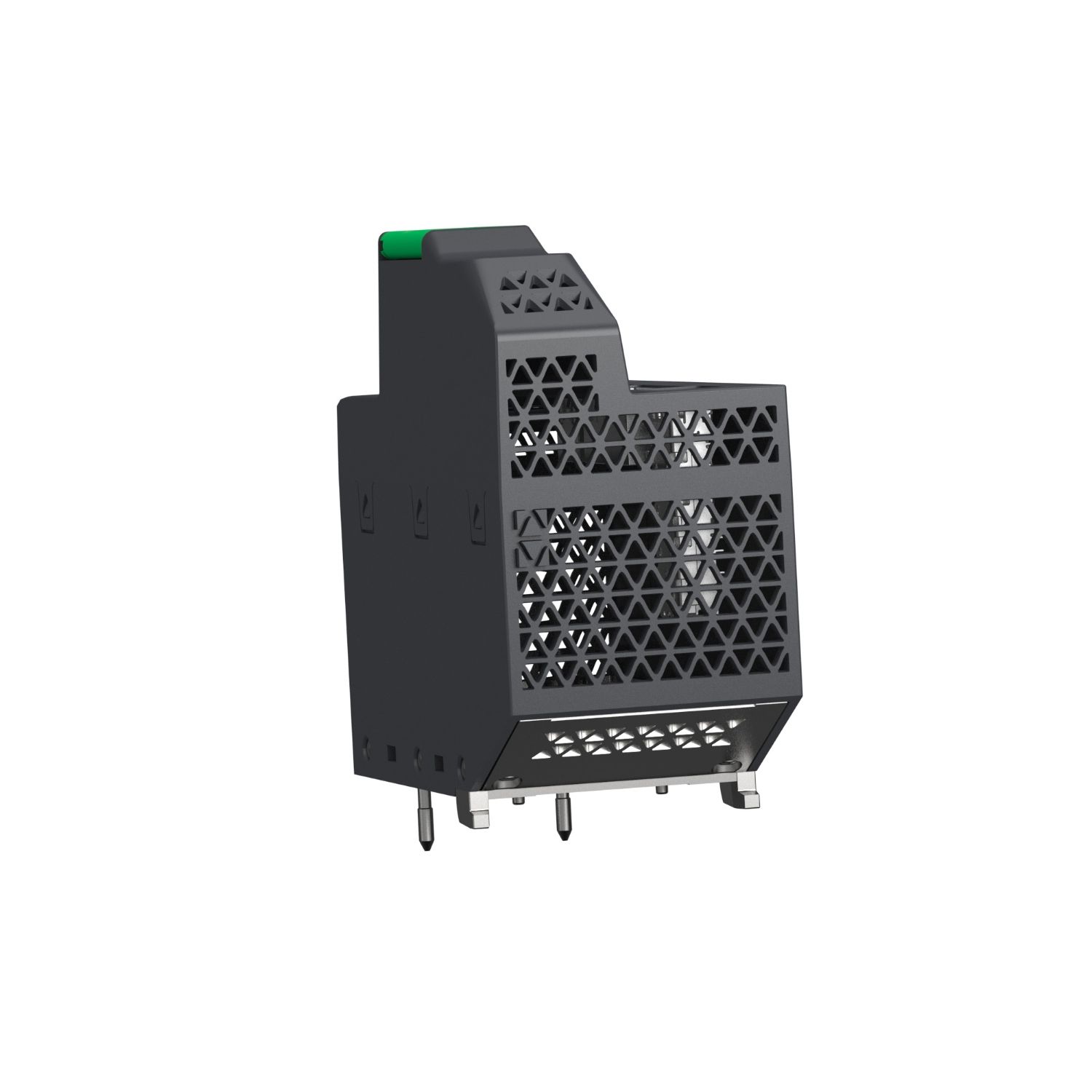

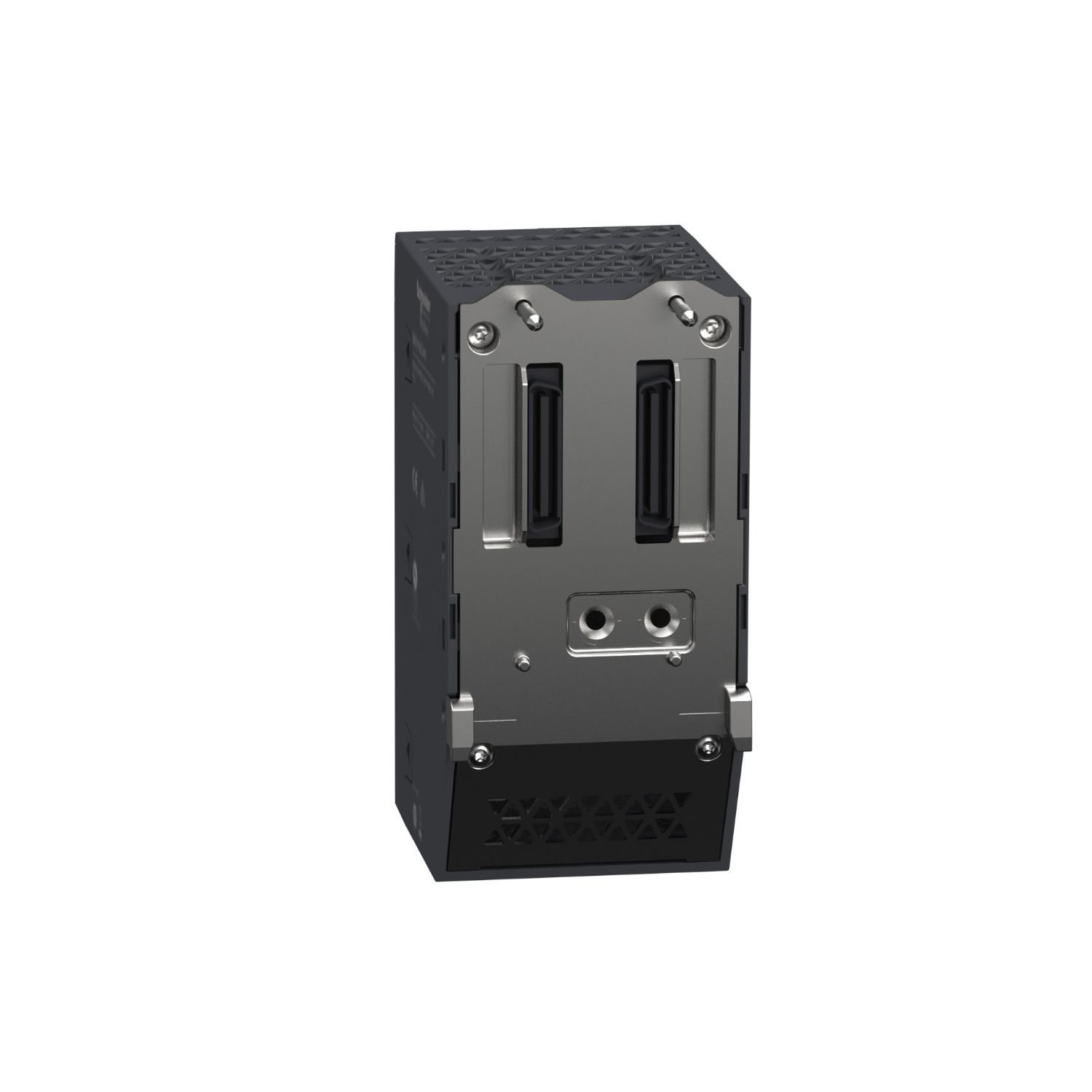

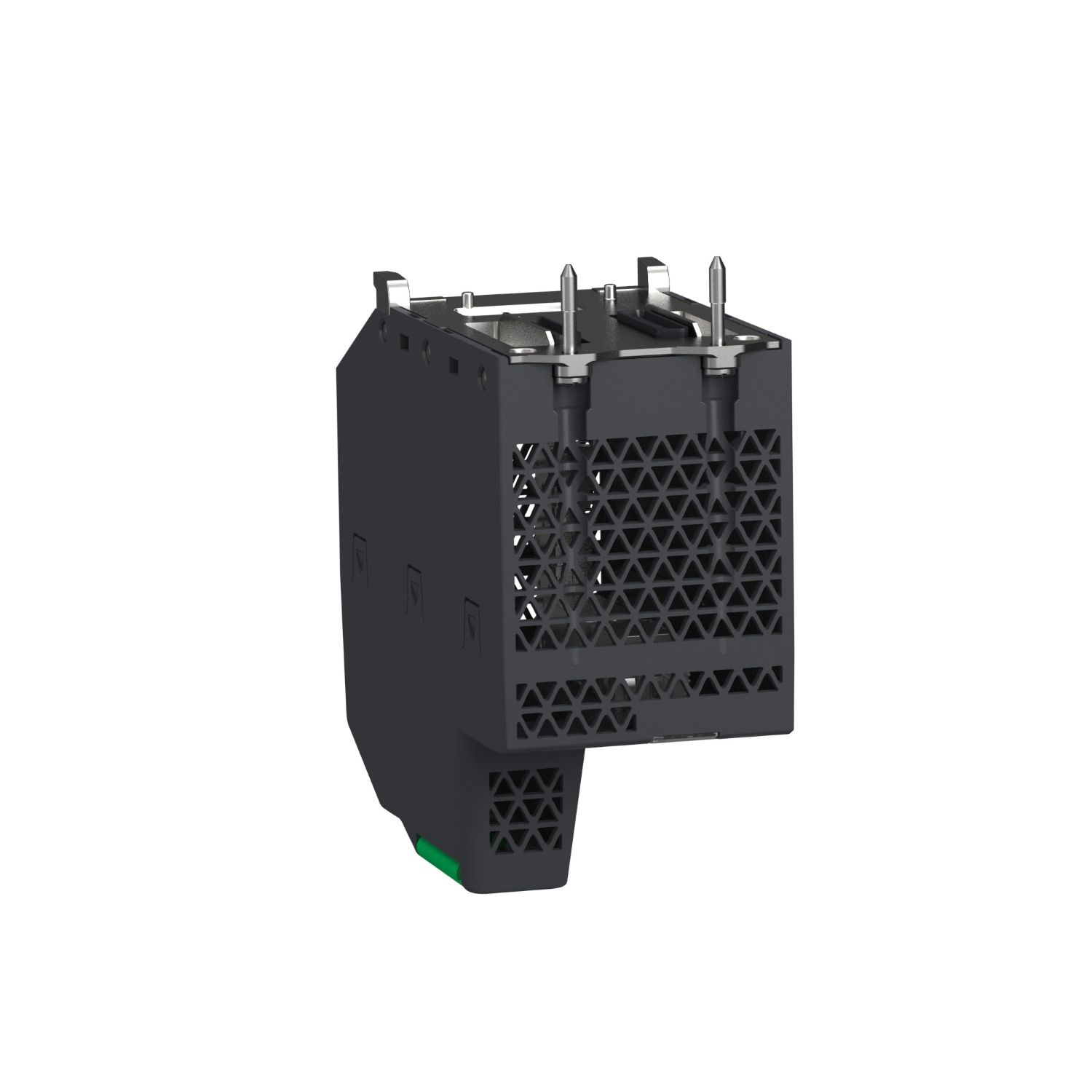

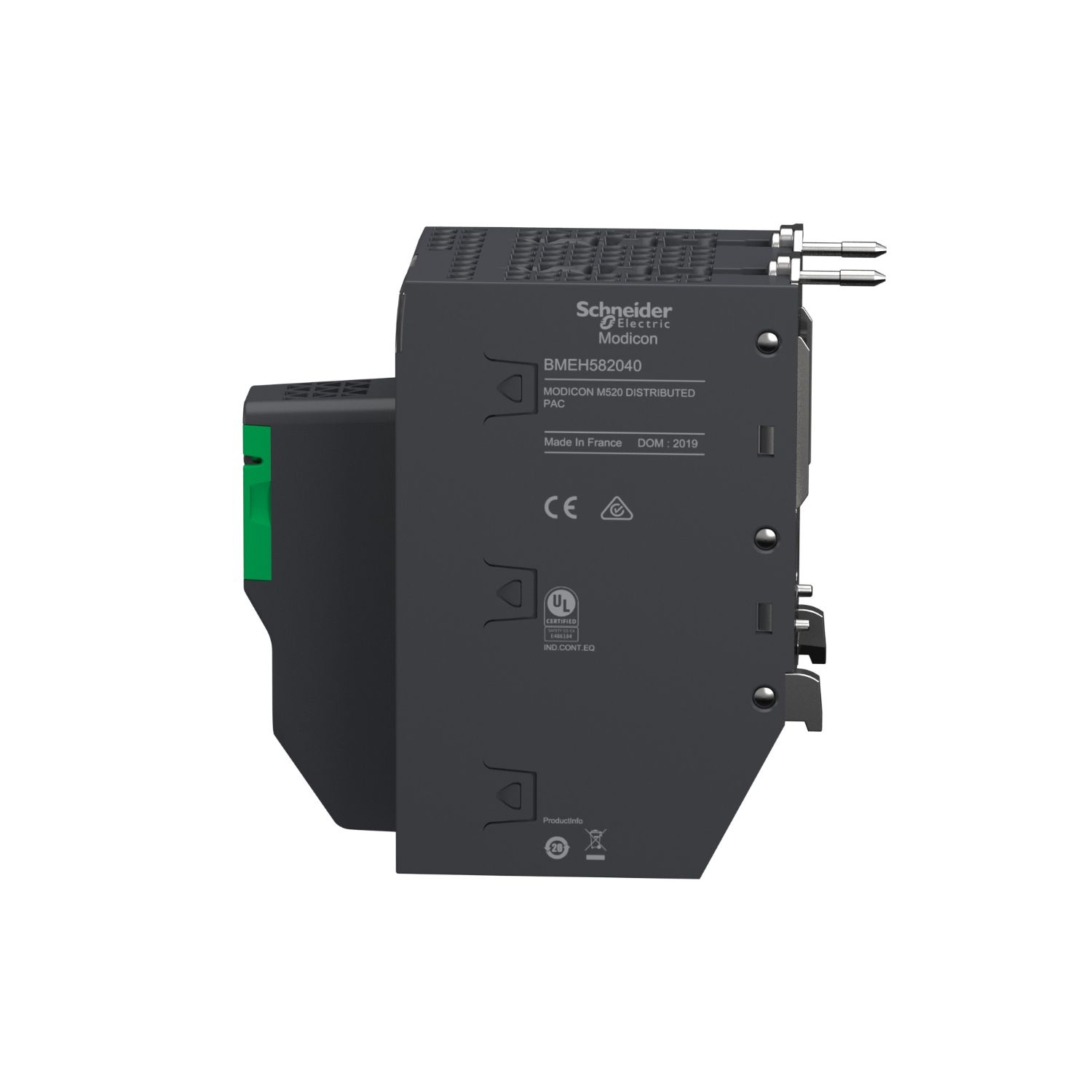

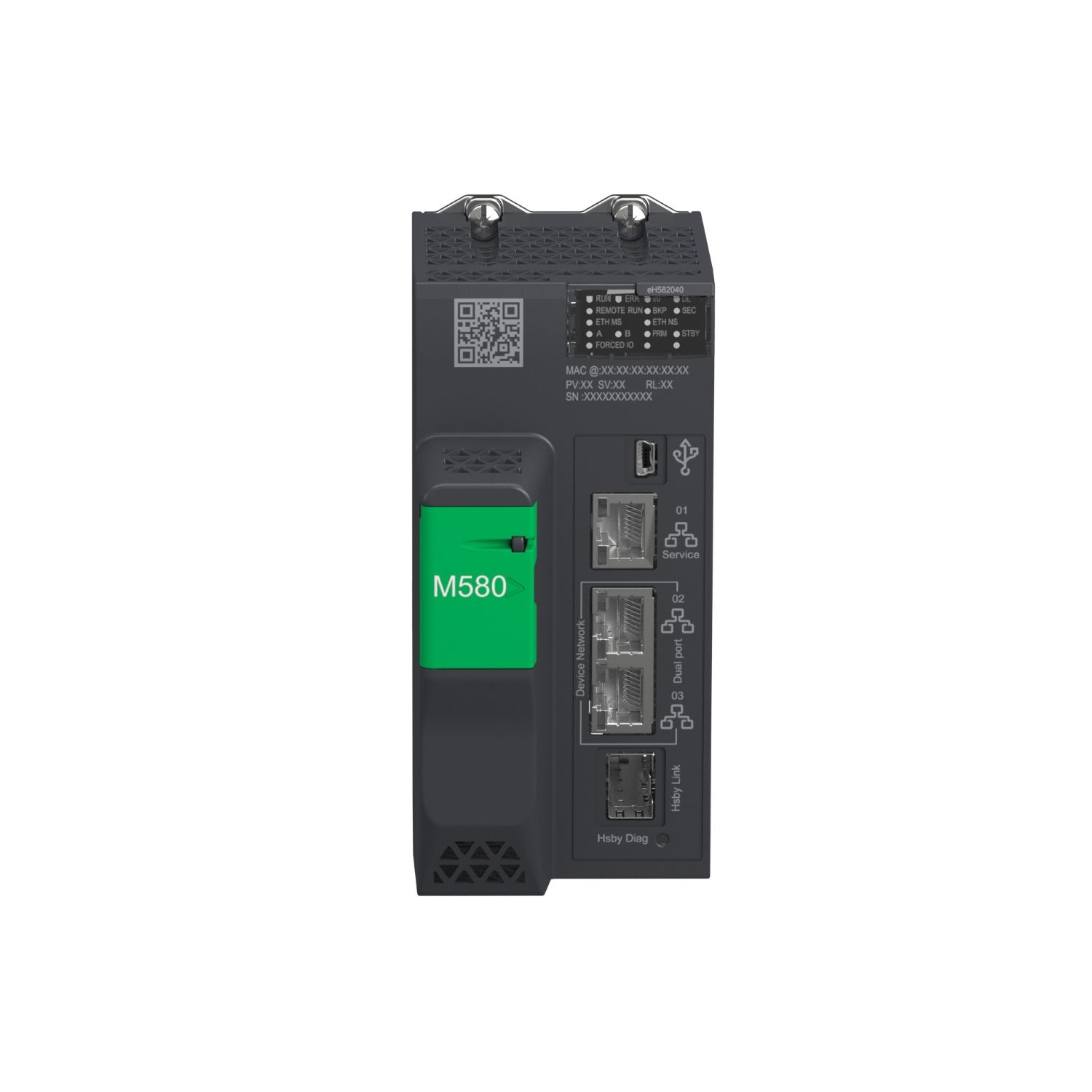

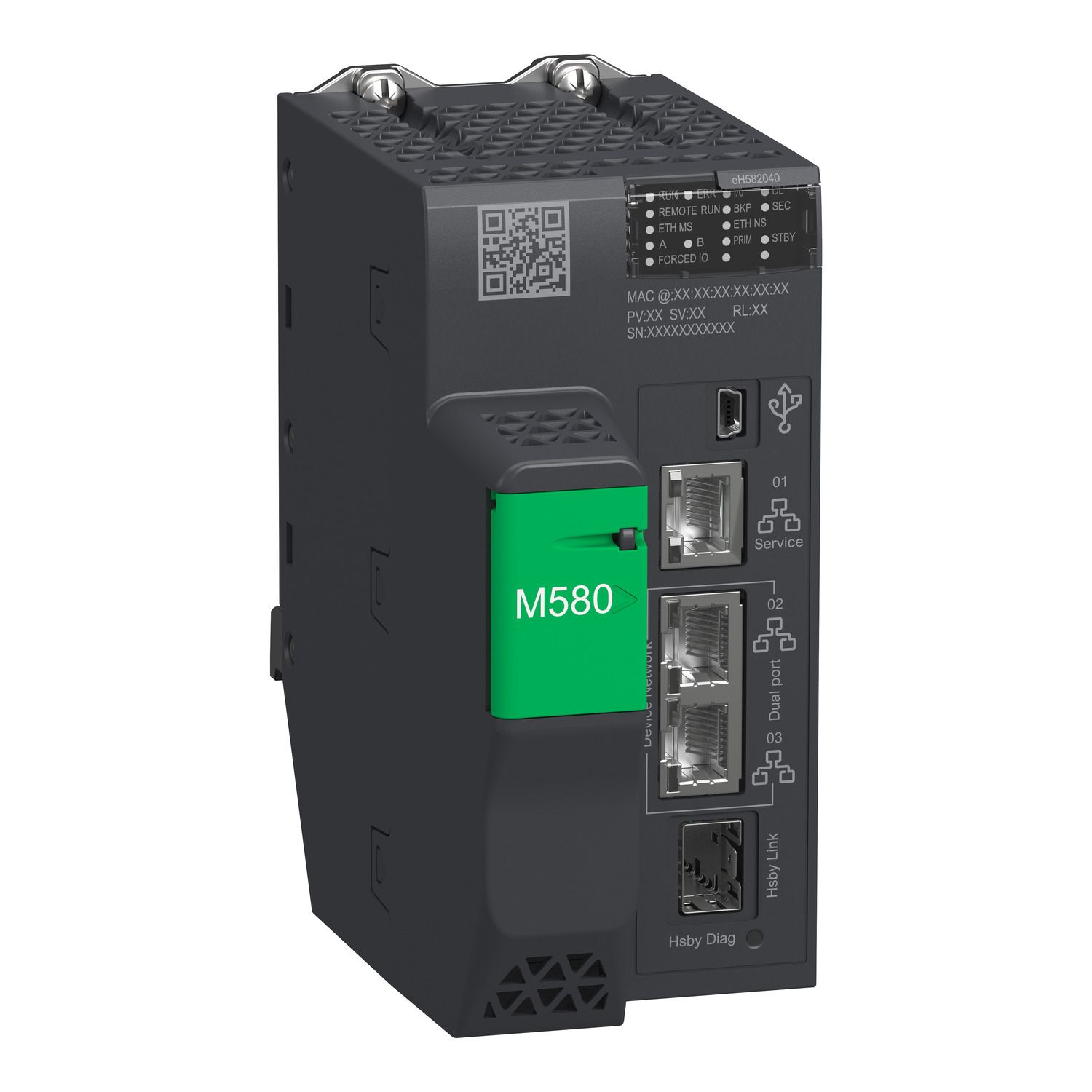

redundant processor, Modicon M580, 8MB, 61 Ethernet devices, 8 local racks, 8 remote IO racks

$13,725.25 INC GST

Qty:

Available for Shipping : 27-Jan-2026

Product Selector

redundant processor, Modicon M580, 8MB, 61 Ethernet devices, 8 local racks, 8 remote IO racks

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 27-Jan-2026

Catalog

Declaration of conformity

User guide

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 270mA at 24V DC. It supports 8192 discrete, 2048 analogue local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Product or component type	redundant processor module
Complementary
Memory description	integrated RAM, 768 kB for data, integrated RAM, 8 MB for program, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Number of instructions per ms	10 Kinst/ms 100 % Boolean, 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Application specific I/O	SSI encoder, motion control, HART, serial link, accurate time stamping, counter
Number of remote I/O station	8 - 2 rack(s) per X80 remote drop
Application structure	1 cyclic/periodic master task, 1 periodic fast task
Marking	CE
Number of racks	1
Communication service	RIO scanner, DIO scanner
Number of distributed equipment	64
MTBF reliability	650000 H
Checks	process control
Cybersecurity	security log, secure communiction (HTTPS), port hardening, password protection, firmware signature, embedded firewall, audit trail, transport layer security, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	1 Ethernet for HSBY port, USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	270 mA at 24 V DC
Communication module processor capacity	8 AS-Interface module, 2 Ethernet communication module
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Status LED	1 LED (green) Hot standby link status (Hsby Diag), 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor ID set to B (B), 1 LED (green) processor ID set to A (A), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Shock resistance	30 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.800 cm
Package 1 Width	17.800 cm
Package 1 Length	25.000 cm
Package 1 Weight	883.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.795 kg
