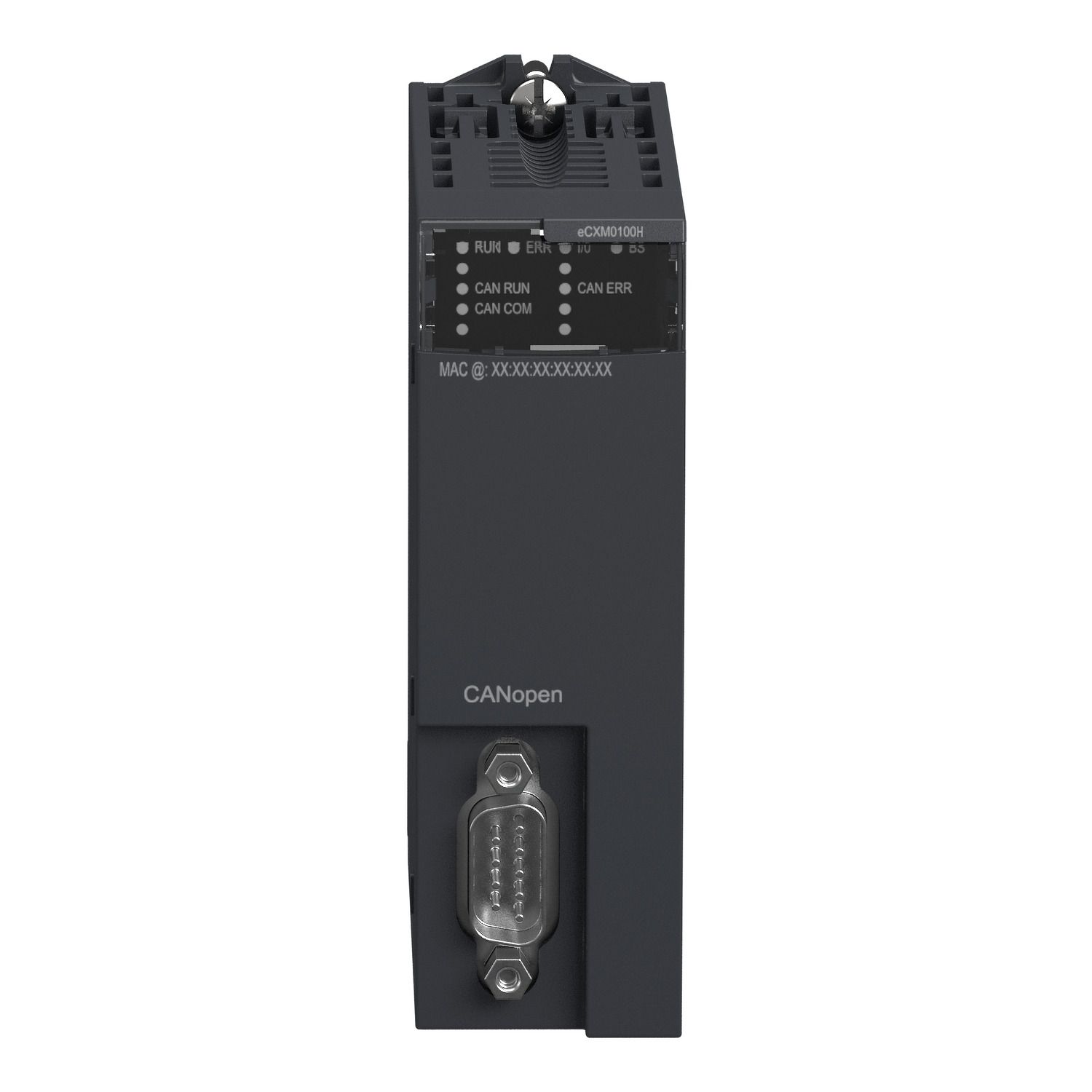

Picture of communication module, Modicon X80, CANopen, master, hardened

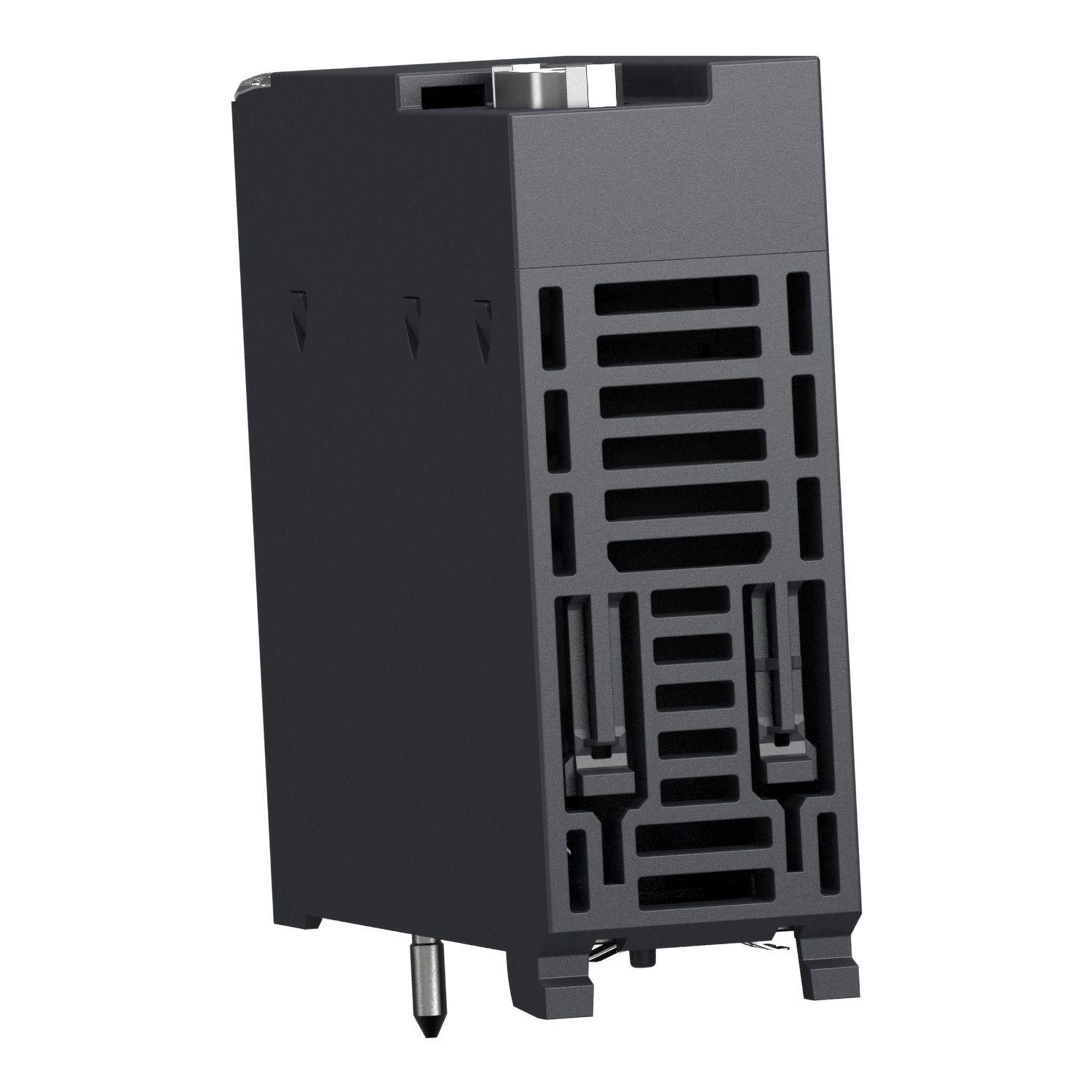

Picture of communication module, Modicon X80, CANopen, master, hardened

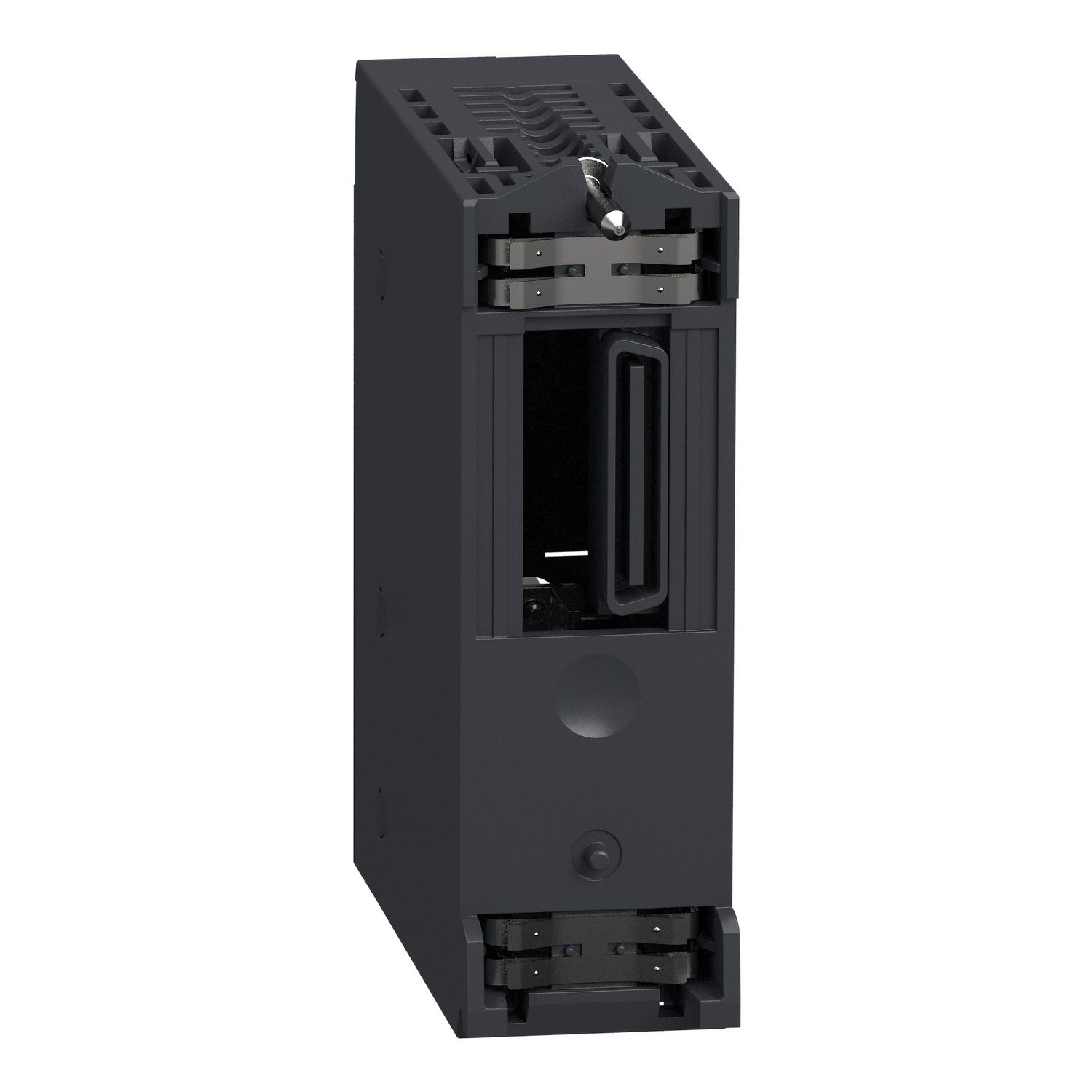

Picture of communication module, Modicon X80, CANopen, master, hardened

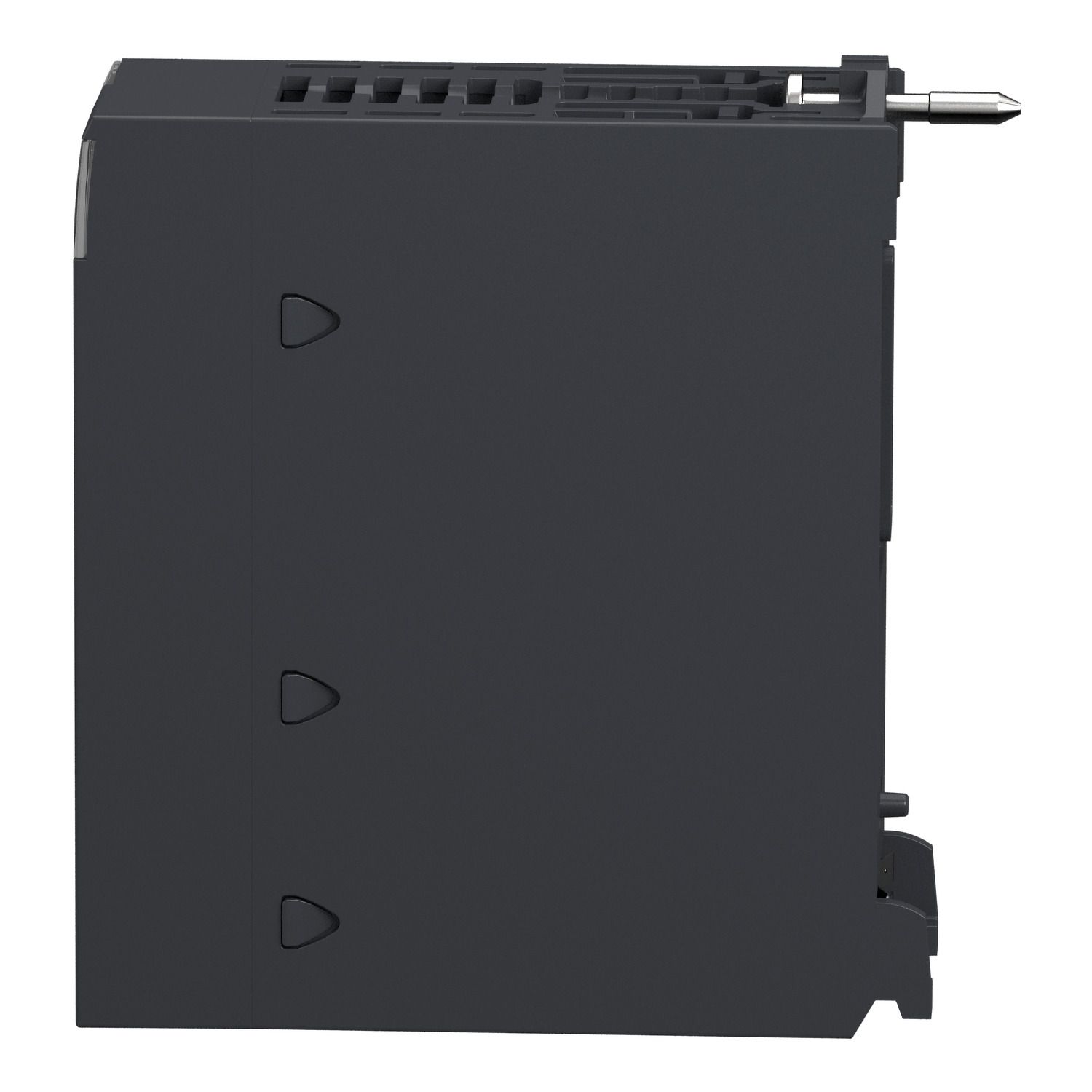

Picture of communication module, Modicon X80, CANopen, master, hardened

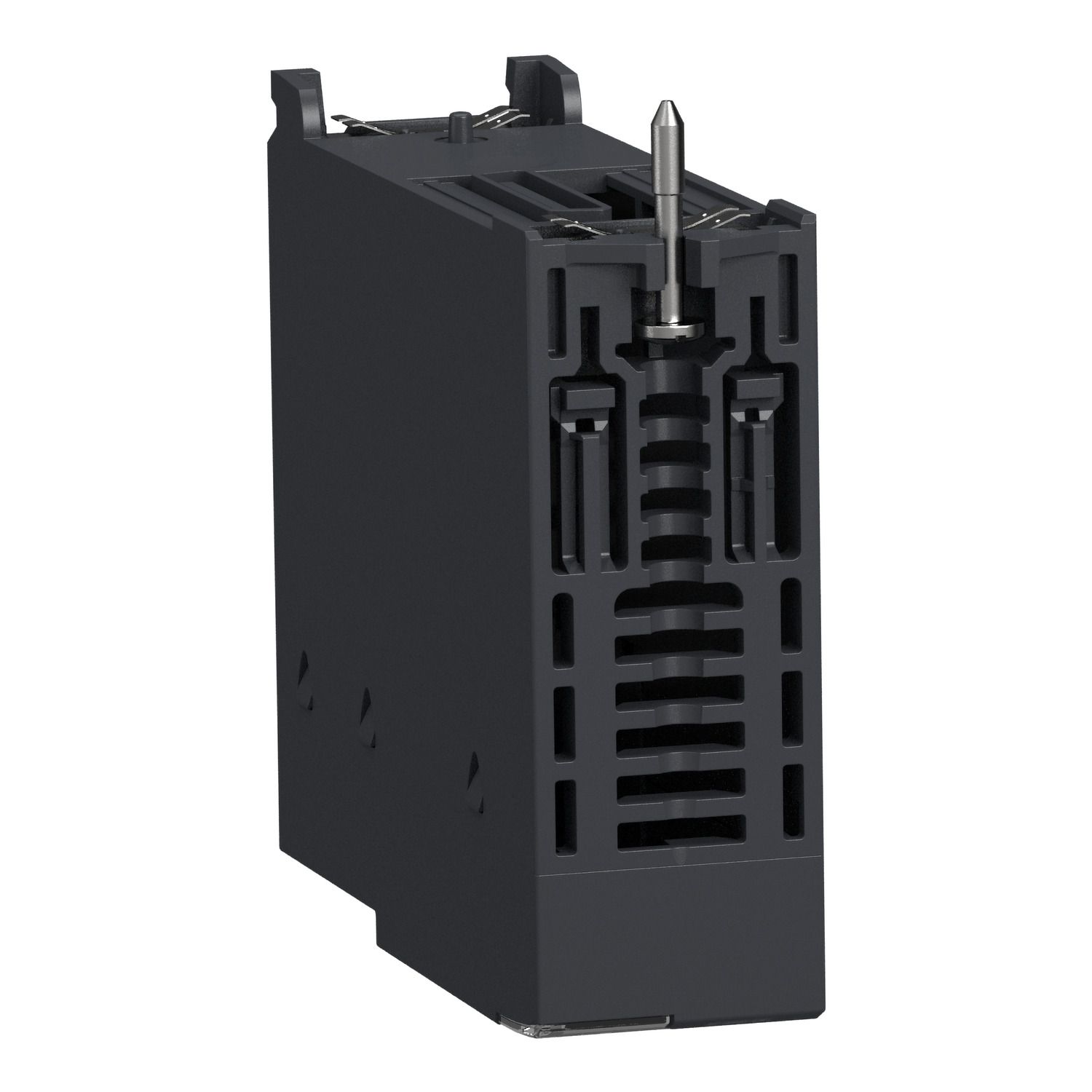

Picture of communication module, Modicon X80, CANopen, master, hardened

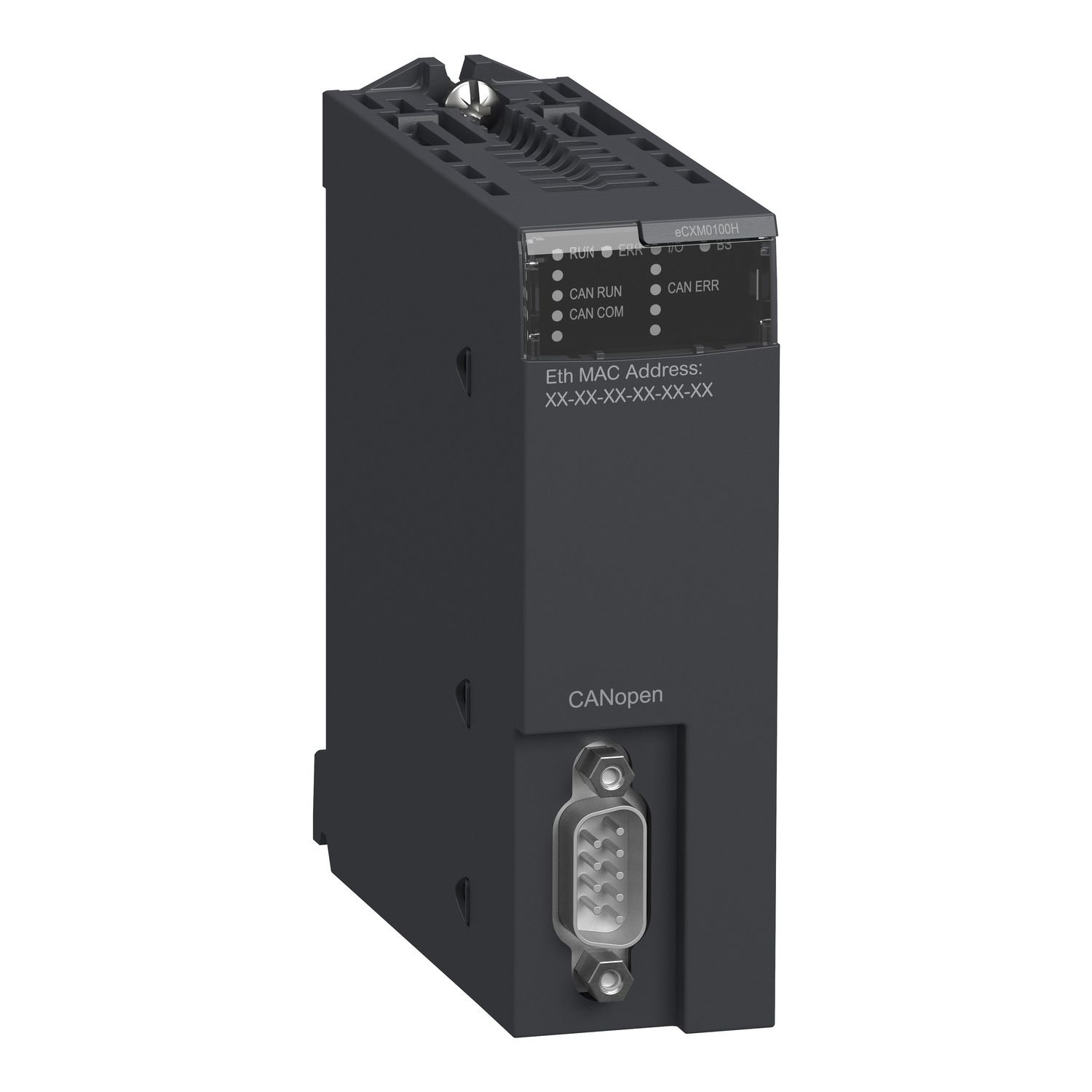

Picture of communication module, Modicon X80, CANopen, master, hardened

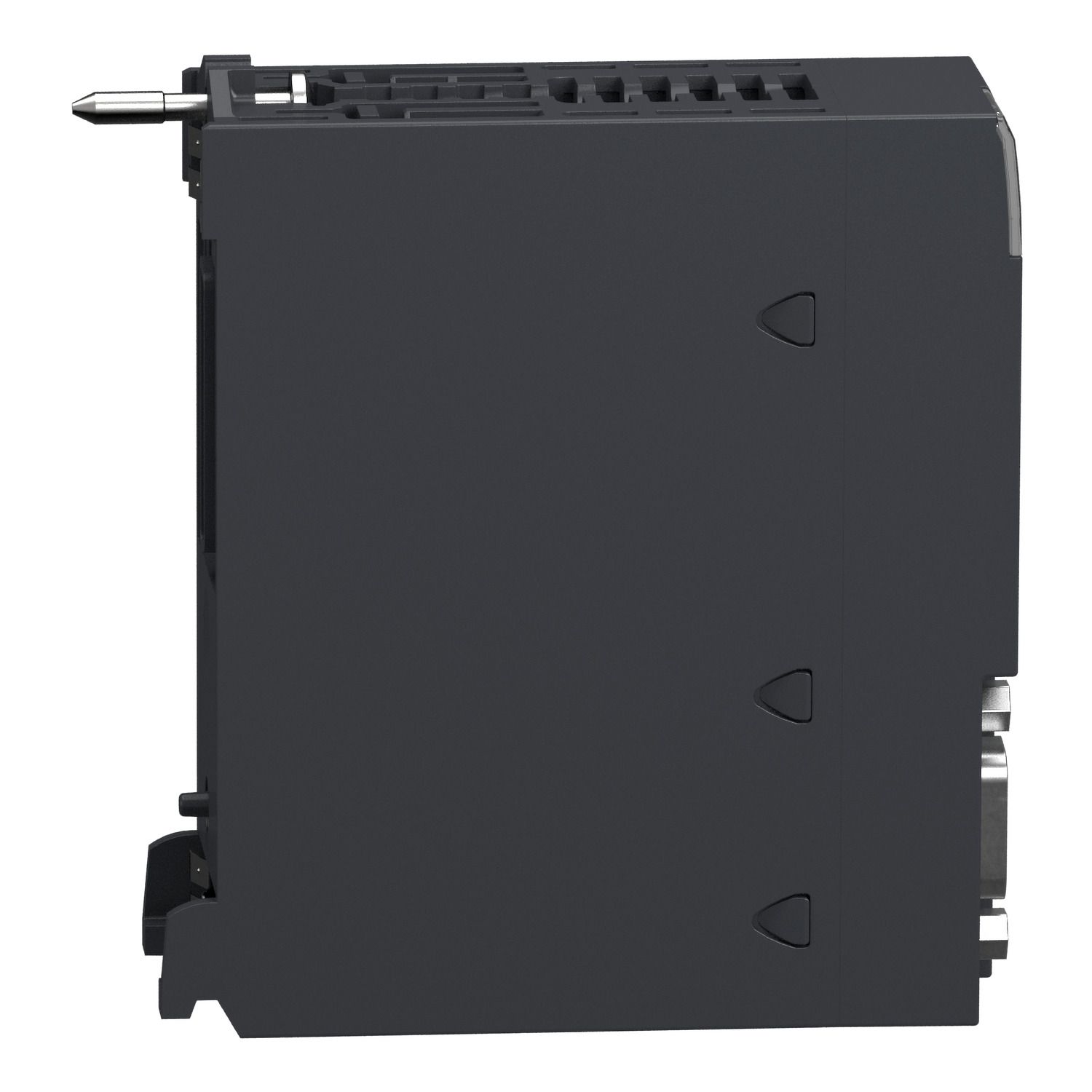

Picture of communication module, Modicon X80, CANopen, master, hardened
Picture of communication module, Modicon X80, CANopen, master, hardened
SKU:

BMECXM0100H

communication module, Modicon X80, CANopen, master, hardened

$2,332.66 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
communication module, Modicon X80, CANopen, master, hardened
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Circularity Profile
Declaration of conformity
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This CANopen communication module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This CANopen communication module is equipped with 1 SUB-D 9-pin female for Profibus DP. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics and offers 20755500 hours of MTBF. This module dimensions are 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with Modicon M580 processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Structure type open industrial fieldbus
Range of product Modicon X80
Product or component type CANopen communication module
Complementary
Product compatibility M580 PLC
Module format standard
Physical interface DB9 connector
Number of slave 63
Transmission rate 12 Mbit/s, 100 m bus , 3 Mbit/s, 100 m bus , 1.5 Mbit/s, 200 m bus , 500 kbit/s, 400 m bus , 187.5 kbit/s, 1000 m bus , 93.75 kbit/s, 1200 m bus , 19.2 kbit/s, 1200 m bus , 9.6 kbit/s, 1200 m bus
Mode of transmission NRZ
Integrated connection type Profibus DP - 1 SUB-D 9-pin female for Profibus DP
Communication service implicit exchange of process data - 20...70 °C
Current consumption 70 mA
Transmission support medium Profibus DP twisted shielded pairs cable
[Us] rated supply voltage 24 V DC internal
Environment
Protective treatment conformal coating
Relative humidity 10-95 %
Ambient air temperature for storage -45-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Operating altitude <= 2000 m
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.300 cm
Package 1 Length 11.800 cm
Package 1 Weight 194.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.234 kg
