SKU:

BMECXM0100

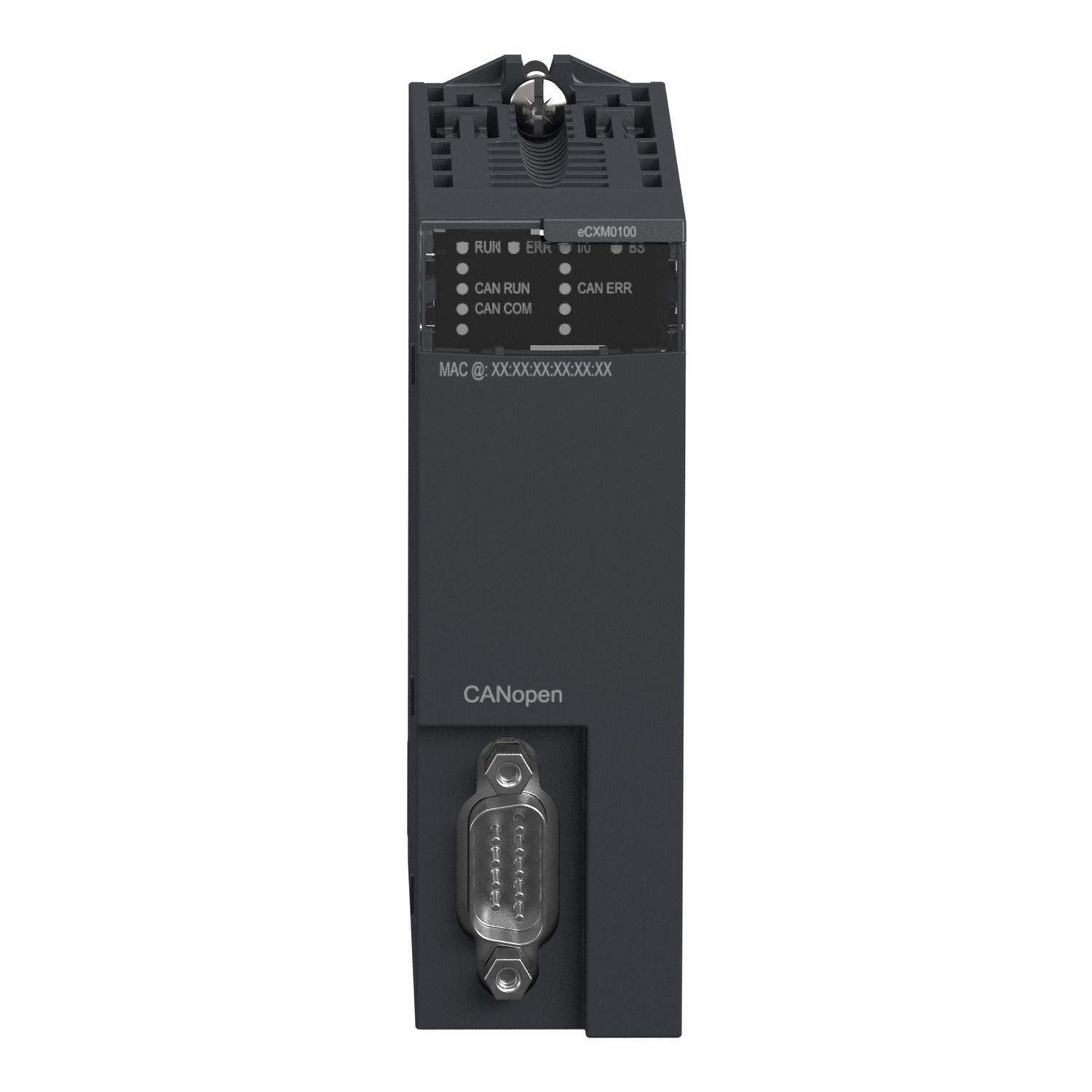

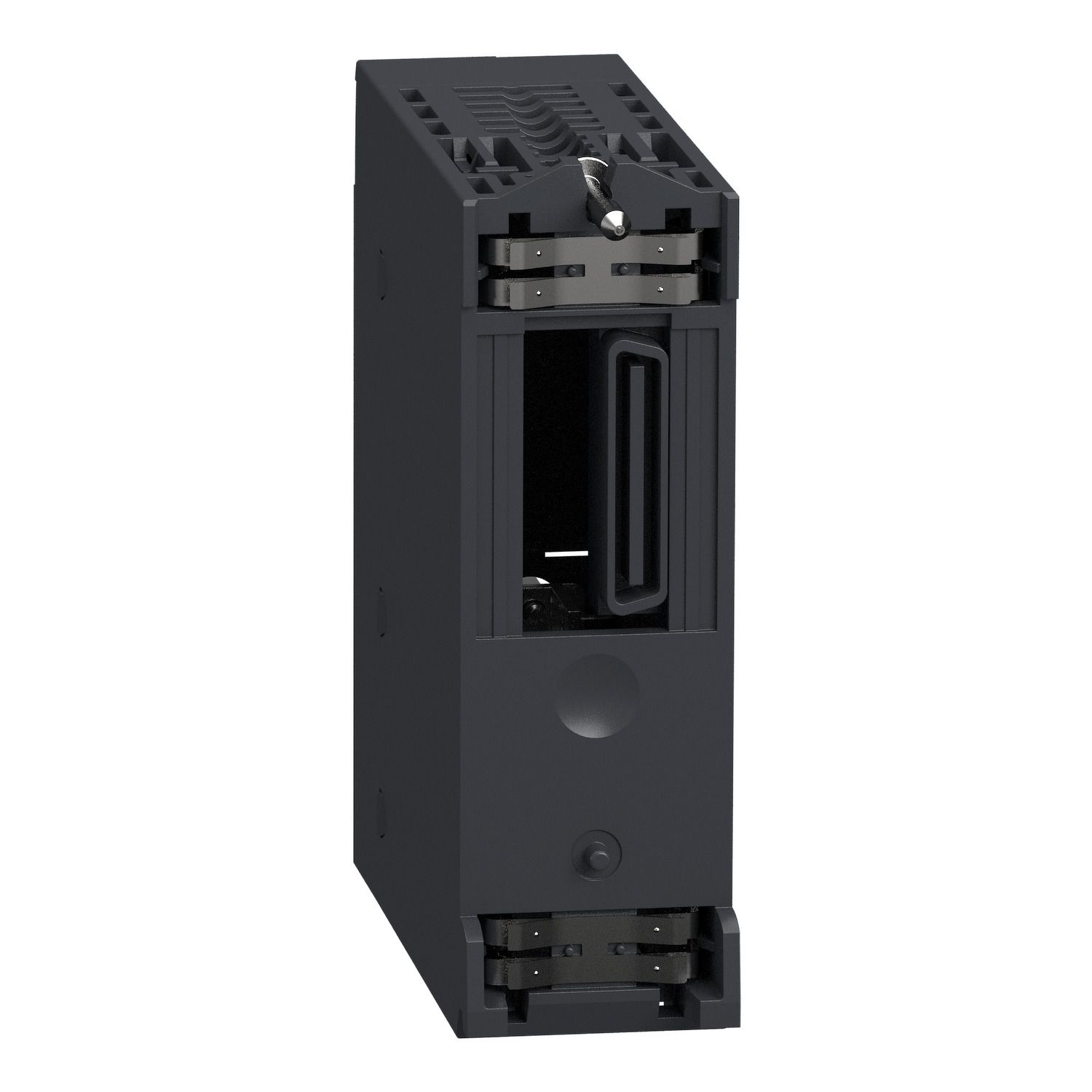

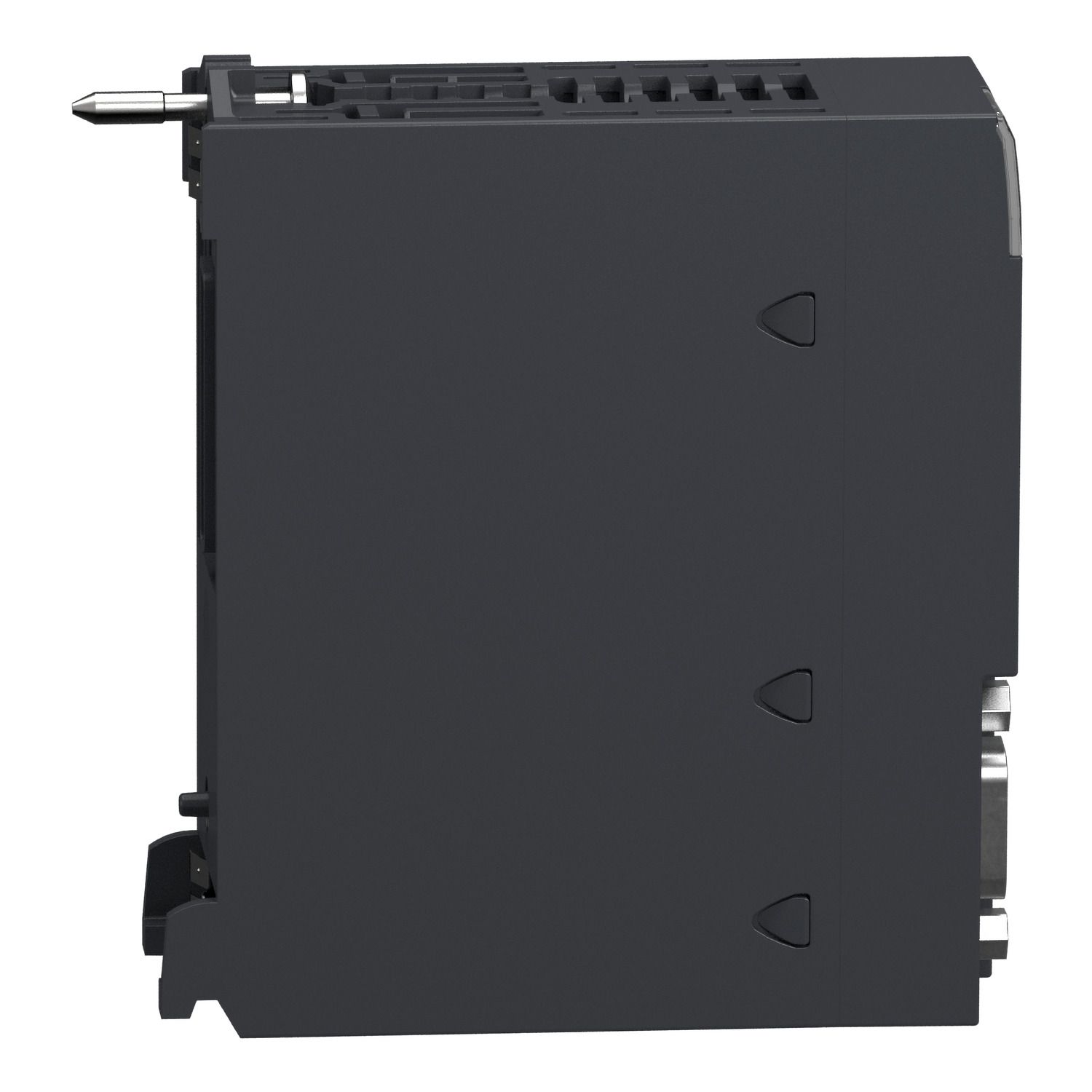

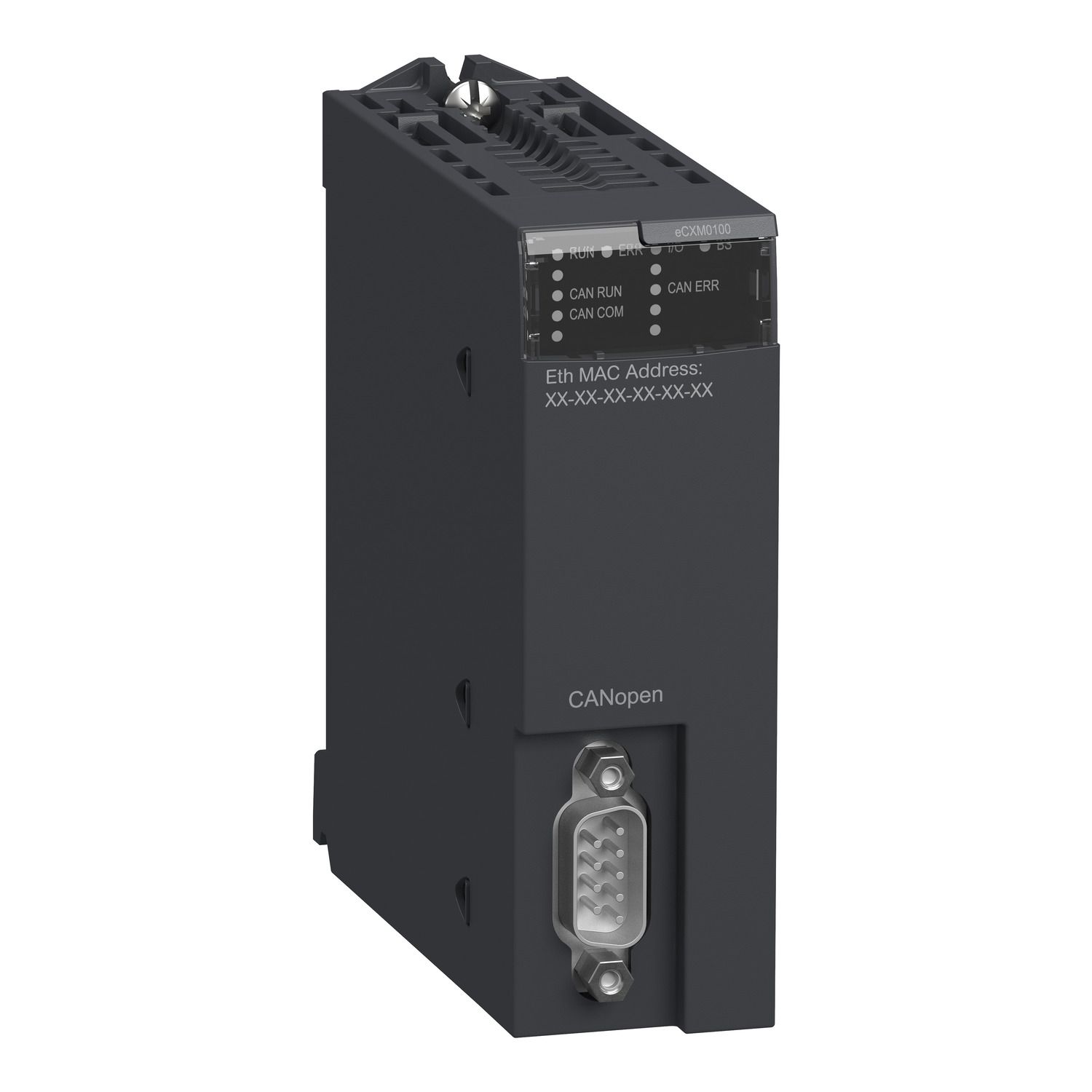

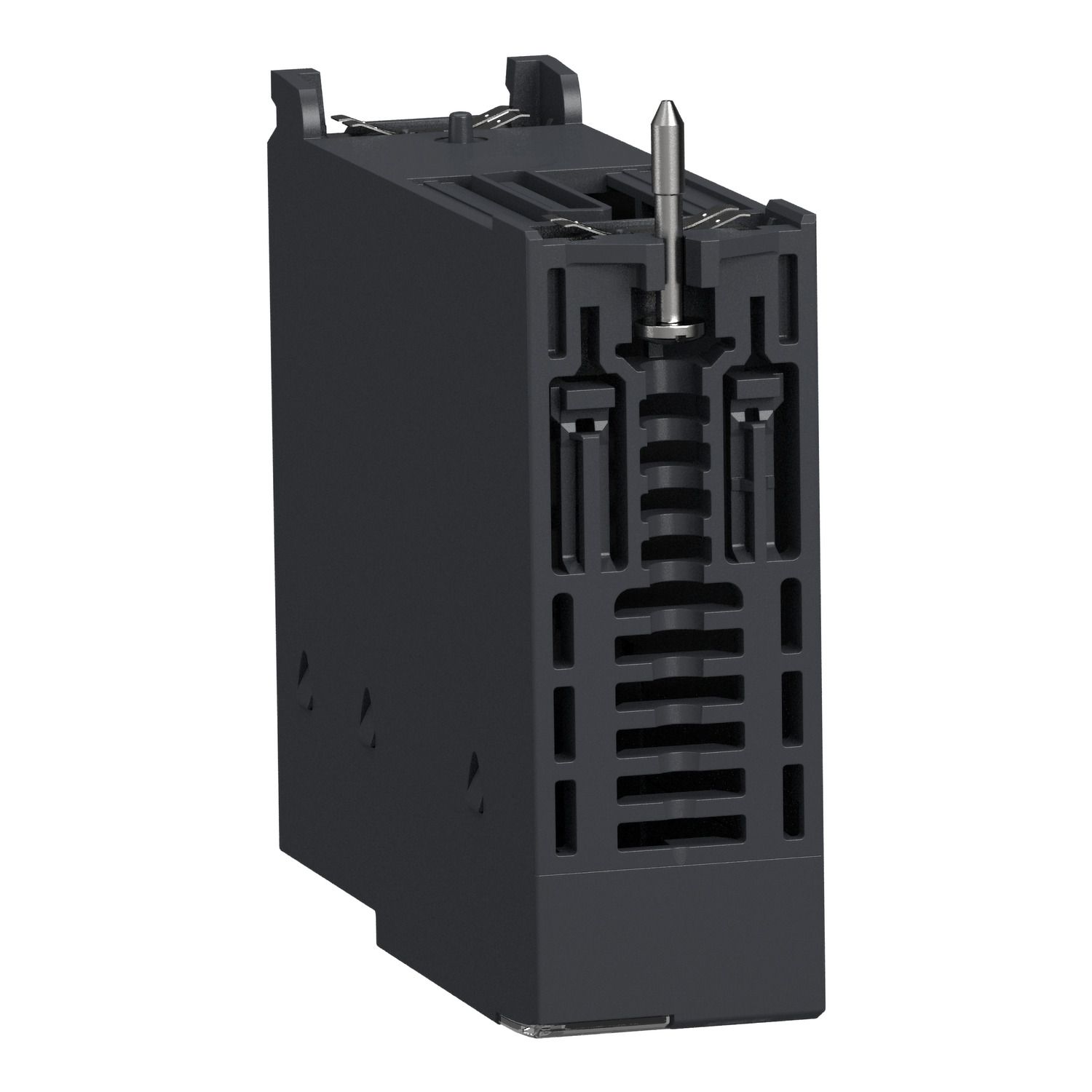

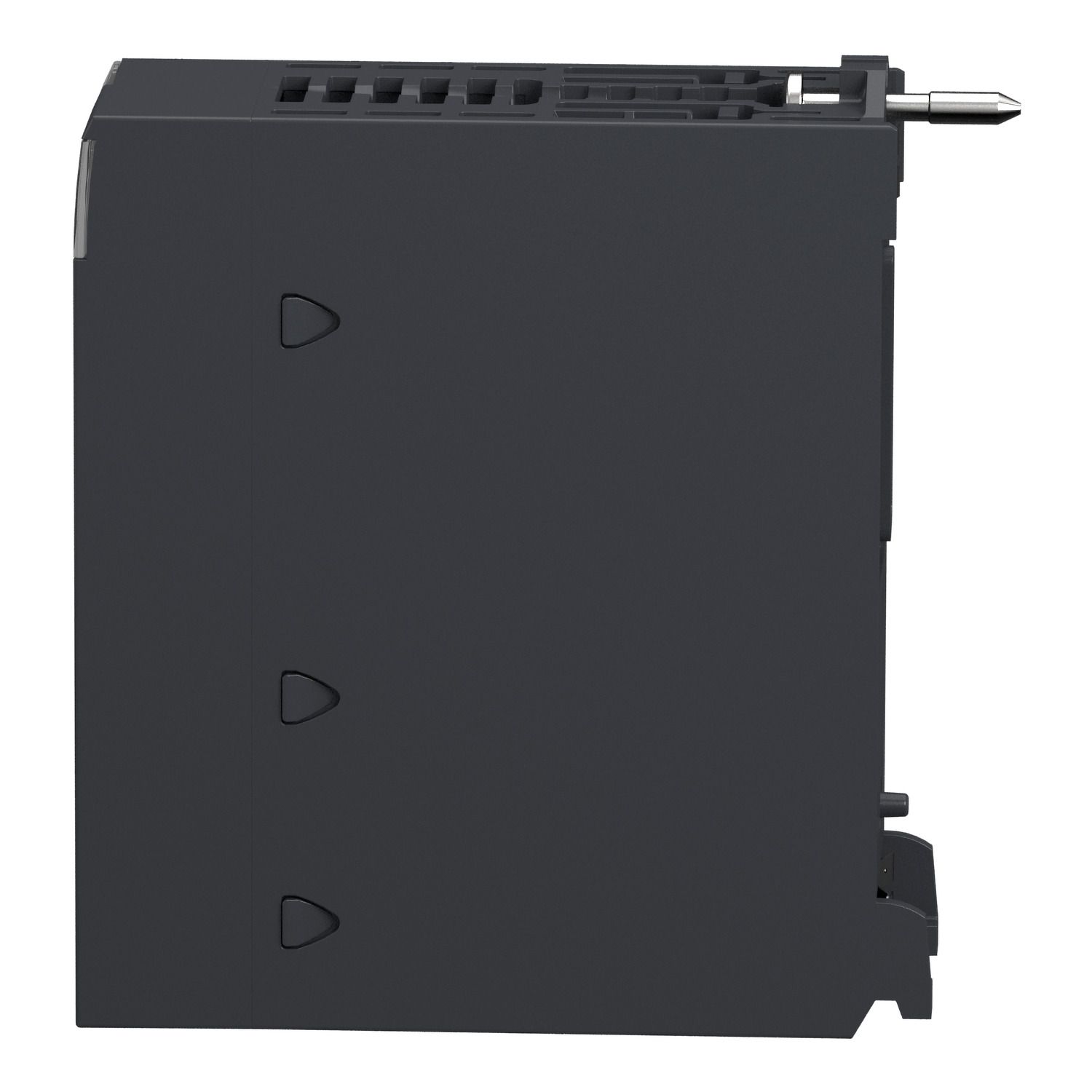

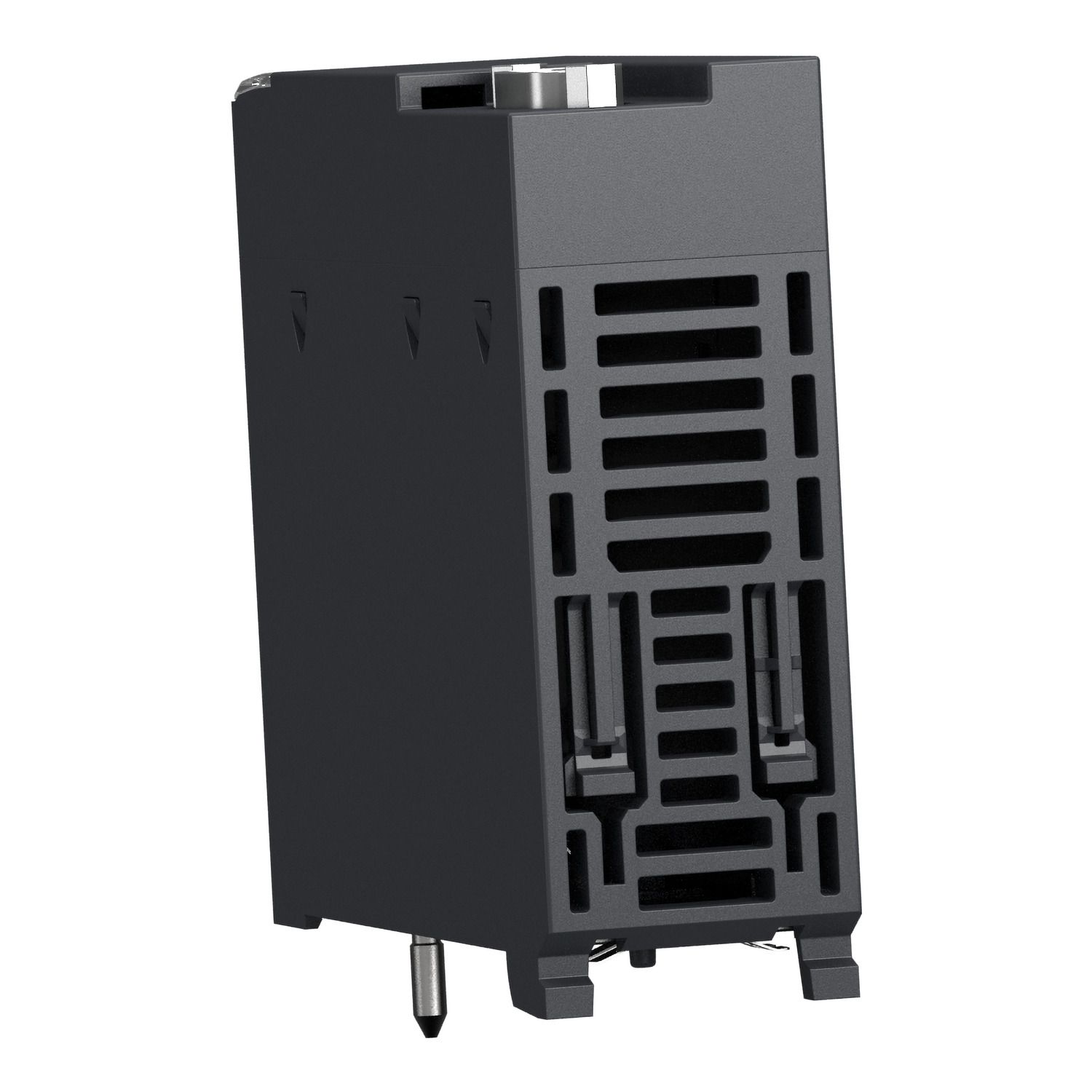

CANopen X80 Master

$1,965.81 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
CANopen X80 Master
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Circularity Profile
Declaration of conformity
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This CANopen communication module has 63 slaves, DB9 connector interface. It is a communication module which support CANopen twisted shielded pairs cable as transmission medium. It supports 10/100Mbps transmission rate, maximum cable distance between devices is 100m. This product is robust, high quality and based on the latest innovative technology. The communication service is CiA DSP 301 V4.02 with standard module format. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with M580 Programmable Logic Controllers (PLC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Structure type open industrial fieldbus
Range of product Modicon X80
Product or component type CANopen communication module
Complementary
Product compatibility M580 PLC
Module format standard
Physical interface DB9 connector
Number of slave 63
Transmission rate 1 Mbit/s, 20 m bus without repeater, 500 kbit/s, 100 m bus without repeater, 250 kbit/s, 250 m bus with repeater, 125 kbit/s, 500 m bus with repeater, 50 kbit/s, 1000 m bus with repeater, 20 kbit/s, 2500 m bus for CANopen with repeater
Mode of transmission NRZ
Method of access CSMA/CA CANopen
Communication service CiA DSP 301 V4.02
Current consumption 100 mA
Transmission support medium CANopen twisted shielded pairs cable
[Us] rated supply voltage 24 V DC internal
Environment
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -45-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude <= 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 11.500 cm
Package 1 Length 12.100 cm
Package 1 Weight 180.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.255 kg
