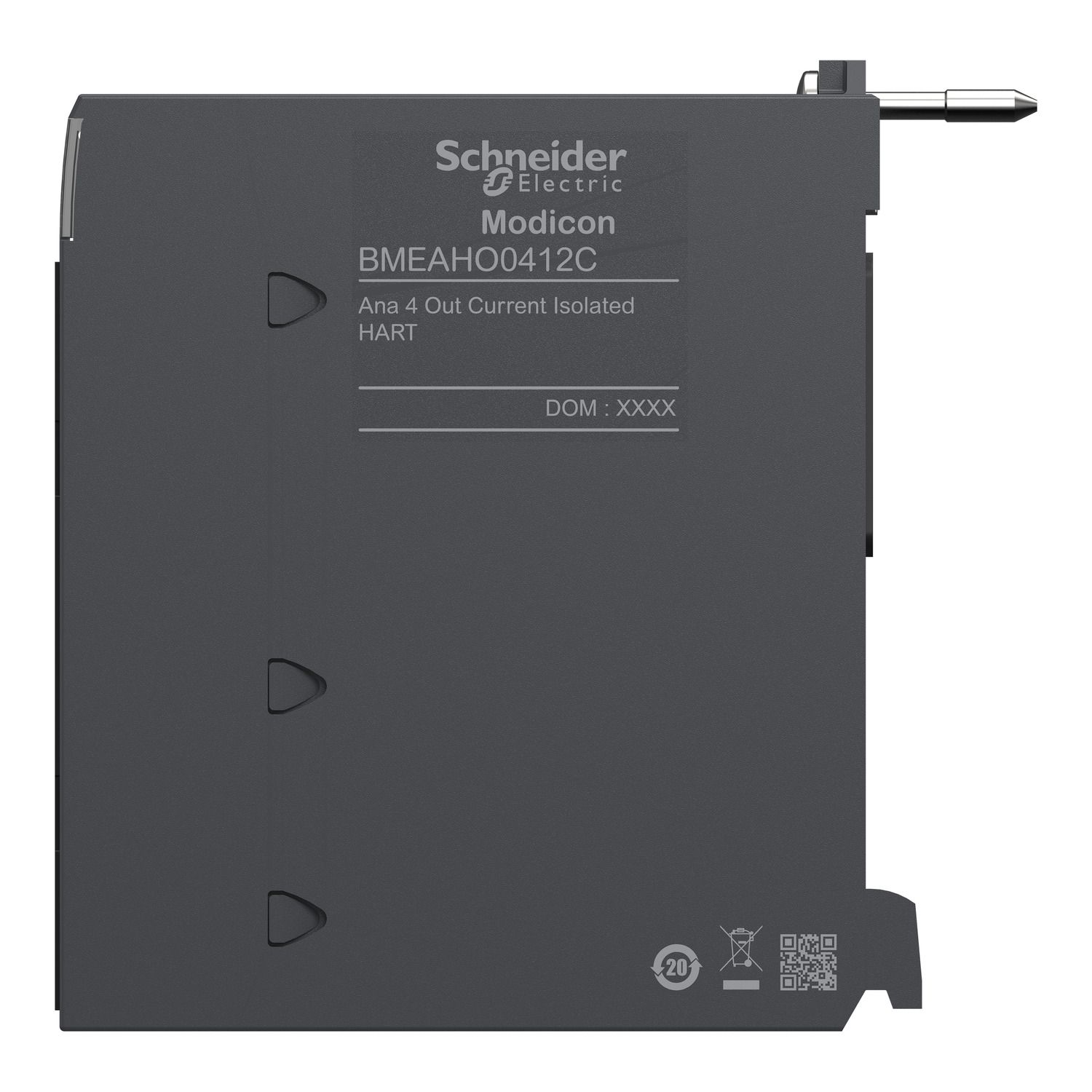

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

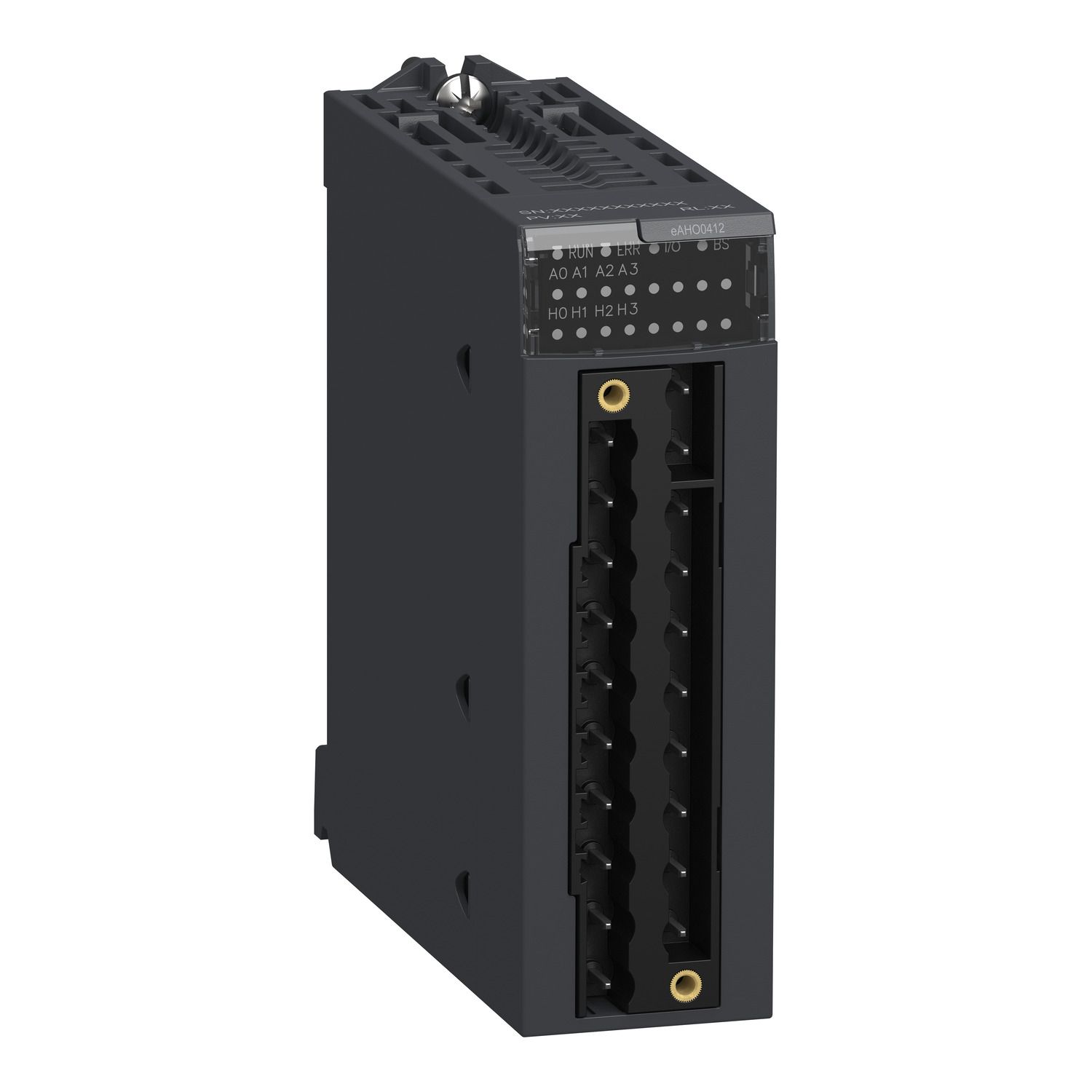

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

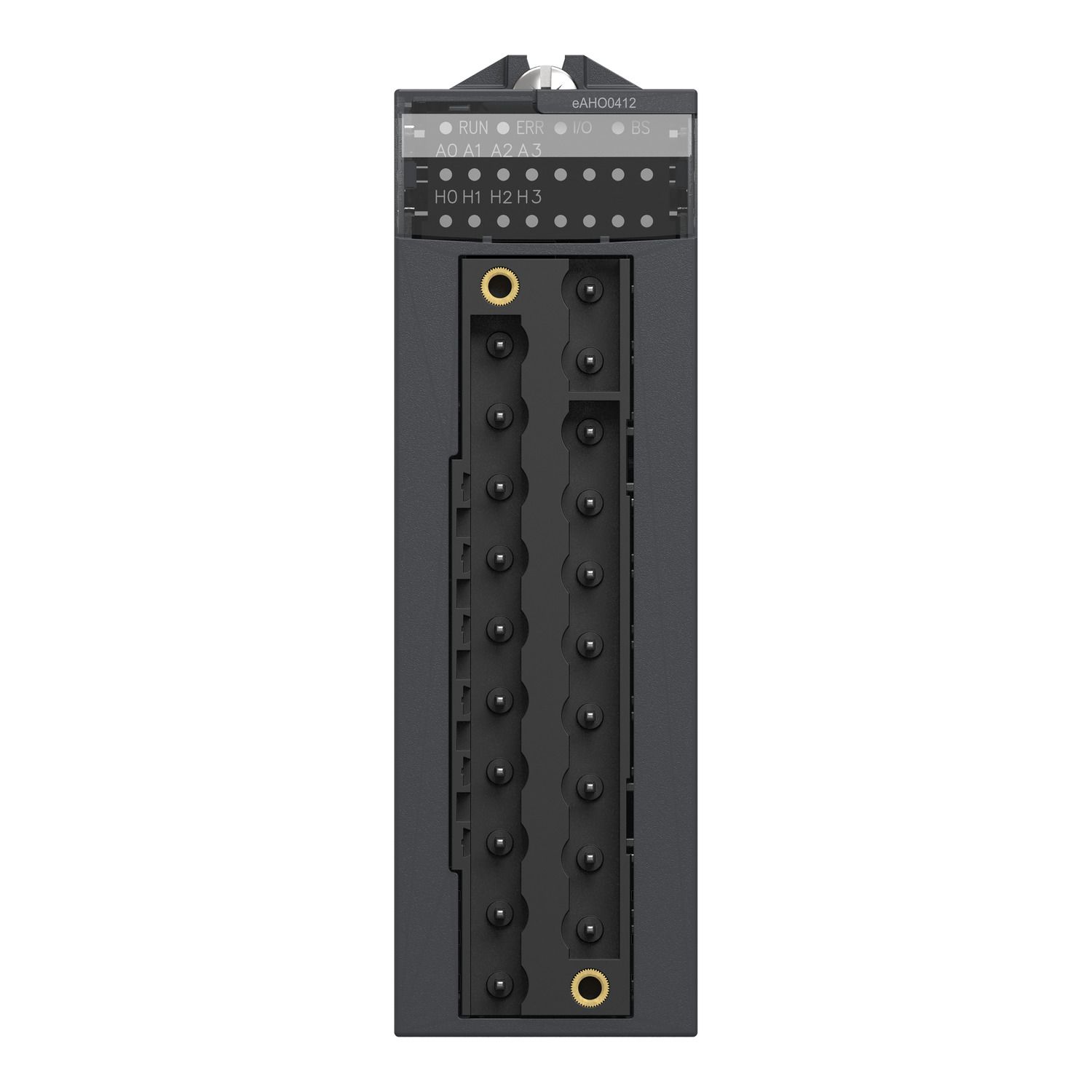

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

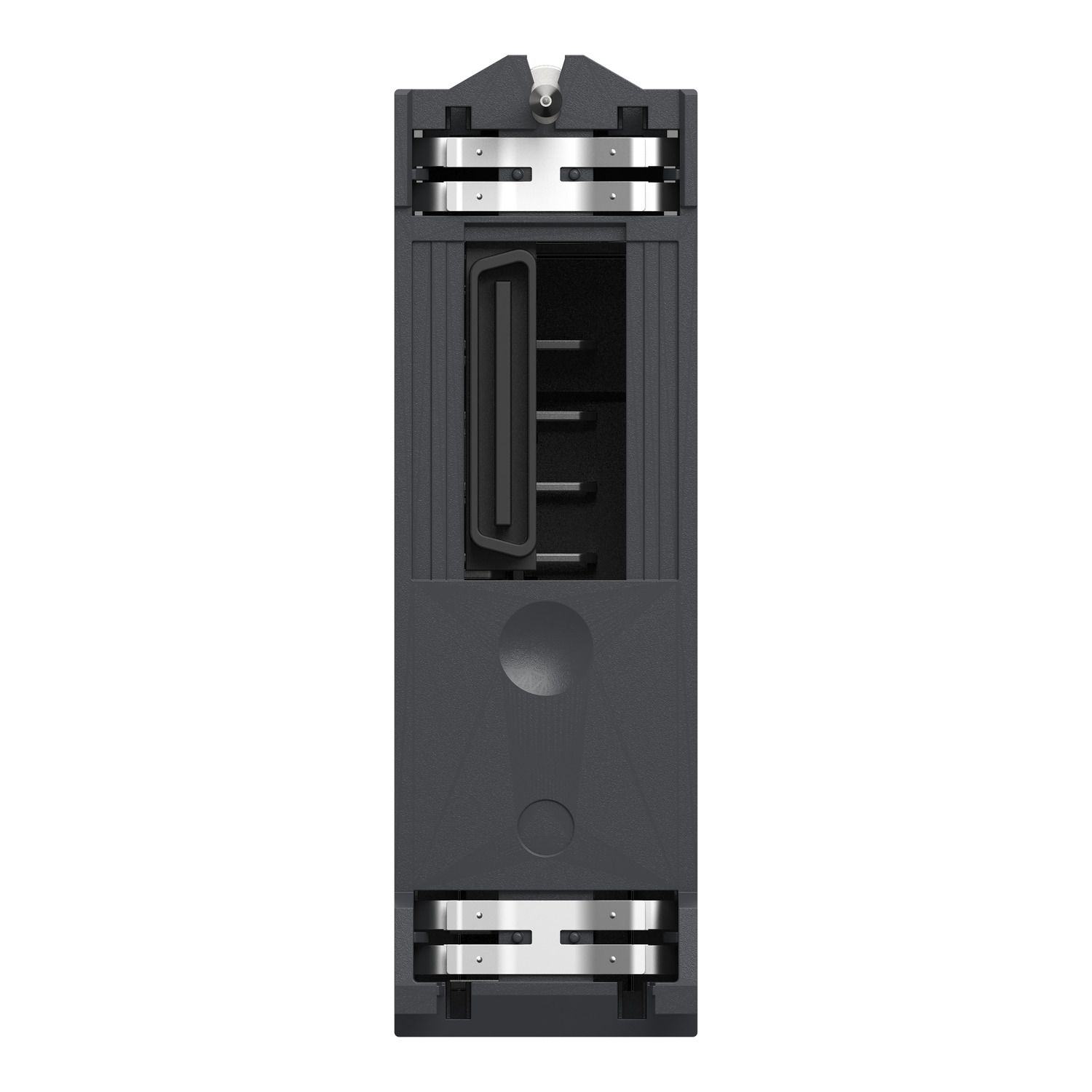

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

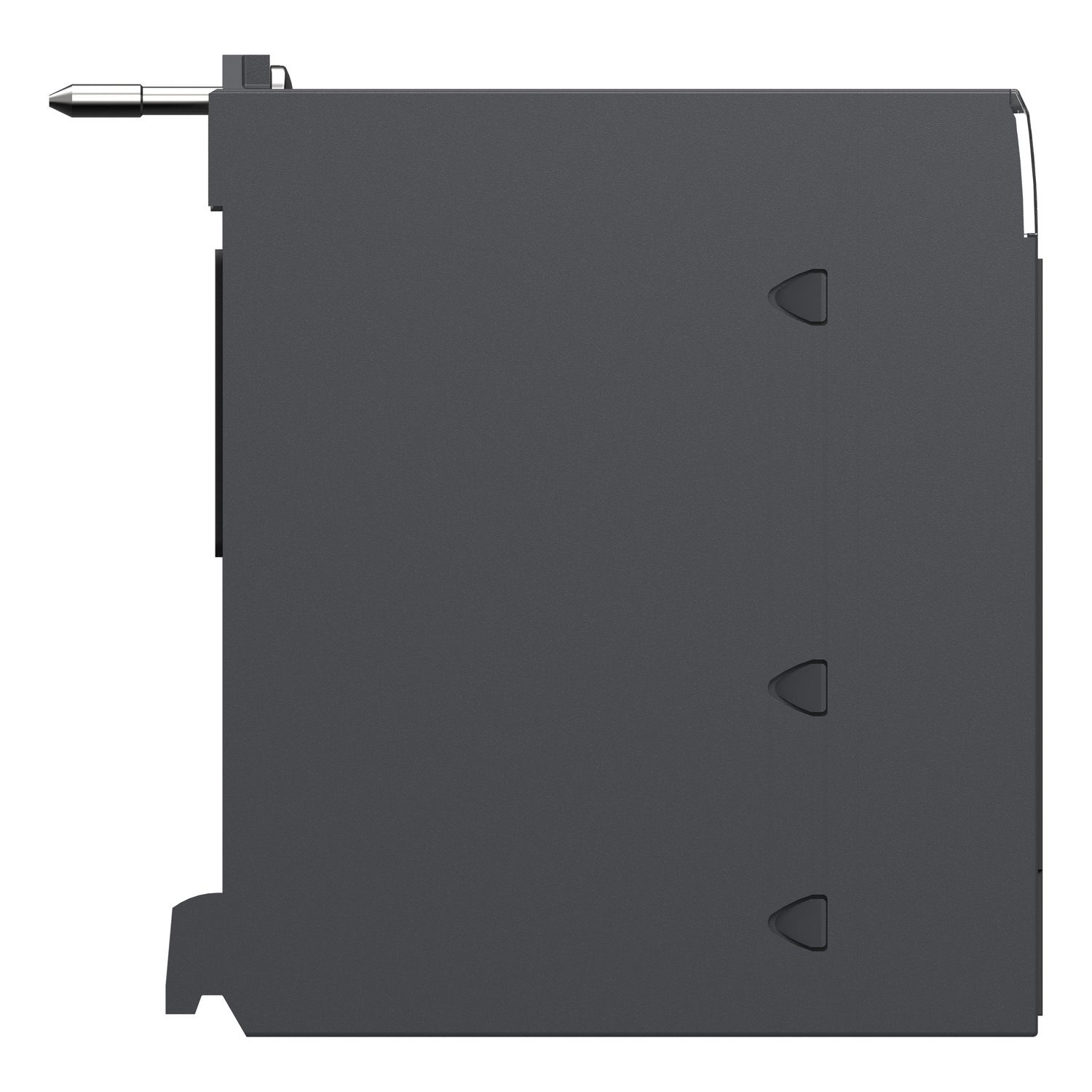

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

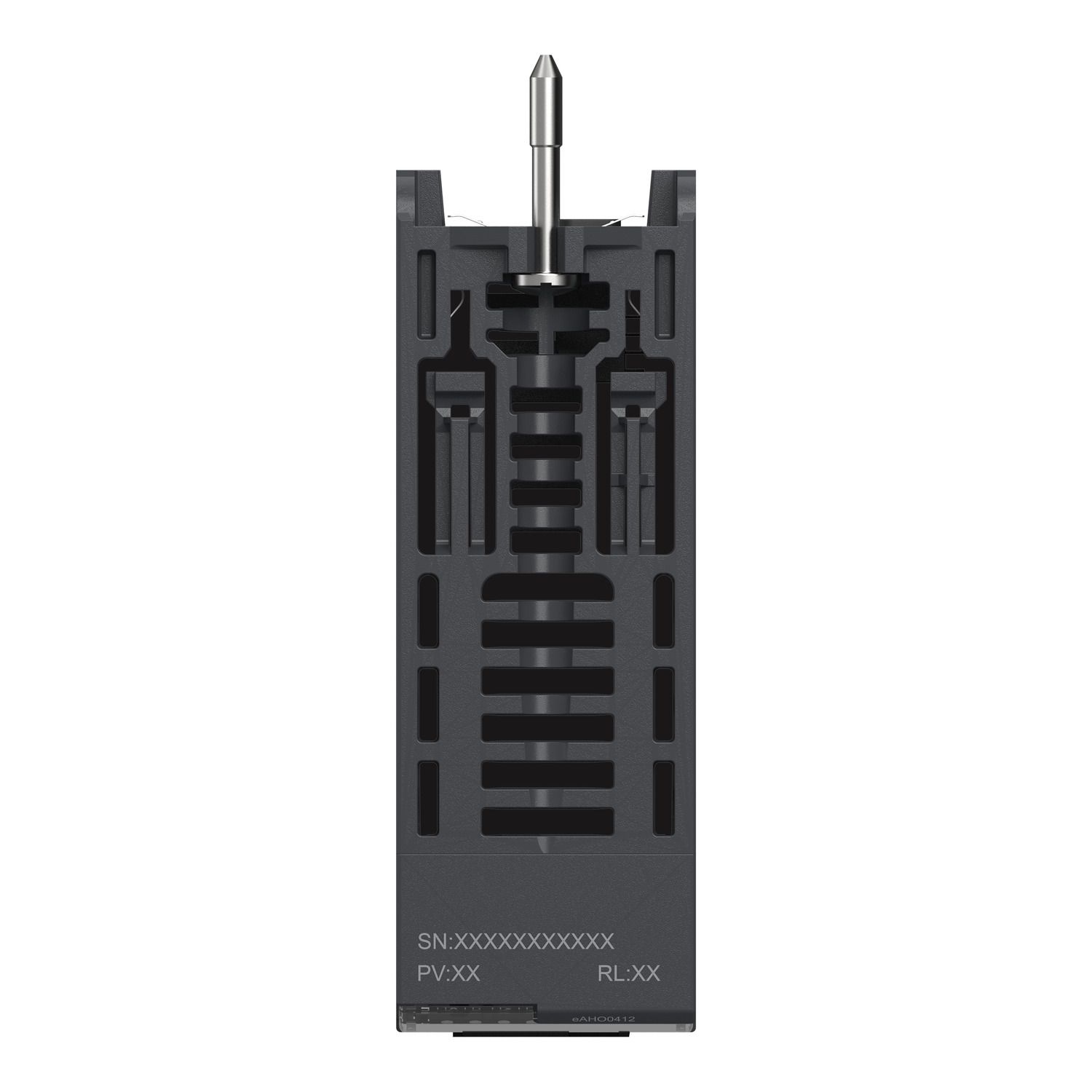

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

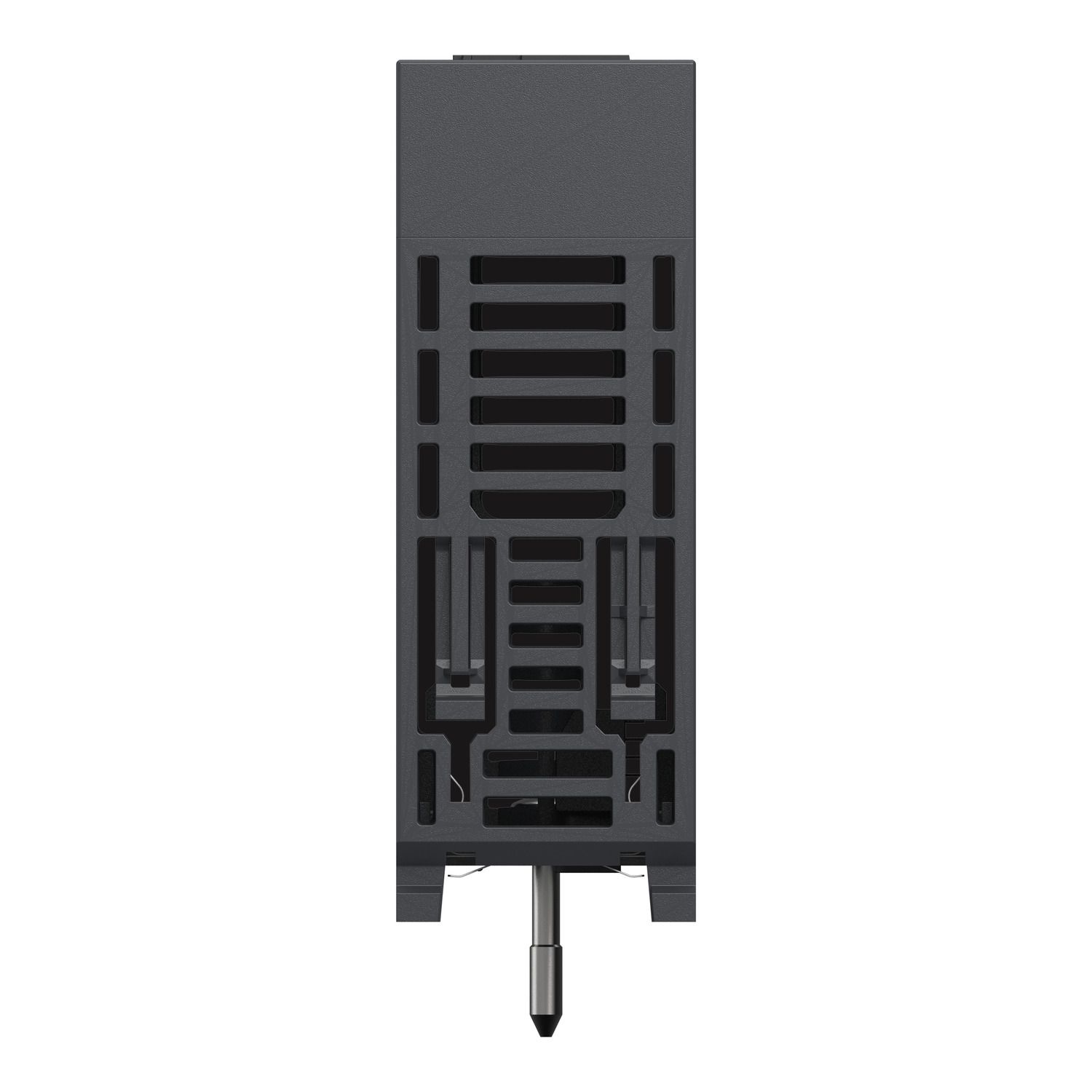

Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment
Picture of analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment
SKU:

BMEAHO0412C

analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment

$3,033.47 INC GST
Available for Shipping : 20-Jan-2026
analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This HART analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 output channels. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 848454 hours of MTBF. This analog module has a weight of 0.223kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product or component type analog output module
Range of product Modicon X80
Complementary
Checks broken wire detection
Product compatibility BMXFTB20... terminal block, head module BMECRA31210, ABE7CPA21, BMEXBP... backplane, BMEP58... processor
Analogue output resolution 15 bits + sign
Application specific I/O HART
Load impedance ohmic 570 Ohm 0...21 mA, 600 Ohm 0...20 mA
Analogue output number 4
Function available I/O mapping
Isolation voltage 1400 V DC for 60 s between channels and bus, 1400 V DC for 60 s between channels and ground, 1000 V DC for 60 s between channels
Input output isolation isolated
Topology point-to-point
Electrical connection Telefast, 20 ways terminal block
Net weight 0.223 kg
Analogue output type current: 4...20 mA
Temperature drift 45 ppm/°C
Measurement error 0.45 % of full scale - 25...60 °C, 0.1 % of full scale 25 °C
Environment
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.500 cm
Package 1 Length 11.700 cm
Package 1 Weight 226.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.745 kg
