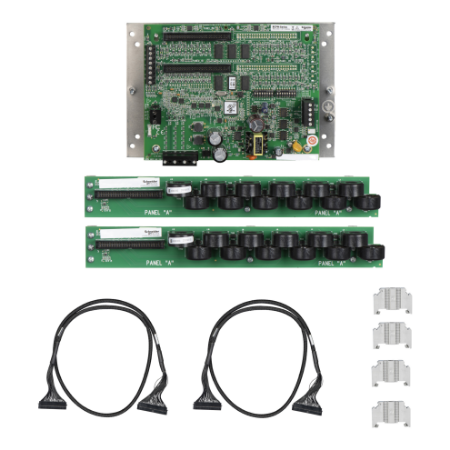

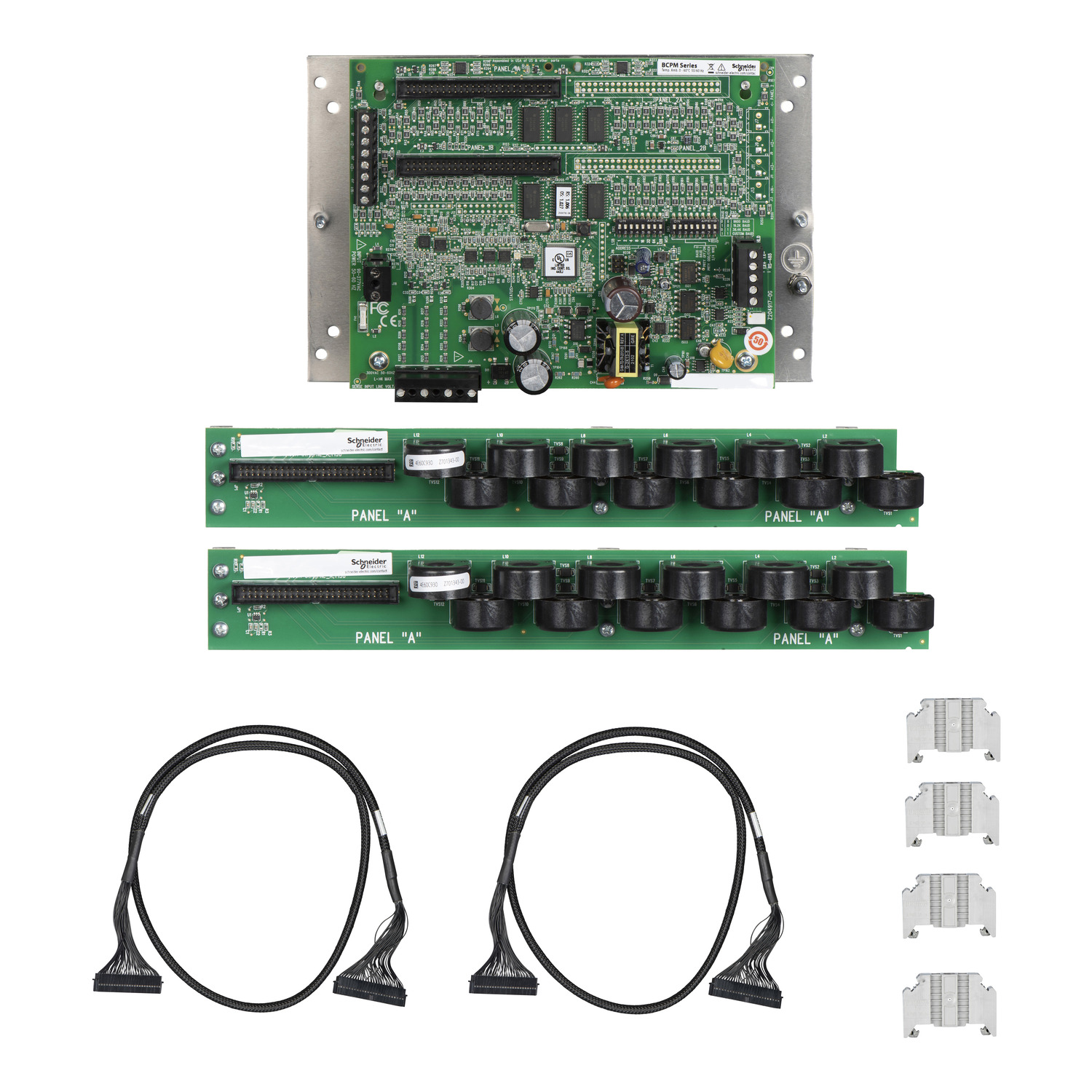

BCPM power monitoring advanced + ethernet - 84 split core CT 50 A

$32,323.36 EXCL GST
Availability: Please contact our sales team on 1300 724 622.
BCPM power monitoring advanced + ethernet - 84 split core CT 50 A
  • "Feature-rich power and energy meters"
  • "Simple energy monitoring compatible with Building management systems"
  • "Compact size of 18mm*7 modules width"
  • "Lonworks communication port and digital output for remote monitoring"
  • "Identify energy savings opportunties with precision accuracy of Class 1.0"
  • "Collect and analyze energy consumption data"
  • "MID Class B for sub-billing"
  • "Direct connet upto of 125Amps in three phase network"
  • "Three phase DIN rail mount power and energy meter"
  • "Large LCD display for easy reading"
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM monitors both the 84 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Adapter boards with terminals for split-core CTs can be mounted using DIN-rail, Snaptrack or on a common mounting plate with the main board Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with serial connection for either Modbus RTU or BACnet MS/TP, and an Ethernet connection for Modbus TCP, BACnet IP and SNMP. The meter need to be powered by a 100V AC to 277V AC supply source. Include 50A branch CTs with 2 meters leads and 1.8 meters round ribbon cables, for 84 split-core current transformers. The device dimensions are 353mm in width, 253mm in height, 71mm in depth and weight 1.5 kilograms.

Products specifications

Attribute name Attribute value
Main
Device short name BCPMSCE
Device application sub billing
[Us] rated supply voltage 90...277 V AC 50/60 Hz +/- 1 %
Range PowerLogic
Market segment healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard
Power monitoring basic instrumentation
Type of measurement active energy, power factor, active power, frequency, current, voltage
Range of product PowerLogic
Power quality analysis voltage sag and swell detection
Energy management sub billing and cost allocation
Product name PowerLogic BCPMSC
Product or component type multi-circuit energy meter
Variant advanced + ethernet
Network frequency 50 Hz, 60 Hz
Complementary
Update time 1.8 s
Measurement accuracy voltage 1 % 90…277 V, mains current 3 % 2…100 %, mains current 3 % 1…100 %, branch current 1 % 2…100 A, branch current 2 % 0.25…2 A
Communication of data under voltage alarm, high current alarm, high-high current alarm, low current alarm, over voltage alarm, low-low current alarm
Communication port protocol SNMP v2, Modbus TCP, BACnet MS/TP, BACnet IP, Modbus RTU
Communication port support ETHERNET, RS485
Analogue input type split core CT 0.333 V84 x
Provided equipment 4 x adapter board, 4 x cables, 84 x current transformer
Number of inputs 0
Number of outputs 0
Sampling rate 256 samples/cycle
Measurement voltage 150-480 V phase to phase, 90-277 V phase to neutral
Environment
Relative humidity 0-95 % at 0-60 °C
Ambient air temperature for storage -40-70 °C
Mounting mode fixed
Product certifications UL
Height 307 mm
Operating altitude 3000 m
Depth 71 mm
Width 253 mm
Net weight 1.5 kg
Mounting support chassis
Standards EN 61010, ANSI C12.1, IEC 61036, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.3 cm
Package 1 Width 30.5 cm
Package 1 Length 50.8 cm
Package 1 Weight 12.474 kg
