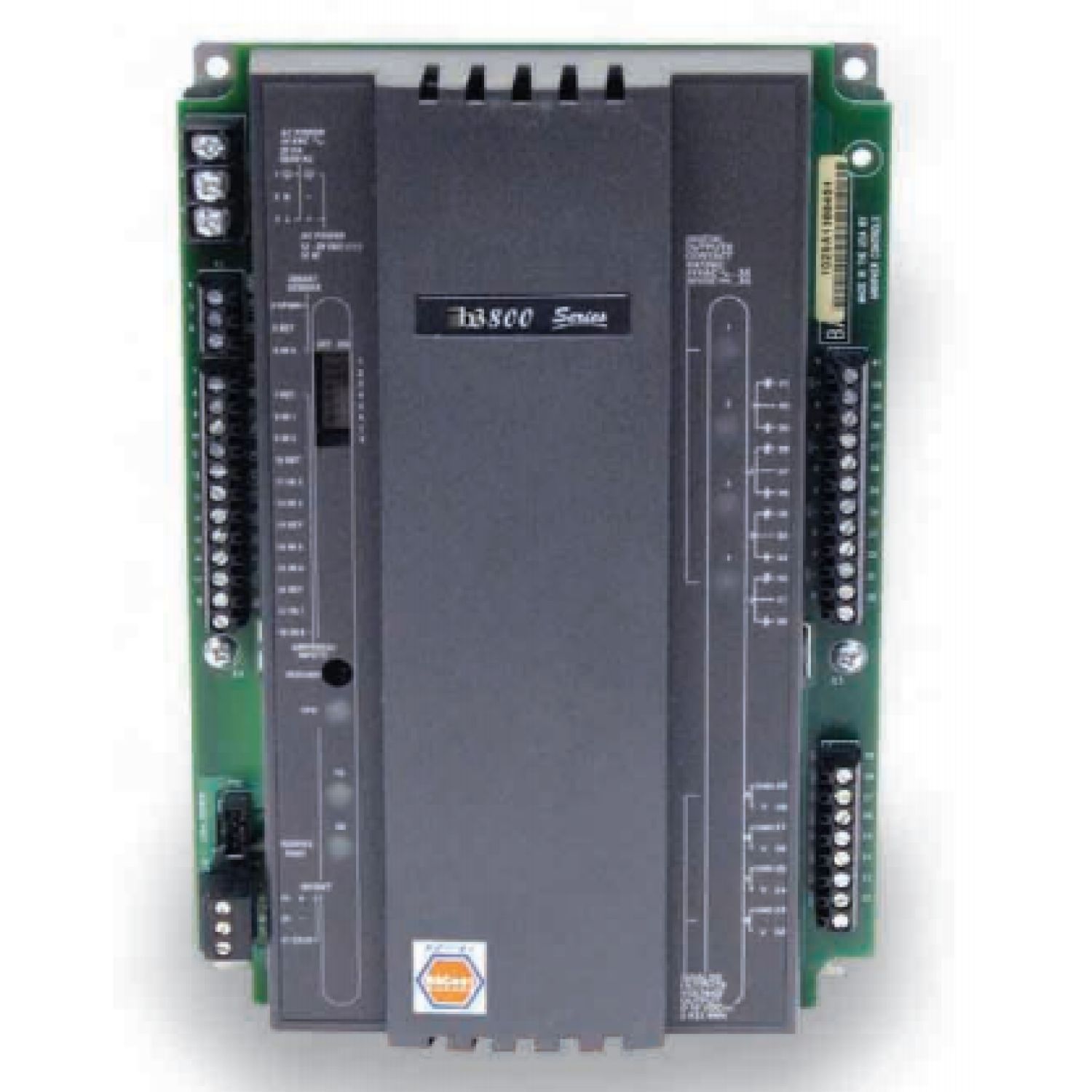

Picture of Andover Continuum b3800 Local Controller, BACnet, 8 Universal Inputs, 8 Digital Ouputs, 1 Smart Sensor Input
SKU:

B3800

Andover Continuum b3800 Local Controller, BACnet, 8 Universal Inputs, 8 Digital Ouputs, 1 Smart Sensor Input

$5,899.96 INC GST
Available for Shipping : 16-Dec-2025
Andover Continuum b3800 Local Controller, BACnet, 8 Universal Inputs, 8 Digital Ouputs, 1 Smart Sensor Input
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP10
Device short name b3800
Display type LED
Product weight 0.61 kg
Relative humidity 10-95 % non-condensing
Function available stand alone equipment control
Height 229 mm
Ambient air temperature for operation -23-60 °C
Range of product BACnet
Communication port support RS485
[Us] rated supply voltage 24 V AC, 12...14 V DC
Width 153 mm
Product specific application control of air handling unit, control of roof top unit, control of other mechanical plant equipment
Memory type 1 MB flash, 128 kB SRAM
Depth 54 mm
Number of inputs 1 smart temperature sensor, 8 universal
Product or component type local controller
Number of outputs 4 analog output, 8 single pole single throw form C relays
Product certifications UL/cUL 916, FCC, CE
Complementary
Measurement resolution 5 mV input resolution
Product compatibility bCX network controller
Display type LED
Processor name Motorola 32-bit coldfire
Accuracy +/- 15 mV DC +/- 0.56 °C from - 23...66 °C
Resolution 0.1 V 0...10 V
Communication port protocol BACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices)
Standards EN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003
Electrical connection screw terminal
Battery type lithium 5 years power failure backup of RAM memory
Realtime clock with synchronized through MS/TP via BACnet
Bus length 1220 m BACnet
Input impedance 5 MOhm with pull-up resistor disabled, 10 kOhm 5.120 V
Local signalling LEDs
Software package Continuum CyberStation
Power consumption in VA 25 VA 24 V
Mounting support panel
Programming language English
Output voltage 0...10 V DC,5 A for analog output, 0...10 V, 24 V DC, 24 V AC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30 cm
Package 1 Width 27.2 cm
Package 1 Length 11.2 cm
Package 1 Weight 960 g
