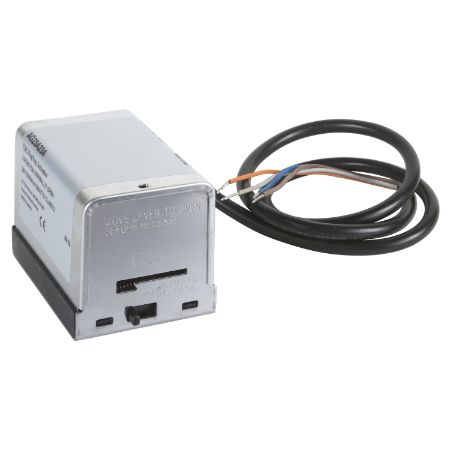

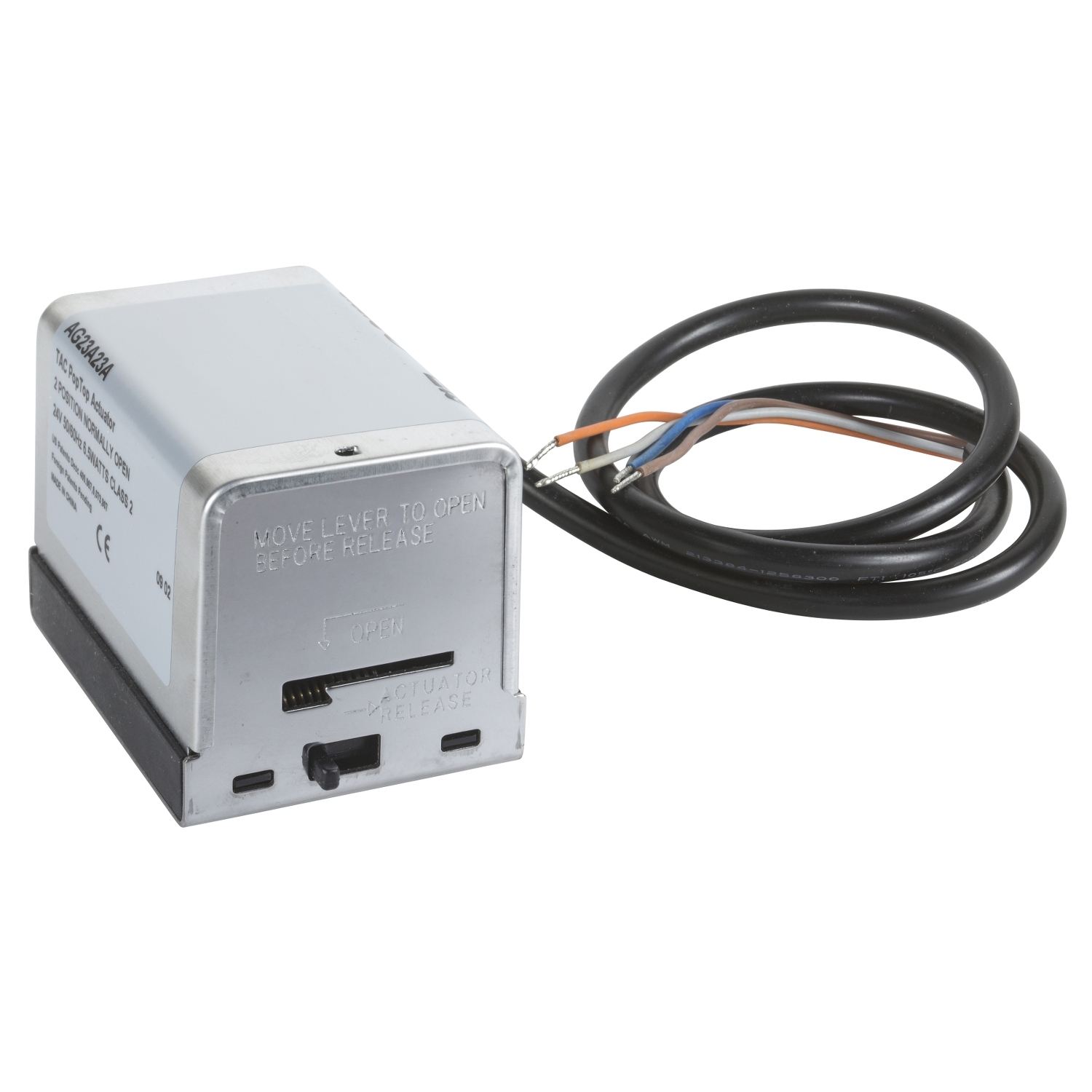

Picture of Erie actuator, general purpose, 230VAC, Pop-Top mount on Erie VT valves, 2 position, 0.9m (36") lead, End switch
SKU:

AG13U23A

Erie actuator, general purpose, 230VAC, Pop-Top mount on Erie VT valves, 2 position, 0.9m (36") lead, End switch

$340.92 INC GST
Available for Shipping : 03-Feb-2026
Erie actuator, general purpose, 230VAC, Pop-Top mount on Erie VT valves, 2 position, 0.9m (36") lead, End switch
  • Pop-Top Connection, Quick, simple and toolless
  • 2 Position Spring Return Control
  • Normally Closed Valve Function
  • Latching Manual Override Lever
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
The AG (General Close Off) actuators are spring return, two-position actuators for coupling to the VT series valves. Power Supply: 230 Vac. On-Off/2P Control Signal. And IP degree of protection is IP53. The actuator provide a working temperature range of 0 °C to 40 °C.

Products specifications

Attribute name Attribute value
Main
Switch function 1 SPST
Material aluminium: housing
IP degree of protection IP53
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-71 °C
[Us] rated supply voltage 230 V AC
Product destination zone valves
Control type automatic reset
Product or component type actuator
Power consumption in VA 7.5 VA AC
Transformer rated power in VA 7.5 VA
Targeted region Australia., Asia Pacific., Europe
Power consumption in W 6.5 W
Spring return timing 9 s
Actuator rotary
Ambient air temperature for operation 0-40 °C
Power loss return spring return
Control signal 2-position (on/off)
Lead length 1 m
Leads and connections appliance
Actuator type electric
Actuator product series AG
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.6 cm
Package 1 Width 7.6 cm
Package 1 Length 7.2 cm
Package 1 Weight 520 g

Related products

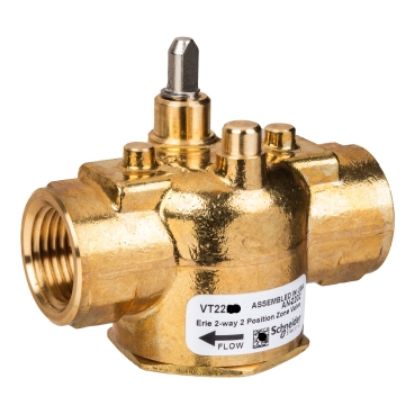

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.

VT2232
$118.15 INC GST
View Detail

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

VT2233
$79.19 INC GST
View Detail
Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.

VT2332
$103.10 INC GST
View Detail
Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

VT2333
$100.82 INC GST
View Detail

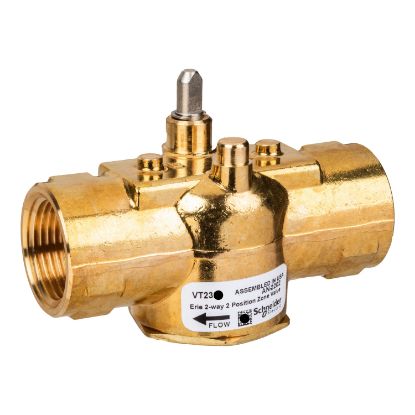

Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 4.3 m³/h (Cv 5.0), Pop-Top Actuator Connection, Brass Body.
