SKU:

ACX-2-0000000

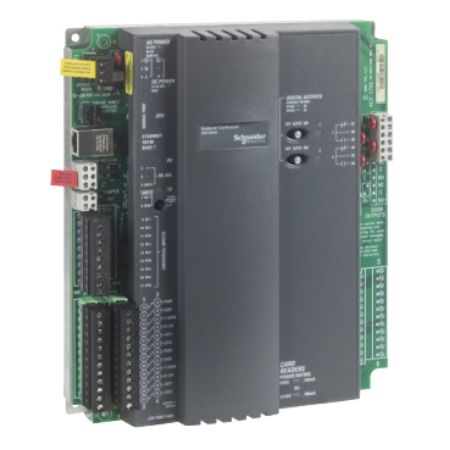

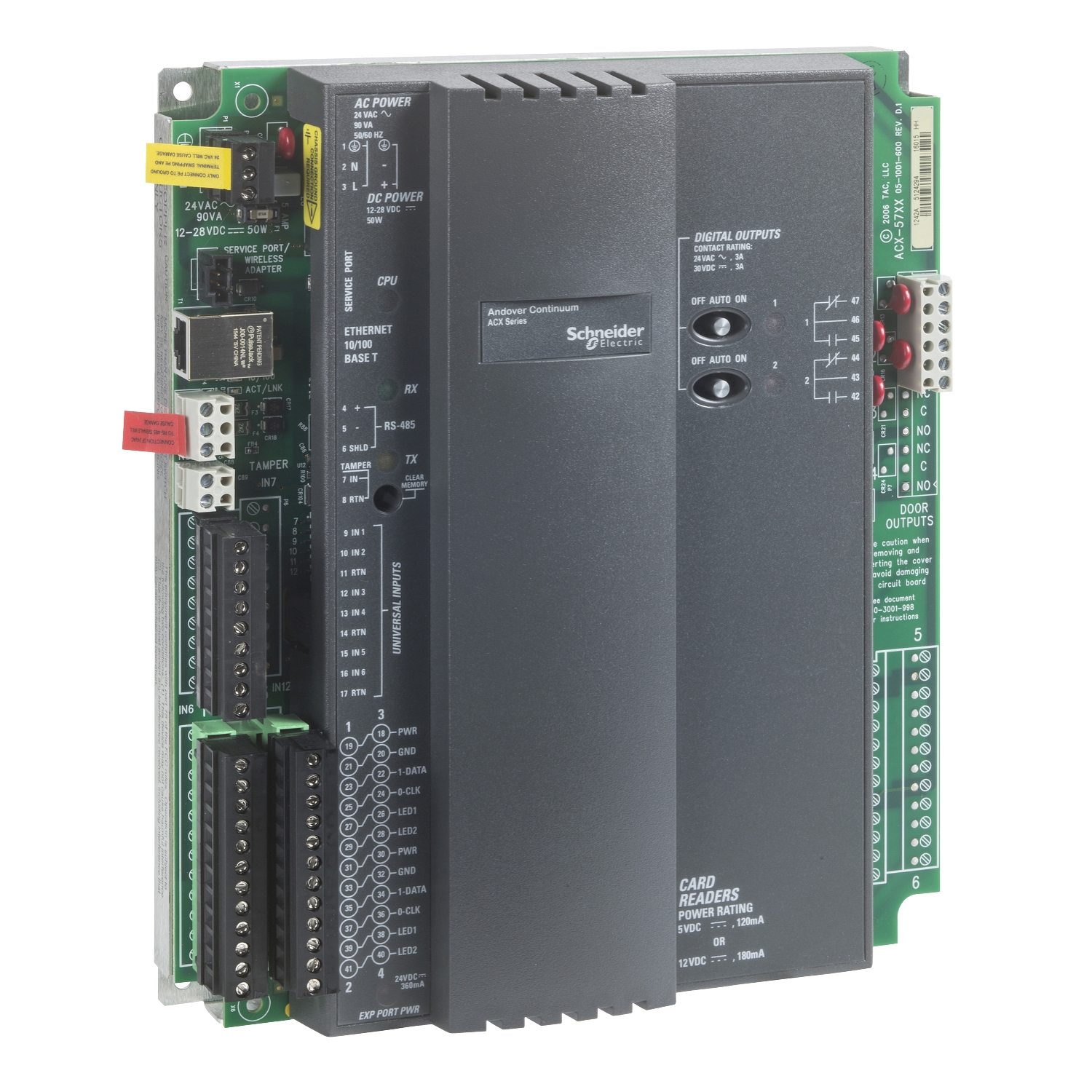

ACX Series Contoller, Ethernet, 4 Readers, 10/100 bT, 6 Universal Inputs, 2 Digital Outputs, 1 Tamper Input

$13,725.25 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

ACX Series Contoller, Ethernet, 4 Readers, 10/100 bT, 6 Universal Inputs, 2 Digital Outputs, 1 Tamper Input

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
IP degree of protection	IP10
Device application	access control
Width	241.3 mm
Input voltage	0...5.115 V DC for universal input
Relative humidity	10-90 % RH, non-condensing
Power consumption in VA	90 VA
Mounting mode	wall-mounted
Memory type	128 MB RAM, 32 MB flash
Height	209.6 mm
Depth	57.2 mm
Number of inputs	4 card reader, 6 universal input
Targeted region	North America.
Power consumption in W	50 W
Number of outputs	2 digital lock output
Communication port support	RS485 RS485 programmable port, ETHERNET 10/100BASE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	27.2 cm
Package 1 Width	28.2 cm
Package 1 Length	13.2 cm
Package 1 Weight	1.4 kg
