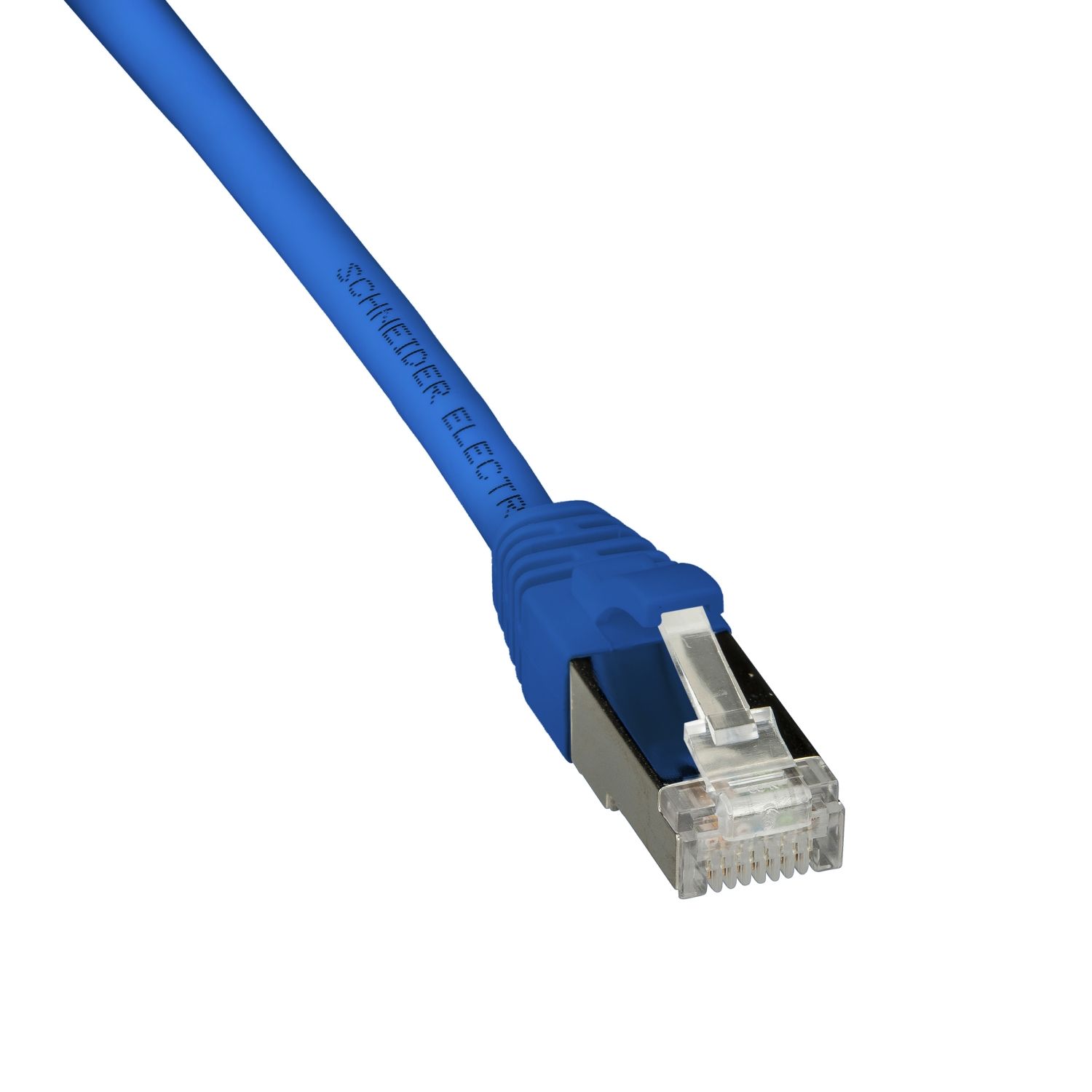

Picture of Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, blue
SKU:

ACTPC6ASFLS50BU

Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, blue

$37.75 INC GST
Available for Shipping : 18-Dec-2025
Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, blue
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Actassi patch cord is a 4 pairs Cat 6A S/FTP patch cord and is blue. It is compliant to the following standards - EN 50173, IEC 61935-2, ISO/IEC 11081, TIA/EIA-568-C.2. The copper cable diameter is AWG 28. The patch cord is made of PE (polyethylene), aluminium/polyester, tin plated copper. The contacts material are phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel. The transmission frequency is 500 MHz.

Products specifications

Attribute name Attribute value
Main
Device application communication
Colour blue
Range Actassi
Cable shielding type S/FTP
Product or component type patch cord
Complementary
Length 5-5 m
Number of cables 24 in cabinet for 4PPoE Type 4 (up to 90 W), 48 in cabinet for 4PPoE Type 3 (up to 60 W)
AWG gauge AWG 28
Communication network category 6<sub>A</sub>
Minimum number of matings 750 cycles
Material PE (polyethylene): sheath, tin plated copper: braid shield, aluminium/polyester: foil, PE (polyethylene): wire insulation, copper: conductor
Cable outer diameter 5.5 mm +/- 0.2 mm
Contacts material phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel
Transmission frequency 500 MHz
Type of cable 4 pair cables
Cable length 7 m with 90 m 2-point permanent link at 20 °C, 10 m with 84 m 2-point permanent link at 20 °C
Environment
Flame retardance LSZH
Standards IEC 61935-2 performance, EN 50173-2018 performance, TIA/EIA-568-C.2 performance, ISO/IEC 11081-2017 performance
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 14.0 cm
Package 1 Length 21.0 cm
Package 1 Weight 179.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.81 kg
