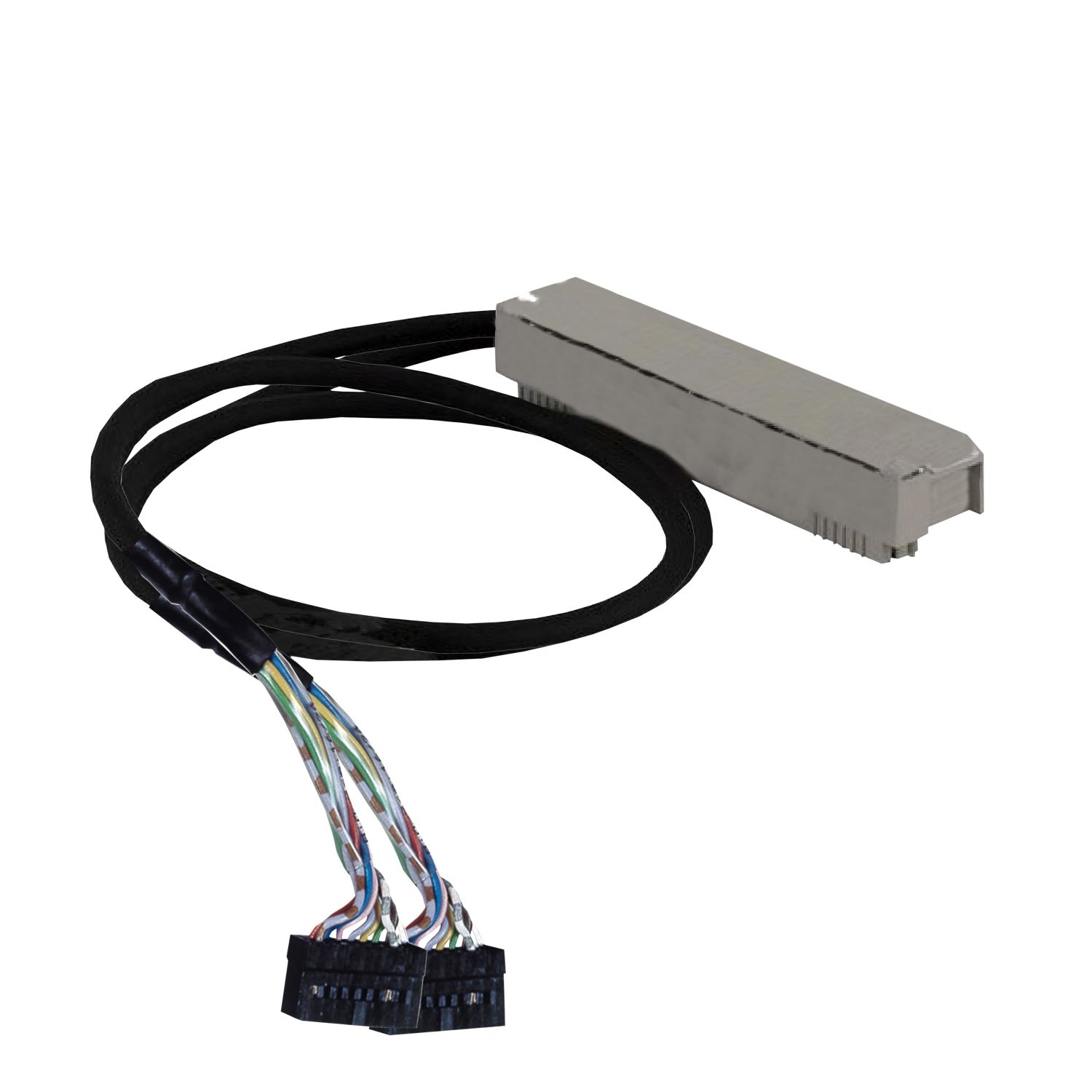

Picture of cabled connector - 3 m - for Modicon Quantum
SKU:

ABFM32H300

cabled connector - 3 m - for Modicon Quantum

$997.92 INC GST
Available for Shipping : 12-Jan-2026
cabled connector - 3 m - for Modicon Quantum
Be the first to review this product
Manufacturer: Telemecanique
Delivery date: 12-Jan-2026
Circularity Profile
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a connection cable between Modicon Quantum plc and passive and relay sub-bases with 16 channels. It is pre-equipped with one connectors at the Quantum end and one 20-way HE 10 connector at the Sub-Base end. It is used to connect the input and relay output between ABE7 sub-bases and Modicon Quantum PLCs. It measures 3m. It weighs 1.150kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with 140DDI353, 140DDI853, 140DDO353 Quantum I/O modules. It is delivered in 1 package (PCE type). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination Modicon Quantum PLC
Accessory / separate part type connector
Number of channels 32
Accessory / separate part category connection accessories
Accessory / separate part designation cabled connector
Range of product Modicon Quantum
Complementary
Electrical connection 2 connectors
Number of ways 20 ways
AWG gauge AWG 22
Connector type HE10
Net weight 1.15 kg
Type of signal relay I/O
Channel splitting 2 x 16
Cable length 3 m
Wire section 0.324 mm²
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.700 cm
Package 1 Width 29.600 cm
Package 1 Length 21.500 cm
Package 1 Weight 1.285 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.748 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 54.628 kg
