Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
SKU:

ABE7R16S212

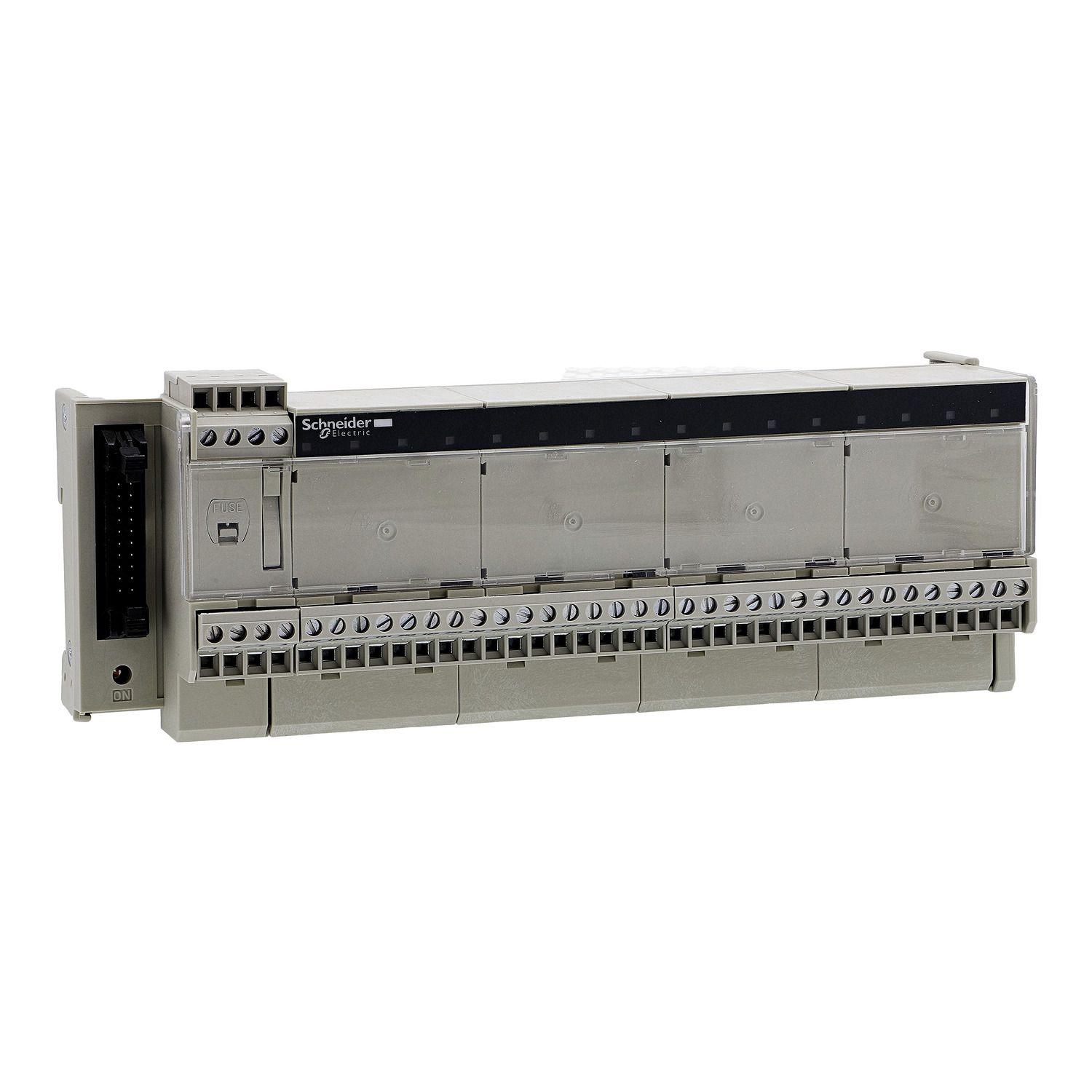

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm

$1,295.91 INC GST
Available for Shipping : 12-Jan-2026
sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed relays for 16 channels, an integral NO contact and common, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital output control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.400kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC for PLC end
Number of channels 16
Number of terminal per channel 2
Product or component type electromechanical output relay sub-base
Range of product Modicon ABE7
Complementary
Drop-out current 1 mA at 20 °C
Threshold tripping voltage 19.7 V at 40 °C
Electrical reliability 1E-08
Operating rate in Hz 0.5 Hz at Ie, 10 Hz no load
Width 206 mm
Drop-out voltage 2.4 V at 20 °C (PLC end)
Maximum power dissipation per channel in W 0.36 W (PLC end)
Operating time <= 5 ms coil de-energisation and NO opening, <= 10 ms coil energisation and NO closing
Mechanical durability 20000000 cycles
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution common per group of 8 channels on both poles
Contact bounce time <= 5 ms 1 NO
Maximum switching voltage 30 V DC conforming to IEC 60947-5-1, 250 V AC 50/60 Hz conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Electrical durability 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end)
Net weight 0.4 kg
[Ui] rated insulation voltage 2000 V
Current per channel 5 A for preactuator end
Maximum current per output common 10 A
Installation category II conforming to IEC 60664-1
Terminal block type removable
Switching frequency <= 10 Hz, <= 0.5 Hz
Minimum switching current 10 mA at >= 5 V
Contacts type and composition 1 NO for preactuator end
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Protective treatment TC
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Max immunity to microbreaks 5 ms
Dielectric strength 2000 V conforming to IEC 60947-1
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, DNV, GL, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.200 cm
Package 1 Length 21.200 cm
Package 1 Weight 582.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.813 kg
