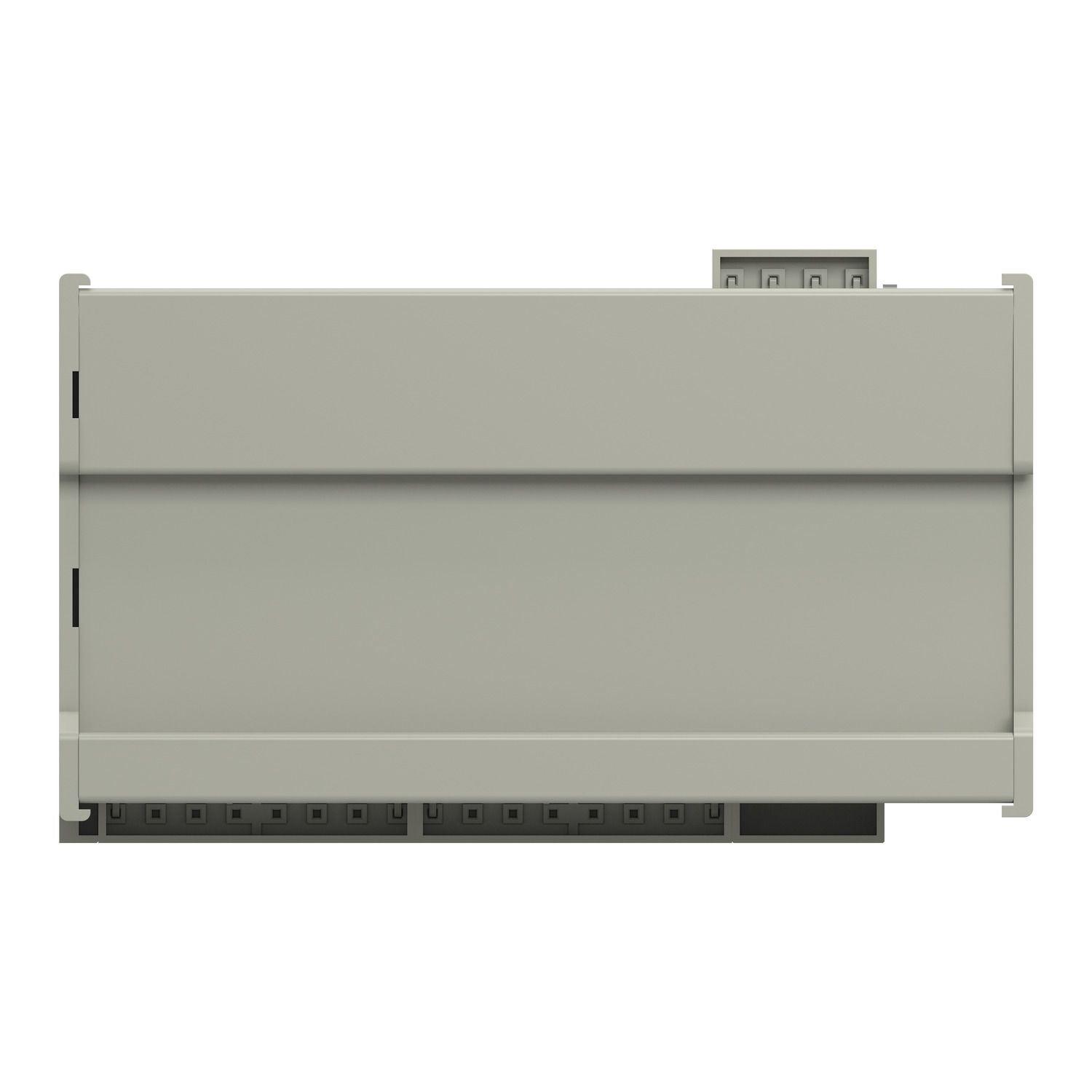

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

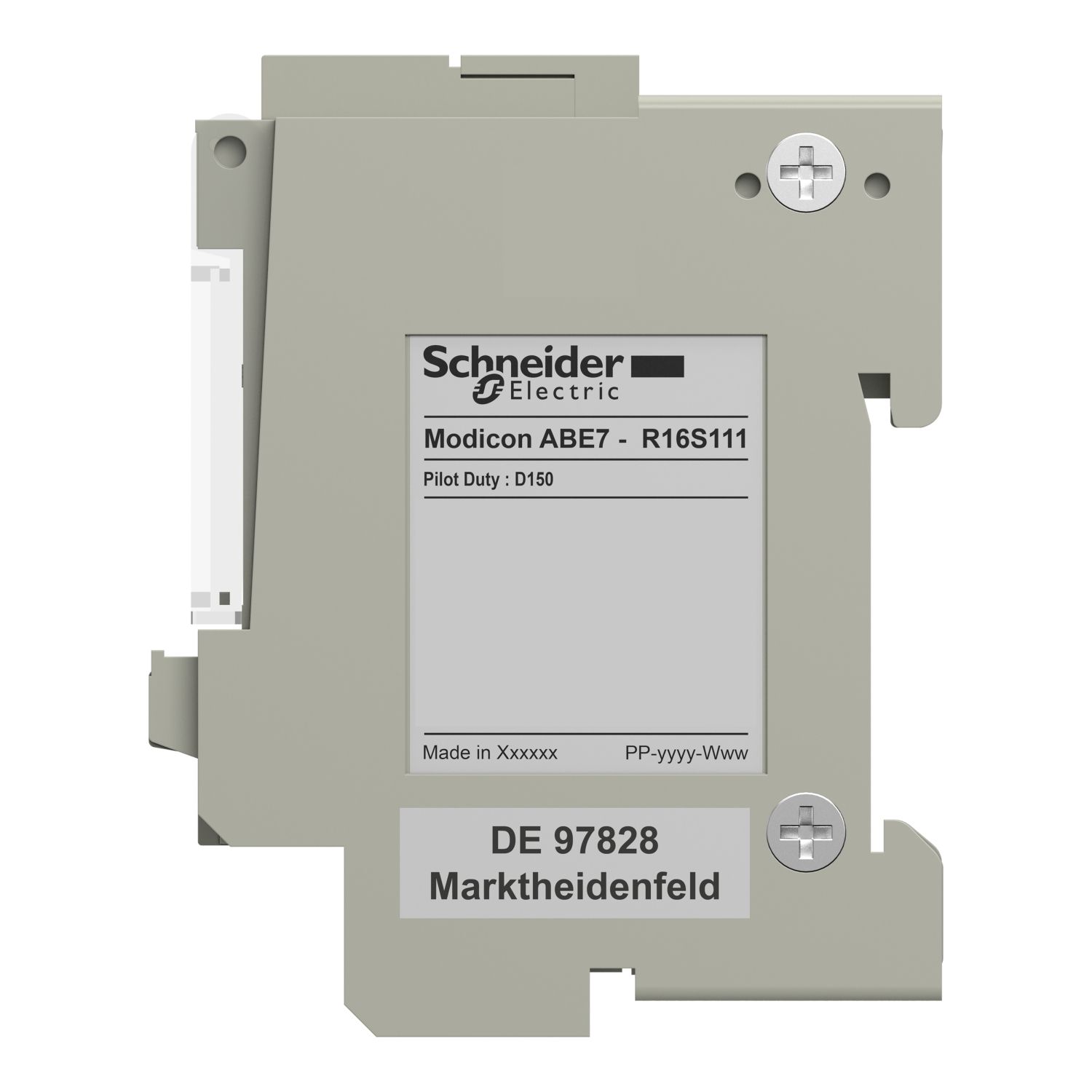

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

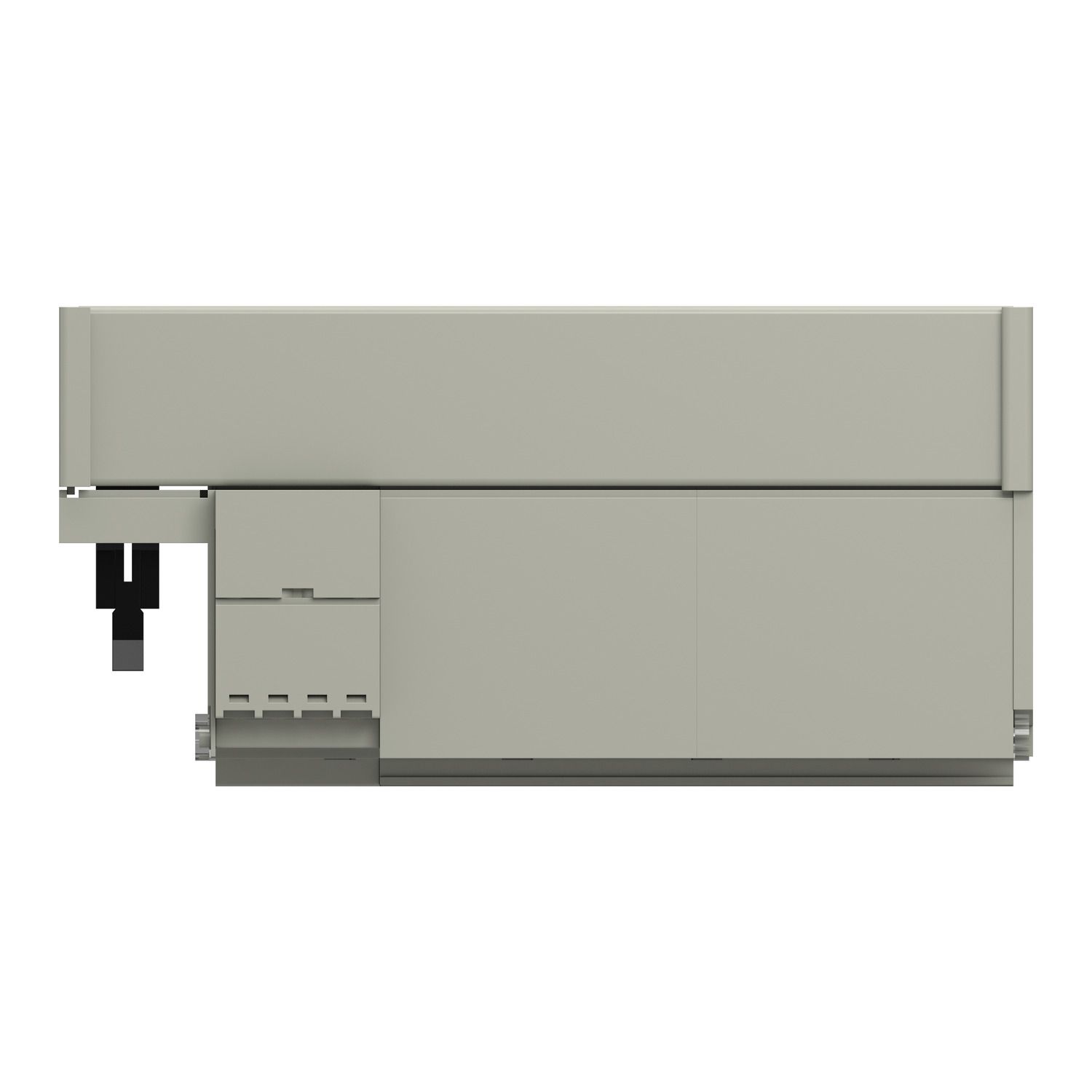

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

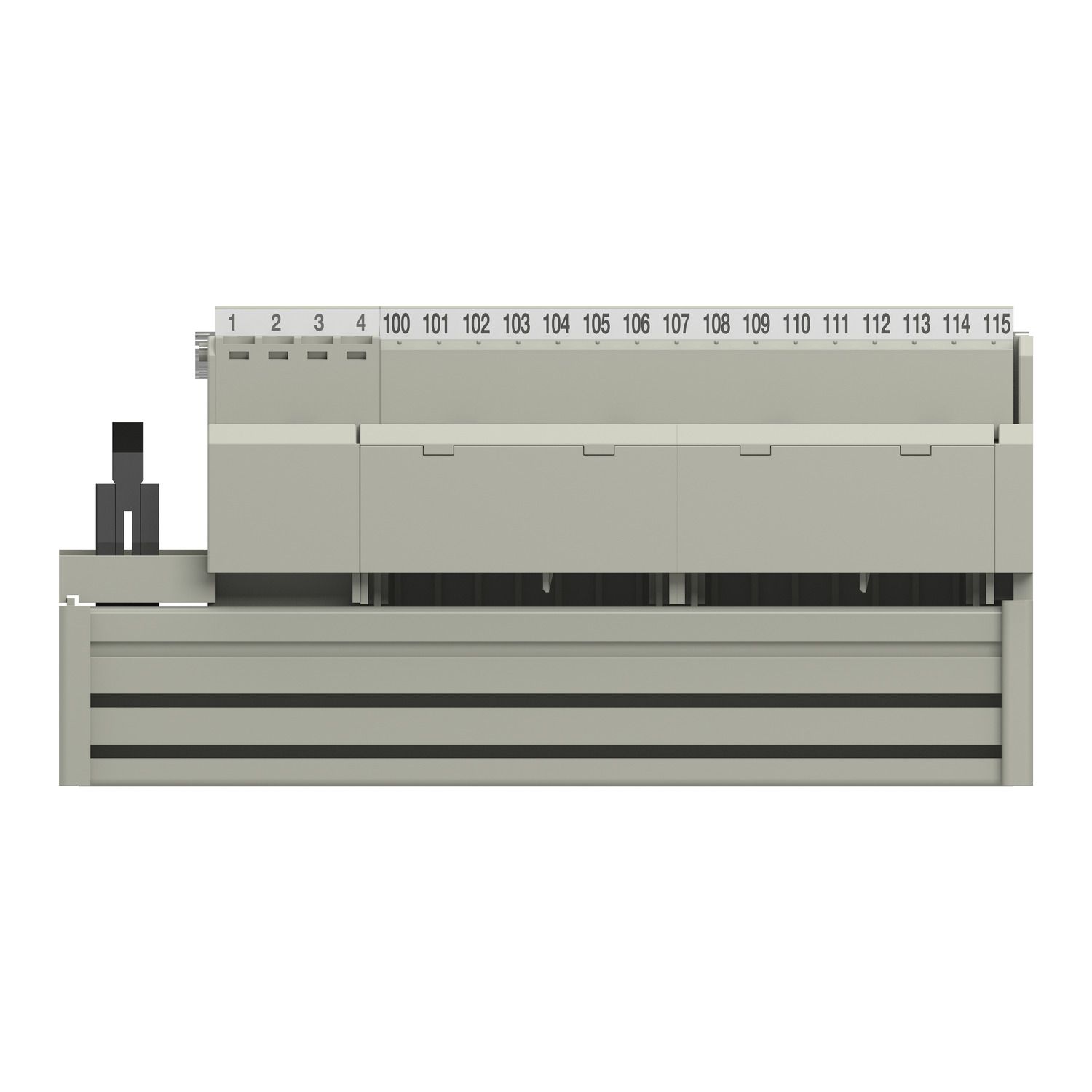

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

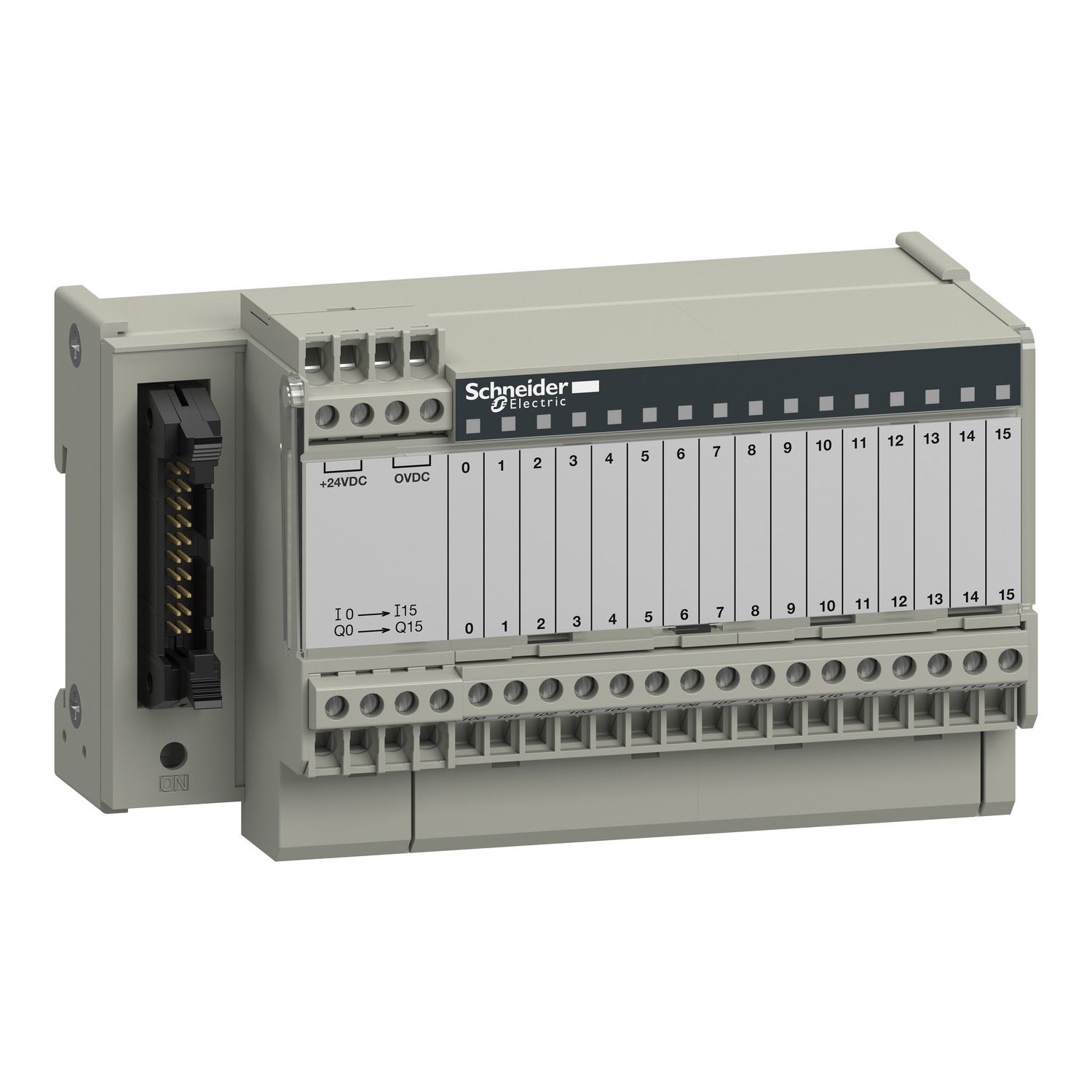

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

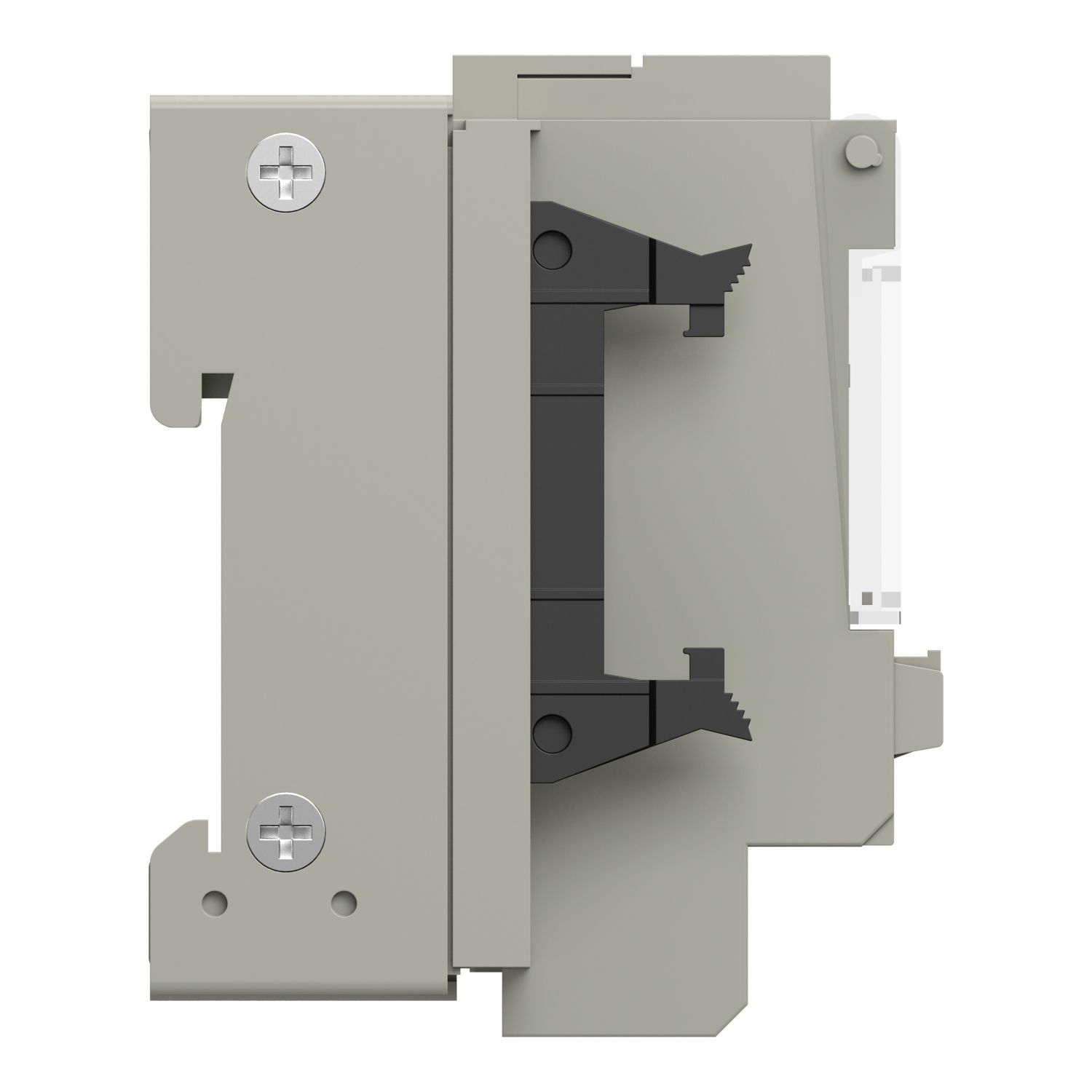

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

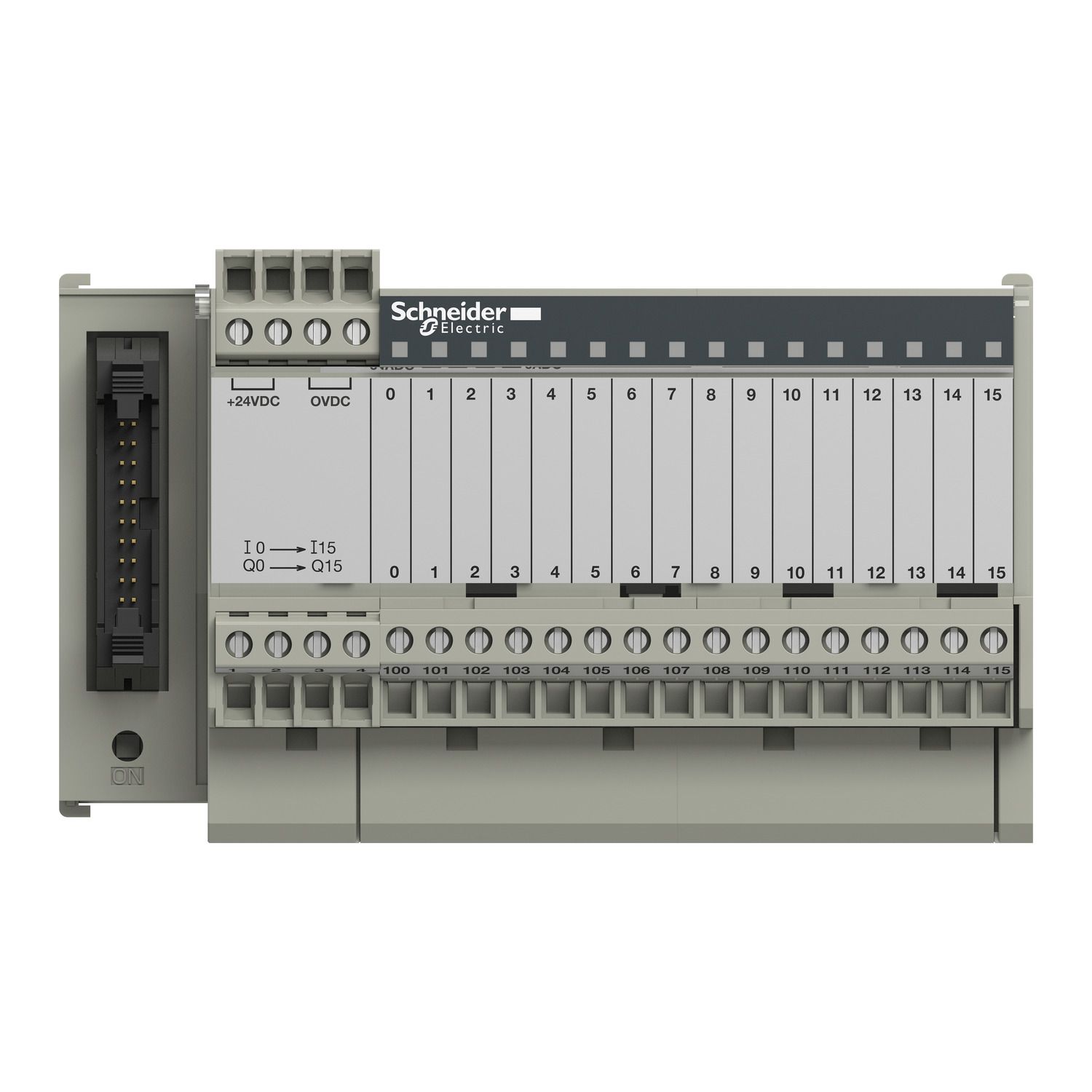

Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm
Picture of sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm
SKU:

ABE7R16S111

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

$1,083.39 INC GST
Available for Shipping : 12-Jan-2026
sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Number of channels 16
Range of product Modicon ABE7
[Us] rated supply voltage 24 V DC for PLC end
Number of terminal per channel 1
Product or component type electromechanical output relay sub-base
Complementary
Electrical reliability 1E-08
Operating rate in Hz 0.5 Hz at Ie, 10 Hz no load
Mechanical durability 20000000 cycles
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution polarity distribution contact common per group of 8 channels
Contact bounce time <= 5 ms 1 NO
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Current per channel 2 A for preactuator end
Maximum current per output common 12 A
Installation category II conforming to IEC 60664-1
Switching frequency <= 0.5 Hz, <= 10 Hz
Height 77 mm
Contacts type and composition 1 NO for preactuator end
Drop-out current 0.5 mA at 20 °C
Threshold tripping voltage 19.2 V at 40 °C
Depth 58 mm
Width 125 mm
Drop-out voltage 2.4 V at 20 °C (PLC end)
Maximum power dissipation per channel in W 0.22 W (PLC end)
Operating time <= 6 ms coil de-energisation and NO opening, <= 10 ms coil energisation and NO closing
Number of channel per common 8
Maximum switching voltage 30 V DC conforming to IEC 60947-5-1, 250 V AC 50/60 Hz conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Electrical durability 500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end), 500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end)
Net weight 0.405 kg
[Ui] rated insulation voltage 2000 V
Terminal block type removable
Minimum switching current 1 mA at >= 5 V
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Protective treatment TC
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Max immunity to microbreaks 5 ms
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Dielectric strength 2000 V conforming to IEC 60947-1
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, CSA, UL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.200 cm
Package 1 Length 13.600 cm
Package 1 Weight 348.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.285 kg
