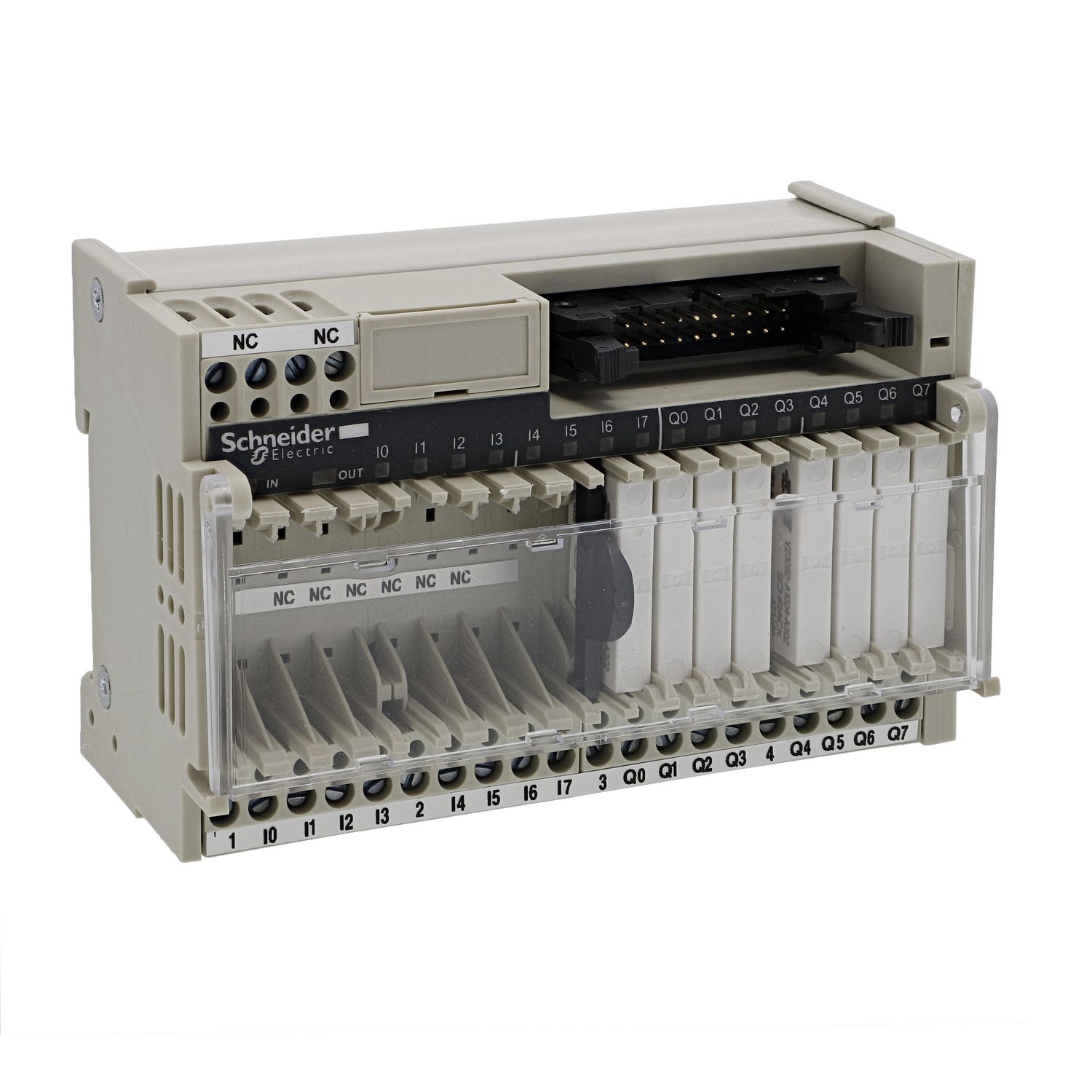

Picture of Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
SKU:

ABE7R16M111

Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm

$787.71 INC GST
Available for Shipping : 08-Dec-2025
Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Instruction sheet
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type output sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.14...2 x 1.5 mm² (AWG 26...AWG 16) solid, screw type terminals, 2 x 0.14...2 x 0.75 mm² (AWG 26...AWG 18) flexible with cable end, screw type terminals, 1 x 0.14...1 x 4 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) flexible with cable end
Product or component type sub-base with plug-in electromechanical relay
Range of product Modicon ABE7
Complementary
Product compatibility ABR7S11
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution common distribution group of 4 + 2 inputs common terminals
[Ui] rated insulation voltage 300 V between coil circuit/contact circuits conforming to IEC 60947-1, 2000 V between terminals/mounting rails
Contacts type and composition 1 NO
Net weight 0.6 kg
Maximum current per output common 5 A screw type terminals
Installation category II conforming to IEC 60664-1
Status LED 1 LED per channel channel status, 1 LED power ON
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Maximum current per module 12 A
Mounting mode by screws (surface mount with kit), by clips (35 mm DIN rail)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 2 gn conforming to IEC 60068-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, CSA, DNV, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 8.2 cm
Package 1 Length 13.8 cm
Package 1 Weight 268.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.929 kg
