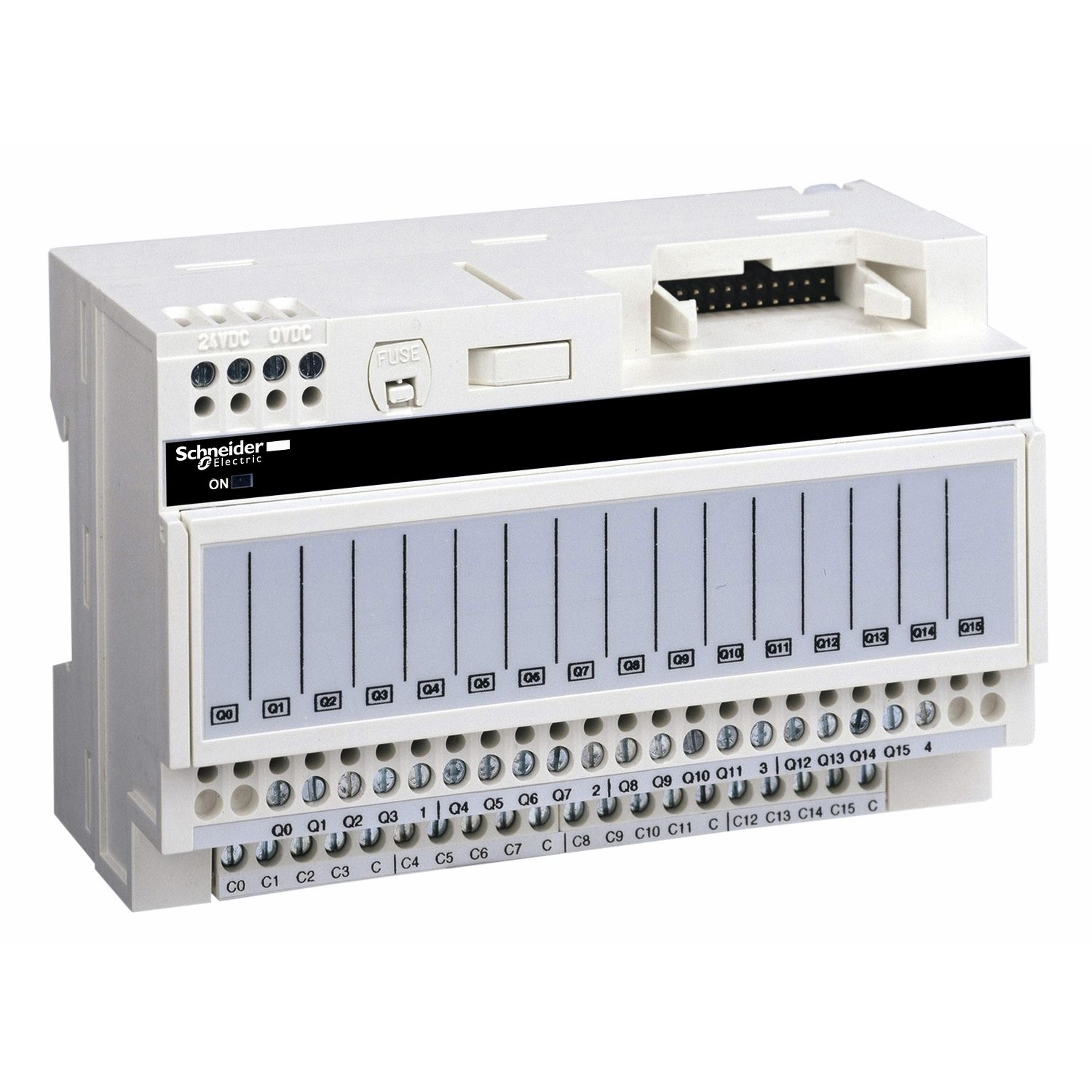

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm
SKU:

ABE7P16T111

sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm

$528.99 INC GST
Available for Shipping : 12-Jan-2026
sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with plug-in relays (relay size 5mm) for 16 channels, an integral NO contact, with 2 terminals per channel. Its control circuit voltage is 24VDC. It makes use of the sub-base functions to connect the channel without the need to adapt the channel using a relay. It is furnished with screw terminal for electrical connection, with a 20-way HE10 connector, without relays. It can accept both electromechanical and solid state relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a plug-in relay sub-base with IP20 degree of protection. It weighs 0.550kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with ABE7 sub-bases and ABR7 and ABS7 relays. It is delivered in 1 package (PCE type). Plug-in relays (size 5mm) are to order separately. Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type output sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² (AWG 28...AWG 16) flexible with cable end
Product or component type sub-base for plug-in relay
Range of product Modicon ABE7
Complementary
Product compatibility ABS7SC1B, ABR7S11
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution polarity distribution contact common per group of 4 channels
[Ui] rated insulation voltage 300 V between coil circuit/contact circuits conforming to IEC 60947-1, 2000 V between terminals/mounting rails
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.55 kg
Maximum current per output common 16 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, UL, GL, DNV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 8.2 cm
Package 1 Length 13.6 cm
Package 1 Weight 234.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.092 kg
