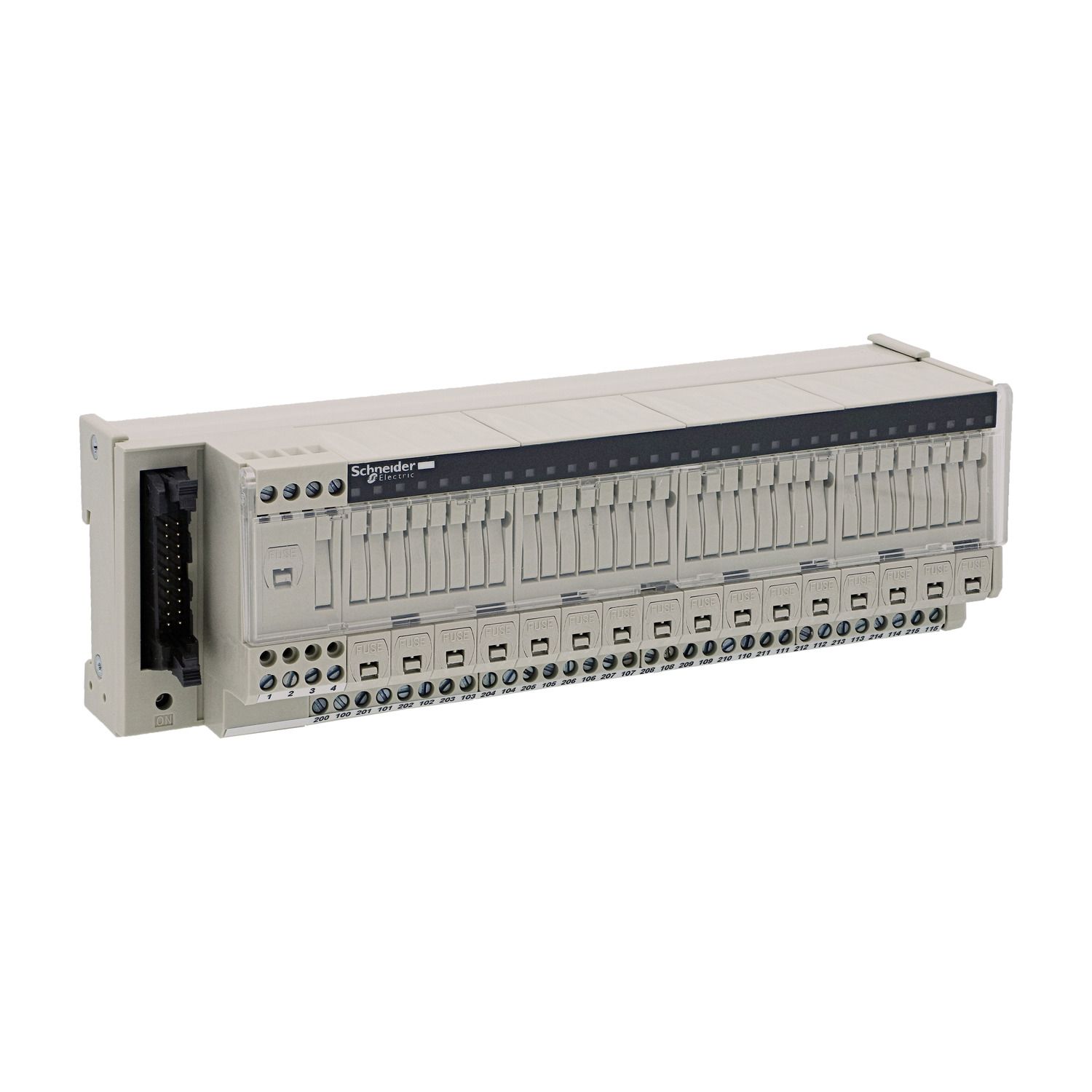

Picture of passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator
SKU:

ABE7H16S43

passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator

$967.89 INC GST
Available for Shipping : 06-Jan-2026
passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
Environmental Disclosure
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 1 switch disconnector per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 206mm. It weighs 0.64kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Sub-base type input sub-base
Number of channels 16
Range of product Modicon ABE7
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Channel additional information 1 switch disconnector per channel
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 2
Product or component type passive discrete I/O sub-base
Complementary
Voltage drop on power supply fuse 0.3 V
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution 24 V
Connector type HE-10
Maximum voltage drop per channel 0.1 V
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (red) blown fuse indication, 1 LED per channel (green) channel status
Current per channel 0.125 A
Height 77 mm
Depth 58 mm
Width 206 mm
Supply circuit type DC
Net weight 0.64 kg
[Ui] rated insulation voltage 2000 V
Number of horizontal rows 1
Short-circuit protection 0.125 A fuse per channel, 5 x 20 mm, fast blow (output circuit), 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Pin number 20 pins
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, UL, CSA, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 8.2 cm
Package 1 Length 21.0 cm
Package 1 Weight 624.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.51 kg

Related products

Picture of connection cable - Twido discrete input to Telefast - 2 x HE10 - 3 m

connection cable - Twido discrete input to Telefast - 2 x HE10 - 3 m

ABFTE20EP300
$117.12 INC GST
View Detail
Picture of connection cable - Twido discrete input to Telefast - 2 x HE10 - 1 m

connection cable - Twido discrete input to Telefast - 2 x HE10 - 1 m

ABFTE20EP100
$89.51 INC GST
View Detail

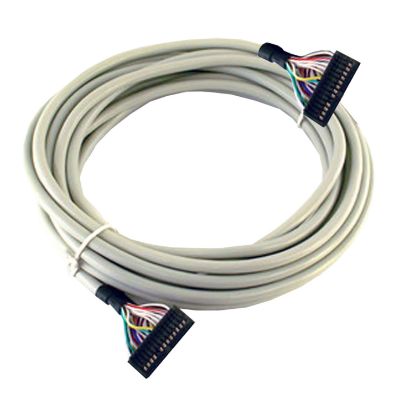

Picture of connection cable - Twido discrete input to Telefast - 2 x HE10 - 2 m
