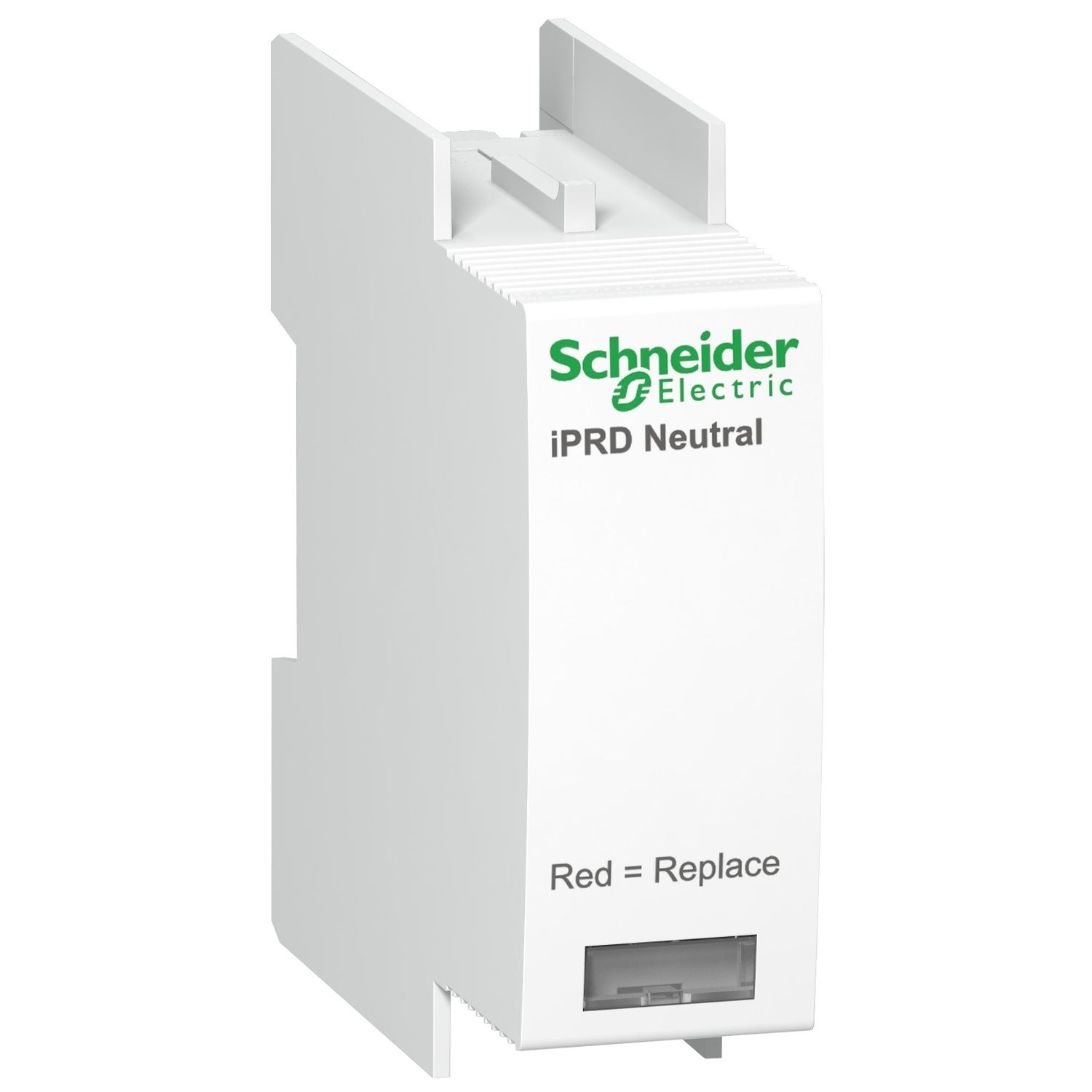

Picture of cartridge C neutral-350 for surge arrester iPRD
SKU:

A9L00002

cartridge C neutral-350 for surge arrester iPRD

Old price: $89.54 INC GST
$52.91 INC GST
Available for Shipping : 05-Jan-2026
cartridge C neutral-350 for surge arrester iPRD
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Instruction sheet
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This iPRD product is a cartridge for surge arrester device (SPD). It is plugged into the surge protection device module. The maximum discharge current is 65kA. The nominal discharge current is 20kA.

Products specifications

Attribute name Attribute value
Main
Device short name C neutral-350
Surge arrester type electrical distribution network
Product or component type cartridge
Range of product iPRD
Complementary
Depth 56 mm
Width 18 mm
Colour white (RAL 9003)
[Ue] rated operational voltage 230 V AC 50 Hz
Maximum [Up] voltage protection level <1.4 kV type 2
Response time < 100 ns
Local signalling flag (white/red)
Mounting mode plug-in
Net weight 0.044 kg
Material PBT (polybutylene terephthalate)
Product destination surge protection device iPRD8 3P + N, surge protection device iPRD8r 3P + N, surge protection device iPRD8 1P + N, surge protection device iPRD8r 1P + N, surge protection device iPRD20 3P + N, surge protection device iPRD20r 3P + N, surge protection device iPRD20 1P + N, surge protection device iPRD20r 1P + N, surge protection device iPRD40 3P + N, surge protection device iPRD40r 3P + N, surge protection device iPRD40 1P + N, surge protection device iPRD40r 1P + N, surge protection device iPRD65r 3P + N, surge protection device iPRD65r 1P + N
Maximum discharge current 65 kA
[Uc] maximum continuous operating voltage 260 V
Earthing system TN, TT
9 mm pitches 2
Nominal discharge current 20 kA
Mounting support into SPD module
Surge arrester class type type 2
Height 57 mm
Surge arrester technology GDT
Environment
Operating altitude 0...2000 m
IP degree of protection IP20 front face:
Relative humidity 5-90 %
Ambient air temperature for storage -40-85 °C
Standards IEC 61643-11: 2011, EN 61643-11
Ambient air temperature for operation -25-60 °C
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.1 cm
Package 1 Width 7.4 cm
Package 1 Length 9.2 cm
Package 1 Weight 69 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 10 cm
Package 2 Width 8 cm
Package 2 Length 27.5 cm
Package 2 Weight 899 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 8.804 kg
