SKU:

A9F54350

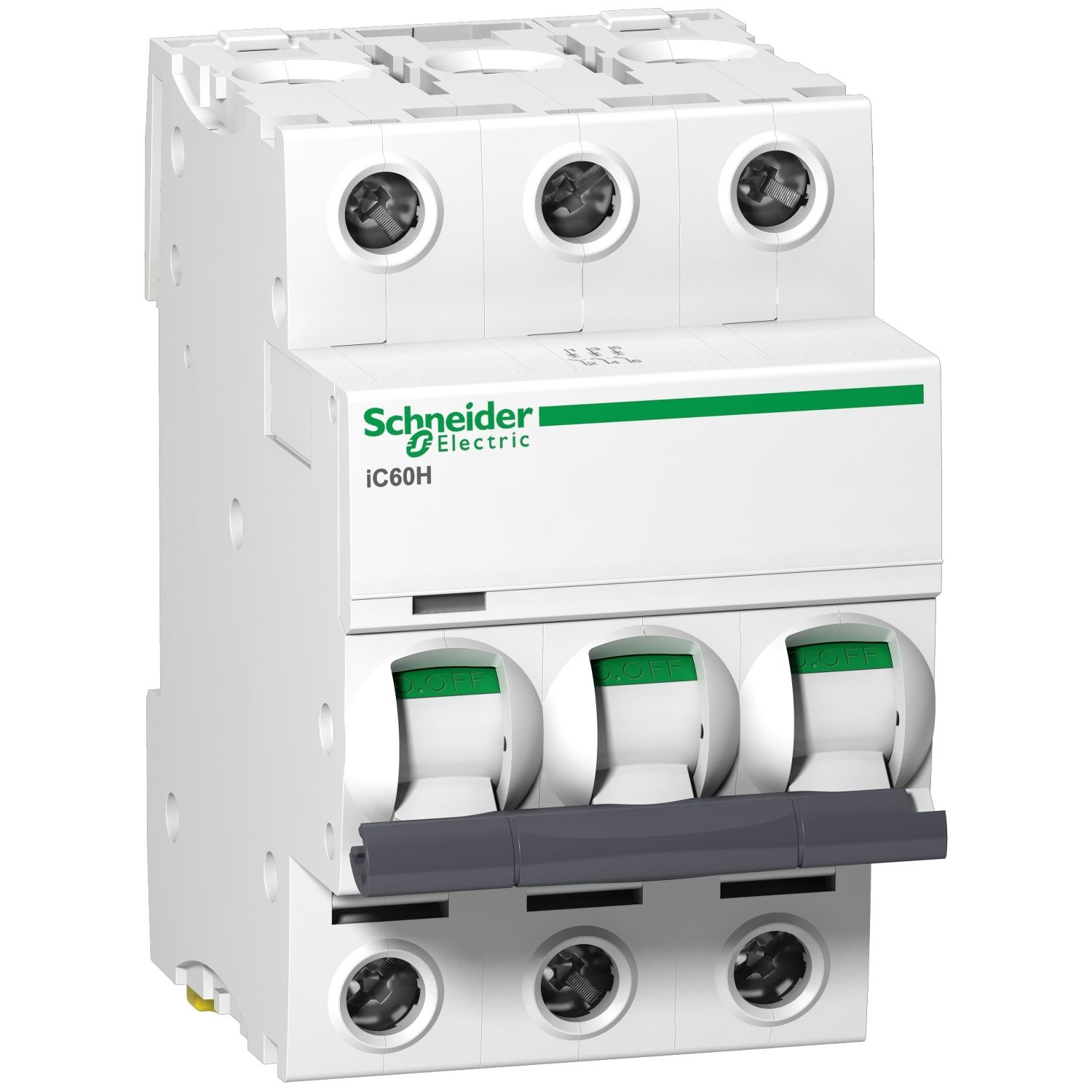

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 50A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Old price: $121.88 INC GST

Price: $72.02 INC GST

Qty:

Available for Shipping : 14-Dec-2025

Product Selector

Acti9 Miniature Circuit Breaker (MCB) - Acti9 iC60H Disbo, 3P, 50A, C curve

Rated at 10000A (IEC/EN 60898-1) and 15kA (IEC/EN 60947-2)

Compliant with IEC/EN 60947-2 for industrial isolation

Protects against short-circuits and overloads

VisiTrip system for quick fault detection and faster repairs

VisiSafe system for enhanced circuit protection safety

Supports add-ons like auxiliaries, remote monitoring, and residual current device (Vigi)

Easy and flexible installation with a comb busbar

Fast closing mechanism, regardless of toggle speed

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 14-Dec-2025

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

Acti9 iC60H is a 3-pole miniature circuit breaker (MCB) with double tunnel terminals. It is rated for 50A with a C tripping curve. The short circuit breaking capacity reaches 30kA at 220-240VAC (conforming to EN/IEC 60947-2) and 10kA at 415VAC (conforming to EN/IEC 60898-1).

This MCB meets both industrial (EN/IEC 60898-1) and residential (EN/IEC 60947-2) standards. It protects circuits from short circuits and overloads. It has a VisiTrip indicator, which helps reduce intervention time by clearly showing the faulty circuit. The VisiSafe green strip ensures the contacts are physically open, allowing safe downstream maintenance. Its fast closing mechanism, independent of manual operation, extends its service life.

The electrical endurance is rated for up to 10,000 cycles, and the mechanical endurance is up to 20,000 cycles. The Ui rated insulation voltage is 500VAC, and its limitation class 3 (according to EN/IEC 60898-1) provides effective downstream circuit protection, lowering costs.

The product is DIN rail clip-on and has a width of 6 pitches (54mm). Its pollution degree is rated as 3. The MCB is white (RAL 9003) in color with dimensions of 54mm (W) x 85mm (H) x 78.5mm (D), and weighs 0.375kg. It provides an IP20 protection rating for its terminals (according to IEC/EN 60529). It operates within a temperature range of -35°C to 70°C, with a storage temperature from -40°C to 85°C.
This MCB is a reliable, high-performance device for protecting electrical circuits in both industrial and residential settings.

Products specifications

Attribute name	Attribute value
Main
Number of protected poles	3
Trip unit technology	thermal-magnetic
Network type	AC/DC
Device short name	iC60H
Breaking capacity	15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2, 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
Range	Acti9
Curve code	C
Range of product	Acti9
Poles description	3P
Utilisation category	category A conforming to EN/IEC 60947-2
Product name	Disbo iC60
Product or component type	miniature circuit-breaker
Breaking capacity code	H
[In] rated current	50 A
Complementary
Provision for padlocking	padlockable
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Compatibility code	iC60
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-25 mm² flexible, single terminal (top or bottom) 1-35 mm² rigid
Earth-leakage protection	separate block
Height	85 mm
[Ics] rated service breaking capacity	20 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V DC, 7500 A 75 % conforming to EN/IEC 60898-1 - 415 V AC 50/60 Hz, 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz, 7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 21 kA 50 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Net weight	0.375 kg
Magnetic tripping limit	8 x In +/- 20 %
9 mm pitches	6
Tightening torque	3.5-3.5 N.m top or bottom
Colour	white
Connection pitch	18 mm between phases
Mechanical durability	20000 cycles
Power losses per pole	4.0 W
Mounting mode	clip-on
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
Depth	78.5 mm
Width	54 mm
Local signalling	trip indicator
Limitation class	3 conforming to EN/IEC 60947-2
Mounting support	rail
Contact position indicator	yes
Total power losses	12.0 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to IEC 60068-1
Pollution degree	3 conforming to EN/IEC 60947-2
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-35-70 °C
Standards	EN/IEC 60898-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	5.400 cm
Package 1 Length	9.000 cm
Package 1 Weight	401.000 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	8.000 cm
Package 2 Width	9.500 cm
Package 2 Length	22.000 cm
Package 2 Weight	1.659 kg
Unit Type of Package 3	3
Number of Units in Package 3	44
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	18.500 kg
