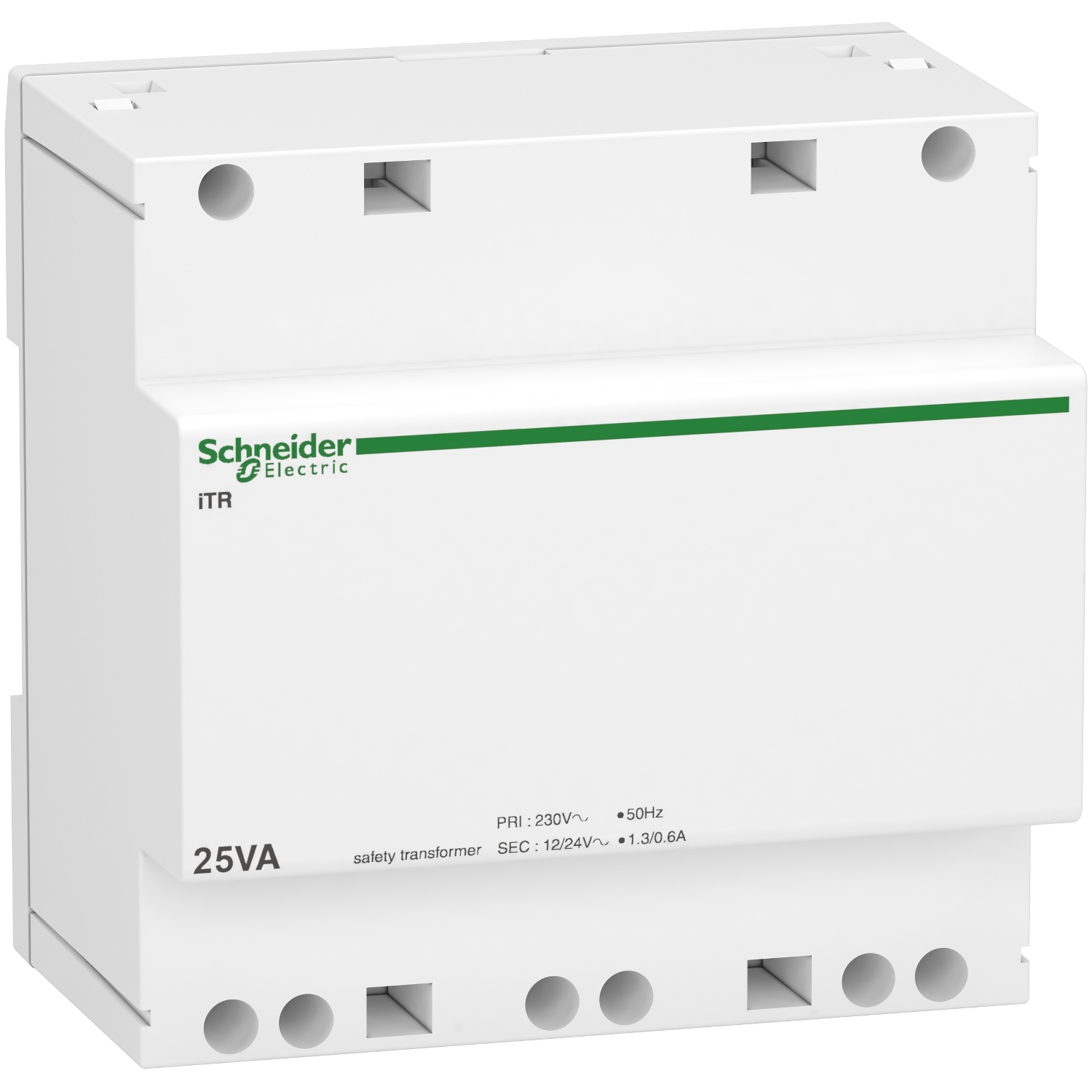

Picture of modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 25 VA
SKU:

A9A15219

modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 25 VA

Old price: $201.96 INC GST
$119.34 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 25 VA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 iTR 25VA Safety transformer allows to obtain a very low voltage 12VAC or 24VAC from a network 230VAC. The transformer is safe, primary and secondary circuits are perfectly insulated by each other. The power supply is 25VA. The operating frequency is 50Hz or 60Hz. The primary voltage is 230VAC +/-10%. The secondary voltage output is from 12VAC to 24VAC. It is resistant to short-circuit currents thanks to the built-in-device. For 12VAC rated secondary voltage the Off load voltage is 14VAC. For 24VAC rated secondary voltage the Off load voltage is 28VAC. It is a Class II device with terminal shield (optional). The safety transformer should be mounted in vertical position only. The width in 9mm pitches is 10. The weight is 1309g. The degree of protection under IEC 60529 standard is IP20 with terminal shield. The dimensions are (W) 90mm x (H) 89mm x (D) 60mm. The width in modules of 18mm is 5. The operating temperature is -20°C to + 55°C. The storage temperature is -25°C to + 80°C. This product complies with IEC/EN 61558-2-6 standard.

Products specifications

Attribute name Attribute value
Main
Device short name iTR
Transformer type safety transformer
Range Acti9
Product name Acti9 iTR
Product or component type transformer
Range of product Acti9
Complementary
[Ue] rated operational voltage 230 V AC 50/60 Hz
Depth 60 mm
Market segment small commercial, residential
Width 90 mm
Compatibility code iTR
Rated operational power in VA 11.25 VA 60 °C, 15 VA 55 °C, 20 VA 50 °C, 23.75 VA 40 °C, 25 VA 35 °C
Output short-circuit protection built-in
Colour white
Mounting mode fixed
Rated power in VA 25 VA
Auxiliary connection terminal tunnel type terminals 4-4 mm²
9 mm pitches 10
Mounting support 35 mm symmetrical DIN rail
Height 89 mm
Output voltage 14/28 V: off load, 12/24 V: +/-5 % on load
Environment
Overvoltage category class II with terminal shields in option
Ambient air temperature for storage -25-80 °C
Standards EN 60742, IEC 61558-2-6, EN 61558-2-6
Ambient air temperature for operation -20-55 °C
Product certifications NF
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.700 cm
Package 1 Width 10.000 cm
Package 1 Length 10.200 cm
Package 1 Weight 1.126 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.346 kg
