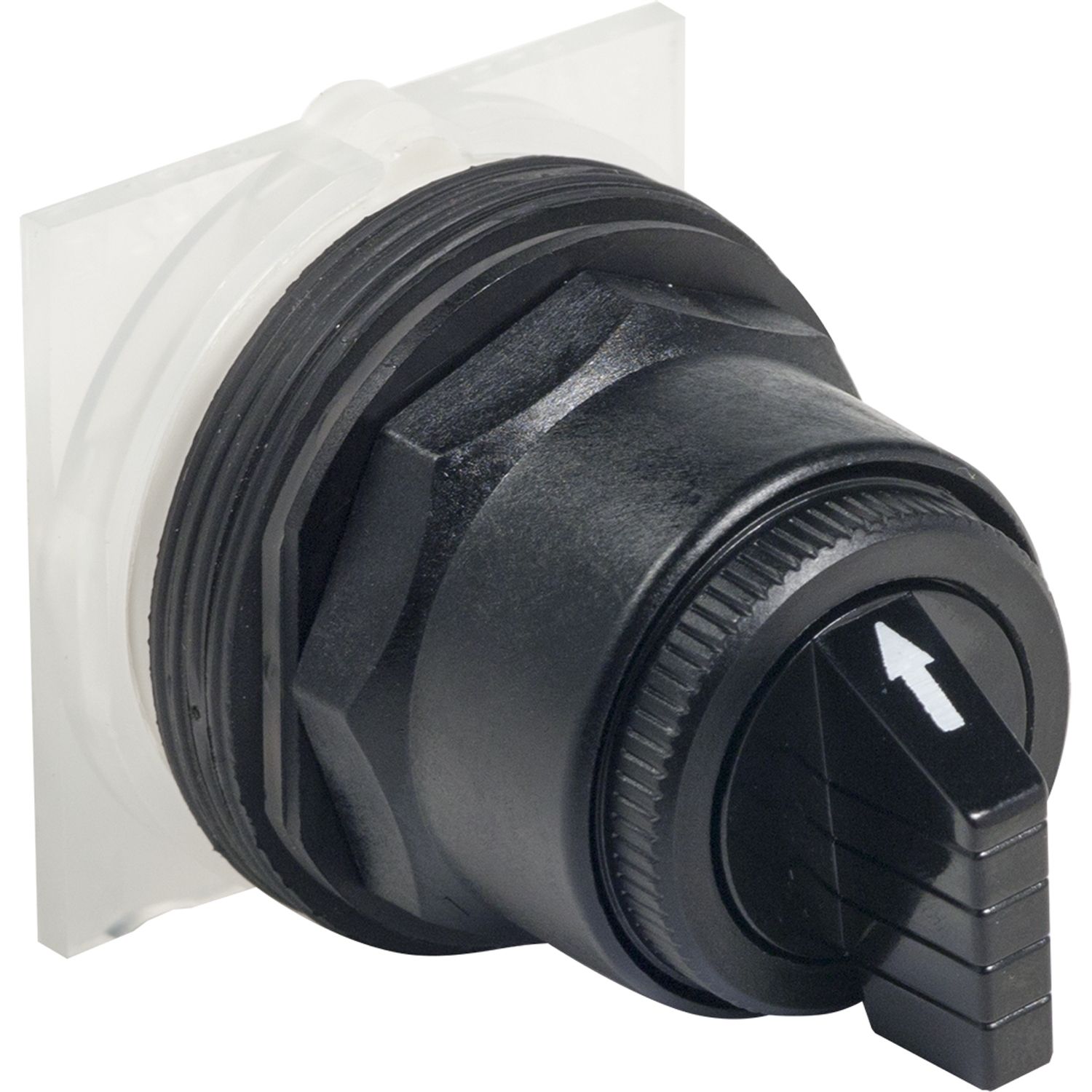

Picture of Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center
SKU:

9001SKS63B

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center

Old price: $168.96 INC GST
$131.79 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
CAD
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001SK, black selector switch with C cam has 3 positions, operates with spring return from left to center position mechanism. It has a double insulated plastic bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for selector switch
Range of product Harmony 9001SK
Complementary
Return left to centre
Type of operator spring return
Compatibility code 9001SK
Operator position information 3 positions
Bezel material plastic
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Cap/operator or lens colour black
Operator profile standard handle
Mounting diameter 30 mm
Cam profile 3
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Product certifications UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 5.500 cm
Package 1 Length 9.900 cm
Package 1 Weight 59.000 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.026 kg
Unit Type of Package 3 3
Number of Units in Package 3 448
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 40.832 kg
