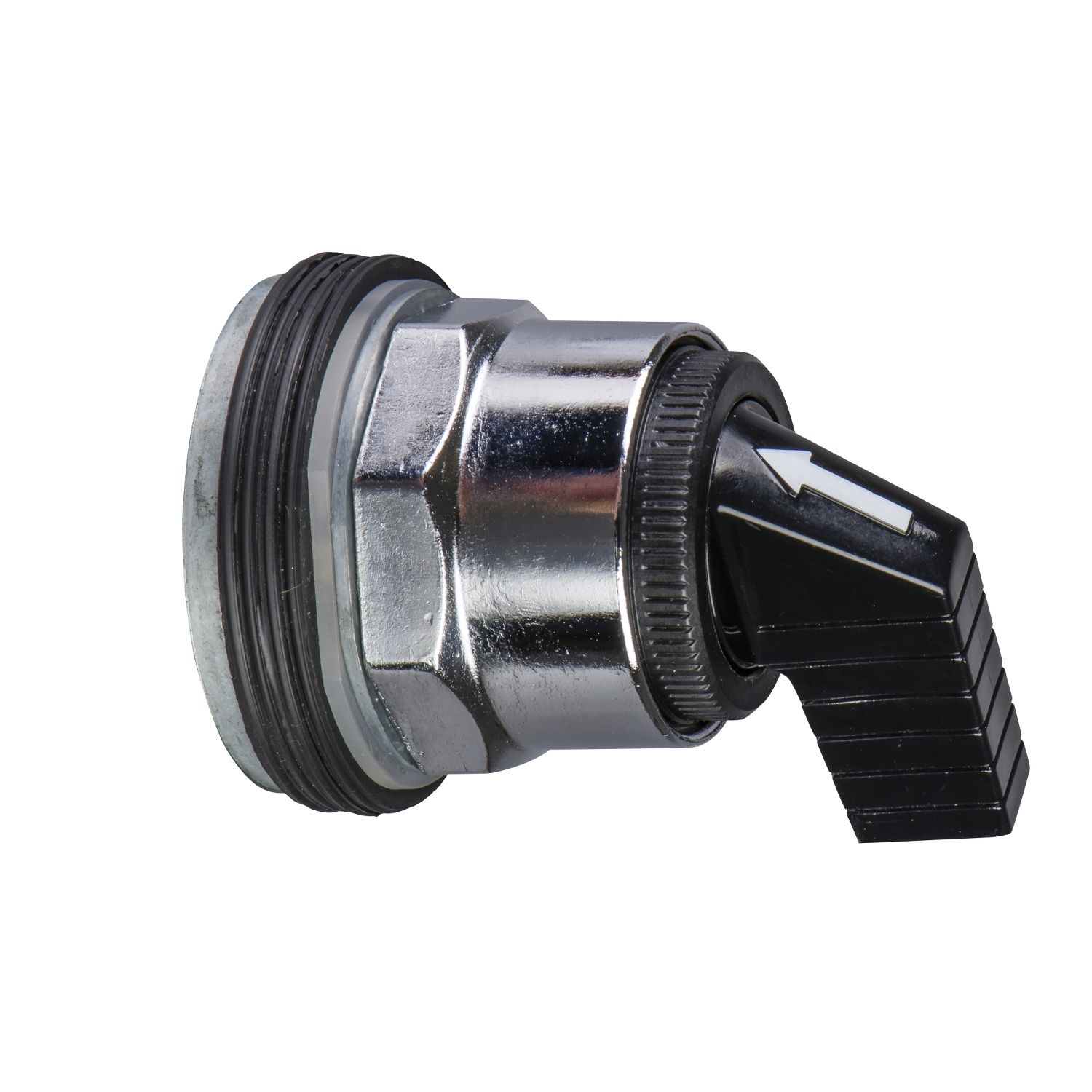

Picture of Head for selector switch, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, return both sides to center
SKU:

9001KS53FB

Head for selector switch, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, return both sides to center

Old price: $204.60 INC GST
$159.59 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Head for selector switch, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, return both sides to center
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Catalogue
Declaration of conformity
Product environmental
Instruction sheet
CAD
Product Page Link
Product Data Sheet
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black long handle operated knob. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 3 positions spring return (to center) operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile black long handle
Product or component type head for selector switch
Type of operator to centre spring return
Range of product Harmony 9001K
Complementary
Return both sides to centre
Type of operator spring return
Compatibility code 9001KS
Mechanical durability 500000 cycles
Operator position information 3 positions
Product compatibility 9001KA1, mounted side 1 or 2
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Net weight 0.172 kg
Cap/operator or lens colour black
Shape of signaling unit head octagonal
Operator profile long handle
Mounting diameter 30 mm
Cam profile 3
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-4, JIS C 852, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C 4520
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.800 cm
Package 1 Width 5.600 cm
Package 1 Length 9.500 cm
Package 1 Weight 126.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.199 kg
