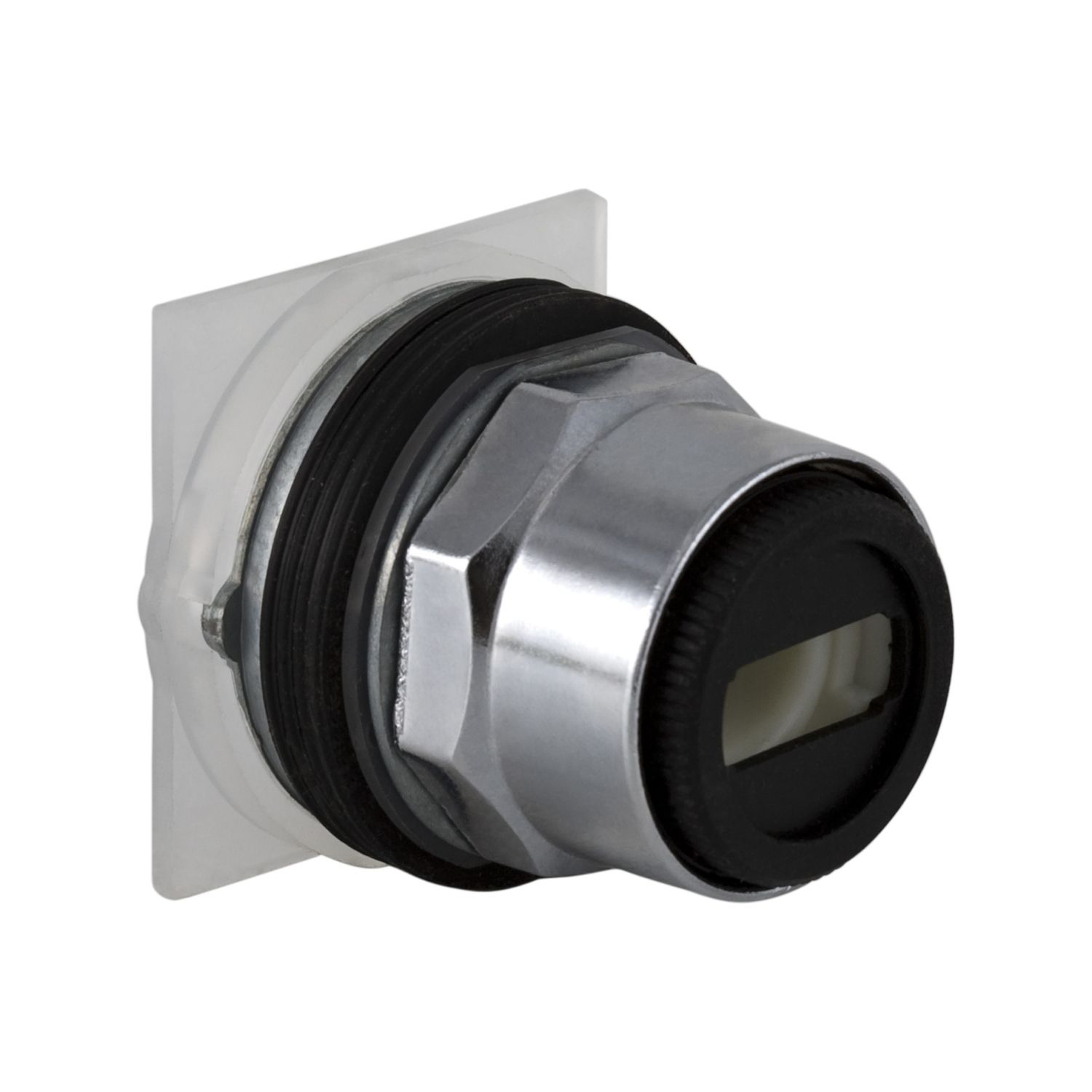

Picture of Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center
SKU:

9001KS52

Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center

Old price: $159.94 INC GST
$124.75 INC GST
Available for Shipping : 12-Jan-2026
Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Product environmental
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001SK selector switch head, without a handle, has 3 positions and operates with a spring return mechanism (both sides to center). It has a chromium-plated metal bezel. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. It complies with CSA LR24590 class 3211 03, CE, and UL listed file E42259 CCN NKCR certifications. Dedicated contact blocks, cap, and handle need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile without cap without knob
Product or component type head for selector switch
Type of operator spring return
Range of product Harmony 9001K
Complementary
Return both sides to centre
Type of operator spring return
Operator position information 3 positions
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Operator profile without handle
Mounting diameter 30 mm
Cam profile 2
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.099 cm
Package 1 Width 5.799 cm
Package 1 Length 5.199 cm
Package 1 Weight 122.47 g
