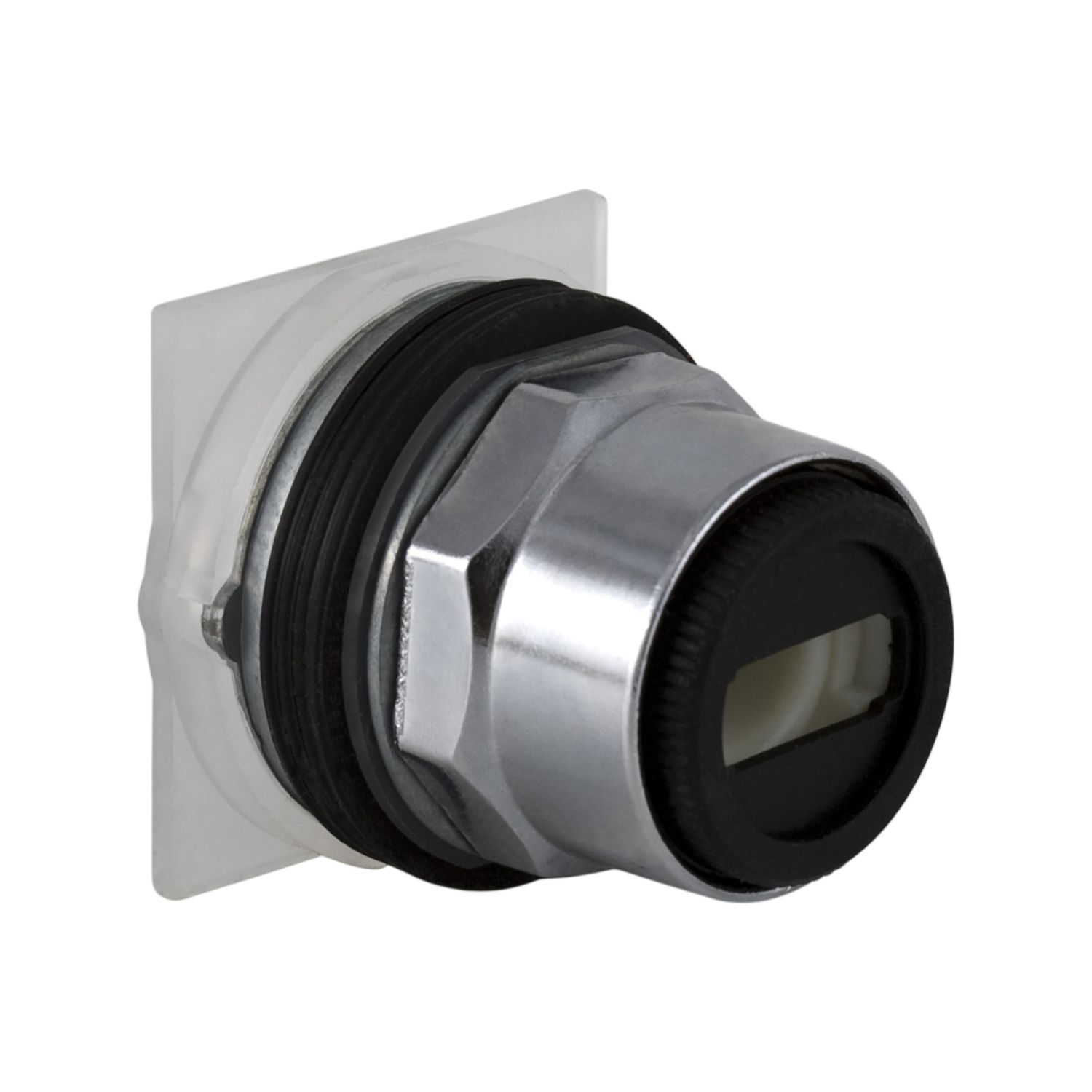

Picture of Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put
SKU:

9001KS43

Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put

Old price: $135.30 INC GST
$105.53 INC GST
Available for Shipping : 28-Jan-2026
Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Product environmental
CAD
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001SK selector switch head, without a handle, has 3 positions and operates with a stay put mechanism. It has a chromium-plated metal bezel. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It complies with UL listed file E42259 CCN NKCR, CE, and CSA LR24590 class 3211 03 certifications Dedicated contact blocks, cap, and handle need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile without cap without knob
Product or component type head for selector switch
Type of operator maintained
Range of product Harmony 9001K
Complementary
Type of operator stay put
Operator position information 3 positions
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Operator profile without handle
Mounting diameter 30 mm
Cam profile 3
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.620 cm
Package 1 Width 5.842 cm
Package 1 Length 5.334 cm
Package 1 Weight 117.900 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.379 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 52.128 kg
