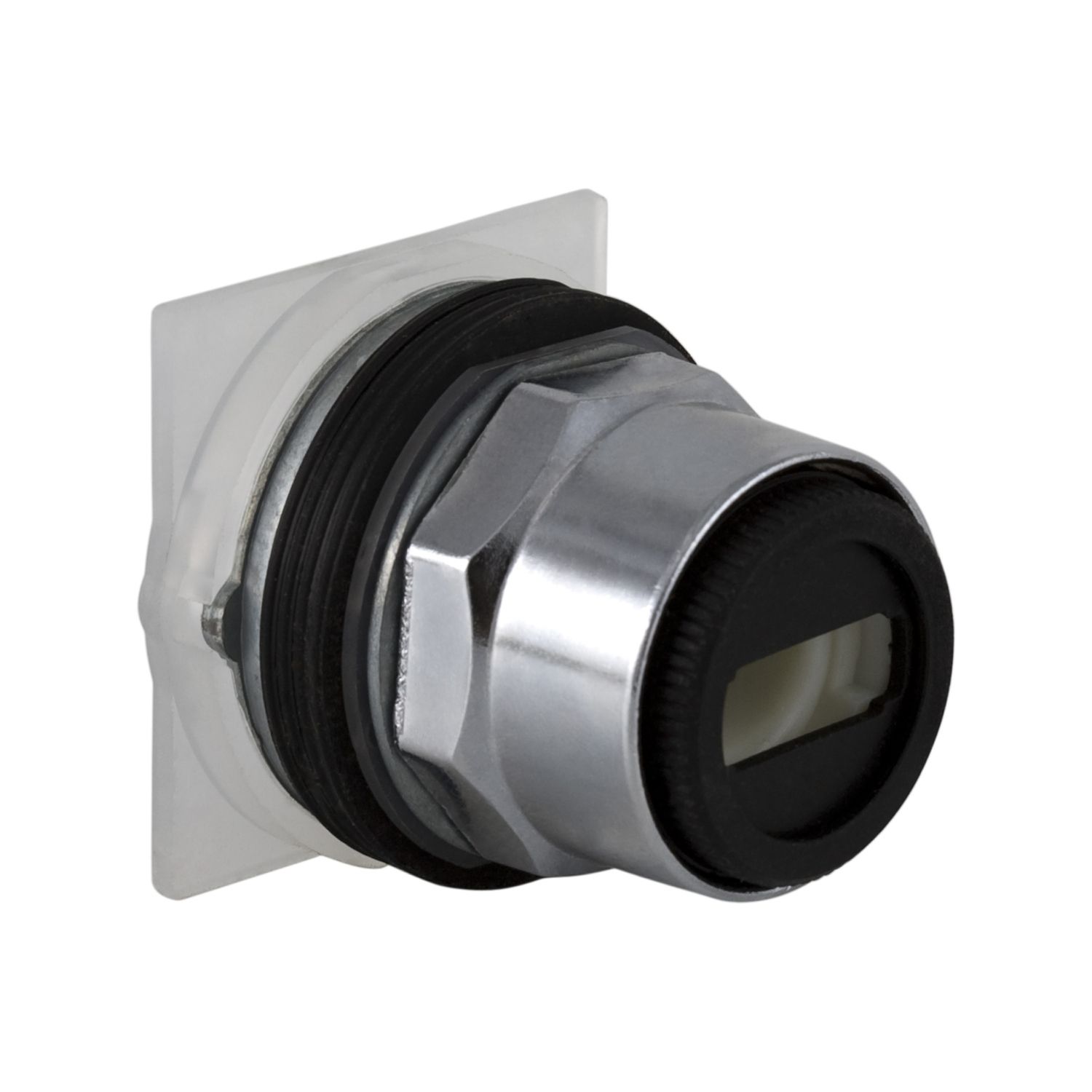

Picture of Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put
SKU:

9001KS42

Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put

Old price: $135.30 INC GST
$105.53 INC GST
Available for Shipping : 19-Jan-2026
Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 3 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Product environmental
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
"This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This selector switch basic element features 3 position maintained operator without cap and knob." "It has 2 NO and 2 NC contacts." "It is furnished with screw clamp terminals for electrical connection." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This type K selector switch is fitted with chromium plated metal bezel." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile without cap without knob
Product or component type head for selector switch
Type of operator maintained
Range of product Harmony 9001K
Complementary
Type of operator stay put
Operator position information 3 positions
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Operator profile without handle
Mounting diameter 30 mm
Cam profile 2
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.334 cm
Package 1 Width 5.842 cm
Package 1 Length 7.112 cm
Package 1 Weight 122.47 g

Related products

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

9001KA1
$69.33 INC GST $88.88 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

9001KA3
$49.85 INC GST $63.91 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

9001KA2
$49.85 INC GST $63.91 INC GST
View Detail

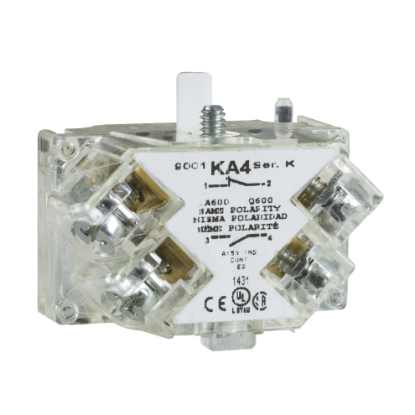

Picture of Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO
