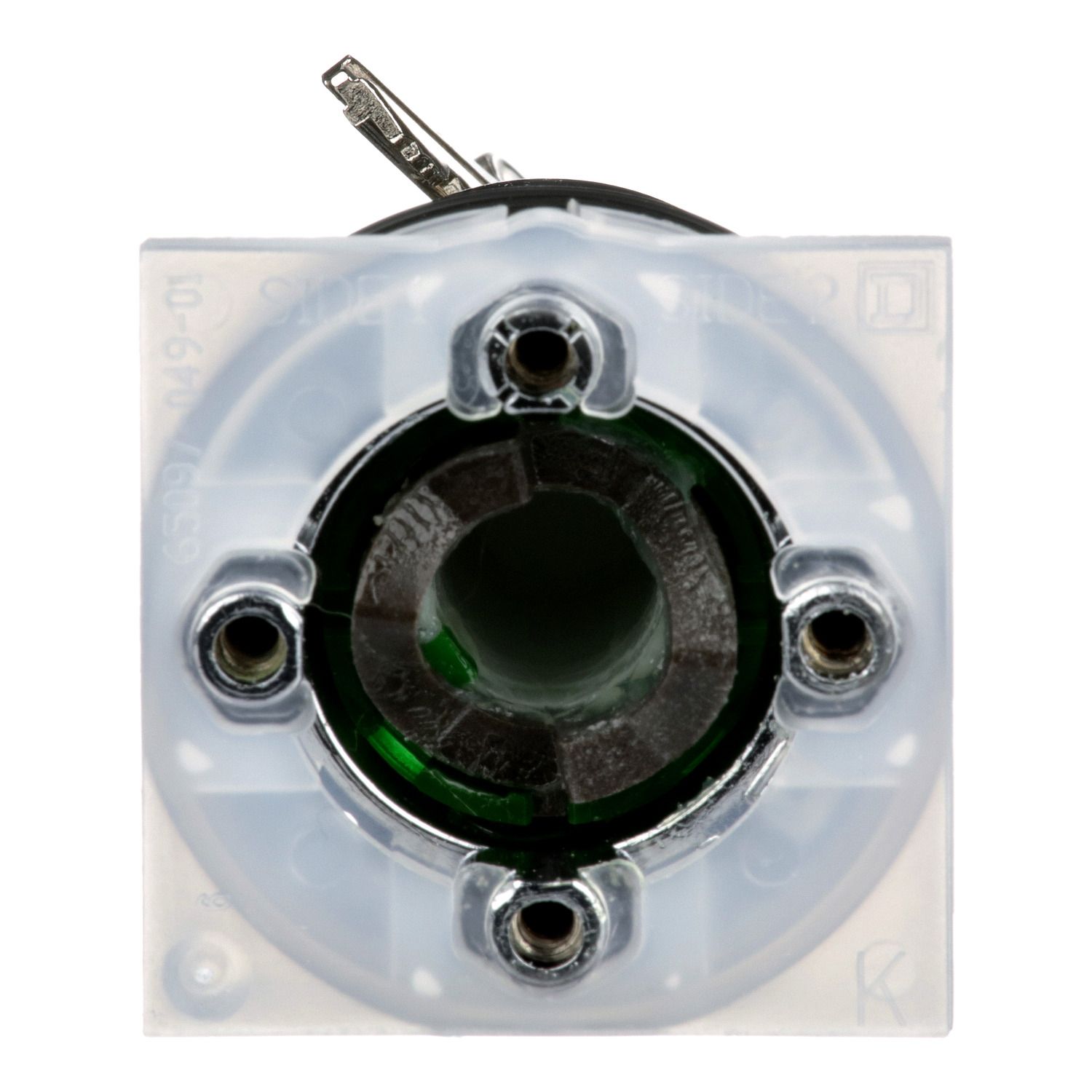

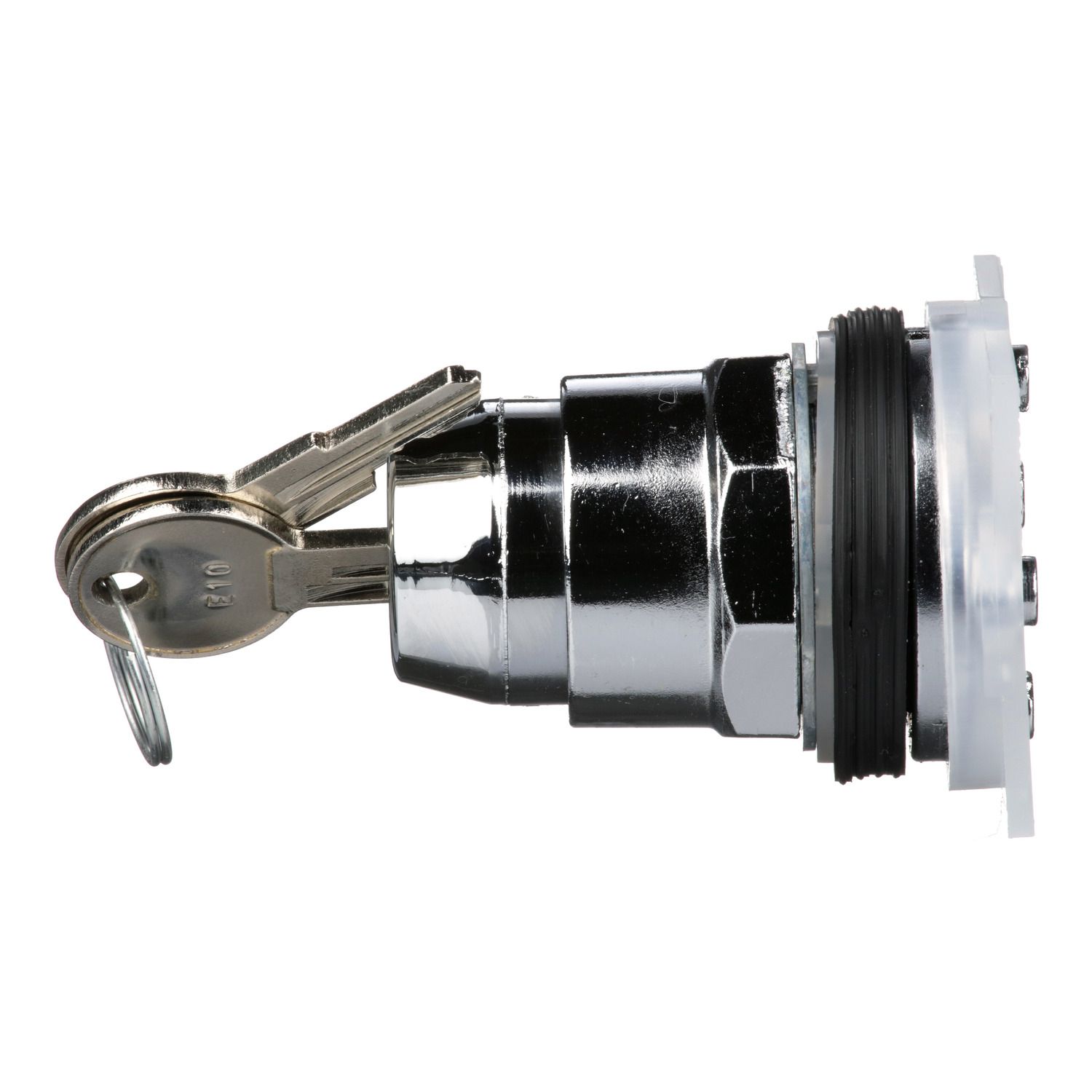

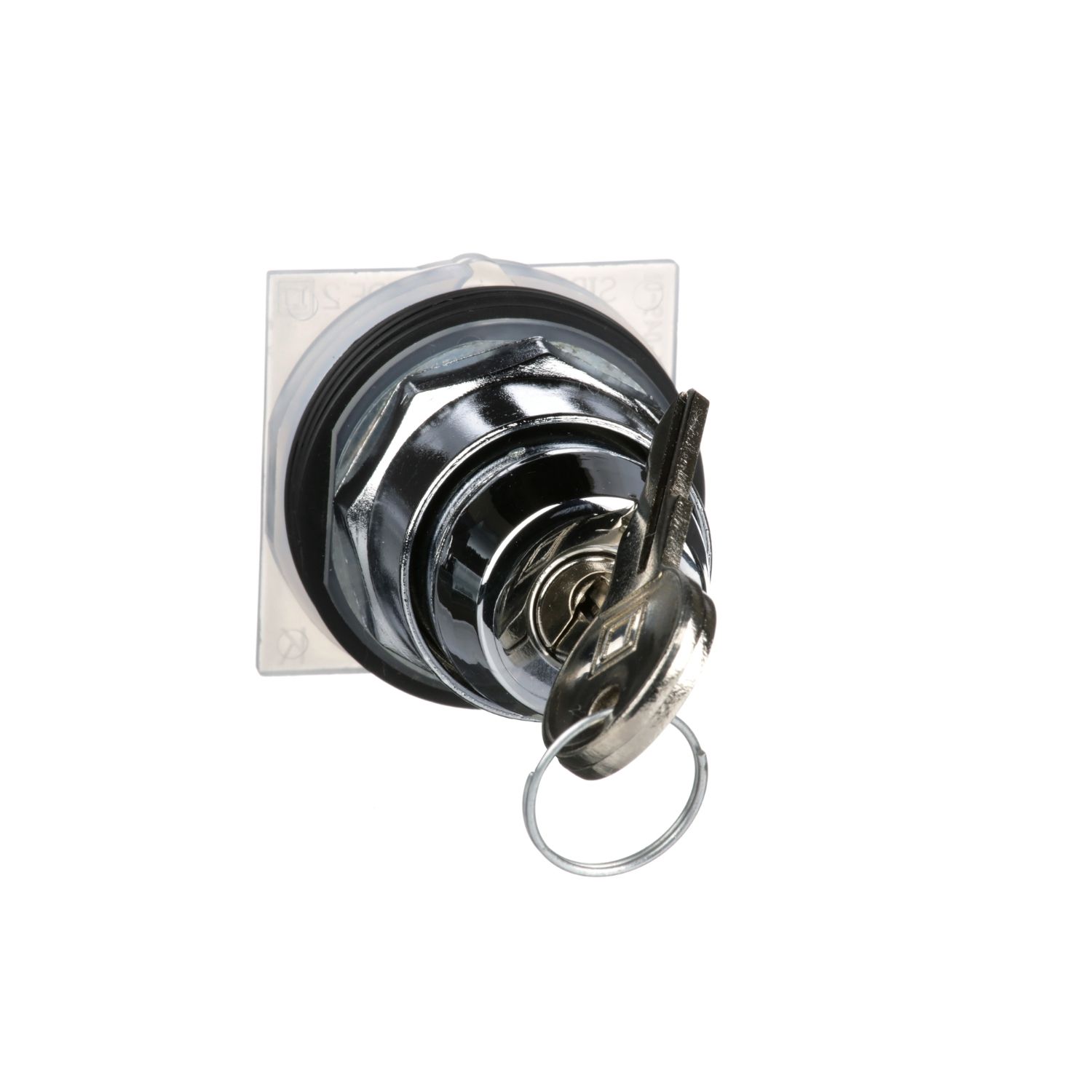

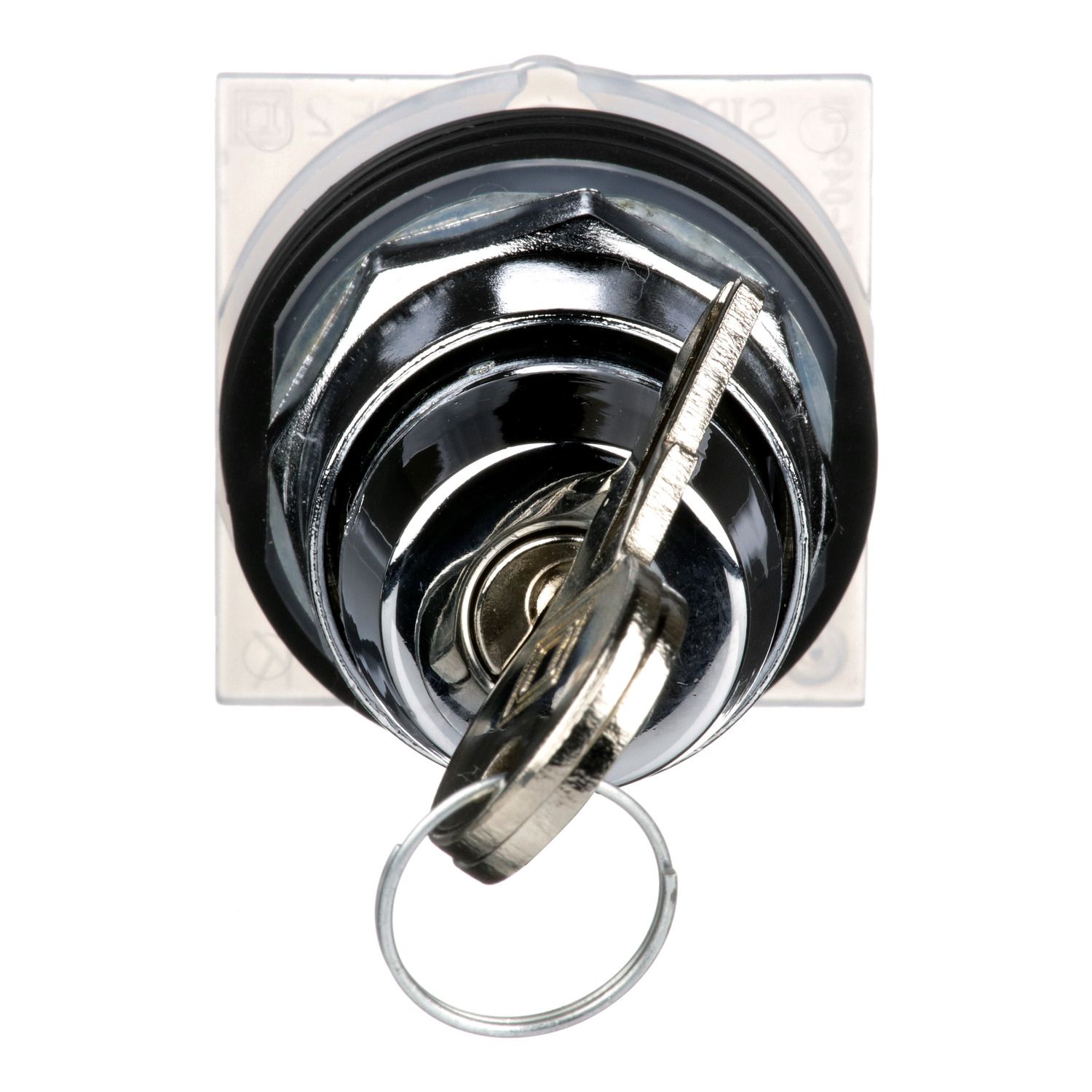

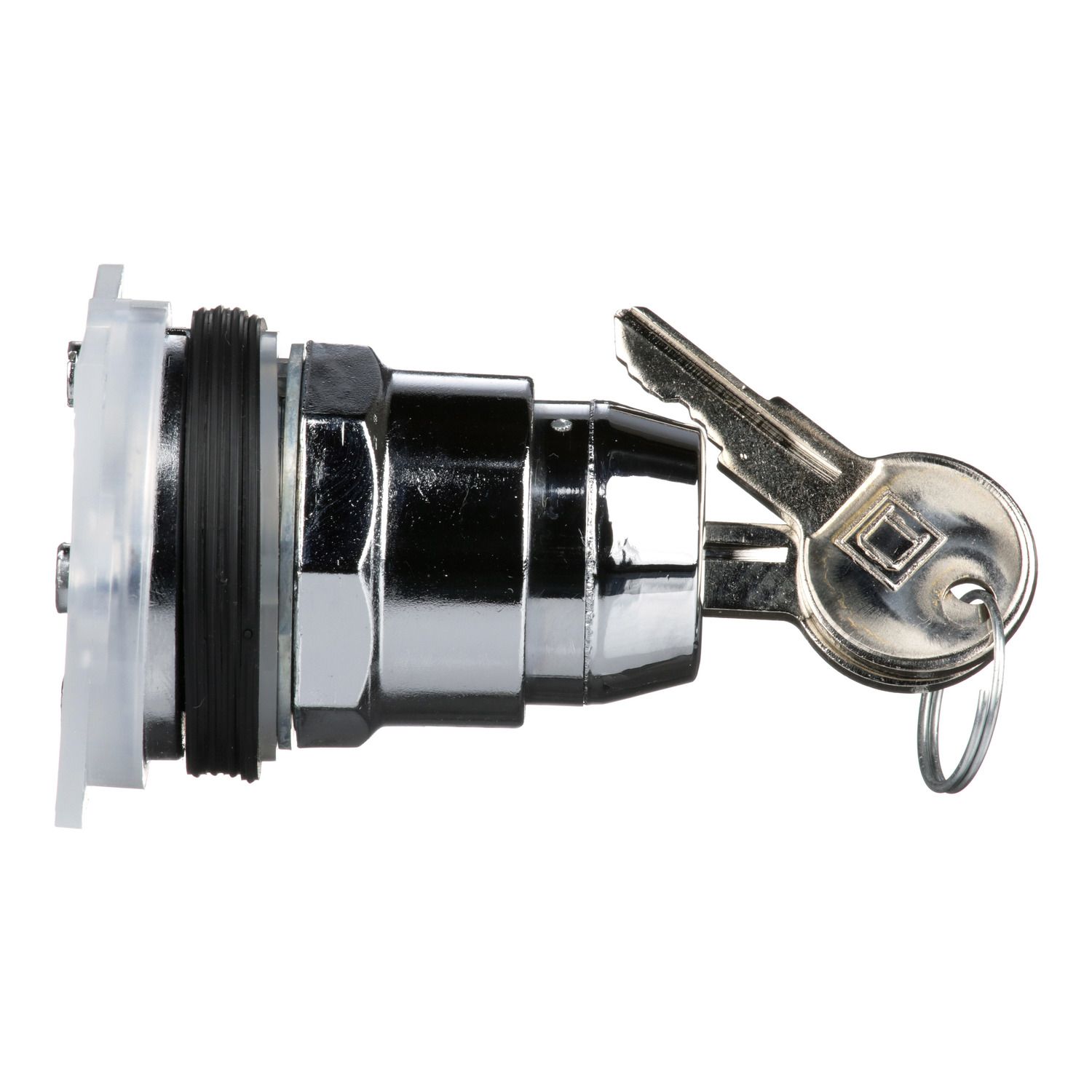

Picture of Key selector switch head, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put
SKU:

9001KS11K3

Key selector switch head, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put

Old price: $328.90 INC GST
$256.54 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Key selector switch head, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Declaration of conformity
CAD
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This key selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with E10 key operated knob. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions maintained operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile key switch
Product or component type head for key selector switch
Type of operator stay put
Range of product Harmony 9001K
Complementary
Type of keylock E10
Type of operator stay put
Compatibility code 9001KS
Mechanical durability 500000 cycles
Operator position information 2 positions
Product compatibility 9001KA1, mounted side 1 or 2
Bezel material metal
Contacts type and composition without contact block
Key withdrawal position left and right
Device presentation basic element
Size 30 mm
Net weight 0.207 kg
Shape of signaling unit head octagonal
Operator profile key switch
Mounting diameter 30 mm
Cam profile 5
Key number E10
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-4, JIS C 852, IEC 60947-5-1, JIS C 4520
Ambient air temperature for operation -25-70 °C
Product certifications NEMA, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.842 cm
Package 1 Length 9.398 cm
Package 1 Weight 190.509 g
