Picture of Head for spring return push button, Harmony 9001K, metal, mushroom 35mm, red, 30mm
SKU:

9001KR24R

Head for spring return push button, Harmony 9001K, metal, mushroom 35mm, red, 30mm

Old price: $168.96 INC GST
$131.79 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for spring return push button, Harmony 9001K, metal, mushroom 35mm, red, 30mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Instruction sheet
Product environmental
CAD
Product Page Link
Product Data Sheet

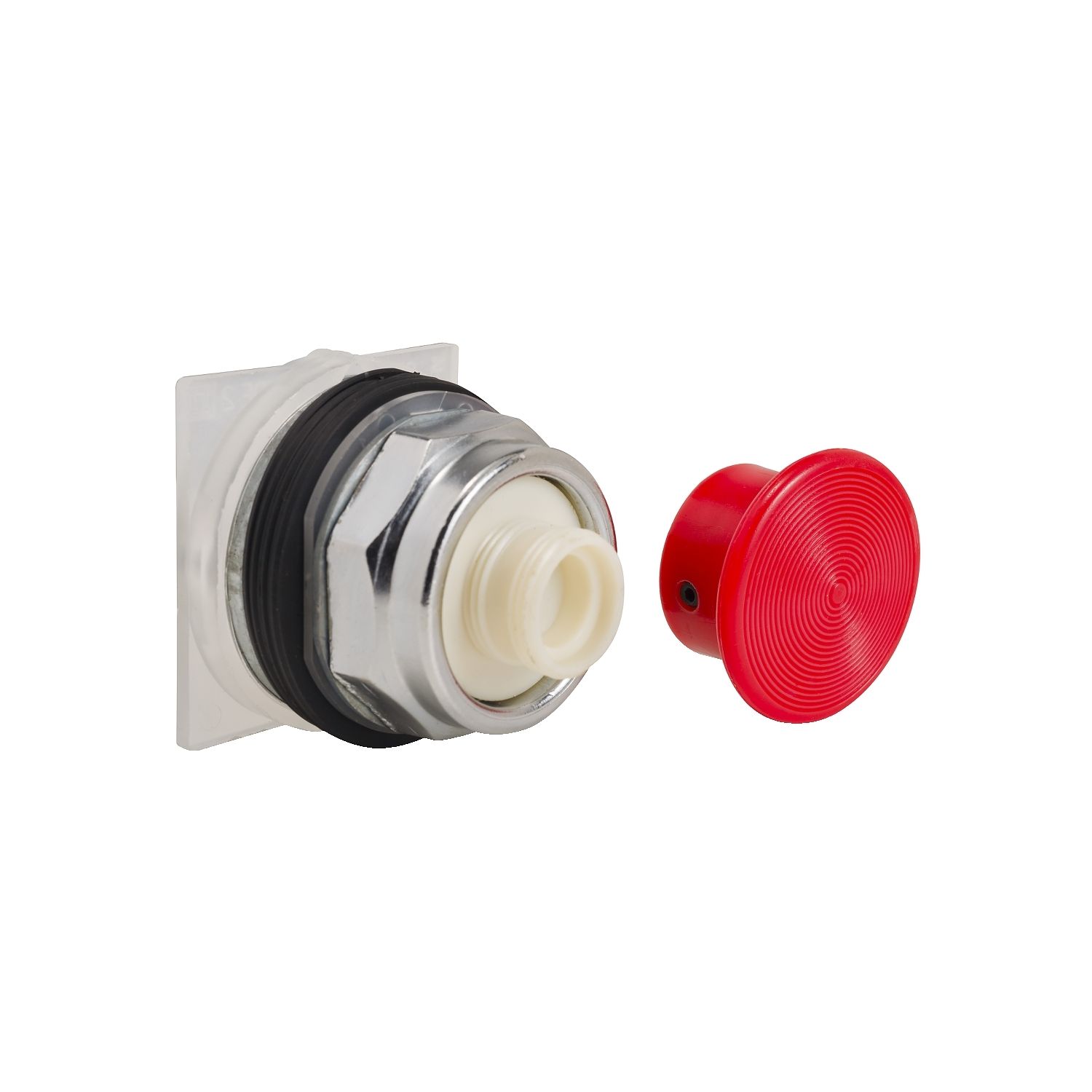

This red mushroom head for push-button is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It is supplied with a red mushroom knob. It features spring return flush push. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile red flush
Product or component type head for push-button
Range of product Harmony 9001K
Operator additional information screw-on plastic with set screw
Complementary
Type of operator spring return
Compatibility code 9001K
Bezel material metal
Contacts type and composition without contact block
Cap/operator or lens colour red
Shape of signaling unit head round
Operator profile mushroom Ø 35 mm
Mounting diameter 30 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.842 cm
Package 1 Width 5.334 cm
Package 1 Length 7.366 cm
Package 1 Weight 127.006 g
