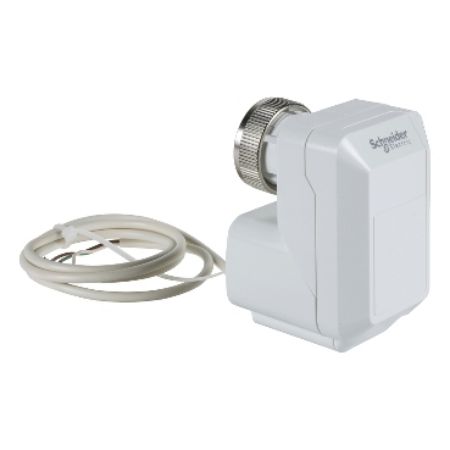

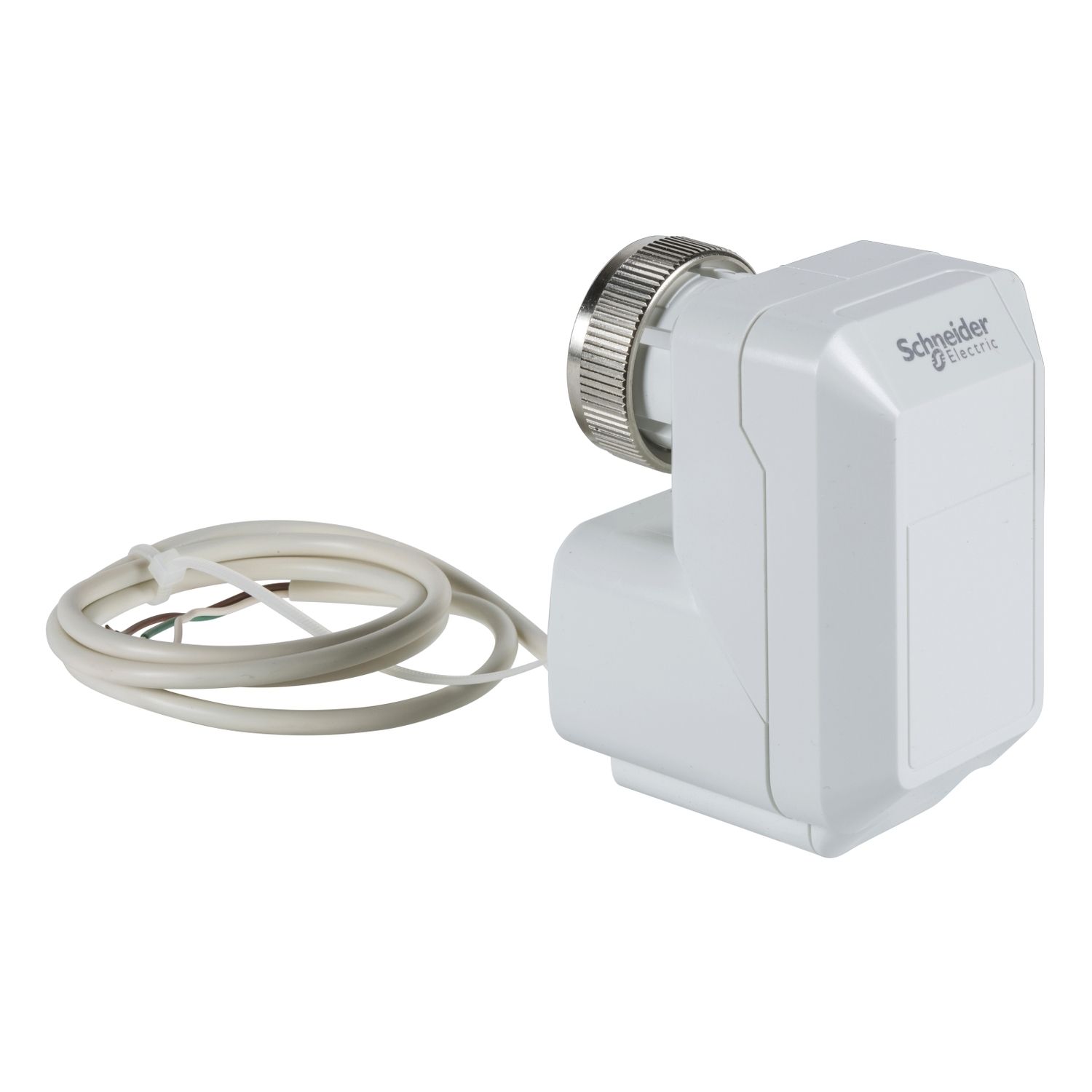

Picture of MZ09B Motoric Radiator Actuator, 3 Wire Floating control, Non-Spring Return, 24 Vac, 0.9 m, 90 N, IP43.
SKU:

8455111000

MZ09B Motoric Radiator Actuator, 3 Wire Floating control, Non-Spring Return, 24 Vac, 0.9 m, 90 N, IP43.

$218.34 INC GST
Availability: Please contact our sales team on 1300 724 622.
MZ09B Motoric Radiator Actuator, 3 Wire Floating control, Non-Spring Return, 24 Vac, 0.9 m, 90 N, IP43.
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
The MZ09B actuator is designed to provide 3-point control together with radiator valves. The actuator is used for radiator valves in fan coil units, induction units, small reheaters and recoolers, and for zone control applications. The abscence of end switches and feedback potentiometer provides longtime reliability. Supply voltage, 24 Vac +1% -3%. 3-point Floating. 1.6 mm controlled valve stroke, 7.9 mm complete actuator stroke. 9 N, IP 43. Connection cable: .9 m.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 0.7-0.7 VA AC
Product destination thermostatic radiator valves
Product or component type actuator
Targeted region Asia Pacific., Europe
Complementary
Force N 396 N
Switch function 2 SPDT
Stroke running time 36 s
Control type manual override with 5/32 allen wrench
Stroke length 1.6-7.9 mm
Force lbf 89 lbf
Actuator linear
Environment
IP degree of protection IP44
Ambient air temperature for operation 0-60 °C
Power loss return non-spring return
Actuator model MZ 09B 2.5mm
Control signal 3-point floating
Lead length 0.9 m
Stroke auto calibration False
Actuator type electric
Actuator product series MZ09
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.9 cm
Package 1 Width 10.8 cm
Package 1 Length 10.8 cm
Package 1 Weight 202.0 g
