SKU:

8455102000

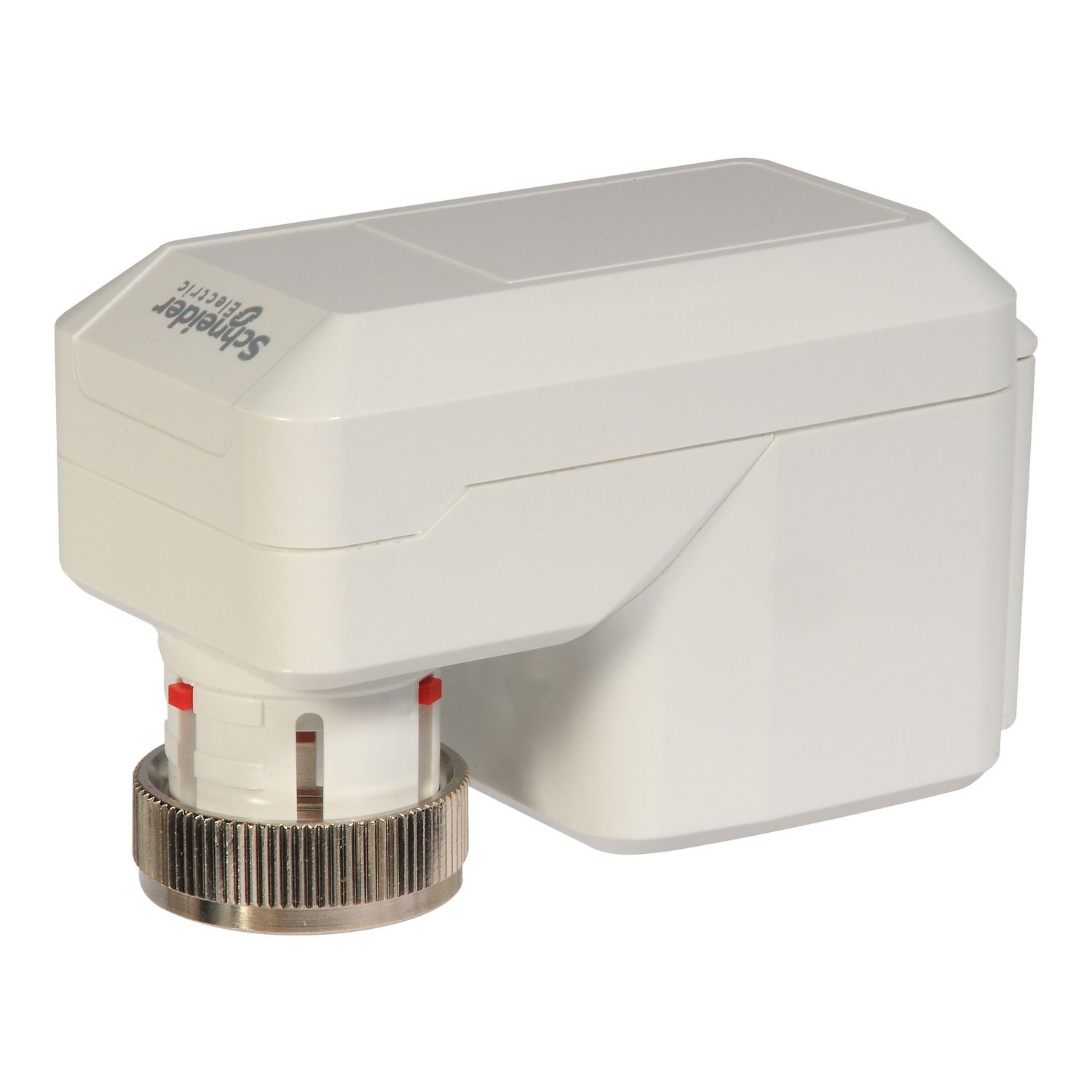

Electric Actuator, LON, Non-Spring Return, 24 VAC, 180 N, Linear, IP42

$848.82 INC GST

Qty:

Available for Shipping : 10-Feb-2026

Electric Actuator, LON, Non-Spring Return, 24 VAC, 180 N, Linear, IP42

Manufacturer: Schneider Electric

Delivery date: 10-Feb-2026

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

Electric Actuator, LON, Non-Spring Return, 24 VAC, 180 N, Linear, IP42

Attribute name	Attribute value
Main
Force N	183 N
Hold-in power consumption in VA	1.4-1.4 VA AC
Switch function	2 SPDT
Stroke running time	150 s
IP degree of protection	IP44
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-25-65 °C
Communication port protocol	LonTalk
Product destination	zone valves
Control type	manual override with 5/32 allen wrench
Product or component type	actuator
Targeted region	Asia Pacific., Europe
Stroke length	6.5-6.5 mm
Force lbf	41 lbf
Actuator	linear
Ambient air temperature for operation	0-55 °C

Power loss return	non-spring return
Actuator model	MZ18L
Control signal	LON
Lead length	1.5 m
Connection valve	coupling ring M30 x 1.5
Stroke auto calibration	False
Actuator type	electric
Actuator product series	MZ18
Position indicator	Stroke indicator on bracket
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.3 cm
Package 1 Width	13.5 cm
Package 1 Length	11.3 cm
Package 1 Weight	281.0 g
