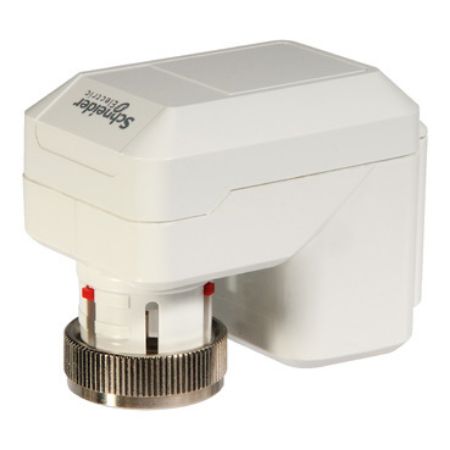

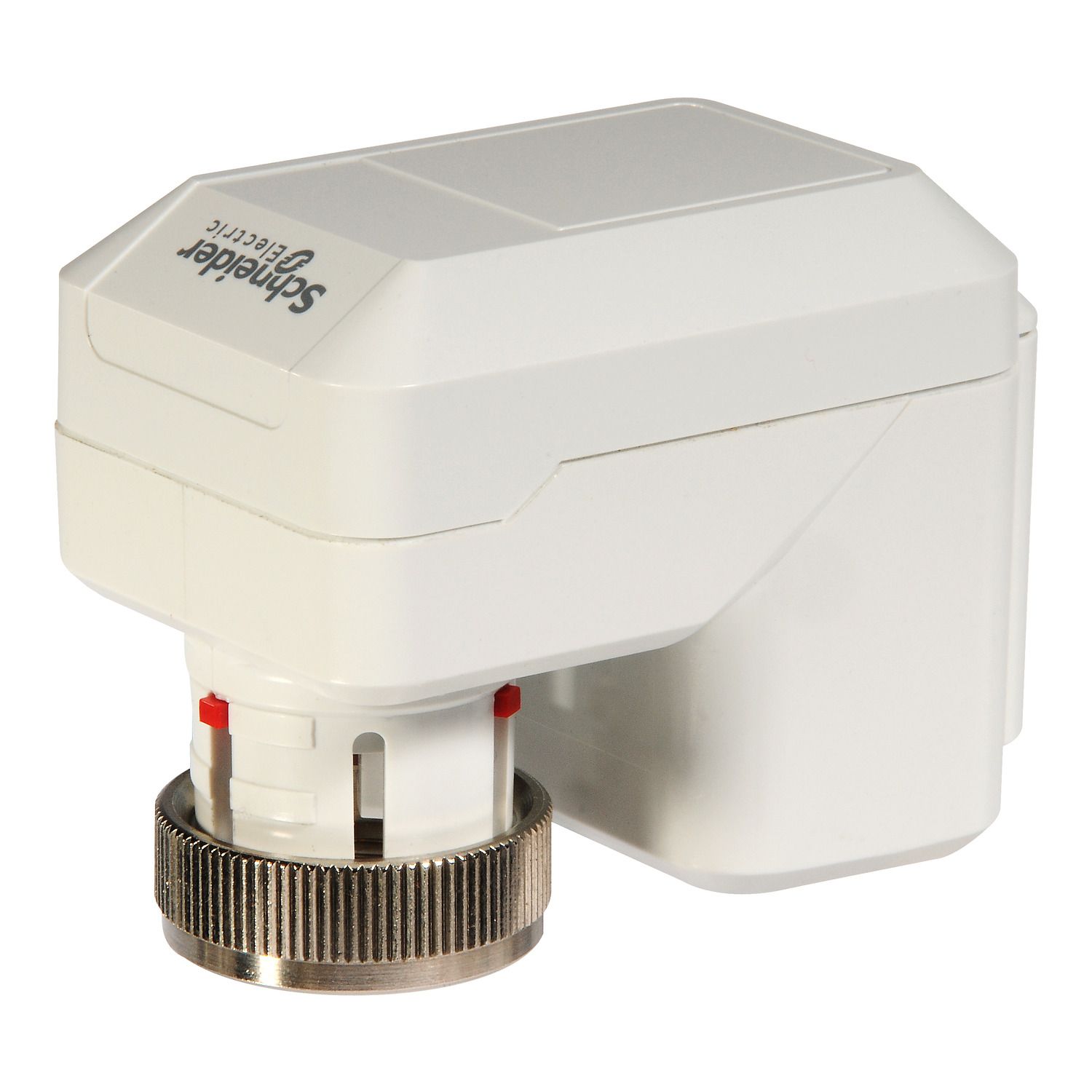

Picture of MZ18B Motoric Actuator, 3 Position Floating control, Non-Spring Return, 24Vac, 180N, IP42
SKU:

8455101000

MZ18B Motoric Actuator, 3 Position Floating control, Non-Spring Return, 24Vac, 180N, IP42

$265.52 INC GST
Available for Shipping : 05-Jan-2026
MZ18B Motoric Actuator, 3 Position Floating control, Non-Spring Return, 24Vac, 180N, IP42
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
Product Page Link
Product Data Sheet
The MZ18B is a compact electromechanical actuator for the VZ22, VZ32 and VZ42 Zone valves. The actuators feature reliable long term operation ensured from a simple design without the need for end switches. With visual position indication. Supply voltage, 24 Vac and Force, 180 N. 3-point Floating. Couple ring M 3 x 1.5. Power Consumption, .7 VA. Ambient Temperature, to 6 °C. Connection cable: 1.5 m.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 0.7-0.7 VA AC
Product destination zone valves
Product or component type actuator
Targeted region Asia Pacific., Europe
Complementary
Force N 183 N
Switch function 2 SPDT
Stroke running time 150 s
Electrical insulation class class III
Control type manual override with 5/32 allen wrench
Stroke length 6.5-6.5 mm
Force lbf 41 lbf
Actuator linear
Environment
IP degree of protection IP44
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -25-65 °C
Ambient air temperature for operation 0-60 °C
Power loss return non-spring return
Actuator model MZ18B
Control signal 3-point floating
Lead length 1.5 m
Connection valve coupling ring M30 x 1.5
Stroke auto calibration False
Actuator type electric
Actuator product series MZ18
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.2 cm
Package 1 Width 11.4 cm
Package 1 Length 7.8 cm
Package 1 Weight 220 g
