SKU:

7312161020

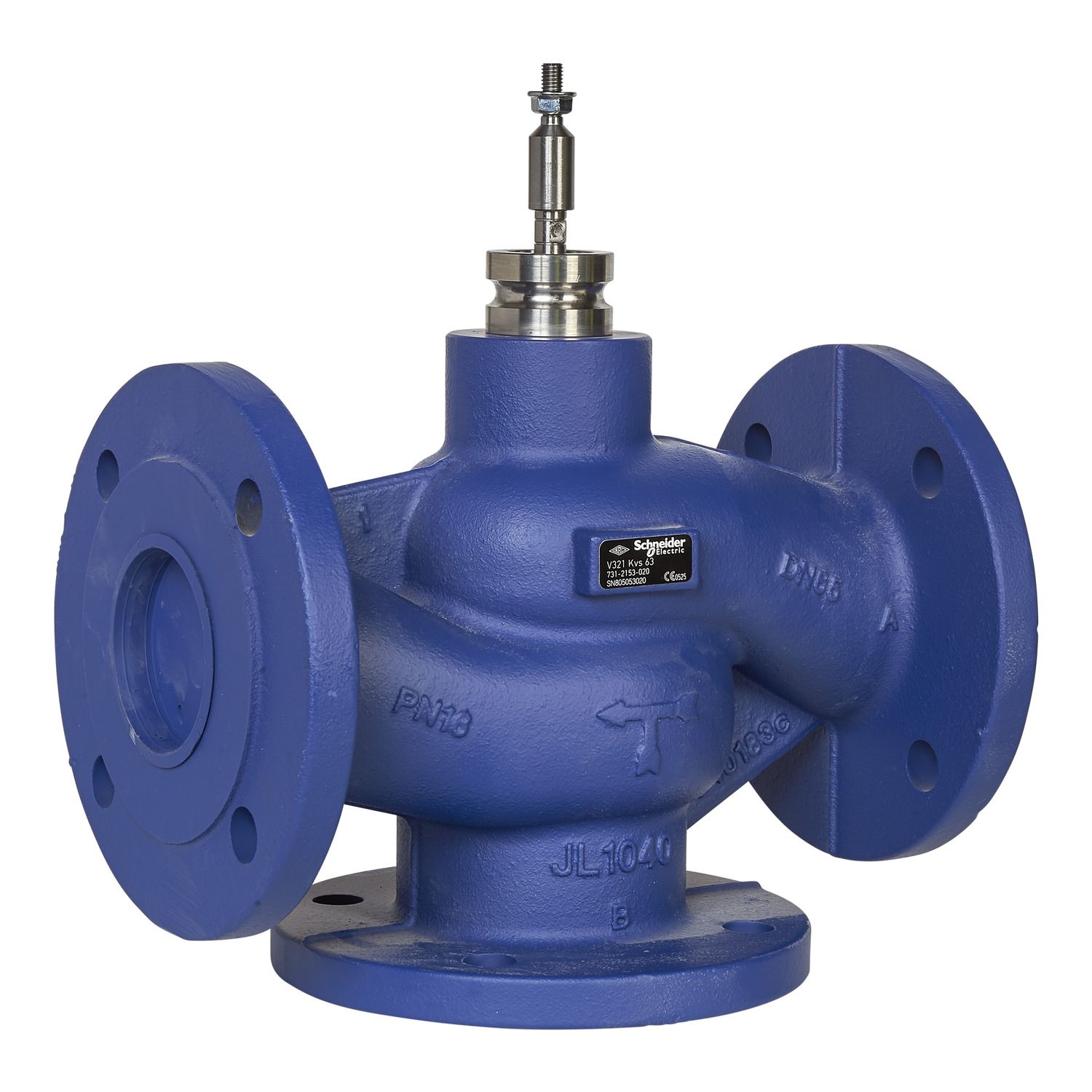

V321 Globe Valve, 3-Way, PN16, Flanged DN100, Kvs 160, Cast Iron Body, Stainless Trim, Max. Glycol 50%

$4,273.17 INC GST

Qty:

Available for Shipping : 02-Feb-2026

V321 Globe Valve, 3-Way, PN16, Flanged DN100, Kvs 160, Cast Iron Body, Stainless Trim, Max. Glycol 50%

Manufacturer: Schneider Electric

Delivery date: 02-Feb-2026

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Operating fluid temperature	-10-130 °C
Body material	grey cast iron GG-25
Seating seal material	Port A:metal to metal
Seat leakage	Port A: Less than 0.05 % of kvs
Product or component type	valve
Targeted region	Australia., Asia Pacific., Europe
Valve connection size	DN100 (ISO 7005-2)
Seat material	Port B: stainless steel AISI 420, Port A: stainless steel AISI 420

Medium compatibility	Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability	greater than 30:1
Plug material	stainless steel AISI 420
Valve product series	V321
Flow coefficient	160 kvs, 185 cv
Stem flow action	Stem up closes A and opens B to AB
Valve configuration	3-Way
Stem movement	linear
Pressure fluid max delta P normal life	9 psi
Valve type	globe
Packing material	EPDM (ethylene propylene diene monomer)
Valve connection type	flanged
Stem seal material	EPDM (ethylene propylene diene monomer)
Flow characteristic	equal percentage
Trim material	stainless steel
Stroke length	30 mm
Stem material	stainless steel 316Ti
Pipe size	100 mm
Pressure class	PN16
Body size	100 mm (4 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	34 cm
Package 1 Width	22 cm
Package 1 Length	38 cm
Package 1 Weight	34 kg
