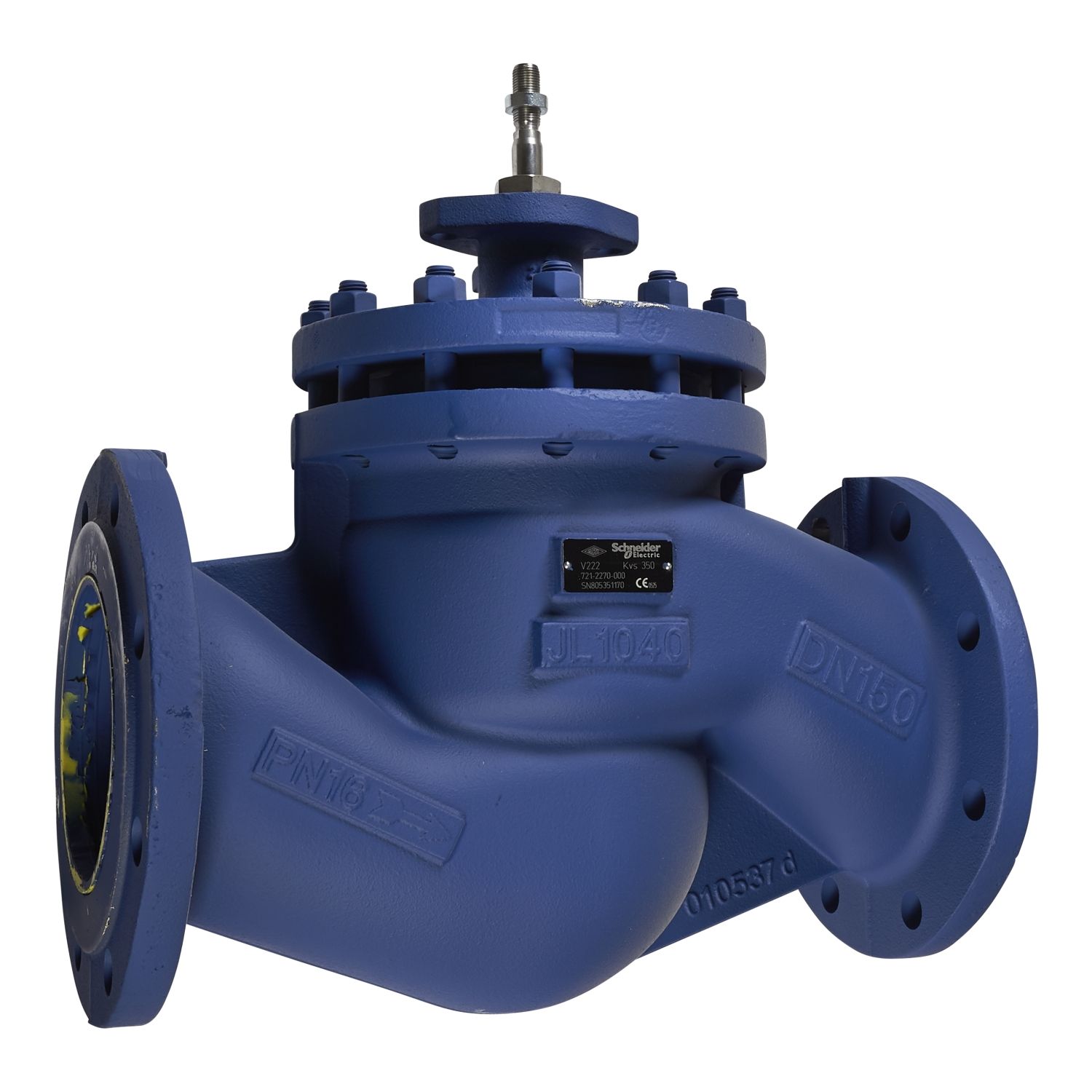

Picture of V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed

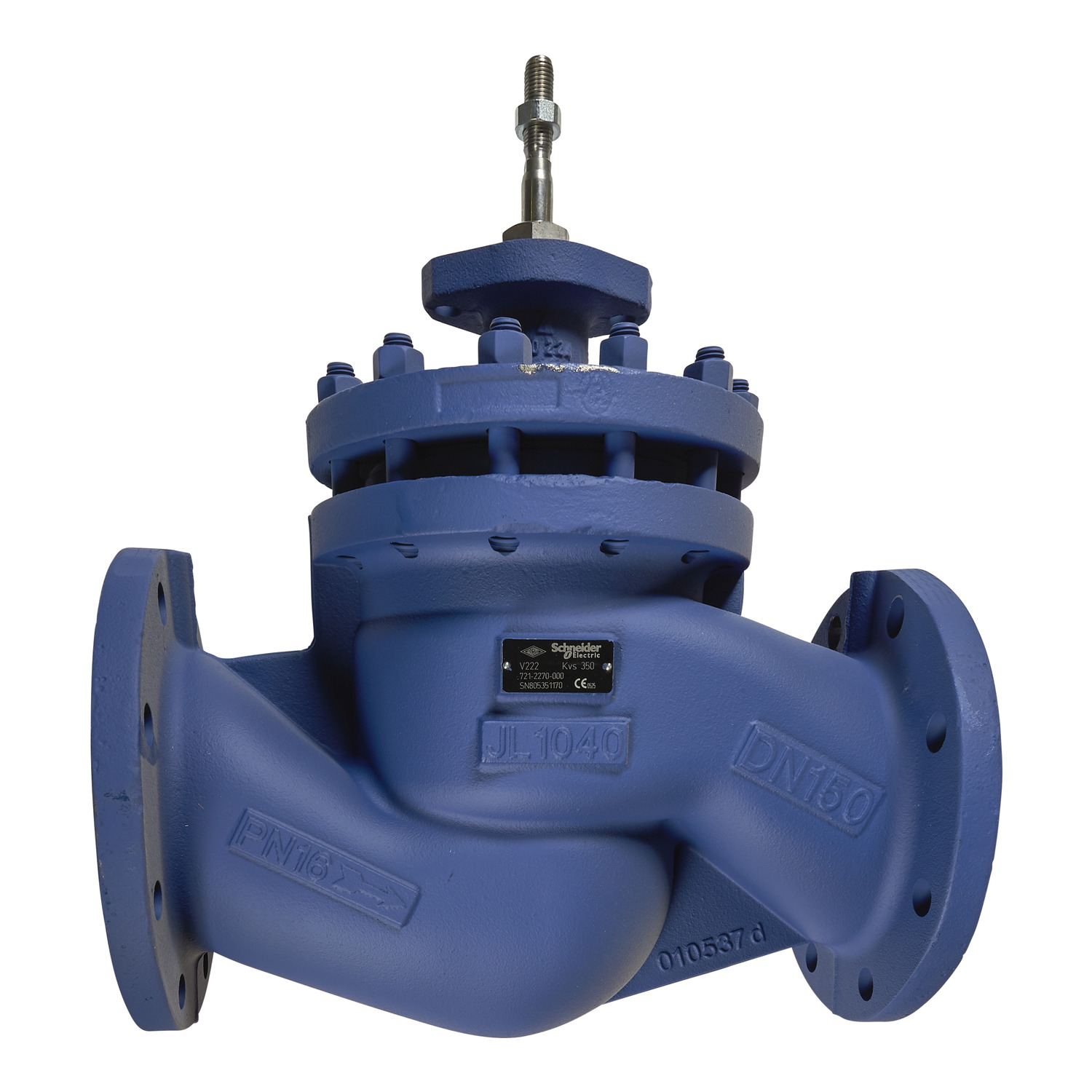

Picture of V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed
Picture of V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed
SKU:

7212270000

V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed

$5,975.86 INC GST
Available for Shipping : 02-Feb-2026
V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-150 °C
Body material grey cast iron GG-25
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.05 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN150 (ISO 7005-2)
Seat material Port A: stainless steel AISI 420
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material stainless steel AISI 420
Valve product series V222
Flow coefficient 350 kvs, 404.68 cv
Stem flow action Stem down closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 15 psi
Valve type globe
Valve model V222/150350
Packing material spring-loaded PTFE v-ring
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 50 mm
Stem material stainless steel AISI 420
Pipe size 150 mm
Pressure class PN16
Body size 150 mm (6 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.0 cm
Package 1 Width 48.0 cm
Package 1 Length 56.0 cm
Package 1 Weight 88.0 kg

Related products

Picture of Replacement Packing Gland / Stuffing Box for the DN125...DN150 sizes of V292 and V222 Globe Valves.

Replacement Packing Gland / Stuffing Box for the DN125...DN150 sizes of V292 and V222 Globe Valves.

100108210
$1,056.28 INC GST
View Detail
