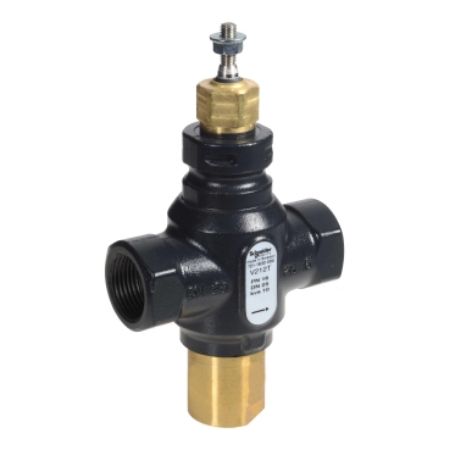

Picture of Venta V212T Globe Valve, 2-Way, PN16, Rp 2 Internal thread, Balanced Plug, DN50, 38 Kvs, Nodular Iron, Brass Plug.
SKU:

7211844000

Venta V212T Globe Valve, 2-Way, PN16, Rp 2 Internal thread, Balanced Plug, DN50, 38 Kvs, Nodular Iron, Brass Plug.

$1,165.06 INC GST
Availability: Please contact our sales team on 1300 724 622.
Venta V212T Globe Valve, 2-Way, PN16, Rp 2 Internal thread, Balanced Plug, DN50, 38 Kvs, Nodular Iron, Brass Plug.
  • Balanced valves will allow higher close off performance than a non balanced valve of the same size
  • Allowing use on high pressure systems or for a lower cost /force actuators than a non balanced valve
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet
The V212T is an internally threaded 2-way balanced globe valve designed for a wide range of heating and cooling applications. The balanced plug lowers the actuator force needed for operation, the valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN50, Rp thread, Flow capacity, Kvs: 38 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 4 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-120 °C
Body material nodular cast iron EN-JS 1030
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size Rp 2
Seat material Port A: nodular cast iron EN-JS 1030
Valve product range Venta
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material CW602N brass
Valve product series V212T
Flow coefficient 38 kvs, 43.94 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 58 psi
Valve type globe
Valve model V212T/50/38
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type Rp Internal
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 50 mm
Pressure class PN16
Body size 50 mm (2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.9 cm
Package 1 Width 24 cm
Package 1 Length 11.2 cm
Package 1 Weight 4.18 kg
