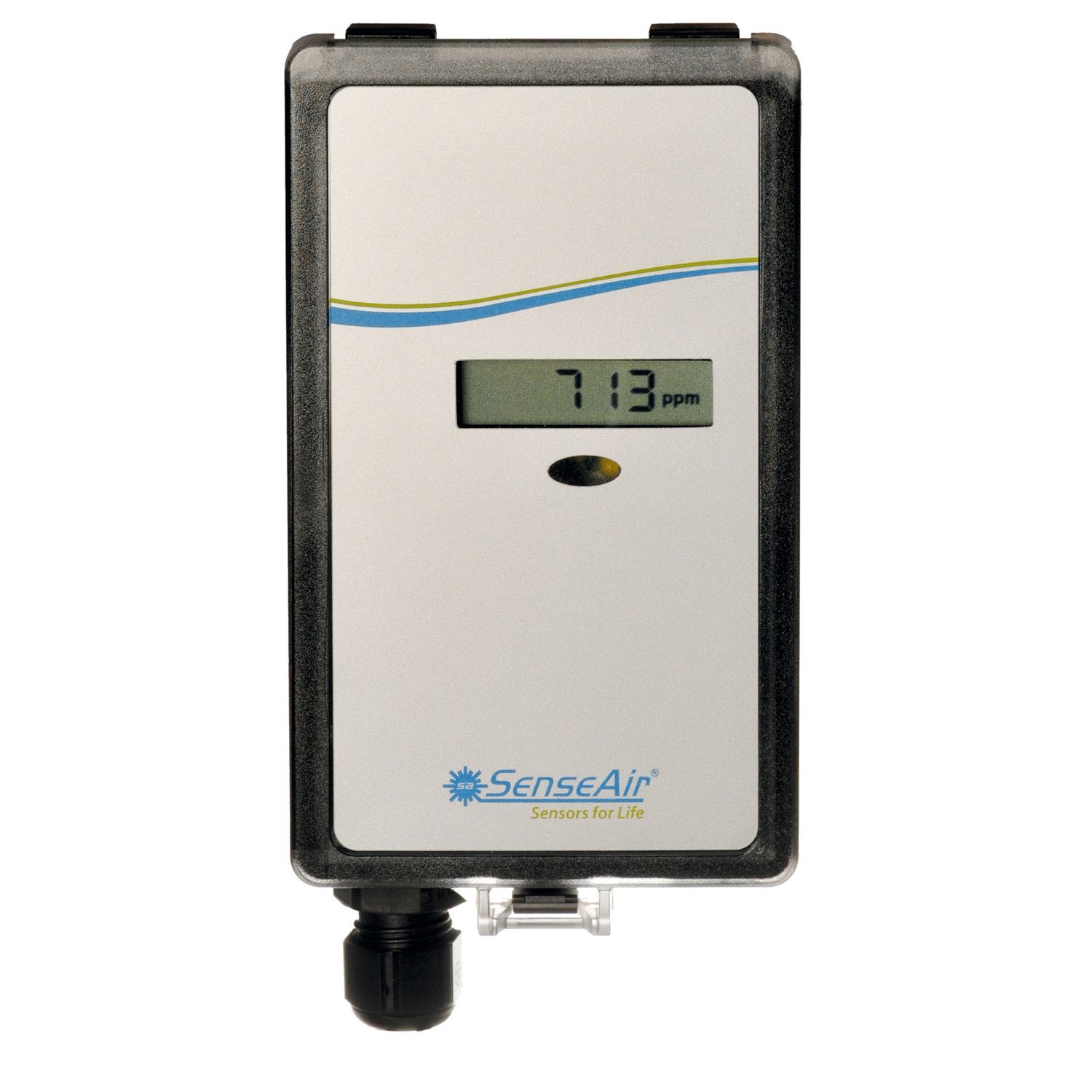

Picture of aSENSE m III CO and CO2 Comb for Duct mounting
SKU:

6553064000

aSENSE m III CO and CO2 Comb for Duct mounting

$4,746.28 INC GST
Available for Shipping : 03-Feb-2026
aSENSE m III CO and CO2 Comb for Duct mounting
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Product Page Link
Product Data Sheet
Asense series is a device measures both carbon monoxide and carbon dioxide and therefore is ideal for measuring air quality for health purposes in indoor carparks and traffic tunnels It is intended for duct mounting. Energy efficiency can be achieved by using the measurement(s) to vary the fan speed of the fresh air supply equipment.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP65
Device application outdoor reference
Depth 46 mm
Display type LCD
Output type relay normally open, relay normally close
Width 85 mm
CO2 measurement accuracy +/- 5 % of measured value, +/- 1 % of measurement range
Local signalling red LED active open collector output, green LED relay closed, yellow LED maintenance support
Relative humidity 0-95 % RH, non-condensing
Sensor type NDIR (non-dispersive infrared) with ABC (automatic baseline correction) carbon dioxide (CO2), fuel type electrochemical with temperature compensation carbon monoxide (CO)
Service life 5 year(s)
Temperature measurement accuracy +/- 10 ppm, +/- 5 % of measured value, +/- 1 % of measurement range
Ambient air temperature for storage -20-70 °C
Directives 89/336/EEC - electromagnetic compatibility
CO measurement accuracy +/- 10 ppm
CO2 measurement range 0...3000 ppm
Type of measurement carbon monoxide (CO) and nitrogen dioxide (NO2), carbon dioxide (CO2)
Targeted region Asia Pacific., Europe
Mounting support duct
CO measurement range 100...500 ppm
Analogue output type 4...20 mA
Calibration certificate humidity: none
Ambient air temperature for operation 0-50 °C
Height 150 mm
Setpoint No
Sensor model 040-8-0066
With override No
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.8 cm
Package 1 Width 17 cm
Package 1 Length 6 cm
Package 1 Weight 380 g
