SKU:

6552063000

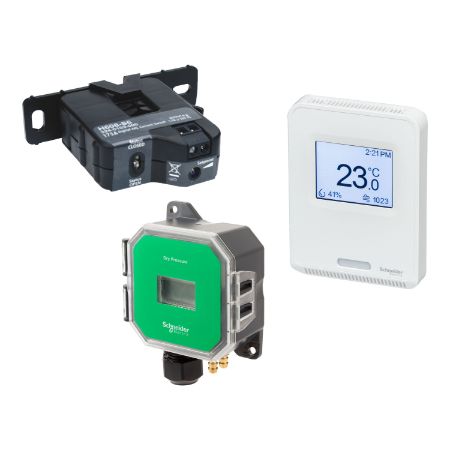

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

$2,426.27 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

Manufacturer: Schneider Electric

Catalog

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

Attribute name	Attribute value
Main
IP degree of protection	IP65
Device application	chiller differential pressure monitoring, pump and compressor differential pressure
Depth	40 mm
Fitting type	female
Width	65 mm
Sensor type	ceramic Al2O3 pressure
Display size	25 x 35 mm
Burst pressure	174 psig (12 bar)
Pressure measurement range	0...58 psi (0...4 bar)
Wiring technique	3-wire
Net weight	430 g
Controlled fluid	water
Location	plant room
Product or component type	sensor
Type of measurement	differential pressure
Targeted region	Asia Pacific., Europe
Fitting size	G 1/8"
Mounting support	pipe
Range of product	SPW100
Analogue output type	0...10 V DC
Calibration certificate	none
Ambient air temperature for operation	-15-85 °C
Height	203 mm
Pressure measurement accuracy	+/- 1 % FS
[Us] rated supply voltage	18...33 V DC, 22...26 V AC, 24 V AC
Operating current	5 mA
Product certifications	CE

Sensor model	SPW108-D
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	7.0 cm
Package 1 Length	28.5 cm
Package 1 Weight	831.0 g
