SKU:

5152308000

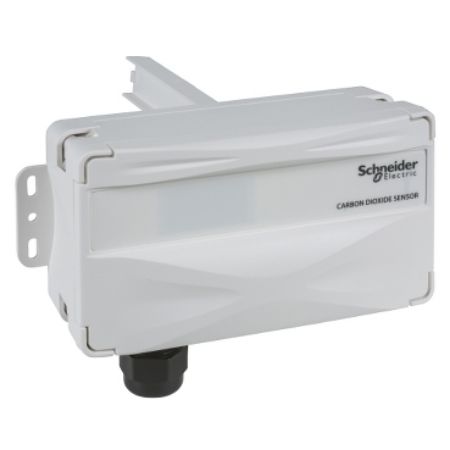

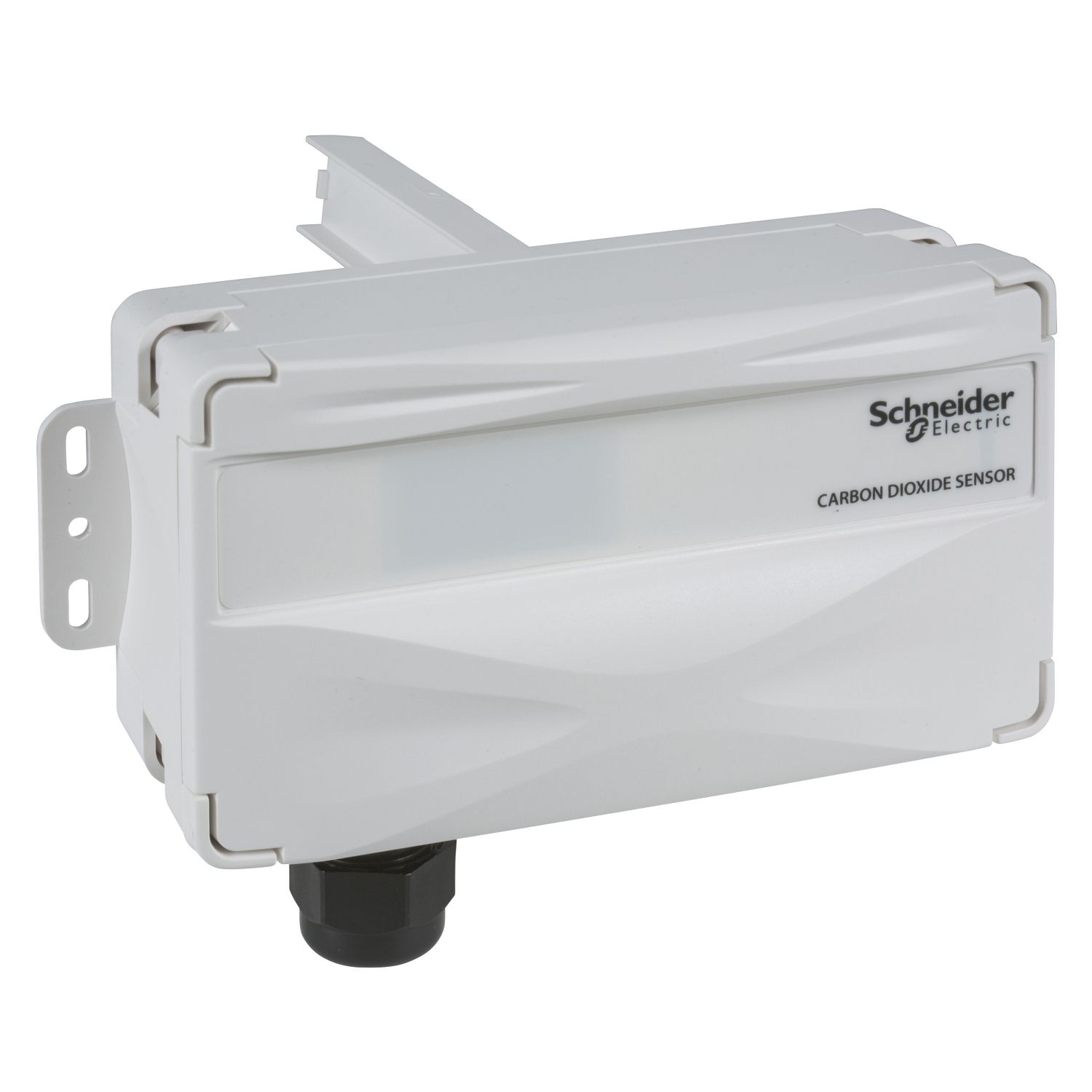

Carbon Dioxide Transmitter: SCD210, Duct, Temp, TAC I/NET, 10 k Ohm T2

$1,720.40 INC GST

Qty:

Available for Shipping : 05-Jan-2026

Carbon Dioxide Transmitter: SCD210, Duct, Temp, TAC I/NET, 10 k Ohm T2

Manufacturer: Schneider Electric

Delivery date: 05-Jan-2026

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Probe length	198 mm
Device application	duct
Depth	61 mm
Colour	cloud white
Output type	resistive output, analog
Width	170 mm
CO2 measurement accuracy	+/- 2 % of measured value, +/- 1.5 % of measurement range
Enclosure material	ABS thermoplastic
Probe diameter	25.4 mm
Measurement temperature	0-50 °C
Relative humidity	0-95 % RH, non-condensing
Sensor type	10 kOhm type 2 thermistor temperature, NDIR (non-dispersive infrared) carbon dioxide (CO2)
Response time	less than 60 s for 90 % step change
Temperature measurement accuracy	+/- 0.3 °C
AWG gauge	AWG 24...AWG 14
CO2 measurement range	0...2000 ppm
Location	plant room
Product or component type	sensor
Type of measurement	temperature, carbon dioxide (CO2)
Targeted region	Asia Pacific., Europe
Mounting support	duct
CO2 measurement repeatability	+/- 20 ppm +/- 1 % of measured value
Range of product	SCD
Analogue output type	0...10 V DC, 0...5 V DC, 4...20 mA
Ambient air temperature for operation	10-35 °C
Height	78 mm
[Us] rated supply voltage	20...30 V DC, 24 V AC
Product certifications	UL, CE

Sensor model	CDXTXTD
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.8 cm
Package 1 Width	18.3 cm
Package 1 Length	28.8 cm
Package 1 Weight	585.0 g
