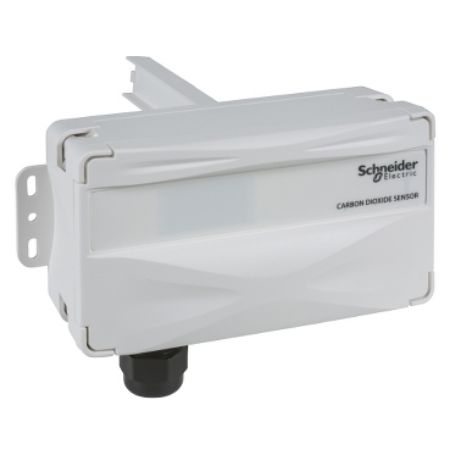

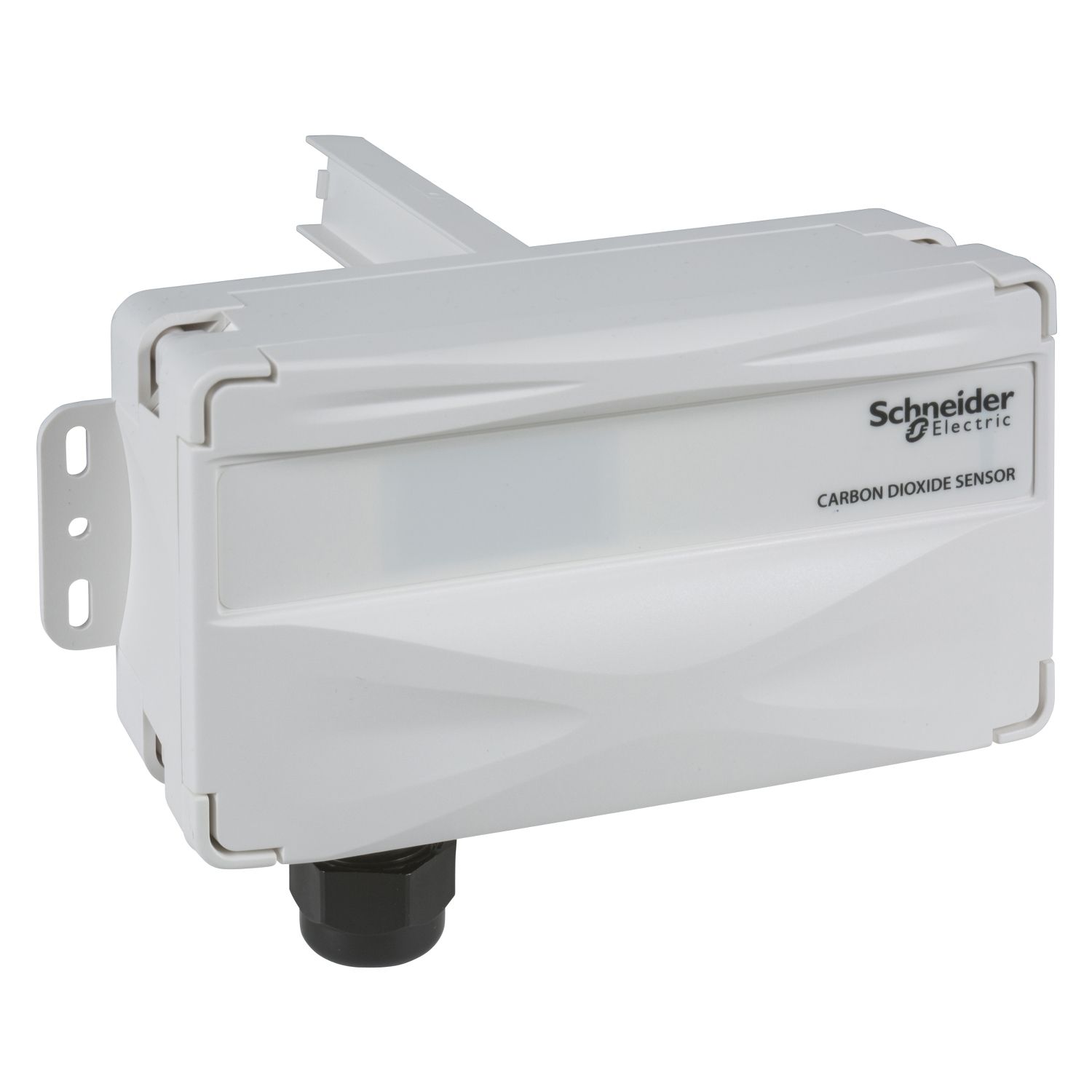

Picture of SCD Series CO2 transmitter, SCD110, duct, temperature sensor, 1.8k ohm thermistor, Vista compatible
SKU:

5152300000

SCD Series CO2 transmitter, SCD110, duct, temperature sensor, 1.8k ohm thermistor, Vista compatible

$1,758.35 INC GST
Available for Shipping : 04-Jan-2026
SCD Series CO2 transmitter, SCD110, duct, temperature sensor, 1.8k ohm thermistor, Vista compatible
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Catalog
Product Page Link
Product Data Sheet
Spacelogic SCD range of CO2 transmitters with temperature sensing combines the option of adding a humidity transmitter into a single unit. Temperature sensing for all current platforms is available dependent on the model selected thus offering lower cost installation. Outputs are user selectable, 0 … 10 Vdc, 0 … 5 Vdc or 4 … 20 mA. The sensor is auto-calibrating using the Auto Baseline Calibration (ABC) feature and will sense CO2 concentrations in the range 0 … 2000 ppm with an accuracy of ±2% of measured value. The transmitter also include a relay that will switch at 800/1000 or 1200 ppm dependent on internal switch settings. Replacement humidity tips are available including a 2% NIST traceable tip.

Products specifications

Attribute name Attribute value
Main
Probe length 198 mm
Device application duct
Depth 61 mm
Colour cloud white
Output type resistive output, analog
Width 170 mm
CO2 measurement accuracy +/- 2 % of measured value, +/- 1.5 % of measurement range
Probe diameter 25.4 mm
Measurement temperature 0-50 °C
Relative humidity 0-95 % RH, non-condensing
Sensor type 1.8 kOhm thermistor temperature, NDIR (non-dispersive infrared) carbon dioxide (CO2)
Response time less than 60 s for 90 % step change
Temperature measurement accuracy +/- 0.3 °C
AWG gauge AWG 24...AWG 14
Range SCD Series
CO2 measurement range 0...2000 ppm
Location plant room
Product or component type sensor
Type of measurement temperature, carbon dioxide (CO2)
Targeted region Asia Pacific., Europe
Mounting support duct
CO2 measurement repeatability +/- 20 ppm +/- 1 % of measured value
Range of product SCD
Analogue output type 0...10 V DC, 0...5 V DC, 4...20 mA
Ambient air temperature for operation 10-35 °C
Height 78 mm
[Us] rated supply voltage 20...30 V DC, 24 V AC
Product certifications UL, CE
Sensor model CDXTXTN
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 17.0 cm
Package 1 Length 25.9 cm
Package 1 Weight 275.0 g
