SKU:

48477

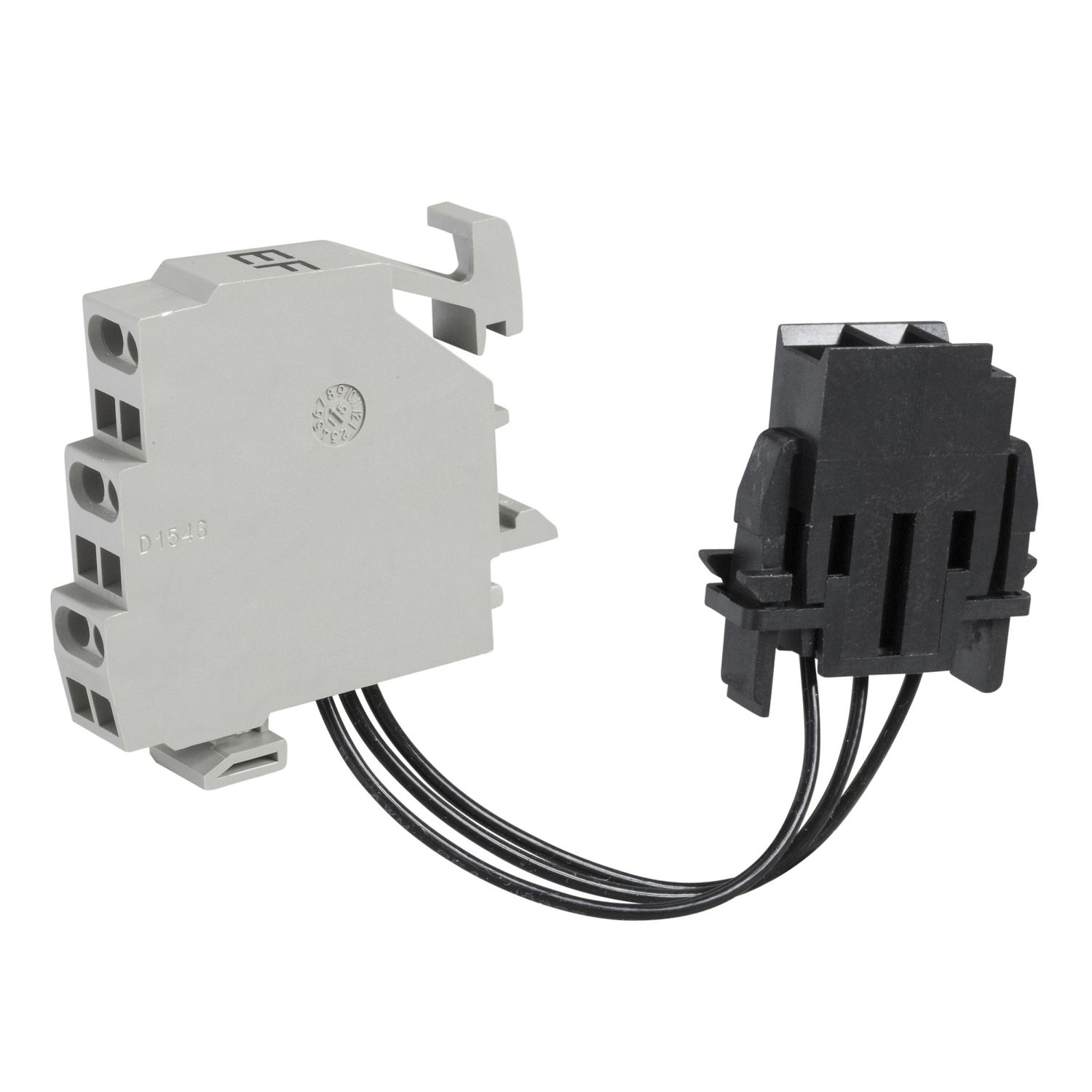

EF combined connected/closed contact, MasterPact NW drawout, 1 changeover contact, standard 6A/240VAC, spare part

Old price: $248.60 INC GST

Price: $198.88 INC GST

Qty:

Available for Shipping : 08-Dec-2025

EF combined connected/closed contact, MasterPact NW drawout, 1 changeover contact, standard 6A/240VAC, spare part

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Declaration of conformity

Instruction sheet

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EF contact
Device application	control
Signal contacts composition	1 NO/NC
Range	MasterPacT
Product or component type	auxiliary contact
Range compatibility	Masterpact MasterPact NW
Range of product	MasterPact NW, MasterPact NW DC
Complementary
Minimum load	100 mA at 24 V
[Ie] rated operational current	AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 240/380 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC, AC-12: 6 A at 690 V AC 50/60 Hz
Auxiliary contacts type	standard
Mounting mode	drawout
Auxiliary contacts operation	connected position
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.000 cm
Package 1 Width	4.700 cm
Package 1 Length	14.500 cm
Package 1 Weight	35.200 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	6.000 cm
Package 2 Width	22.000 cm
Package 2 Length	23.000 cm
Package 2 Weight	394.000 g
Unit Type of Package 3	3
Number of Units in Package 3	100
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	4.020 kg
