Gear motor MCH, drawout MasterPact NW, 200/240VAC 50/60Hz, spare part

Old price: $4,569.40 INC GST
$3,655.52 INC GST
Available for Shipping : 08-Dec-2025
Gear motor MCH, drawout MasterPact NW, 200/240VAC 50/60Hz, spare part
  • MasterPact NW is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 800 A to 6300 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • MasterPact NT/NWS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation in a switchboard or wall-mounted
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
User guide
Product Page Link
Product Data Sheet

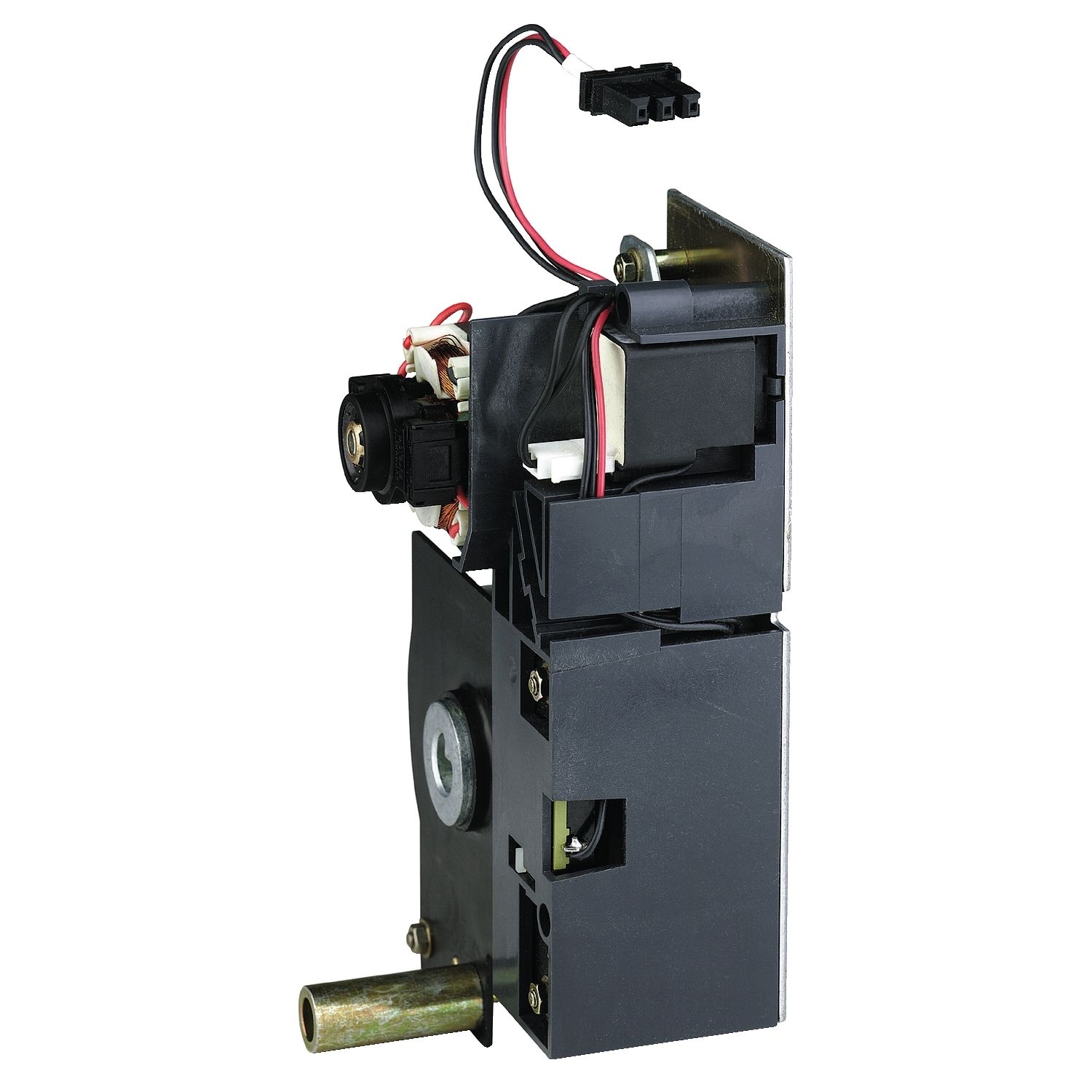

This is a motor mechanism (MCH) for MasterPact NW circuit breakers. The motor mechanism module is used to remotely open and close the circuit breaker electrically. It is made up of a spring-charging motor equipped with an opening release and a closing voltage release. The spring-mechanism charging handle is used only as a backup if auxiliary power is absent. It is equipped with a 10A limit switch contact (CH) that signals the charged position of the mechanism. The operational control voltage is 200/240 VAC 50/60 Hz. The operating threshold is between 0.85xUn and 1.1xUn. The charging time is less than 4s. The maximum operating frequency should not exceed 3 cycles per minute. It is a spare part for MasterPact NW.

Products specifications

Attribute name Attribute value
Main
Device short name gear motor MCH
Device application automatic spring charging
Range MasterPacT
Product or component type motor mechanism
Range compatibility EasyPact EasyPact MVS circuit breaker, Masterpact MasterPact NW circuit breaker
Range of product MasterPact NW
[Uc] control circuit voltage 200/240 V AC 50/60 Hz
Complementary
Maximum power consumption in VA 180 VA
Maximum operating frequency <= 3 cycles per minute
Threshold tripping voltage 0.85...1.1 Un
Accessory / separate part category spare parts for MasterPact NW
Control type motor mechanism
Maximum charging time 4 s
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 13.500 cm
Package 1 Length 23.500 cm
Package 1 Weight 1.899 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.794 kg
